remote start SKODA SUPERB 2013 2.G / (B6/3T) Owner's Manual

General Maintenance
Car care191
Service intervals
191
Services, modifications, and technical
alterations
193
Washing your car
196
Taking care of your vehicle exterior
198
Taking care of the interior
201
Inspecting and replenishing
204
Fuel
204
Engine compartment
206
Engine oil
210
Coolant
212
Brake fluid
214
Vehicle battery
215
Wheels
220
Tyres and wheel rims
220
Winter operation
226
Do-it-yourself
Emergency equipment and self-help
227
Emergency equipment
227
Changing a wheel
229
Tyre repair
232
Jump-starting
234
Towing the vehicle
236

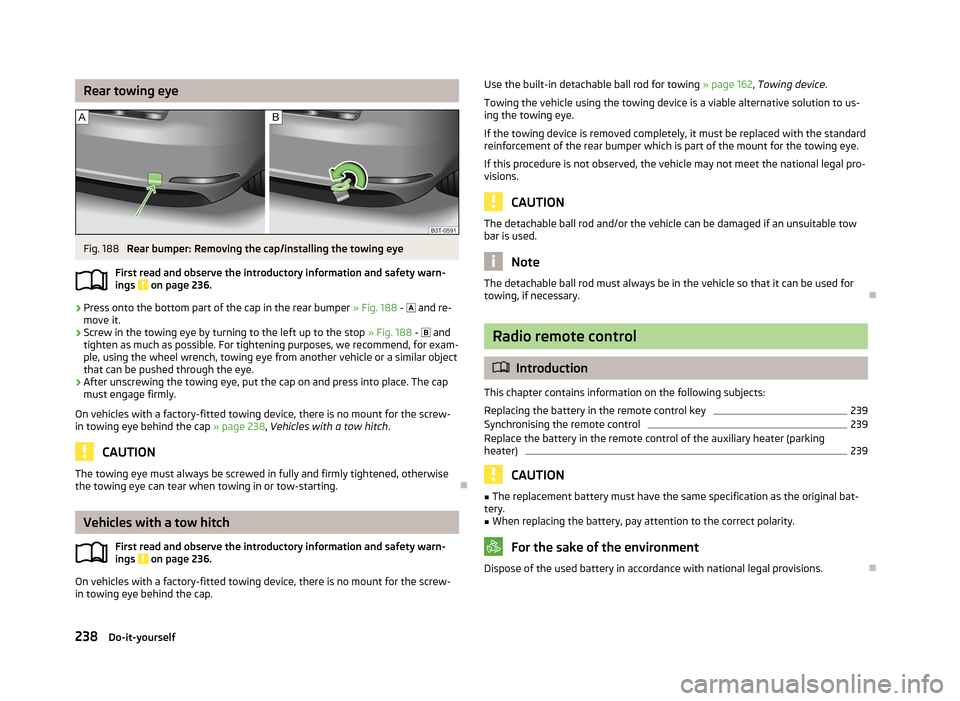

Radio remote control
238
Emergency unlocking/locking
240
Emergency operation of the sliding/tilting roof
241
Replacing windscreen wiper blades
242
Fuses and light bulbs
244
Fuses
244
Bulbs
247Technical data
Technical data252
Vehicle data
252
Index
4Table of Contents

Vehicle keyFig. 12
Remote control key
First read and observe the introductory information and safety warn-ings on page 32.
Two remote control keys are provided with the vehicle » Fig. 12.
The transmitter with the battery is housed in the handle of the remote control
key. The receiver is located in the interior of the vehicle.
The operating range of the remote control key is approx. 30 m. But this range ofthe remote control can be reduced if the batteries are weak.
The remote control key has a fold-open key bit which can be used for unlocking
and locking the car manually and also for starting the engine.
The spare key must by initialised by a specialist garage after repair or replace-
ment of the receiver unit. Only then can the remote control key be used again.
WARNING■ Always withdraw the key whenever you leave the vehicle - even if it is only
for a short time. This is particularly important if children are left in the vehicle.
Otherwise, the children might start the engine or operate electrical equipment
(e.g. power windows) – risk of injury!■
Do not withdraw the ignition key from the ignition lock until the vehicle has
come to a stop. The steering lock might otherwise engage unintentionally –
risk of accident!
CAUTION■ Each key contains electronic components; therefore it must be protected
against moisture and severe shocks.■
Keep the groove of the keys absolutely clean. Impurities (textile fibres, dust,
etc.) have a negative effect on the functionality of the locking cylinder and igni-
tion lock.
■
The battery must be replaced if the central locking or anti-theft alarm system
does react to the remote control at less than approx. 3 metres away » page 239.
Note
If you lose a key, please contact a specialist garage, who will be able to provide
you with a new one.
Unlock/lock with remote control
Fig. 13
Remote control key
First read and observe the introductory information and safety warn-
ings on page 32.
Explanation of graphic
Unlocking the vehicle
Locking the vehicle
Unlocking the boot lid
Folding out/folding up of the key bit Warning light
Unlocking
The turn signal lights flash twice as confirmation that the vehicle has been un-
locked. 
AB33Unlocking and opening

If you unlock the vehicle and do not open a door or the boot lid within the next
30 seconds, the vehicle will lock again automatically and the safelock system or
anti-theft alarm system will be switched on. This function is intended to prevent
the car being unlocked unintentionally.
The seat and mirror are adjusted after the vehicle is unlocked » page 69.
Locking
The turn signal lights flash once as confirmation that the vehicle has been locked.
If the doors or the boot lid remain open after the vehicle has been locked, the
turn signal lights do not flash until they have been closed.
The current position of the seat and mirror after the vehicle is locked » page 69.
Checking the battery condition
The battery is empty if the red warning iconB
» Fig. 13 does not flash when you
press a button on the remote control key. Replace the battery » page 239.
WARNINGIf the car is locked from the outside and the safelock system is switched on,
there must not be any person in the car as it is then not possible to open ei- ther a door or a window from the inside. The locked doors make it more diffi-
cult for rescuers to get into the vehicle in an emergency – risk to life!
CAUTION
■ Only operate the remote control when the doors and boot lid are closed and the
vehicle is in your line of sight.■
If the driver door is open, the vehicle cannot be locked using the remote control
key.
■
The operation of the remote control may temporarily be affected by signal inter-
ference from transmitters close to the car and which operate in the same fre-
quency range (e.g. mobile phone, TV transmitter).
Note
For vehicles with anti-theft alarm the acoustic signals can also be activated/deac-
tivated by locking/unlocking » page 29.

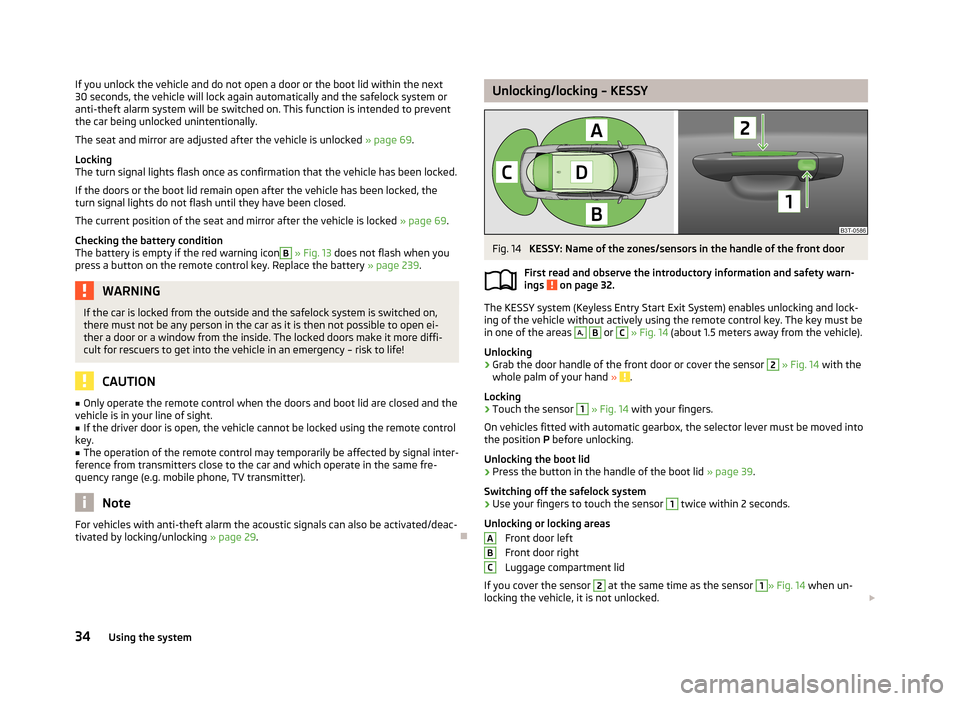

Unlocking/locking – KESSYFig. 14
KESSY: Name of the zones/sensors in the handle of the front door
First read and observe the introductory information and safety warn- ings
on page 32.
The KESSY system (Keyless Entry Start Exit System) enables unlocking and lock-
ing of the vehicle without actively using the remote control key. The key must be
in one of the areas
A,

B
or
C
» Fig. 14 (about 1.5 meters away from the vehicle).
Unlocking
›
Grab the door handle of the front door or cover the sensor
2
» Fig. 14 with the
whole palm of your hand » .
Locking
›
Touch the sensor
1
» Fig. 14 with your fingers.
On vehicles fitted with automatic gearbox, the selector lever must be moved into the position P before unlocking.
Unlocking the boot lid
›
Press the button in the handle of the boot lid » page 39.
Switching off the safelock system
›
Use your fingers to touch the sensor
1
twice within 2 seconds.
Unlocking or locking areas Front door left
Front door right
Luggage compartment lid
If you cover the sensor
2
at the same time as the sensor
1
» Fig. 14 when un-
locking the vehicle, it is not unlocked. 
ABC34Using the system

Switching off›Turn the slot of the safety lock in the opposite direction to the arrow » Fig. 16
(mirror-inverted on the right door).


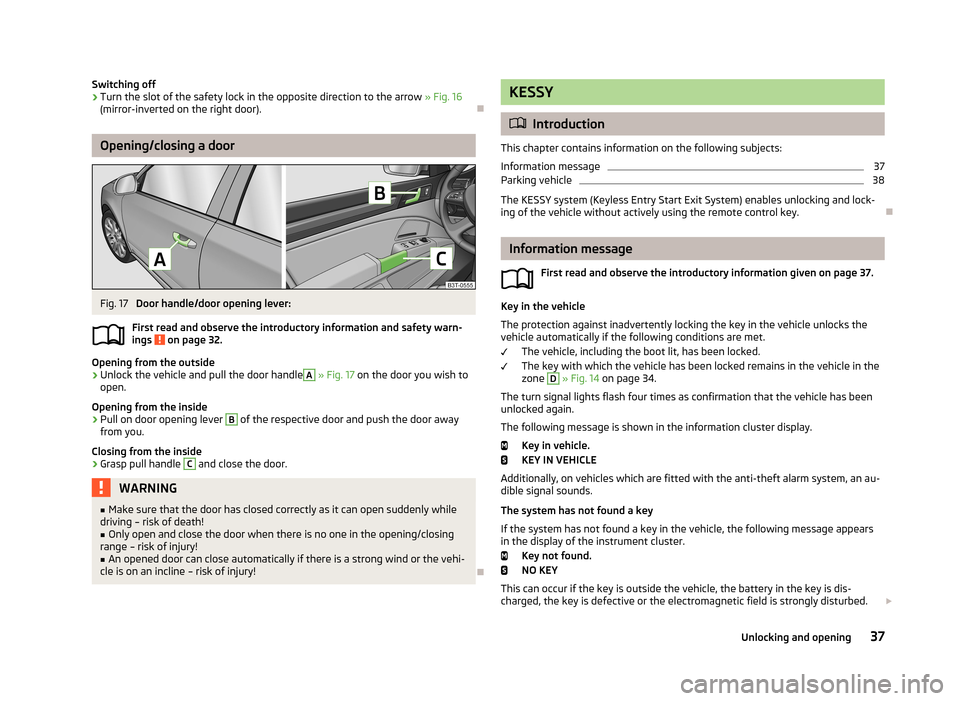

Opening/closing a door
Fig. 17
Door handle/door opening lever:
First read and observe the introductory information and safety warn- ings
on page 32.
Opening from the outside
›
Unlock the vehicle and pull the door handle
A
» Fig. 17 on the door you wish to
open.
Opening from the inside
›
Pull on door opening lever
B
of the respective door and push the door away
from you.
Closing from the inside
›
Grasp pull handle
C
and close the door.
WARNING■ Make sure that the door has closed correctly as it can open suddenly while
driving – risk of death!■
Only open and close the door when there is no one in the opening/closing
range – risk of injury!
■
An opened door can close automatically if there is a strong wind or the vehi-
cle is on an incline – risk of injury!

KESSY
 Introduction
This chapter contains information on the following subjects:
Information message
37
Parking vehicle
38
The KESSY system (Keyless Entry Start Exit System) enables unlocking and lock-
ing of the vehicle without actively using the remote control key.

Information message
First read and observe the introductory information given on page 37.
Key in the vehicle
The protection against inadvertently locking the key in the vehicle unlocks the vehicle automatically if the following conditions are met.
The vehicle, including the boot lit, has been locked.The key with which the vehicle has been locked remains in the vehicle in the
zone
D
» Fig. 14 on page 34.
The turn signal lights flash four times as confirmation that the vehicle has been
unlocked again.
The following message is shown in the information cluster display. Key in vehicle.
KEY IN VEHICLE
Additionally, on vehicles which are fitted with the anti-theft alarm system, an au-
dible signal sounds.
The system has not found a key
If the system has not found a key in the vehicle, the following message appears in the display of the instrument cluster.
Key not found.
NO KEY
This can occur if the key is outside the vehicle, the battery in the key is dis-
charged, the key is defective or the electromagnetic field is strongly disturbed. 
37Unlocking and opening

WARNING■Ensure that the lock is properly engaged after closing the boot lid. Other-
wise, the boot lid might open suddenly while the vehicle is moving, even it
was locked – risk of accident!■
Never drive with the boot lid open or ajar, as otherwise exhaust gases may
get into the interior of the vehicle – risk of poisoning!
■
Do not press on the rear window when closing the luggage compartment lid,
as otherwise this could crack – risk of injury!
CAUTION
■ If the vehicle was locked before the boot lid was closed, the lid is immediately
locked automatically when closed.■
Do not press on the rear window when closing the tailgate, it could crack.
Note
■ The function of the button in the grip above the licence plate is deactivated
when starting off or at a speed of 5 km/hour or more for vehicles with central
locking. The function is restored after the vehicle stops and the door is opened.■
Repeated opening and closing of the boot lid can lead to a temporary failure of
the function due to the overheating protection of the motors of the Twindoor
system.

Twindoor - open/close small boot lid
Fig. 19
Handle of boot lid/opened small boot lid
First read and observe the introductory information and safety warn- ings on page 39.
After unlocking, the boot lid can be opened with the button in the handle above
the number plate.
Opening
›
Press the button in the handle at the lower edge of the boot lid
1
» Fig. 19 and
lift the boot lid.
Closing
›
Pull down and strike the lid with the handle
2
» Fig. 19 .
The small boot lid can also be opened by pressing the symbol  on the remote
control key » page 33 .

TwinDoor - open / close large boot
Fig. 20
Handle of boot lid/opened large boot lid
First read and observe the introductory information and safety warn- ings
on page 39.
After unlocking, the boot lid can be opened with the button in the handle abovethe number plate.
Opening
›
Press the button in the handle at the lower edge of the tailgate
1
» Fig. 20 .
›
Wait until the brake light
2
in the rear window flashes twice and then lift the
lid.
Closing
›
Pull down and strike the lid with the handle
3
» Fig. 20 .

40Using the system

Switching on/offFig. 109
Button for switching on/off the system directly on the operating
part of the air conditioning/Climatronic
First read and observe the introductory information and safety warn-ings
on page 107.
The auxiliary heating (aux. heating) can be switched on/off as follows.
Manually switching on using the button on the operating part of the manual air conditioning/Clima-
tronic. The warning light in the button lights up » Fig. 109;
by using the radio remote control » page 109.
Manually switching off
using the button on the operating part of the manual air conditioning/Clima-
tronic. The warning light in the button goes out » Fig. 109;
by using the radio remote control » page 109.
After switching off the auxiliary heating, the coolant pump runs for a short period.
Automatic switching on/off
The following menu items can be selected from the Aux. heating menu item in
the information display » page 28 (depending on the vehicle equipment):
■ Day of the week - set the current day of the week;
■ Running time - Set the required running time in 5 minute increments. The run-
ning time can be 10 to 60 minutes.
■ Mode - Set the desired heating/ventilation mode;
■
Starting time 1 , Starting time 2 , Starting time 3 - for each pre-set time, the day
and the time (hour and minute) can be set for switching on the auxiliary heating
and ventilation. An empty position can be found between Sunday and Monday
when selecting the day. If this empty position is selected, the activation is per-
formed without taking into account the day.
■ Activate - Activate pre-set mode;
■ Deactivate - Deactivate pre-set mode;
■ Factory setting - Restore factory setting;
■ Back - Return to main menu
Only one programmed pre-set time can be active.
The last programmed pre-set time remains active.
After the auxiliary heating (aux. heating) automatically activates at the set time, it is necessary to pre-set a time again.
If the menu item Back is selected or no changes are made on the display for lon-
ger than 10 seconds, the set values are stored, but the pre-set time is not activa-
ted.
The system switches itself off at the end of the running time set under the menu item Running time .
Note
An indicator light on the button  » Fig. 109 is illuminated when the system is
running.
108Using the system

Rear towing eyeFig. 188
Rear bumper: Removing the cap/installing the towing eye
First read and observe the introductory information and safety warn- ings
on page 236.
›
Press onto the bottom part of the cap in the rear bumper » Fig. 188 - 
and re-
move it.
›
Screw in the towing eye by turning to the left up to the stop » Fig. 188 - 
and
tighten as much as possible. For tightening purposes, we recommend, for exam-
ple, using the wheel wrench, towing eye from another vehicle or a similar object
that can be pushed through the eye.
›
After unscrewing the towing eye, put the cap on and press into place. The cap must engage firmly.
On vehicles with a factory-fitted towing device, there is no mount for the screw-
in towing eye behind the cap » page 238, Vehicles with a tow hitch .
CAUTION
The towing eye must always be screwed in fully and firmly tightened, otherwise
the towing eye can tear when towing in or tow-starting.
Vehicles with a tow hitch
First read and observe the introductory information and safety warn-
ings
on page 236.
On vehicles with a factory-fitted towing device, there is no mount for the screw-
in towing eye behind the cap.
Use the built-in detachable ball rod for towing » page 162, Towing device .
Towing the vehicle using the towing device is a viable alternative solution to us-
ing the towing eye.
If the towing device is removed completely, it must be replaced with the standard
reinforcement of the rear bumper which is part of the mount for the towing eye.
If this procedure is not observed, the vehicle may not meet the national legal pro- visions.
CAUTION
The detachable ball rod and/or the vehicle can be damaged if an unsuitable towbar is used.
Note
The detachable ball rod must always be in the vehicle so that it can be used for
towing, if necessary.
Radio remote control
 Introduction
This chapter contains information on the following subjects:
Replacing the battery in the remote control key
239
Synchronising the remote control
239
Replace the battery in the remote control of the auxiliary heater (parking
heater)
239
CAUTION
■ The replacement battery must have the same specification as the original bat-
tery.■
When replacing the battery, pay attention to the correct polarity.
For the sake of the environment
Dispose of the used battery in accordance with national legal provisions.
238Do-it-yourself

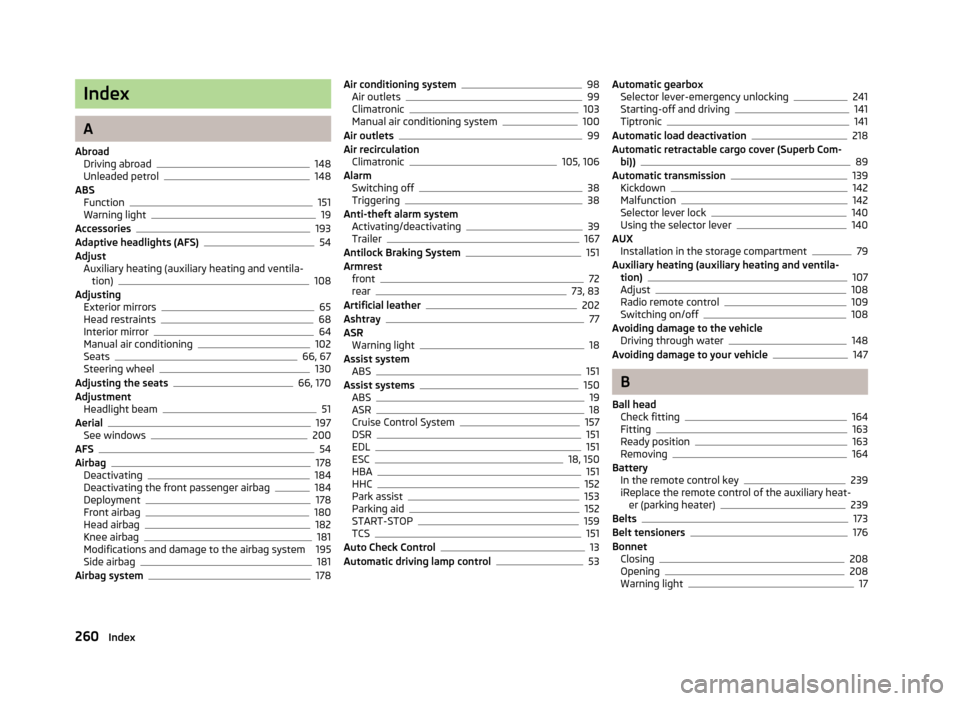

Index
A
Abroad Driving abroad
148
Unleaded petrol148
ABS Function
151
Warning light19
Accessories193
Adaptive headlights (AFS)54
Adjust Auxiliary heating (auxiliary heating and ventila-
tion)
108
Adjusting Exterior mirrors
65
Head restraints68
Interior mirror64
Manual air conditioning102
Seats66, 67
Steering wheel130
Adjusting the seats66, 170
Adjustment Headlight beam
51
Aerial197
See windows200
AFS54
Airbag178
Deactivating184
Deactivating the front passenger airbag184
Deployment178
Front airbag180
Head airbag182
Knee airbag181
Modifications and damage to the airbag system 195 Side airbag
181
Airbag system178
Air conditioning system98
Air outlets99
Climatronic103
Manual air conditioning system100
Air outlets99
Air recirculation Climatronic
105, 106
Alarm Switching off
38
Triggering38
Anti-theft alarm system Activating/deactivating
39
Trailer167
Antilock Braking System151
Armrest front
72
rear73, 83
Artificial leather202
Ashtray77
ASR Warning light
18
Assist system ABS
151
Assist systems150
ABS19
ASR18
Cruise Control System157
DSR151
EDL151
ESC18, 150
HBA151
HHC152
Park assist153
Parking aid152
START-STOP159
TCS151
Auto Check Control13
Automatic driving lamp control53
Automatic gearbox Selector lever-emergency unlocking241
Starting-off and driving141
Tiptronic141
Automatic load deactivation218
Automatic retractable cargo cover (Superb Com- bi))
89
Automatic transmission139
Kickdown142
Malfunction142
Selector lever lock140
Using the selector lever140
AUX Installation in the storage compartment
79
Auxiliary heating (auxiliary heating and ventila- tion)
107
Adjust108
Radio remote control109
Switching on/off108
Avoiding damage to the vehicle Driving through water
148
Avoiding damage to your vehicle147
B
Ball head Check fitting
164
Fitting163
Ready position163
Removing164
Battery In the remote control key
239
iReplace the remote control of the auxiliary heat-
er (parking heater)
239
Belts173
Belt tensioners176
Bonnet Closing
208
Opening208
Warning light17
260Index

Jump-starting234, 235
K
KESSY Information message
37
lock37
Lock / unlock the steering134
Starting the engine135
Switching off the engine136
Switching off the ignition136
Switching on the ignition135
unlock37
Key Starting the engine
132
Stopping the engine133
Knee airbag181
L
LEAVING HOME
55
Lever Main beam
53
Turn signal53
Windscreen wipers62
Licht COMING HOME / LEAVING HOME
55
Light Cockpit
57
Replacing bulbs247
Travel mode54
Light bulbs Rear light (Superb Combi)
251
Lighting Luggage compartment
84
Lights51
Adaptive headlights (AFS)54
Automatic driving lamp control53
Daylight running52
Fog lights55
Fog lights with the CORNER function55
Hazard warning light system56
Headlight beam adjustment51
Headlight flasher53
Instrument lighting51
Low beam lights51
Main beam53
Parking lights51, 57
Rear fog light55
Switching on and off51
Tourist lights54
Turn signal53
Warning lights14
Loads252
Lock Remote control
33
Vehicle key33
Locking Individual settings
35
KESSY34
Locking and unlocking the vehicle from the inside 36
Long-cargo channel
83
Low beam lights51
Luggage compartment84
Cover88
Emergency unlocking241
Fastening elements86
Fix floor covering87
Fixing nets86
Lighting84
Luggage net87
see boot lid40
Side pockets89
Unlocking the tailgate241
Variable loading floor92
Luggage compartment cover88
Luggage compartment lid39
Luggage net87
M
Main beam
53
Maintenance146
Decorative films199
Manual air conditioning adjusting
102
Recirculated air mode102
Manual gear changing see gear changing
138
Manually setting air conditioning Control elements
100
Materials defect liability5
MAXI DOT Main menu
28
see MAXI DOT display28
Settings29
MAXI DOT display28
MDI Installation in the storage compartment
79
MFA see multifunction display
25
Mirror Exterior mirrors
65
Mirrors Interior mirror
64
Vanity60
Mobile phone110, 113, 115
Connecting to the hands-free system113, 116
Modes of the automatic transmission140
Modifications193
Modifications and technical alterations Airbags
195
Service194
Spoiler195
Multifunction display Functions
25
Memory26
Multimedia126
AUX127
MDI127
264Index

Fuses in the dash panel244
Fuses in the engine compartment246
Low beam bulb249
Wiper blades243
Replenishing Coolant
214
Engine oil212
Windscreen washer fluid209
Roof luggage rack Attachment points
97
Roof rack system96
Roof load97
Running-in The first 1500 km
142
Running in Brake pads
143
Engine142
Tyres143
S
Safe securing system
35
Safety169
Child safety186
Child safety seats186
Correct seated position170
Head restraints68
ISOFIX189
TOP TETHER190
Saving electrical energy143
Screens see Sun screen in the rear doors
61
Seals Taking care of your vehicle
199
Seat belt warning light
15
Seat belt height adjuster176
Seat belts173
Belt tensioners176
Cleaning203
fastening and unfastening175
Height adjustment176
Inertia reels176
The physical principle of a frontal collision174
Seat features70
Seats Armrest rear
73
Armtest, front72
Convenience features of passenger seat72
Electric adjustment67
Head restraints68
Heating70
Manually adjusting67
save69
Seat backrests73
Storing in memory of remote control key69
Ventilated front seats71
Seats and useful equipment66
Adjusting the seats66
see automatic gearbox Manual shifting of gears on the multifunction steering wheel
141
Selector lever see Using the selector lever
140
Service194
Service display30
Service intervals191
Setting the clock Clock
13
Shelves74
Shift Information on the selected gear
24
Recommended gear24
Shifting gears Driving and saving energy
144
Side airbag181
Side compartment in boot with battery90
Side compartments in the luggage compartment89
ski bag84
Sliding/tilting roof Close (Superb Combi)49
Closing47
Closing the sun screen (Superb Combi)49
Electric sliding/tilting roof47
Emergency operation242
Opening/closing the sun screen (Superb Combi)49
Opening and tilting47
Opening and tilting (Superb Combi)49
Operation47
Operation (Superb Combi)49
Snow chains226
Spare wheel224
Speedometer11
Speed symbol See Wheels
223
Spoiler195
START-STOP159
Manually activating/deactivating the system160
Operating conditions of the system160
Starting/shutting down the engine159
Starting and stopping the engine - KESSY133
Starting and stopping the engine using the key131
Starting engine Jump-starting
234
Starting the engine Jump-starting
235
Key132
see KESSY135
START STOP Information messages
161
Jump-starting236
Steering force assistance131
Steering lock / unlock see KESSY
134
Steering wheel130
Stopping the engine Key
133
Storage compartment in rear centre console82
Storage compartment on the passenger side80
266Index
