Page 18 of 274
Windscreen washer fluid level21 Pads21
Turn signal system
21
Low beam
22
Fog lights
22
Cruise control system
22
Selector lever lock/starting (KESSY system)
22
Main beam
22
The indicator lights show certain functions/faults and may be accompanied by au-
dible signals.
WARNING■ If illuminated indicator lights and the corresponding descriptions and warn-
ing notes are not observed, this may result in severe injuries or major vehicle
damage.■
The engine compartment of your car is a hazardous area. There is a risk of
injuries, scalding, accidents and fire when working in the engine compart-
ment, e.g. inspecting and replenishing oil and other fluids. It is essential to ob-
serve safety notes » page 206, Engine compartment .
Handbrake
First read and observe the introductory information and safety warn-
ings
on page 14.
The indicator light
comes on if the handbrake is applied. An audible warning is
also given if you drive the vehicle for at least 3 seconds at a speed of more than
6 km/h.
The following message is shown in the MAXI DOT display. Release parking brake!
Brake system
First read and observe the introductory information and safety warn-
ings
on page 14.
The indicator light illuminates if the brake fluid level in the braking system is
too low or there is a fault in the ABS.
The following message is shown in the MAXI DOT display. Brake fluid: Log book!
Stop the vehicle, switch off the engine, and check the level of the brake flu-
id » page 214 »
.
WARNING■
If you have to stop for technical reasons, then park the vehicle at a safe dis-
tance from the traffic, switch off the engine and activate the hazard warning
light system » page 56.■
The following guidelines should be observed when opening the bonnet and
checking the brake fluid level » page 206, Engine compartment .
■
If the warning light is displayed simultaneously with warning light
» page 19 , Antilock brake system (ABS) , do not continue your jour-
ney! Seek help from a specialist garage.
■
A fault to the ABS system or the braking system can increase the vehicle's
braking distance – risk of accident!
Seat belt warning light
First read and observe the introductory information and safety warn-ings
on page 14.
The indicator light
comes on after the ignition is switched on as a reminder for
the driver and front passenger to fasten the seat belt. The indicator light only
goes out if the driver or front passenger has fastened his seat belt.
If the seat belt has not been fastened by the driver or front passenger, a perma-
nent warning signal sounds at vehicle speeds greater than 20 km/h and simulta- neously the indicator light
flashes.
If the seat belt is not fastened by the driver or front passenger during the next
90 seconds, the warning signal is deactivated and the indicator light
lights up
permanently.
15Instruments and Indicator Lights
Page 24 of 274
Airbag systemFirst read and observe the introductory information and safety warn-ings
on page 14.
If the indicator light lights up, there is a fault in the airbag system.
The following message is shown in the MAXI DOT display. Error: Airbag
The functionality of the airbag system is monitored electronically even if one of
the airbags is switched off.
If a front, side or head airbag or belt tensioner has been switched off using the
vehicle system tester:
› The indicator light
lights up for around 4 seconds after the ignition is switch-
ed on and then flashes for around 12 seconds.
The following message is shown in the MAXI DOT display. Airbag/belt tensioner deactivated.
If the air bag was switched off using the key-operated switch on the side of the
dash panel on the passenger side:
› The indicator light
comes on for around 4 seconds after the ignition has been
switched on.
› The deactivated air bag is indicated by the illumination of the warning
light » page 184
in the middle of the dash panel .
WARNINGIf there is a fault, have the airbag system checked immediately by a specialist
garage. Otherwise, there is a risk of the airbag not being activated in the
event of an accident.
Tyre pressure
First read and observe the introductory information and safety warn-
ings
on page 14.
The indicator light
lights up, if there is a substantial drop in inflation pressure
in one of the tyres. Check and adjust the pressure in all tyres » page 221, Service
life of tyres .
If the indicator light lights up, there is a fault in the system.
Seek help from a specialist garage.
Further information » page 223, Tyre pressure monitor .
Note
If the battery has been disconnected, the indicator light illuminates after the
ignition is switched on. The indicator light must go out after driving a short dis-
tance.
Windscreen washer fluid level
First read and observe the introductory information and safety warn-ings
on page 14.
If the windscreen washer fluid level is too low, the indicator light
comes on.
The following message is shown in the MAXI DOT display. Top up wash fluid!
Top up with liquid » page 209, Windscreen washer system .
Pads
First read and observe the introductory information and safety warn-
ings
on page 14.
If the indicator light
is slit, the brake pads are worn.
The following message is shown in the MAXI DOT display. Check brake wear!
Seek help from a specialist garage.
Turn signal system
First read and observe the introductory information and safety warn-ings
on page 14.
Either the left
or right
indicator light flashes depending on the position of
the turn signal lever.
21Instruments and Indicator Lights
Page 64 of 274

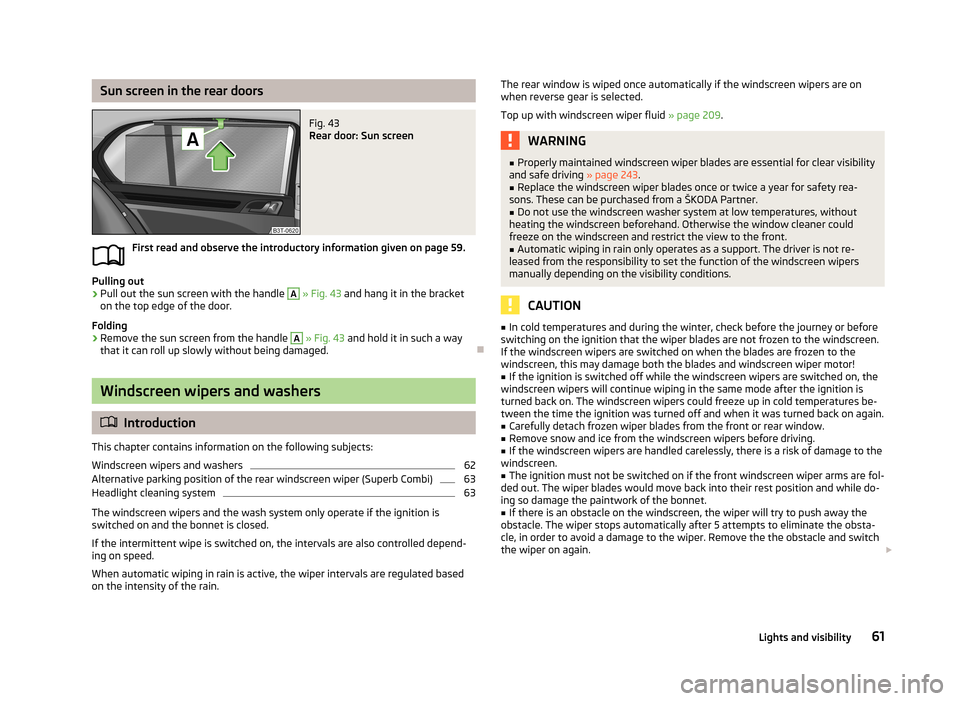

Sun screen in the rear doorsFig. 43
Rear door: Sun screen
First read and observe the introductory information given on page 59.
Pulling out
›
Pull out the sun screen with the handle
A
» Fig. 43 and hang it in the bracket
on the top edge of the door.
Folding
›
Remove the sun screen from the handle
A
» Fig. 43 and hold it in such a way
that it can roll up slowly without being damaged.
Windscreen wipers and washers
Introduction
This chapter contains information on the following subjects:
Windscreen wipers and washers
62
Alternative parking position of the rear windscreen wiper (Superb Combi)
63
Headlight cleaning system
63
The windscreen wipers and the wash system only operate if the ignition is
switched on and the bonnet is closed.
If the intermittent wipe is switched on, the intervals are also controlled depend-
ing on speed.
When automatic wiping in rain is active, the wiper intervals are regulated based
on the intensity of the rain.
The rear window is wiped once automatically if the windscreen wipers are on
when reverse gear is selected.
Top up with windscreen wiper fluid » page 209.WARNING■
Properly maintained windscreen wiper blades are essential for clear visibility
and safe driving » page 243.■
Replace the windscreen wiper blades once or twice a year for safety rea-
sons. These can be purchased from a ŠKODA Partner.
■
Do not use the windscreen washer system at low temperatures, without
heating the windscreen beforehand. Otherwise the window cleaner could
freeze on the windscreen and restrict the view to the front.
■
Automatic wiping in rain only operates as a support. The driver is not re-
leased from the responsibility to set the function of the windscreen wipers
manually depending on the visibility conditions.
CAUTION
■ In cold temperatures and during the winter, check before the journey or before
switching on the ignition that the wiper blades are not frozen to the windscreen. If the windscreen wipers are switched on when the blades are frozen to the
windscreen, this may damage both the blades and windscreen wiper motor!■
If the ignition is switched off while the windscreen wipers are switched on, the
windscreen wipers will continue wiping in the same mode after the ignition is
turned back on. The windscreen wipers could freeze up in cold temperatures be- tween the time the ignition was turned off and when it was turned back on again.
■
Carefully detach frozen wiper blades from the front or rear window.
■
Remove snow and ice from the windscreen wipers before driving.
■
If the windscreen wipers are handled carelessly, there is a risk of damage to the
windscreen.
■
The ignition must not be switched on if the front windscreen wiper arms are fol-
ded out. The wiper blades would move back into their rest position and while do-
ing so damage the paintwork of the bonnet.
■
If there is an obstacle on the windscreen, the wiper will try to push away the
obstacle. The wiper stops automatically after 5 attempts to eliminate the obsta-
cle, in order to avoid a damage to the wiper. Remove the the obstacle and switch
the wiper on again.
61Lights and visibility
Page 66 of 274

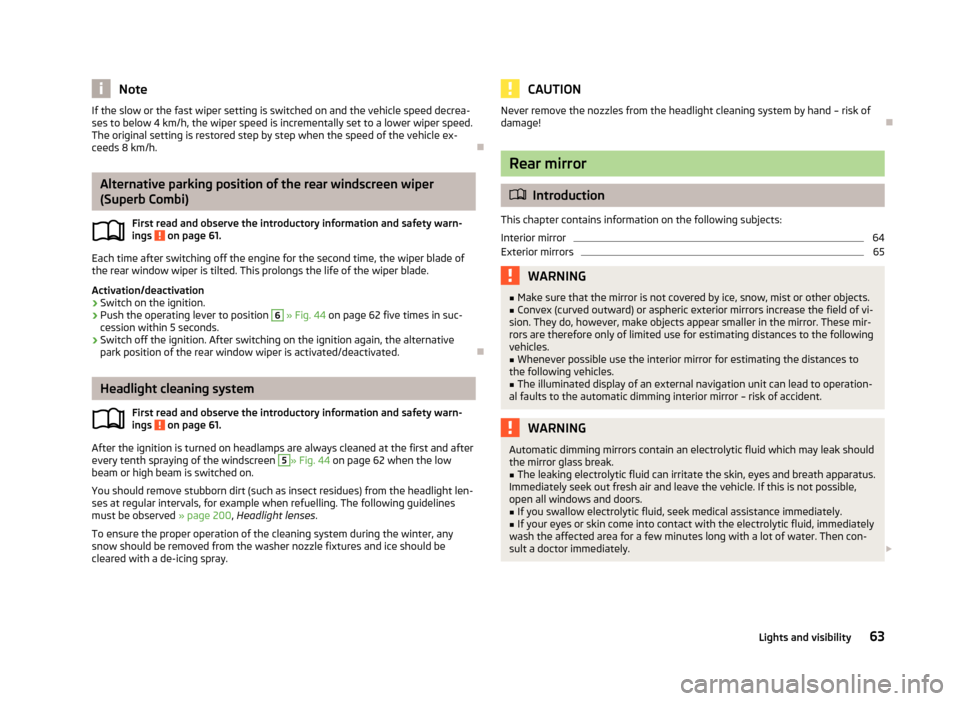

NoteIf the slow or the fast wiper setting is switched on and the vehicle speed decrea-
ses to below 4 km/h, the wiper speed is incrementally set to a lower wiper speed.
The original setting is restored step by step when the speed of the vehicle ex-
ceeds 8 km/h.
Alternative parking position of the rear windscreen wiper
(Superb Combi)
First read and observe the introductory information and safety warn-ings
on page 61.
Each time after switching off the engine for the second time, the wiper blade of
the rear window wiper is tilted. This prolongs the life of the wiper blade.
Activation/deactivation
›
Switch on the ignition.
›
Push the operating lever to position
6
» Fig. 44 on page 62 five times in suc-
cession within 5 seconds.
›
Switch off the ignition. After switching on the ignition again, the alternative park position of the rear window wiper is activated/deactivated.
Headlight cleaning system
First read and observe the introductory information and safety warn-
ings
on page 61.
After the ignition is turned on headlamps are always cleaned at the first and after
every tenth spraying of the windscreen
5
» Fig. 44 on page 62 when the low
beam or high beam is switched on.
You should remove stubborn dirt (such as insect residues) from the headlight len-
ses at regular intervals, for example when refuelling. The following guidelines
must be observed » page 200, Headlight lenses .
To ensure the proper operation of the cleaning system during the winter, any snow should be removed from the washer nozzle fixtures and ice should be
cleared with a de-icing spray.
CAUTIONNever remove the nozzles from the headlight cleaning system by hand – risk of
damage!
Rear mirror
Introduction
This chapter contains information on the following subjects:
Interior mirror
64
Exterior mirrors
65WARNING■ Make sure that the mirror is not covered by ice, snow, mist or other objects.■Convex (curved outward) or aspheric exterior mirrors increase the field of vi-
sion. They do, however, make objects appear smaller in the mirror. These mir-
rors are therefore only of limited use for estimating distances to the following
vehicles.■
Whenever possible use the interior mirror for estimating the distances to
the following vehicles.
■
The illuminated display of an external navigation unit can lead to operation-
al faults to the automatic dimming interior mirror – risk of accident.
WARNINGAutomatic dimming mirrors contain an electrolytic fluid which may leak should
the mirror glass break.■
The leaking electrolytic fluid can irritate the skin, eyes and breath apparatus.
Immediately seek out fresh air and leave the vehicle. If this is not possible,
open all windows and doors.
■
If you swallow electrolytic fluid, seek medical assistance immediately.
■
If your eyes or skin come into contact with the electrolytic fluid, immediately
wash the affected area for a few minutes long with a lot of water. Then con-
sult a doctor immediately.
63Lights and visibility
Page 212 of 274
Engine compartment overviewFig. 162
Principle sketch: Engine compartment
First read and observe the introductory information and safety warn- ings
on page 206.
Coolant expansion reservoir
213
Windscreen washer fluid reservoir
209
Engine oil filler opening
212
Engine oil dipstick
211
Brake fluid reservoir
214
Battery (below a cover)
215
Note
The location of the inspection points in the engine compartment of petrol and
diesel engines is practically identical.
123456Radiator fan
First read and observe the introductory information and safety warn-
ings
on page 206.
The radiator fan is powered by an electric motor. Operation is controlled accord-
ing to the temperature of the coolant.
WARNINGAfter switching off the ignition, the fan may intermittently continue to oper-
ate for approx. 10 minutes.
Windscreen washer system
Fig. 163
Engine compartment: Wind-
screen washer fluid reservoir
First read and observe the introductory information and safety warn- ings on page 206.
The windscreen washer fluid reservoir is located in the engine compartment and
contains the cleaning fluid for the windscreen or rear window and for the adap-
tive headlights.
The filling level of the container is about 3 litres and about 5.5 litres on vehicles
that have a headlight washing system 1)
.
Clear water is not sufficient to intensively clean the windscreen and headlights. We recommend using clean water together with a screen cleaner from the range
of ŠKODA Original Accessories (with antifreeze in winter), which will remove any
stubborn dirt.
1)
In some countries, 5.5 ltr. applies for both variants.
209Inspecting and replenishing
Page 213 of 274
In Winter, the washing water should always be mixed with antifreeze even if the
vehicle has heated windscreen washer nozzles.
Under exceptional circumstances, methylated spirits can also be used if no screen
cleaner with antifreeze is available. The concentration of methylated spirits must
not be more than 15 %. The freeze protection at this concentration is sufficient
only to -5 °C.
CAUTION
■ Under no circumstances must radiator antifreeze or other additives be added to
the windscreen washer fluid.■
If the vehicle is fitted with a headlight cleaning system, only cleaning products
which do not attack the polycarbonate coating of the headlights must be added
to the windscreen washer fluid.
■
Do not remove the filter from the windscreen washer fluid reservoir when refill-
ing, as this may cause contamination of the liquid transportation system, leading
in turn to a windscreen washer system malfunction.
Engine oil
Introduction
This chapter contains information on the following subjects:
Specifications and capacity
210
Checking the oil level
211
Replenishing
212
Changing
212
The engine has been factory-filled with a high-grade oil that can be use through-
out the year - except in extreme climate zones.
The engine oils are undergoing continuous further development. Thus the infor-
mation stated in this Owner's Manual is only correct at the time of publication.
ŠKODA Service Partners are informed about the latest changes by the manufac-
turer. We therefore recommend that the oil change be completed by a ŠKODA
Service Partner.
The specifications (VW standards) stated in the following can be indicated sepa-
rately or together with other specifications on the bottle.
The oil capacities include oil filter change. Check the oil level when filling; do not
over fill. The oil level must be between the markings » page 211.WARNING■
The engine compartment of your car is a hazardous area. The following
warning instructions must be followed at all times when working in the en-
gine compartment » page 206.■
Do not continue your journey if for some reason it is not possible to top up
the engine oil . Switch off the engine and seek assistance from a specialist
garage.
■
If the oil level is above level
A
» Fig. 164 on page 211, do not continue to
drive! Switch off the engine and seek assistance from a specialist garage.
CAUTION
Do not pour any additives into the engine oil – risk of serious damage to the en-
gine parts!
Note
■ Before a long drive we recommend that you purchase and carry with you engine
oil which complies with the specification for your vehicle.■
We recommend that you use oils from ŠKODA Original Accessories.
■
If your skin has come into contact with oil, it must be washed thoroughly.
Specifications and capacity
First read and observe the introductory information and safety warn-
ings
on page 210.
Specifications and capacity (in l) for vehicles with flexible service intervals
Petrol enginesSpecificationFilling level1.4 ltr./92 kW TSIVW 503 00, VW 504 003.61.8 ltr/112 kW TSI
1.8 ltr/118 kW TSIVW 504 004.62.0 l/147 kW TSIVW 504 004.63.6 l/191 kW FSIVW 504 005.5 210General Maintenance
Page 264 of 274
BootAutomatic retraction (Superb Combi)89
Class N1 vehicles85
Extending variable loading floor92
Folding hook86
Non-closable side pocket (Superb Combi)90
Removable Light (Superb Combi)91
Roll-up boot cover (Superb Combi)88
Side compartment with battery90
Boot cover (Superb Combi)88
Boot lid40
Automatic locking41
Warning light17
(Superb Combi)41
Brake booster138
Brake fluid214
Changing215
Checking214
display messaes15
Brake pads warning light
21
Brakes Brake assist systems
150
Brake booster138
Brake fluid214
Handbrake138
Indicator light15
Running in143
Braking Information on braking
137
Breakdown kit233
Break recommendation See Fatigue detection
161
Bulbs Replacing
247
Button in the driver's door Electric power windows
44
C
Car care
191
Car computer see multifunction display25
Car park ticket holder75
Carrier96
Cavity protection200
CD changer128
Central locking button36
Changing Brake fluid
215
Engine oil212
Wheels229
Changing a wheel Follow-up work
230
Preliminary work229
Remove and attaching a wheel230
Charging a vehicle battery217
Check Fit ball head properly
164
Checking Battery electrolyte level
217
Brake fluid214
Coolant213
Engine oil211
Oil level211
Windscreen washer fluid209
Children and safety186
Child safety Side airbag
187
Child safety lock36
Child seat Classification
188
ISOFIX189
on the front passenger seat187
TOP TETHER190
Use of child seats188
Use of ISOFIX child seats189
Chrome parts refer to Taking care of your vehicle
199
Cigarette lighter77
Cleaning191
Alcantara202
Artificial leather202
cloths202
Covers of electrically heated seats203
Headlight lenses200
Natural leather202
Plastic parts199
Wheels201
Climatronic103
Air recirculation105, 106
automatic mode104
Control elements103
Controlling blower106
Cooling system104
Defrosting windscreen106
Setting the temperature104
Clock13
Clothes hook81
Cockpit 12-Volt power outlet
78
Ashtray77
Cigarette lighter77
General view9
Lighting57
Practical equipment74
Storage compartments74
COMING HOME55
Compartments74
Compass display25
Computer see multifunction display
25
Convenience operation of sliding/tilting roof48
Convenience operation of sliding/tilting roof (Su- perb Combi)
50
Coolant212
Checking213
display messaes16
Replenishing214
Coolant temperature gauge display
11
261Index
Page 269 of 274
Fuses in the dash panel244
Fuses in the engine compartment246
Low beam bulb249
Wiper blades243
Replenishing Coolant
214
Engine oil212
Windscreen washer fluid209
Roof luggage rack Attachment points
97
Roof rack system96
Roof load97
Running-in The first 1500 km
142
Running in Brake pads
143
Engine142
Tyres143
S
Safe securing system
35
Safety169
Child safety186
Child safety seats186
Correct seated position170
Head restraints68
ISOFIX189
TOP TETHER190
Saving electrical energy143
Screens see Sun screen in the rear doors
61
Seals Taking care of your vehicle
199
Seat belt warning light
15
Seat belt height adjuster176
Seat belts173
Belt tensioners176
Cleaning203
fastening and unfastening175
Height adjustment176
Inertia reels176
The physical principle of a frontal collision174
Seat features70
Seats Armrest rear
73
Armtest, front72
Convenience features of passenger seat72
Electric adjustment67
Head restraints68
Heating70
Manually adjusting67
save69
Seat backrests73
Storing in memory of remote control key69
Ventilated front seats71
Seats and useful equipment66
Adjusting the seats66
see automatic gearbox Manual shifting of gears on the multifunction steering wheel
141
Selector lever see Using the selector lever
140
Service194
Service display30
Service intervals191
Setting the clock Clock
13
Shelves74
Shift Information on the selected gear
24
Recommended gear24
Shifting gears Driving and saving energy
144
Side airbag181
Side compartment in boot with battery90
Side compartments in the luggage compartment89
ski bag84
Sliding/tilting roof Close (Superb Combi)49
Closing47
Closing the sun screen (Superb Combi)49
Electric sliding/tilting roof47
Emergency operation242
Opening/closing the sun screen (Superb Combi)49
Opening and tilting47
Opening and tilting (Superb Combi)49
Operation47
Operation (Superb Combi)49
Snow chains226
Spare wheel224
Speedometer11
Speed symbol See Wheels
223
Spoiler195
START-STOP159
Manually activating/deactivating the system160
Operating conditions of the system160
Starting/shutting down the engine159
Starting and stopping the engine - KESSY133
Starting and stopping the engine using the key131
Starting engine Jump-starting
234
Starting the engine Jump-starting
235
Key132
see KESSY135
START STOP Information messages
161
Jump-starting236
Steering force assistance131
Steering lock / unlock see KESSY
134
Steering wheel130
Stopping the engine Key
133
Storage compartment in rear centre console82
Storage compartment on the passenger side80
266Index
Page 271 of 274

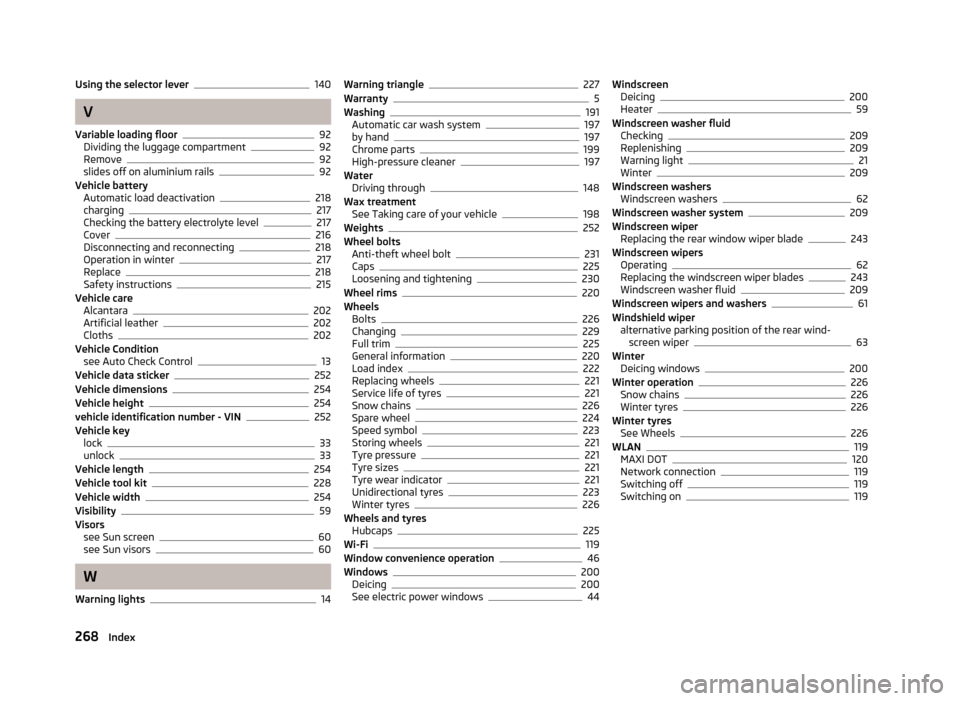

Using the selector lever140
V
Variable loading floor
92
Dividing the luggage compartment92
Remove92
slides off on aluminium rails92
Vehicle battery Automatic load deactivation
218
charging217
Checking the battery electrolyte level217
Cover216
Disconnecting and reconnecting218
Operation in winter217
Replace218
Safety instructions215
Vehicle care Alcantara
202
Artificial leather202
Cloths202
Vehicle Condition see Auto Check Control
13
Vehicle data sticker252
Vehicle dimensions254
Vehicle height254
vehicle identification number - VIN252
Vehicle key lock
33
unlock33
Vehicle length254
Vehicle tool kit228
Vehicle width254
Visibility59
Visors see Sun screen
60
see Sun visors60
W
Warning lights
14
Warning triangle227
Warranty5
Washing191
Automatic car wash system197
by hand197
Chrome parts199
High-pressure cleaner197
Water Driving through
148
Wax treatment See Taking care of your vehicle
198
Weights252
Wheel bolts Anti-theft wheel bolt
231
Caps225
Loosening and tightening230
Wheel rims220
Wheels Bolts
226
Changing229
Full trim225
General information220
Load index222
Replacing wheels221
Service life of tyres221
Snow chains226
Spare wheel224
Speed symbol223
Storing wheels221
Tyre pressure221
Tyre sizes221
Tyre wear indicator221
Unidirectional tyres223
Winter tyres226
Wheels and tyres Hubcaps
225
Wi-Fi119
Window convenience operation46
Windows200
Deicing200
See electric power windows44
Windscreen Deicing200
Heater59
Windscreen washer fluid Checking
209
Replenishing209
Warning light21
Winter209
Windscreen washers Windscreen washers
62
Windscreen washer system209
Windscreen wiper Replacing the rear window wiper blade
243
Windscreen wipers Operating
62
Replacing the windscreen wiper blades243
Windscreen washer fluid209
Windscreen wipers and washers61
Windshield wiper alternative parking position of the rear wind- screen wiper
63
Winter Deicing windows
200
Winter operation226
Snow chains226
Winter tyres226
Winter tyres See Wheels
226
WLAN119
MAXI DOT120
Network connection119
Switching off119
Switching on119
268Index
