Boot lid opening/closingFig. 44
Opening / closing tailgate
Read and observe
on page 58 first.
Opening
›
Press the button
A
in the direction of arrow
1
» Fig. 44 .
›
Raise the lid in the direction of the arrow
2
.
Closing
›
Grasp the mount
B
and lift in the direction of arrow
3
.
Delayed locking of the boot lid
Read and observe
on page 58 first.
If the boot lid is unlocked with the symbol key  on the key, then the door is
automatically locked after closing.
The period after which the boot lid is locked automatically can be extended by
a specialist garage.
CAUTION
There is a risk of unwanted entry into the vehicle before the boot lid is locked
automatically. We therefore recommend locking the vehicle with the symbol
key 
on the key.Electric boot lid
 Introduction
This chapter contains information on the following subjects:
Operating description
60
Set the top position of the lid
60
Malfunctions
61
Boot lid non-contact opening
61
The boot lid (hereinafter as lid) can be operated electrically and manual in the
event of an emergency » page 61.
If the lid hits an obstacle when opening or closing, it stops and an audible sig-
nal sounds. When closing the flap is lifted additionally.
WARNING■ Ensure that the lock is properly engaged after closing the lid. Otherwise,
the lid might open suddenly while the vehicle is moving, even if the lid was
locked – risk of accident!■
Never drive with the lid open or unlatched, as otherwise exhaust gases
may get into the interior of the vehicle – risk of poisoning!
■
Only open and close the lid when no one is in the opening/closing range –
risk of injury!
■
Make sure that no limbs are caught or crushed when closing the lid - risk
of injury!
CAUTION
Do not attempt to close the door manually during electrical closing process -
there is a risk of damaging the system of an electric valve operation.
CAUTION
■ Before opening or closing the lid, check if there are any objects in the open-
ing or closing range which could obstruct the movement (e.g. a load on the
roof rack or on the trailer, etc.) – risk of causing damage to the lid!■
In certain circumstances, if the lid is loaded (e.g. by a thick layer of snow), the
opening process of the lid can be interrupted. Remove the snow from the lid to
re-enable the electrical operation.
■
If the lid closes automatically (e.g. under load of snow), you will hear an inter-
mittent beep.
■
The flap is always to be close before disconnecting the battery.
59Unlocking and opening

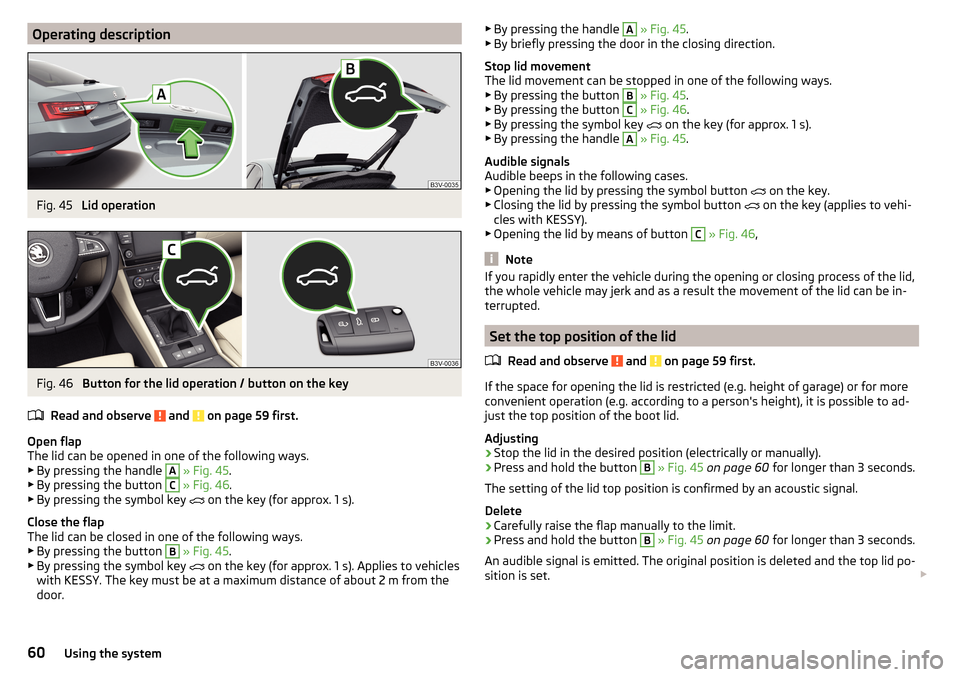

Operating descriptionFig. 45
Lid operation
Fig. 46
Button for the lid operation / button on the key
Read and observe
and on page 59 first.
Open flap
The lid can be opened in one of the following ways. ▶ By pressing the handle
A
» Fig. 45 .
▶ By pressing the button
C
» Fig. 46 .
▶ By pressing the symbol key 
on the key (for approx. 1 s).
Close the flap
The lid can be closed in one of the following ways. ▶ By pressing the button
B
» Fig. 45 .
▶ By pressing the symbol key 
on the key (for approx. 1 s). Applies to vehicles
with KESSY. The key must be at a maximum distance of about 2 m from the
door.
▶ By pressing the handle A » Fig. 45 .
▶ By briefly pressing the door in the closing direction.
Stop lid movement
The lid movement can be stopped in one of the following ways. ▶ By pressing the button B
» Fig. 45 .
▶ By pressing the button
C
» Fig. 46 .
▶ By pressing the symbol key 
on the key (for approx. 1 s).
▶ By pressing the handle
A
» Fig. 45 .
Audible signals
Audible beeps in the following cases. ▶ Opening the lid by pressing the symbol button 
on the key.
▶ Closing the lid by pressing the symbol button  on the key (applies to vehi-
cles with KESSY).
▶ Opening the lid by means of button
C
» Fig. 46 ,
Note
If you rapidly enter the vehicle during the opening or closing process of the lid,
the whole vehicle may jerk and as a result the movement of the lid can be in-
terrupted.
Set the top position of the lid
Read and observe
and on page 59 first.
If the space for opening the lid is restricted (e.g. height of garage) or for more
convenient operation (e.g. according to a person's height), it is possible to ad-
just the top position of the boot lid.
Adjusting
›
Stop the lid in the desired position (electrically or manually).
›
Press and hold the button
B
» Fig. 45 on page 60 for longer than 3 seconds.
The setting of the lid top position is confirmed by an acoustic signal.
Delete
›
Carefully raise the flap manually to the limit.
›
Press and hold the button
B
» Fig. 45 on page 60 for longer than 3 seconds.
An audible signal is emitted. The original position is deleted and the top lid po-
sition is set. 
60Using the system

NoteThe top position which is reached when the lid opens automatically, is always
lower than the maximum top position which can be reached when the lid is
opened manually.
Malfunctions
Read and observe
and on page 59 first.
Examples of operational malfunctions
Description of the malfunc-
tionRemedyThe lid cannot be openedUnlocking the lid » page 236
The lid does not react to an
opening signal
Removing a possible obstacle (e.g. snow), re-
opening the lid » page 60

Pressing handle A
» Fig. 45 on page 60 and
pulling the lid upwards
The lid remains in the top
position
Manual closing of the lid
The lid is open and the bat-
tery was disconnected
Close manually
Close the door slowly and completely. It must be ensured that when pressing
the lid into the lock, pressure is applied to the centre edge of the lid above the
ŠKODA logo.
Boot lid non-contact opening
Fig. 47
Opening the boot lid
Read and observe and on page 59 first.
Depending on equipment the boot lid can be opened without contact.
Opening
The ignition must be switched off.
›
Stand with the vehicle key centred on the rear bumper.
›
Ensure that no one is standing within the opening range of the lid.
›
Move one foot in the sensor area below the rear bumper quickly in the direc-
tion of the arrow » Fig. 47.
The stop lamp in the rear lid illuminates and the lid opens automatically.
If the lid does not open, then repeat opening after a few seconds.
The function can be enabled/disabled in the Infotainment » Owner´s Manual
Infotainment , chapter CAR - vehicle settings .
We recommend that the function is deactivated in the following cases
▶ Installation of a roof rack.
▶ Coupling a trailer.
▶ Manual vehicle wash.
▶ Maintenance and repairs in the opening area of the boot lid.
When connecting a device to the trailer socket the deactivation of the function
takes place.
WARNINGWhen you open the boot lid make sure that there are no persons in the
opening area of the lid - there is a danger of injury!
Note
With heavy rain or dirty rear bumper it may occur under certain circumstances
that there may be limitations, or the automatic deactivation of the non contact
opening function of the boot lid may occur.
Window operation
 Introduction
This chapter contains information on the following subjects:
Opening/closing the windows
62
Open / close the window in the passenger door and the rear doors
63



61Unlocking and opening

Lights and visibility
Lights
Introduction
This chapter contains information on the following subjects:
Operating the lights
67
Daylight running lights (DAY LIGHT)
68
Turn signal and main beam
68
Automatic driving lamp control
69
Xenon headlight
69
Front and rear fog lights
70
Fog lights with the CORNER function
71
COMING HOME / LEAVING HOME
71
Hazard warning light system
71
Parking lights
72
Driving abroad
72
Unless otherwise stated, the lights only work when the ignition is switched on.
The arrangement of the controls right-hand drive models may differ from the
layout shown in » Fig. 54 on page 67 . The symbols which mark the positions
of the controls are identical.
Keep the headlights lenses clean » page 197, Headlight glasses .
WARNINGThe automatic driving lamp control  only operates as a support and
does not release the driver from his responsibility to check the lights and, if
necessary, to switch on the light depending on the prevailing light condi-
tions.Note■ The headlights may mist up temporarily. When the driving lights are switched
on, the light outlet surfaces are free from mist after a short period, although
the headlight lenses may still be misted up in the peripheral areas. This mist
has no influence on the life of the lighting system.■
If the visibility is poor and the lights are not on (except daytime running light)
the brightness of the instrument lighting reduces to alert the driver to switch
on the lights in due time.
■
The brightness of the instrument lighting with the lights on (except daytime
running lights) can be set in the Infotainment » Owner´s Manual Infotainment ,
chapter CAR - Vehicle Settings .
Operating the lights
Fig. 54
Light switch and control dial for
the headlight beam range regu-
lation
Read and observe on page 67 first.
Switching lights on and off
Depending on the equipment configuration, the light switch
A
» Fig. 54 can be
turned to one of the following positions.
Switching off lights (except daytime running lights)Switching lights on/off automatically » page 69
Switching on the side light or parking light » page 72
Switching on the low beam
Headlight range control 
Turn the dial
B
» Fig. 54 from position 
to 
to gradually adjust the headlight
range control and shorten the light cone.
The positions of the width of illumination correspond approximately to the fol-
lowing car load.
Front seats occupied, boot empty
All seats occupied, boot empty 
67Lights and visibility

All seats occupied, boot loaded
Driver seat occupied, boot loaded
Xenon headlight
The Xenon bulbs adapt automatically to the load and driving state of the vehi-
cle when the ignition is switched on and when driving. Vehicles that are equip-
ped with Xenon headlights do not have a manual headlight range adjustment
control.WARNINGAlways adjust the headlight range control to meet the following conditions.■The vehicle does not dazzle other road users, especially oncoming vehi-
cles.■
The beam range is sufficient for safe driving.
Note
■ The light switch is in position  or  and the ignition is turned off, the low
beam is switched off automatically 1)
and the status light is lit. The side light is
switched off when the ignition key is removed, for vehicles with the KESSY
system after switching off the ignition and opening the driver's door.■
If there is a fault in the light switch, the low beam comes on automatically.
Daylight running lights (DAY LIGHT)
Read and observe
on page 67 first.
The daytime running lights light up the area in front of and to the rear of the
vehicle (only applicable for some countries).
The lights are switched on automatically if the following conditions are met. The light switch is in the position 
or 
.
The ignition is switched on.
WARNINGAlways switch on the low beam when visibility is poor.Turn signal and main beamFig. 55
Operating lever: Turn signal and
main beam operation
Read and observe on page 67 first.
Operating lever positions » Fig. 55
Activate right turn signal light - indicator light flashes in the instrument cluster 
Activate left turn signal light - indicator light flashes in the instrument
cluster 
Depending on equipment (spring-tensioned position):
▶ Switch on main beam – indicator light lights up in the instrument cluster

▶ Activate headlamp assistant » page 72
Depending on equipment (spring-tensioned position):
▶ Switch off main beam / headlight flasher on (spring-tensioned position)
▶ Deactivate headlamp assistant / activate headlight flasher (spring-ten-
sioned position)
The main beam can only be switched on when the low beam lights are on.
The headlight flasher can be operated even if the ignition is switched off.
The turn signal light switches itself off automatically when driving around a
curve or after making a turn.
“Convenience turn signal”
When the control lever is lightly pressed to the pressure point
A
or
B
then
the respective turn-signal lamp flashes three times. 
ABCD1)
Does not apply to the position
, as long as the conditions are met for the COMING HOME function
» page 71 .
68Using the system

The heater automatically switches off after approximately 10 minutes.
If the engine is switched off when the heating is on and turned back on again
within 10 minutes, the heating is continued.
Note
■ If the on-board voltage decreases, the heating switches off automatically
» page 216 , Automatic load deactivation .■
If the light within or below the button flashes, the radiator will not work be-
cause of the low state of the battery.
■
If the Climatronic recognises that the windshield could fog up, the windshield
heating is automatically switched on. This function can be activated/deactiva-
ted in the Infotainment » Owner´s Manual Infotainment , chapter CAR - vehicle
settings .
Sun visors in the front
Fig. 66
Fold down flap / flip up flap / make-up mirror and parking permit
holder
Read and observe
on page 75 first.
Operation and description of the sun visor » Fig. 66
Fold down the cover
Swivel cover towards the door
Make-up mirror with cover (the cover can be pushed in the direction of the
arrow)
Light (turns on when the cover of the make-up mirror is pushed to one
side)
Parking ticket holder
12ABCWARNINGWhen objects are attached to the sun visor, the visor can not be pivoted to
the side windows. This might result in injuries to the occupants if the head
airbag is deployed.
Sun screen
Fig. 67
Sun screen
Read and observe
on page 75 first.
The sun screen is located in a housing on the luggage compartment cover.
Extending
›
Pull the sun blind on the handle
A
in the direction of arrow » Fig. 67 and
hook in the magnetic brackets
B
.
Retracting
›
Remove the sun blind from the handle
A
» Fig. 67 out of the bracket and
hold it in such a way that it can roll up slowly into the housing without being
damaged.
Note
It is not necessary to roll up the sun blind before opening the boot lid.76Using the system

Sun screen in the rear doorsFig. 68
Sun blind on the rear door
Read and observe
on page 75 first.
Extending
›
Pull out the sun blind with the handle
A
in the direction of arrow » Fig. 68
and hang it in the bracket
B
on the top edge of the door.
Retracting
›
Remove the sun blind from the handle
A
» Fig. 68 out of the bracket and
hold it in such a way that it can roll up slowly without being damaged.
Windscreen wipers and washers
 Introduction
This chapter contains information on the following subjects:
Windscreen wipers and washers
78
Headlight cleaning system
78
The windscreen wipers and the wash system only operate if the ignition is
switched on and the bonnet and boot are closed.
Winter setting of the windscreen wiper
If the windscreen wipers are in rest position, they cannot be folded out from
the windscreen. For this reason we recommend adjusting the windscreen wip-
ers in winter so that they can be folded out from the windscreen easily.
▶ Switch on the windscreen wipers.
▶ Switch off the ignition.
The windscreen wipers remain in the position in which they were when
switching off the ignition.
The service position can also be used as a winter position » page 237.WARNING■
Properly maintained windscreen wiper blades are essential for clear visi-
bility and safe driving » page 198, Wiper blades .■
Do not use the windscreen washer system at low temperatures, without
heating the windscreen beforehand. The window washer fluid could other-
wise freeze on the windscreen and restrict the view to the front.
CAUTION
■ In cold temperatures and during the winter, check before switching on the
ignition that the wiper blades are not frozen to the windscreen. If the wind-
screen wipers are switched on when the blades are frozen to the windscreen,
this may damage both the blades and windscreen wiper motor!■
Carefully peel frozen wiper blades off the pane.
■
Remove snow and ice from the windscreen wipers before driving.
■
If the windscreen wipers are handled carelessly, there is a risk of damage to
the windscreen.
■
Do not switch on the ignition if the front wiper arms are retracted. The wiper
arms could damage the paint of the bonnet.
■
If there is an obstacle on the windscreen, the wiper will try to push away the
obstacle. The wiper stops automatically after 5 attempts to eliminate the ob-
stacle, in order to avoid a damage to the wiper. Remove the obstacle and
switch the wiper on again.
Note
■ Each time the ignition switches off for the third time, the position of the
windscreen wipers changes. This counteracts an early fatigue of the wiper rub-
bers.■
The windscreen washer nozzles for the windscreen are heated when the en-
gine is running and the outside temperature is less than approx. +10 °C.
77Lights and visibility

Opening from the boot›Push the unlock button B in the direction of the arrow » Fig. 81 and fold the
cover including the armrest forwards.
Closing›
Fold the cover and rear armrest upwards to the stop - the cover must click
into place.
Ensure that the armrest is always locked into place after closing the cover.
This is apparent as the red field above the unlocking button
B
» Fig. 81 is not
visible from the boot.
WARNINGThe through-loading channel is only intended for transporting skis that are
placed in a properly secured, through-loading bag.
Head restraints
 Introduction
This chapter contains information on the following subjects:
Height adjustment
87
removing and installing
87WARNINGPlease note the following points about the head restraint settings
» page 8 , Correct and safe seated position .
Height adjustment
Fig. 82
Front head restraint: moving it
up and down
Fig. 83
Rear head restraint: moving it up / down
Read and observe
on page 87 first.
Adjust front support
›
Press and hold the safety button
A
» Fig. 82 .
›
Move the supports into the required position.
Adjust rear support
›
Grasp the restraint and move upwards in the direction of
1
» Fig. 83 .
›
In order to push the supports downward, press the safety button
B
in the
direction of arrow
2
and hold down.
›
Press in the support in the direction of arrow
3
.
removing and installing
Fig. 84
Rear head restraint: removing / fitting
Read and observe
on page 87 first.
Only the real head restraints may be removed or installed. 
87Seats and head restraints

Storage compartment in the rear centre consoleFig. 107
Open storage compartment,
open lockable storage compart-
ments
Read and observe on page 90 first.
In the rear centre console there is an equipment-dependent open storage
compartment
A
and a lockable storage compartment
B
» Fig. 107 .
The compartment
B
is equipped with an interior light which illuminates when
the parking or dipped head lights are on.
Compartment
B
open / close
›
Pull the handle on the upper section of the recess and open out the com-
partment in the direction of the arrow » Fig. 107.
Closing takes place in reverse order.
WARNINGNever use the storage compartment as an ashtray - risk of fire!
Storage compartment in the rear armrest
Fig. 108
Open storage compartment / interior of the compartment
Read and observe on page 90 first.
In the storage compartment there is a cup holder
B
, storage compartment for
the multimedia holder
C
as well as a pen holder
D
» Fig. 108 .
Open/close
›
Grasp the lid to the recess
A
» Fig. 108 .
›
Unfold the cover to the stop in the direction of arrow.
Closing takes place in reverse order.
Removable through-loading bag
Fig. 109
Tighten ribbon / secure through-loading bag
Read and observe
on page 90 first.
The removable through-loading bag (hereinafter referred to as a through-load-
ing bag) is used exclusively for transporting skis.
Stowing through-loading bag and skis
›
Open the tailgate.
›
Fold the rear armrest and the cover in the seat backrest downwards
» page 86 .
›
Place the empty through-loading bag in such a way that the end of the bag
with the zip is in the boot.
›
Push the skis into the through-loading bag from the boot » .
›
Close the through-loading bag.
Securing through-loading bag and skis
›
Tighten the strap
A
on the free end around the skis in front of the bindings
» Fig. 109 .
›
Fold the seat backrest a little forward. 

98Using the system

When transporting cargo the following the instructions must be adhered to
▶ When transporting heavy objects, the driving characteristics change due to
the shift in centre-of-gravity. The speed and style of driving must be adjus-
ted accordingly.
▶ The cargo is stowed in the luggage compartment. To prevent this from mov-
ing it should be secured with suitable lashing straps to the lashing eyes or
secured with fixing nets.
▶ Distribute loads as evenly as possible.
▶ Place heavy objects as far forward as possible.
▶ The transported items must be stowed in such a way that no objects are able
to slip forward on sudden driving or braking manoeuvres – risk of injury!
▶ Tyre pressure is to match the load.
▶ When transporting loads in the luggage compartment that has been en-
larged by folding the rear seats forward, ensure the safety of the passengers
transported on the other rear seats .
In the event of an accident, even small and light objects gain so much kinetic energy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the
vehicle is travelling and the weight of the object.
Example: In the event of a frontal collision at a speed of 50 km/h, an object
with a weight of 4.5 kg produces an energy, which corresponds to 20 times its
own weight. This means that it results in a weight of approx. 90 kg “ ”.
Luggage compartment light
The warning light turns on when tailgate is opened.
The warning light turns off when the tailgate is closed.
If the boot lid is open and the ignition switched off, the light will extinguish
automatically after around 10 minutes.
The luggage compartment illumination using the removable lamp » page 114.WARNING■
Never exceed the maximum permissible load of the respective fasteners,
nets, hooks etc. Heavy objects were not secured sufficiently – risk of injury!■
If the cargo is tied down with unsuitable or damaged lashing straps, inju-
ries can occur in the event of braking manoeuvres or accidents.
■
Loose cargo can be thrown forward during a sudden manoeuvre or in case
of an accident and can injure the occupants or other road users.
■
Loose cargo could hit a deployed airbag and injure occupants – danger of
death!
CAUTION■ Never exceed the maximum permissible load of the respective fasteners,
nets, hooks etc. - these could be damaged.■
Make sure that transported objects with sharp edges do not damage the
threads of the following devices. ■Rear window heater.
■ Rear window with an integrated antenna.
■ Integrated antenna in the rear side windows.
Fastening elements
Fig. 127
Fastening elements: Variant 1/ Variant 2
Read and observe
and on page 106 first.
The fasteners are located on both sides of the luggage compartment.
Overview of the fastening elements » Fig. 127
Fastening elements for fastening fixing nets
Lashing eyes for fastening items of luggage and fixing nets
The maximum permissible load for the individual lashing eyes
B
is 350 kg.
For vehicles with the variable loading floor, the luggage can only be secured
using the eyelets
B
when the variable loading floor is in the lower position
» page 115 .
AB106Using the system
