boot SKODA SUPERB 2015 3.G / (B8/3V) Owner's Guide

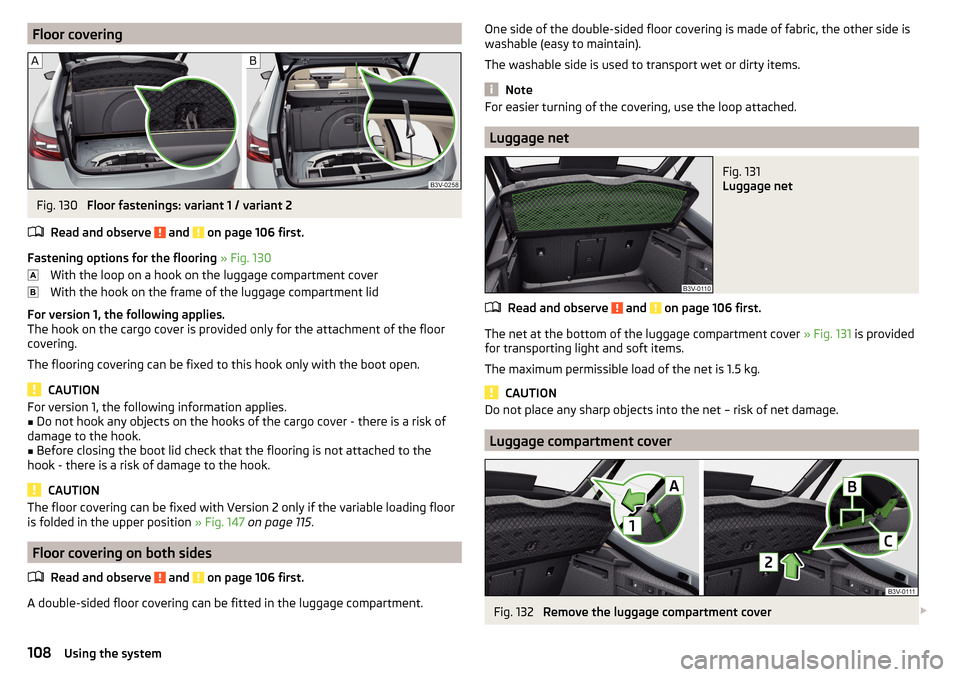

Floor coveringFig. 130
Floor fastenings: variant 1 / variant 2
Read and observe
and on page 106 first.
Fastening options for the flooring » Fig. 130
With the loop on a hook on the luggage compartment cover
With the hook on the frame of the luggage compartment lid
For version 1, the following applies.
The hook on the cargo cover is provided only for the attachment of the floor
covering.
The flooring covering can be fixed to this hook only with the boot open.
CAUTION
For version 1, the following information applies.■Do not hook any objects on the hooks of the cargo cover - there is a risk of
damage to the hook.■
Before closing the boot lid check that the flooring is not attached to the
hook - there is a risk of damage to the hook.
CAUTION
The floor covering can be fixed with Version 2 only if the variable loading floor
is folded in the upper position » Fig. 147 on page 115 .
Floor covering on both sides
Read and observe
and on page 106 first.
A double-sided floor covering can be fitted in the luggage compartment.
One side of the double-sided floor covering is made of fabric, the other side is
washable (easy to maintain).
The washable side is used to transport wet or dirty items.
Note
For easier turning of the covering, use the loop attached.
Luggage net
Fig. 131
Luggage net
Read and observe and on page 106 first.
The net at the bottom of the luggage compartment cover » Fig. 131 is provided
for transporting light and soft items.
The maximum permissible load of the net is 1.5 kg.
CAUTION
Do not place any sharp objects into the net – risk of net damage.
Luggage compartment cover
Fig. 132
Remove the luggage compartment cover 
108Using the system

Fig. 133
Luggage compartment cover
stowed behind the rear seats
Read and observe and on page 106 first.
If the support straps
A
» Fig. 132 are attached to the boot lid, then opening
the lid will raise the boot lid cover (hereafter referred to as cover).
If you want to carry bulky goods, the cover can be removed from the vehicle,
and may be stowed behind the rear seat backrests » Fig. 133.
Removing
›
On both sides of the boot lid unhook the straps
A
in direction of arrow
1
» Fig. 132 .
›
Hold the raised cover.
›
Press on the two sides to the underside of the cover in the region of the re-
cess
C
.
›
Take out the cover in the direction of the arrow
2
.
Fitting
›
Position the fixture
B
of the cover over the recess
C
of the side trim
» Fig. 132 .
›
Place first the front and then the rear fixture
B
.
›
Press on the two sides to the upper side of the cover in the region of the re-
cess
C
.
The fixture
B
must lock into place of the recess
C
on both sides of the lug-
gage compartment.
›
On both sides of the boot lid unhook the straps
A
.
WARNINGNo objects should be placed on the cover. This could endanger the vehicle
occupants during sudden braking or vehicle impact.CAUTION■ When closing the boot lid, jamming and damage to the cover or the side trim
panel can occur if handled incorrectly. The following guidelines must be ob-
served. ■ The fixtures B
» Fig. 132 on the cover must be engaged in the recess of
the side trim
C
.
■ The items which are transported must not exceed the height of the cover.
■ The cover must not be jammed in the surrounding seal of the luggage com-
partment lid when it is in the raised position. ■ There must be no object in the gap between the cover in the raise position
and the rear backrest.
■
Never fold the raised cover forwards to the rear seats - there is a risk of dam-
aging the cover and the boot lid.
Roll-up cover
Fig. 134
Roll-up cover: pull out / roll up / intermediate position / remove 
109Transporting and practical equipment

Fig. 135
Remove the left side cover / store roll-up cover
Read and observe
and on page 106 first.
Extending
›
Grasp the cover at grip-point
A
and pull it out in the direction of the arrow
1
until it audibly clicks into place » Fig. 134.
Retracting
›
Press the cover at grip-point
A
in the direction of the arrow
2
» Fig. 134 .
The cover rolls up automatically to the intermediate position
B
.
The cover rolls up fully by pressing the cover in the handle area
A
in direction
of arrow
3
.
Removing/inserting
The fully rolled luggage compartment cover can be removed.
›
Press on the side of the cross bar in the direction of arrow
4
and remove
the cover in the arrow direction
5
» Fig. 134 .
Insertion takes place in reverse order.
Stowage
If the vehicle is equipped with the variable loading floor, then the removable
roll-up luggage compartment cover can be stowed in the recesses of the lug-
gage compartment side trim.
›
Fold the variable loading floor into the upper position » page 115.
›
Open the side trays on both sides of the luggage compartment and remove
» Fig. 138 on page 112 - 
.
›
Remove the left side cover in the arrow direction
1
» Fig. 135 .
›
Insert the roll-up cover in the recesses of the side trim in the arrow direction
2
.
›Stow the roll-up cover in the direction of the arrow 3
» .›Reinsert the left side cover in the opposite direction to the arrow 1.›
Close the side trays on both sides of the luggage compartment.
›
Fold out the variable loading floor to the upper position.
WARNINGNo objects should be placed on the foldable boot cover. This could endan-
ger the vehicle occupants during sudden braking or vehicle impact.
CAUTION
If you want to stow the roll-up luggage compartment cover and the multifunc-
tion tray at the same time , then it is necessary that the rear part of the roll-up
luggage compartment is covering the multifunction tray.
Roll-up cover - automatic rolling-up
Read and observe
and on page 106 first.
The automatic rolling up of the roll-up cover (hereafter as function) eases ac-cess tot he luggage compartment.
When opening the boot lid with the function activated, the roll-up cover auto-
matic rolls-up of the intermediate position
B
» Fig. 134 on page 109 .
This function can be activated/deactivated in the Infotainment » Owner´s
Manual Infotainment , chapter CAR - vehicle settings .
110Using the system

Usage of Cargo elements›Open the storage compartment » Fig. 138 on page 112 -  .›
Remove the cargo elements in direction of arrow » Fig. 139 or » Fig. 140 - 
.
›
Attach the Cargo elements with Velcro as close as possible to the rear seats
on the floor of the luggage compartment » Fig. 140 - 
or attach to the fabric
side of the double-sided floor covering.
Storage compartments under the floor covering
Fig. 141
Variant 1: Lifting the floor covering / Storage compartments
Fig. 142
Variant 2: Lifting the floor covering / Storage compartments
Read and observe
and on page 106 first.
The storage compartments
B
» Fig. 141 or » Fig. 142 are located under the
floor covering of the luggage compartment in vehicles without a spare wheel.
Every storage compartment
B
is designed for storing small objects of up to 15
kg. in weight in total.
Transport of cargo - Version 1›Remove the fog floor covering in the direction of the arrow » Fig. 141.›
Fix the flooring with the loop
A
to the hook on the cargo cover or fold up in
the direction of the arrow.
›
Stow the cargo in the storage compartment.
›
Remove the flooring from the hook or fold back against the direction of the
arrow.
When transporting higher items in the trays
B
, the flooring must be flipped
forward, i.e. it must be attached to the hook of the luggage compartment cov-
er.
Transport of cargo - Version 2
›
Dividing the luggage compartment with variable loading floor » page 116.
›
Remove the fog floor covering in the direction of the arrow » Fig. 142.
›
Fix the hook
C
to the top edge of the variable loading floor.
›
Stow the cargo in the storage compartment.
›
Unhook the hook
C
and fold back the flooring opposite to the arrow.
When transporting high objects in the trays
B
the hook
C
must be hooked
onto the top edge of the variable loading floor.
CAUTION
■ The following instructions must be observed to avoid damage to the storage
compartments. ■Do not stored any sharp objects in the storage compartments.
■ Do not place any point-pressure in the storage compartment.
■ Carefully place the items in the storage compartments.■
Before closing the boot lid check that the flooring is not attached to the
hook with the loop
A
» Fig. 141 - there is a risk of damaging the hook.
■
Before closing the boot lid check that the cargo transported in the storage
compartments does not strike against the boot lid - there is a risk of damage
to the lid.
113Transporting and practical equipment

Removable lightFig. 143
Removable lamp
Fig. 144
Removable light: removing / Inserting
Read and observe
and on page 106 first.
The removable lamp (hereinafter referred to as a lamp) is located on the left side of the luggage compartment.
The lamp is for the illumination of the luggage compartment or it can be used
as a portable lamp.
The lamp is fitted with magnets. Thus after taking these out of the vehicle
they can for example be connected to the car body.
Description of the lamp » Fig. 143
Button for operating the lamp
Part that lights up when the lamp is in the mount
Part that lights up when the lamp is not in the mount
Lamp placed in the mount
The warning light turns on when tailgate is opened.
ABCThe warning light turns off when the tailgate is closed.
Removed from the holder›
Grasp the lamp
D
and swivel in the direction of the arrow
1
» Fig. 144 .
Use of removed light
›
Press the button
A
» Fig. 143 - the lamp lights up.
›
Press
A
button once again - the light goes out.
Reinserting the lamp the holder
›
Switch off the ignition » .
›
First insert the rear part of the lamp with the part
E
» Fig. 144 into the
mount and then to press in the direction of the arrow
2
, until it audibly
clicks into place.
Lamp charges
The lamp is supplied by three rechargeable type NiMH AAA batteries.
The rechargeable batteries are constantly charged when the engine is running.
It takes approx. 3 hours to fully charge the rechargeable batteries.
Replace batteries » page 235.
CAUTION
■
If the lamp is not switched off and it is correctly inserted in the holder, the
LED diodes in the front part of the lamp C» Fig. 143 are automatically switch-
ed off.■
If the lamp is not correctly inserted into the holder, this does not light up
when the boot lid is opened and the rechargeable batteries are not charged.
■
The lamp is not watertight and must therefore be protected against mois-
ture.
Class N1 vehicles
Read and observe
and on page 106 first.
In class N1 vehicles that are not fitted with a protective grille, a lashing set that
complies with the EN 12195 standard (1-4) must be used for fastening the load.
Proper functioning of the electrical installation is essential for safe vehicle op-
eration. It is important to ensure that the electrical installation is not damaged
during the adjustment process or when the storage area is being loaded and
unloaded.
114Using the system

›Fold up the variable loading floor by moving it in the direction of the arrow2.
Dividing the luggage compartment
Fig. 148
Dividing the boot with variable
loading floor
The luggage compartment can be divided with the variable loading floor in the
lower and upper position.
›
Raise the rear of the variable loading floor by the handle
A
» Fig. 148 .
›
Push the rear edge of the variable loading floor into the grooves
B
in the
direction of the arrow.
The variable loading floor is secured against movements in the grooves
B
.
Net partition
 Introduction
This chapter contains information on the following subjects:
Using the net partition
116
Removing and refitting the net partition housing
117
The net partition can either be extracted from behind the rear seats or behind
the front seats.
This chapter describes the procedure for extracting and rolling up the net par-
tition behind the rear seats.
Installing and removing the net partition from behind the front seats is carried
out in a similar way as behind the rear seats. Before removing the net parti-
tion, the rear seat backrests should be folded forwards. After rolling up the net
partition in the housing, the rear seat backrests should then be folded back
» page 85 .
Using the net partitionFig. 149
Open part of the roll-up luggage compartment cover / release
lever
Fig. 150
Correctly secure net partition behind the front seats in the
pulled-out state
Removing the net partition behind the rear seats
›
Fold out part of the roll-up luggage compartment cover
A
in the direction of
the arrow » Fig. 149.
›
Pull out the net partition at the upper crossbar
C
from the housing
D
» Fig. 150.
›
Insert the transverse rod into one of the mounts
E
and push forwards.
›
Insert the transverse rod into the mount
E
on the other side of the vehicle
in the same way.
›
Make sure that the crossbar is firmly seated in the fittings
E
. 
116Using the system

›Fold back part of the roll-up luggage compartment cover A in the opposite
direction of the arrow » Fig. 149.
Using the net partition behind the rear seats›
Fold out part of the roll-up luggage compartment cover
A
in the direction of
the arrow » Fig. 149.
›
Pull the transverse rod back slightly first on one side and then on the other
and remove it from the mounts
E
» Fig. 150 .
›
Hold the crossbar
C
in such a way that the net partition can slowly roll up
into the housing
D
without being damaged.
›
Fold back part of the roll-up luggage compartment cover
A
in the opposite
direction of the arrow » Fig. 149.
CAUTION
If the net partition blocks when pulling it out of the housing, push the release
lever B in the direction of the arrow » Fig. 149.
Removing and refitting the net partition housing
Fig. 151
Removing the net partition
housing
Removing
›
Fold the rear seat backrests forward » page 85.
›
Open the rear right door » page 56.
›
Push the net partition housing
A
in the direction of the arrow
1
and re-
move it from the mounts on the right seat backrests in the direction of the
arrow
2
» Fig. 151 .
Fitting
›
Insert the recesses on the net partition housing into the mounts on the rear
seat backrests.
›
Push the net partition housing in the opposite direction of the arrow
1
» Fig. 151 as far as the stop.
›
Fold the rear seats back into their original positions » page 85.
Roof rack
Introduction
This chapter contains information on the following subjects:
fixing points for base support
118
Roof load
118WARNINGWhen transporting cargo the following the instructions must be adhered
to.■
The transported items on the roof rack must always be securely attached
– risk of accident!
■
Always secure the load with appropriate and undamaged lashing straps
or tensioning straps.
■
Distribute the load evenly over the roof rack system.
■
When transporting heavy objects or objects which take up a large area on
the roof rack system, the handling of the car may change as a result of the
displacement of the centre of gravity. The style of driving and speed must
therefore be adapted to the current circumstances.
■
Avoid abrupt and sudden driving/braking manoeuvres.
■
The permissible roof load, permissible axle loads and permissible total ve-
hicle weight must not be exceeded under any circumstances – risk of acci-
dent!
CAUTION
■ On models fitted with a sliding/tilting roof, ensure that the sliding/tilting roof
does not strike any items of luggage transported on the roof when tilting.■
Ensure that the boot lid does not hit the roof load when opened.
■
The height of the vehicle changes after mounting a roof luggage rack system
including the load that is being transported. Compare the vehicle height with
available clearances, such as underpasses and garage doors.
■
Ensure the roof aerial is not impaired by the load being transported.
Note
We recommend that you use a roof rack from ŠKODA Original Accessories.117Transporting and practical equipment

■It is only a two-dimensional display. Therefore, protruding objects or roadway
depressions, for example, may not be recognised due to lack of space depth.■
In a crash or damage the vehicle's rear camera can possibly deviate from the
correct position. If this is the case, have the sensor checked by a specialist ga-
rage.
Operation
Fig. 184
Position of the camera / monitored area
Read and observe
and on page 151 first.
The camera for capturing the area behind the vehicle is in the grip of the boot
lid » Fig. 184 .
Monitored area » Fig. 184
Detection range of the camera
Area outside the detection range of the camera
The following modes are available for support during the park and manoeu- vring action.
▶ Traverse parking
▶ Parallel parking
▶ Driving up to a trailer / distance monitoring
▶ Monitoring the area behind the vehicle (wide view)
The mode change is done by means of the function keys on the display.
The system can assist the driver when parking and manoeuvring under the fol-
lowing basic conditions.
The ignition is switched on.
The system is activated.
The luggage compartment lid is completely closed.
ABThe vehicle is not travelling at more than about 15 km/h.
The area behind the vehicle is clearly visible.
The selected parking / manoeuvring area is clear and even.
Activation / deactivation
Fig. 185
Button for activation / deactiva-
tion
Read and observe and on page 151 first.
Activation
The system is activated by selecting reverse gear or pressing the symbol but-
ton 
» Fig. 185 .
This is confirmed by a short acoustic signal ( the symbol  in the button is lit).
The display mode for the traverse parking is displayed.
Deactivation
The system is deactivated by pressing the symbol button , switching off the
ignition or when the speed exceeds 15 km/h (the symbol  in the button then
goes out).
152Driving

■Do not attach any stickers to the filaments or glass antenna - there is risk of
damage.■
Do not clean the roof panelling with a brush – risk of damage to the surface
of the panelling.
■
Cleaner that contain solvents can damage the material being cleaned.
■
Apply only a small amount of the cleaning and care product.
Note
Due to the special tools and knowledge required, and to avoid any potential
problems with the cleaning and care of the interior of your vehicle, we recom-
mend that cleaning and care of the interior of your vehicle be carried out by a
ŠKODA service partner.
Natural leather
Read and observe
and on page 198 first.
The leather needs, depending on the strain placed on it, regular cleaning and
maintenance.
Dust and dirt in pores and creases cause abrasions on the surface and lead to
premature embrittlement of the leather surface. Therefore, they must be re-
moved regularly at short intervals with a cloth or vacuum cleaner.
Clean soiled leather surfaces with a water-dampened cotton or woollen cloth
and then dry with a clean, dry cloth »
.
Clean severely soiled areas with a cloth soaked in a mild soap solution (2 ta-
blespoons of neutral soap to 1 litre of water).
To remove stains , use a cleaning agent specially designed for this purpose.
Treat the leather periodically with a suitable leather protector and use a skin
care cream with light blocker and impregnation after each cleaning.
CAUTION
■ Ensure that no part of the leather is soaked through during cleaning and that
no water gets into the seams. Otherwise, the leather could become brittle or
cracked.■
Avoid leaving the vehicle for lengthy periods in bright sunlight to avoid the
leather from bleaching. If the vehicle is parked in the open for lengthy periods,
protect the leather from direct sunlight by covering it.
■
The use of an additional mechanical steering wheel lock may damage the
leather surface of the steering wheel.
■ Some clothing materials, e.g. dark denim, do not have sufficient colour fast-
ness. This can cause damage or clearly visible discolouration to seat covers,
even when used correctly. This applies particularly to light-coloured seat cov-
ers. This does not relate to a fault in the seat cover, but rather to poor colour
fastness of the clothing textiles.■
Sharp-edged objects on items of clothing such as zip fasteners, rivets, sharp-
edged belts etc. may leave permanent scratches or signs of rubbing on the
surface or damage these. Such damage cannot be subsequently recognised as
a justified complaint.
Note
When using the vehicle, minor visible changes may occur to the leather parts
of the covers (e.g. wrinkles or creases) as a result of the stress applied to the
covers.
Artificial leather, materials and Alcantara ®
Read and observe
and on page 198 first.
Artificial leather
Clean artificial leather with a damp cloth.
If this method does not completely clean the artificial leather, use a mild soap
solution or cleaning products specially designed for this purpose.
Fabric
Clean upholstery cover materials and cloth trims on doors, boot cover, etc. us-
ing specific cleaning agents, e.g., dry foam.
Use a soft sponge, brush, or commercially available microfibre cloth.
Use a cloth and a cleaning agent specifically designed for this purpose to clean
the roof trim.
Remove any lumps on the cover fabric and any fabric residue using a brush.
Remove stubborn hair using a “cleaning glove”.
Alcantara ®
Dust and dirt in pores, creases and seams may chafe and damage the surface.
Therefore, they must be removed regularly at short intervals with a cloth or
vacuum cleaner.
Minor changes in colour caused by use are normal. 
199Care and maintenance

Do-it-yourself
Emergency equipment and self-help
Emergency equipment
Introduction
This chapter contains information on the following subjects:
First aid kit and warning triangle
222
reflective vest
223
Fire extinguisher
223
Vehicle tool kit
223
First aid kit and warning triangle
Fig. 237
Placing the first aid kit and the warning triangle - version 1 / re-
lease the retaining clip
Fig. 238
Placement of the first aid kit and
warning triangle - version 2
The following information applies for the first aid kit and warning triangle from
the ŠKODA Original Accessories.
The storage compartments may be too small for other first aid kits and warn-
ing triangles.
First-aid box
The first-aid box can be attached by a strap to the right-hand side of the boot
» Fig. 237 .
With some equipment types this is located in the storage compartment.
Warning triangle – version 1
The warning triangle can be inserted into the cladding of the rear wall and se-
cured with the fastener tape » Fig. 237.
Warning triangle – version 2
The warning triangle can be stored in the rear wall trim panel » Fig. 238. When
removing the warning triangle first lift the flooring in the luggage compart-
ment.
Undo / secure fastening strap›
Press the latch on the connector in the direction of arrow
1
» Fig. 237 .
›
Release strap
A
in the direction of arrow
2
.
›
Pull strap
A
against arrow direction
2
until it locks into place.
Pay attention to the expiration date of the first-aid kit.
WARNINGThe first-aid kit and warning triangle must always be secured safely so that
they do not come loose when making an emergency braking or in a vehicle
collision which could cause injuries to occupants.
Note
We recommend using a first-aid kit from ŠKODA Original Accessories, which
are available from a ŠKODA Partner.222Do-it-yourself
