SKODA SUPERB 2016 3.G / (B8/3V) Brief Instructions
Manufacturer: SKODA, Model Year: 2016, Model line: SUPERB, Model: SKODA SUPERB 2016 3.G / (B8/3V)Pages: 32, PDF Size: 11.01 MB
Page 21 of 32
Telephone›Connection conditionsThe ignition is switched on.
The Bluetooth ®
function of Infotainment and the telephone is
switched on.
The visibility of Infotainment and the telephone is switched on.
The phone is in the passenger compartment.
The telephone is compatible with Infotainment.
A list of supported phones can be found on the Internet site
http://go.skoda.eu/compatibility , see QR Code.›Connection›
Press the
PHONE button , then tap on the function surface
Search forphone
- searching for available phones starts.
›
Tap on the function surface
Results
Select the button and the desired
phone.
›
Confirm the coupling - the phone connects to Infotainment and the
main menu phone is displayed.
19
Page 22 of 32
›Phone main menu
Information and function surfaces in the
phone main menu.
Name of the telephone service provider
Function surfaces of preferred contacts
Choice of storage group for the preferred contacts
Connecting another phone/displayed paired phones
Dialling the emergency number
Enter the telephone number
Display the telephone contact list
Messages
Displaying the call list
Settings
ABCRadio› Saving favourite stations›
Press the
RADIO button.
›
Tap on the function surface
A
and the desired broadcasting area.
›
Using the function surface
Select the desired station.
›
Press and hold one of the function surfaces
B
until you hear an
acoustic signal.
20
Page 23 of 32
Navigation›Navigation main menu›
Press the
NAV button , the main menu
navigation is displayed.
Function surfaces in range
A
.
Entering a new destination, ending the route guidance, display the
route details, entering a traffic obstruction
Storing the current location, list of saved routes and destinations,
route guidance to your home address
Search a POI in the categories ,
and tap
Map presentation options
Playback Control - Media / radio / TV tuner
Settings
› Enter new destination and start route guidance›
In the
Navigation main menu, tap the function surface
.
›
Tap the function surface
and select the type of destination entry.
›
Enter the destination and tap the function surface
Start
.
›
Select the route type:
A
The most economical
B
The fastest
C
The shortest
Selecting the type of route will start the route guidance.
21
Page 24 of 32
Media›Main menu›
Press the
MEDIA button.
The main menu appears with the following information and function
surfaces.
Information on playing track
Playback timeline with a slider
Selected audio source / display of the album image
Select the audio source
Folder and track list / Multimedia Database
Settings
ABCDConnectivity› SmartLink
The SmartLink function offers the option to display and operate certi-
fied applications supported in the connected device (e.g. telephone) in
the device screen.
The SmartLink function supports the following connections- Android
Auto, Apple CarPlay and MirrorLink ®
.
Connection set-up
›
Connect the device to the USB input.
›
Press the MENU button, then tap the function surface
SmartLink
.
›
Select the desired connection type from the menu.
During the connection process, note messages may be displayed on
the device screen, and the display of the connected device, which
must be confirmed.
22
Page 25 of 32
›SmartGateSmartGate constitutes a system, which transmit certain driving data
(such as fuel consumption, speed or similar) via Wi-Fi or Wi-Fi Direct.
The ŠKODA applications installed in a supported device (e.g. telephone,
tablet) give the option to further transmit the received data.
More information on available applications, a list of supported commu-
nication devices and on SmartGate, can be found on the ŠKODA Inter-
net pages http://go.skoda.eu/connectivity-smartgate .
Connecting to an Android device
›
Switch-on the ignition.
›
Switch on Wi-Fi In the device to be connected and start the Smart-
Gate application.
›
Then follow the instructions in the manual, which is included in the
SmartGate application.
Connecting to an iOS device
›
Switch-on the ignition.
›
Switch on Wi-Fi In the device to be connected and search for availa-
ble Wi-Fi networks.
›
In the found networks, select the menu item “ SmartGate _...” and
“ DIRECT SmartGate _... ” (in position ... the last 6 digits of the vehicle
identification number are displayed).
›
Enter the password.
23
Page 26 of 32
Warning lights overviewParking brakeBrake systemSeat belt warning light, frontAdaptive Cruise Control (ACC) Power steering/steering lock (KESSY)Electronic stability control (ESC)/ Traction control system
(TCS)Traction control (ASR) deactivatedAntilock brake system (ABS)Rear fog lightExhaust inspection systemGlow plug system (diesel engine)EPC fault light (petrol engine)Safety systemsTyre pressureBrake padsFuel reserve Lane Assist Turning signal systemTrailer turn signal lightsFog lightsCruise control / speed limiterBrake pedal (automatic gearbox)Auto Hold functionMain beamAutomatic gearbox Seat belt warning light, rearGeneratorCoolantEngine oil pressureEngine oil level AdBlue ®
(Diesel engine)Bulb failureDiesel particle filter (diesel engine)Windscreen washer fluid levelHeadlamp assistant START STOP systemDisplay of a low outside temperatureWater in fuel filter (diesel engine) Adaptive Cruise Control (ACC)Distance warning (Front Assist)Warning / emergency / deactivation (Front Assist)Economy modeAdaptive Chassis Control (DCC)Service
Some warning lights are displayed in colour or white, depending on the
type of display.
Depending on the importance, some warning lights illuminate together
with the warning light (danger) or
(warning)in the list with the
warning lights.
24
Page 27 of 32

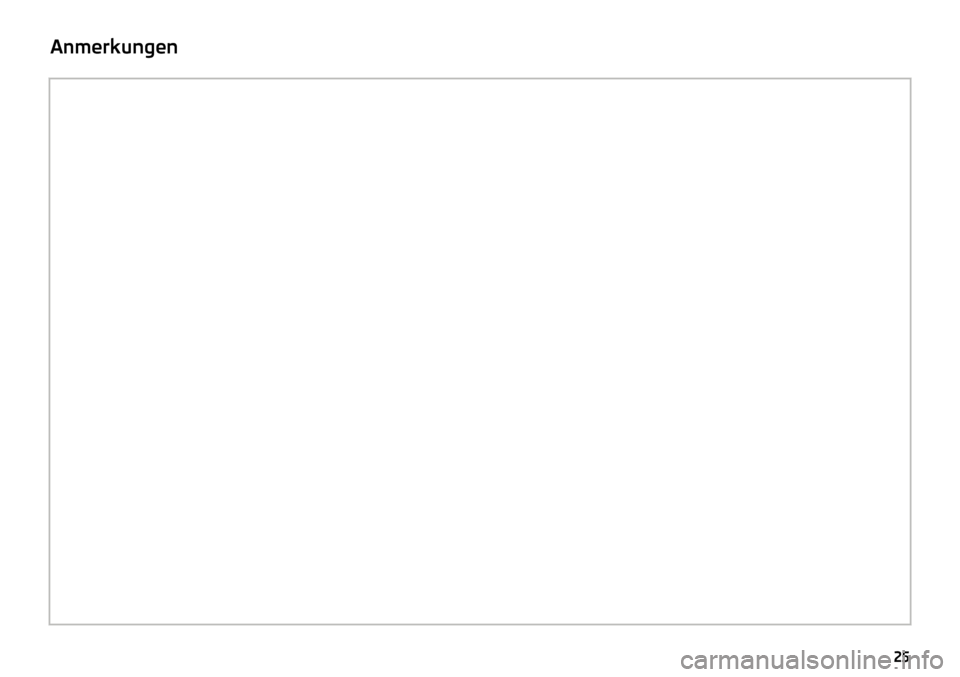

Anmerkungen 25
Page 28 of 32

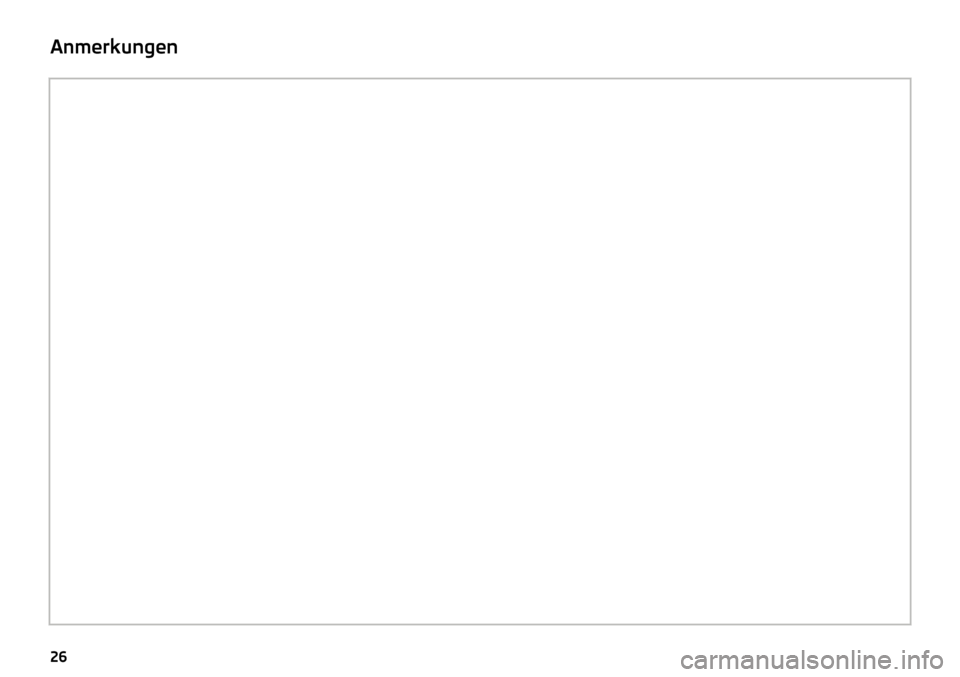

Anmerkungen 26
Page 29 of 32

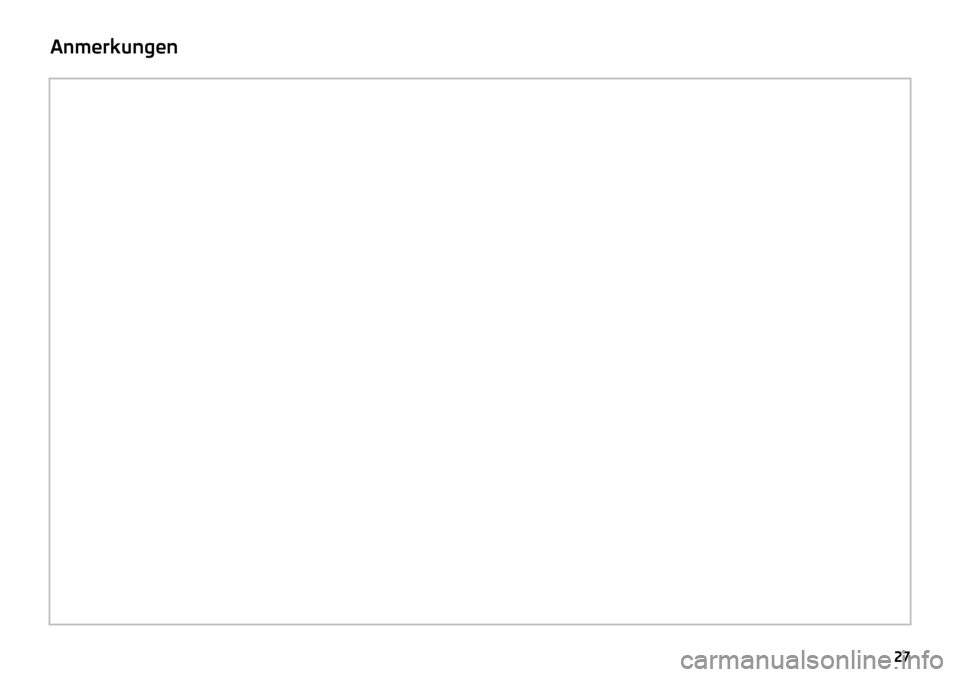

Anmerkungen 27
Page 30 of 32

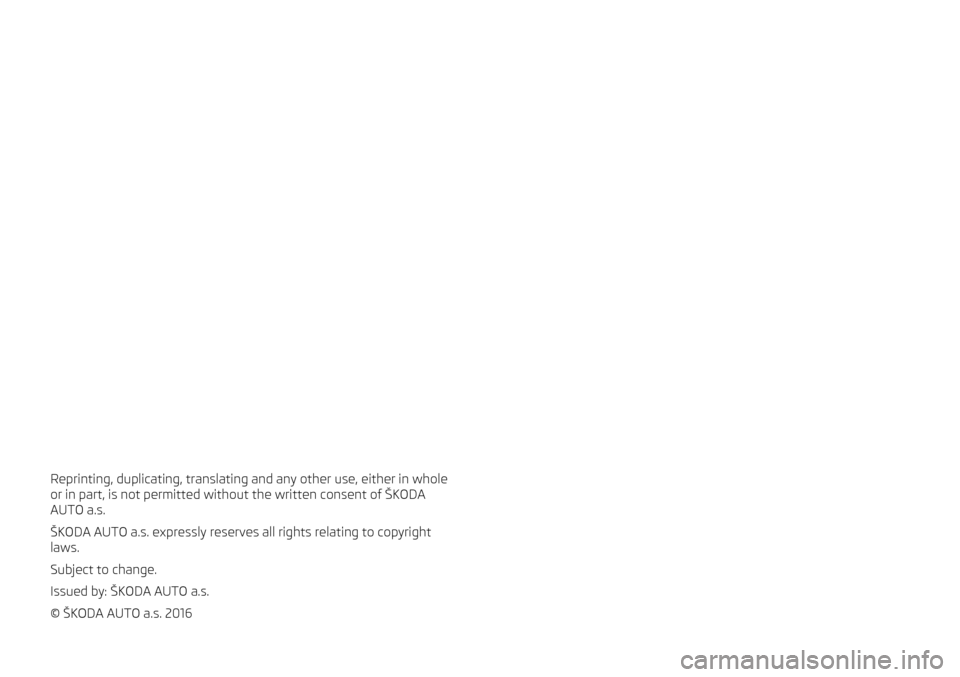

Reprinting, duplicating, translating and any other use, either in whole
or in part, is not permitted without the written consent of ŠKODA
AUTO a.s.
ŠKODA AUTO a.s. expressly reserves all rights relating to copyright
laws.
Subject to change.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2016
