The brief instruction
11
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The brief instructionBasic functions and im
portant information
Introduction The chapter of the brief instruction is
only used as a quick reference of
the most important operating elements of the vehicle. It is necessary to observe all the information which is contained in the following chapters of the Owner's Manual.Unlocking and locking the vehicle Unlocking the vehicle Unlocking the boot lid Locking the vehicle Folding out/folding up of the keyFurther information
⇒page 45, “Unlocking and locking car”.
Setting steering wheel positionFig. 3 Adjustable steering wheel: Lever on the
steering column / the correct distance of the
driver from the steering wheelYou can set the height and the forward/back position of the steering wheel to the desired position. – Pull the lever below the steering column
⇒fig. 3
down.
– Set the steering wheel to the desired position (concerning height and forward/back
position).
– Push the lever upwards as far as the stop. Further information
⇒page 109, “Setting steering wheel position”.
WARNING
•
Adjust the steering wheel
so that the distance be
tween the steering wheel
and your chest is at least 25 cm
⇒fig. 3
on the right. Not maintaining this
minimum distance will mean that the airbag system will not be able to properly protect you - hazard!•
You must not adjust the steering wh
eel when the vehicle is moving!
•
For safety reasons the lever must always be firmly pushed up to avoid the
steering wheel altering its position uni
ntentionally when driving - risk of
accident!
Fig. 2 Remote control key
A1A2A3A4
sgg.6.book Page 11 Thursday, September 24, 2009 2:32 PM
Page 13 of 271
The brief instruction

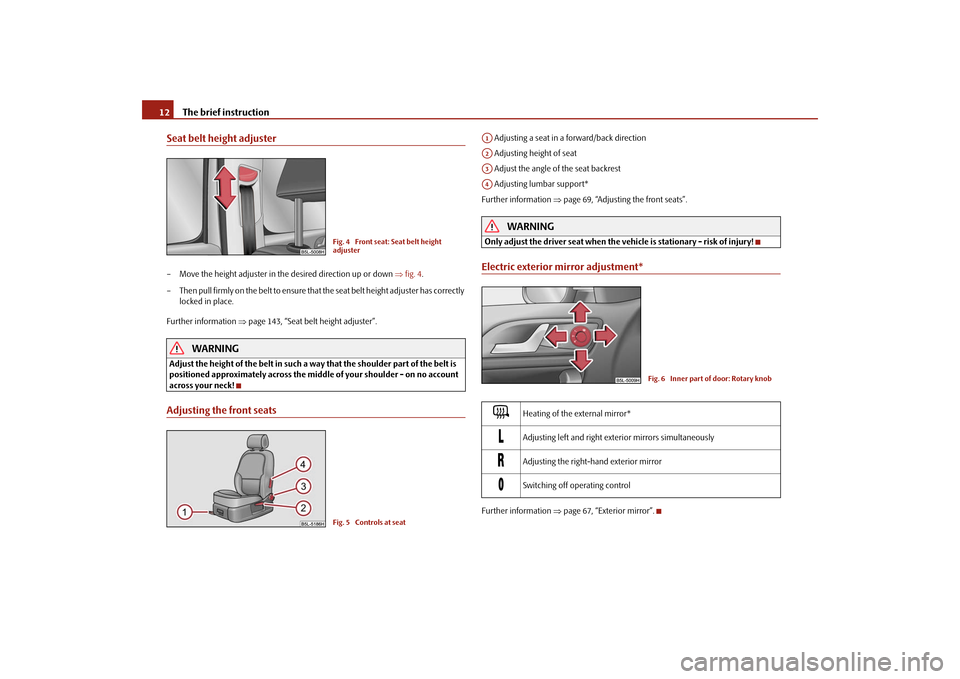

12Seat belt height adjuster– Move the height adjuster in the desired direction up or down
⇒fig. 4
.
– Then pull firmly on the belt to ensure that
the seat belt height
adjuster has correctly
locked in place.
Further information
⇒page 143, “Seat belt height adjuster”.
WARNING
Adjust the height of the belt in such a way that the shoulder part of the belt is positioned approximately across the middle of your shoulder - on no account across your neck!Adjusting the front seats
Adjusting a seat in a forward/back direction Adjusting height of seat Adjust the angle of the seat backrest Adjusting lumbar support*Further information
⇒page 69, “Adjusting the front seats”.
WARNING
Only adjust the driver seat when the ve
hicle is stationary - risk of injury!
Electric exterior mirror adjustment*Further information
⇒page 67, “Exterior mirror”.
Fig. 4 Front seat: Seat belt height adjusterFig. 5 Controls at seat
Heating of the external mirror*
Adjusting left and right exterior mirrors simultaneously
Adjusting the right-hand exterior mirror
Switching off operating control
A1A2A3A4
Fig. 6 Inner part of door: Rotary knob
sgg.6.book Page 12 Thursday, September 24, 2009 2:32 PM
Page 14 of 271
The brief instruction
13
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Switching lights on and offFurther information
⇒page 53, “Switching
lights on and off
”.
Turn signal and main beam lever Turn signal light right Turn signal light left Switching over between low beam and main beam lights Headlight flasherFurther information
⇒page 59, “The turn signal
and main beam lever
”.
Windscreen wiper lever Intermittent switch, sensitivity setting rain sensor* Wipers off Intermittent wipe
Automatic light control*
Switching off all lights/daylight driving lights
Switching on side lights
Switching on the low beam and main beam
Fog lights*
Rear fog light
Fig. 7 Dash panel: Light switch
Fig. 8 Turn signal and main beam lever
AAABACAD
Fig. 9 Windscreen wiper lever
AAA0A1
sgg.6.book Page 13 Thursday, September 24, 2009 2:32 PM
Page 15 of 271
The brief instruction
14
Slow wipe Fast wipe one time wipe Automatic wipe/wash Rear window wiper Intermittent wipe - every 6 seconds Automatic wipe/washFurther information
⇒page 63, “Windshield wiper”.
Power windows* Button for the power window in the driver's door Button for the power window in the front passenger's door Button for the power window in the rear door on the right* Button for the power window in the rear door on the left* Safety pushbutton*Further information
⇒page 47, “Power windows*”.
RefuellingFig. 11 Right rear side of the vehicle: Fuel
filler flap / fuel filler flap with cap unscrewed
– Press in the middle of the left area of the fuel filler flap in direction of arrow
⇒ fig. 11
.
– The fuel filler cap on the fuel filler tube
must be unlocked to the left using the
vehicle key (only valid for vehicles which
do not have automatic unlocking of the
fuel filler flap).
– Unscrew the fuel filler ca
p anti-clockwise and place the fuel filler cap from above
on the fuel filler flap
⇒fig. 11
on the right.
Further information
⇒page 201, “Refuelling”.
Bonnet remote release– Pull the unlocking lever below the dash panel on the driver's side
⇒fig. 12
.
A2A3A4A5A6A7
Fig. 10 Buttons on the driver's door
AAABACADAS
Fig. 12 Bonnet release lever
sgg.6.book Page 14 Thursday, September 24, 2009 2:32 PM
Page 16 of 271
The brief instruction
15
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Opening the bonnetFig. 13 Radiator grille: Locking lever / se
curing the bonnet with the bonnet support
– Pressing on the locking lever in direction of arrow
⇒fig. 13
will unlock the
bonnet.
– Take the bonnet support out of its holder
in direction of arrow and secure the
opened bonnet by inserting the end of the support in the opening designed for it ⇒fig. 13
.
Further information
⇒page 203, “Opening and closing the bonnet”
Inspecting the engine oil level Engine oil
must not be
refilled.
Engine oil
can
be refilled.
Engine oil
must
be refilled.
Further information
⇒page 205, “Check engine oil level”.
A1
A2A3
Fig. 14 Dipstick
AAAB
AC
sgg.6.book Page 15 Thursday, September 24, 2009 2:32 PM
Page 17 of 271
Instruments and Indicator/Warning Lights
16Instruments and Indicator/Warning LightsGeneral view of the instrument cluster
Engine revolutions counter
⇒page 17
Speedometer
⇒page 17
Button for display mode: − Set hours / minutes − Activating / deactivating the second speed in mph or km/h* − Service interval - Display of the remaining number of days, kilometres or miles to the next Inspection Service / Reset*
1)
Coolant temperature gauge
⇒page 17
Display − with counter for distance driven
⇒page 18
− with Service Interval Display
⇒page 18
− with digital clock
⇒page 20
− with Multi-functional indicator*
⇒page 20
− with Information display*
⇒page 24
Fuel gauge
⇒page 17
Button for: − Reset trip counter for distance driven − Resetting Service Interval Display − Set hours / minutes − Activate / deactivate display mode
Fig. 15 Instrument cluster
1)Valid for countries where the values are indicated in British measuring units.A1A2A3A4A5
A6A7
sgg.6.book Page 16 Thursday, September 24, 2009 2:32 PM
Page 18 of 271
Instruments and Indicator/Warning Lights
17
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Engine revolutions counterThe red zone of the rev counter scale
⇒page 16, fig. 15
indicates the range in
which the engine control unit begins to limi
t the engine speed. The engine control unit
restricts the engine speed to a steady limit value. Shift into the next higher gear or select th
e selector lever position D of the automatic
gearbox before reaching the red zone of the rev counter scale. Avoid high engine speeds du
ring the driving time and before the engine has been
warmed up to operating temperature
⇒page 173.
For the sake of the environment
Shifting up early helps you sa
ve fuel and reduce the operating noise of your vehicle.
SpeedometerWarning against excessive speeds* An acoustic warning signal will sound when the vehicle speed exceeds 120 kilometres per hour. The acoustic warning signal will sw
itch off again when the vehicle speed goes
below this speed limit.
Note
This function is only valid for some countries.Coolant temperature gaugeThe coolant temperature gauge
⇒page 16, fig. 15
operates only when the ignition
is switched on. In order to avoid any damage to the engine,
please pay attention to
the following notes
regarding the temperature ranges:
Cold range If the pointer is in the left-hand area of the scale it means that the engine has not yet reached its operating temperature. Avoid runni
ng at high engine speeds, at full throttle
and at severe engine loads. The operating range The engine has reached its operating temperature as soon as the pointer moves into the mid-range of the scale. The pointer may
also move further to the right at high
engine loads and high outside temperatures. This is not critical provided the warning symbol
in the instrument cl
uster does not flash.
If the symbol
in the instrument cluster flashes it means that either the coolant
temperature
is too high or the coolant
level
is too low. Observe the guidelines
⇒ page 34, “Coolant temperature/ Coolant quantity
”.
WARNING
Pay attention to the warning notes
⇒page 204, “Working in the engine
compartment” before opening the bonn
et and inspecting the coolant level.
Caution
Additional headlights and other attached components in front of the fresh air inlet impair the cooling efficiency
of the coolant. There is then a risk of the engine over-
heating at high outside temperatures and high engine loads!Fuel gaugeThe fuel gauge
⇒page 16, fig. 15
only operates when the ignition is switched on.
The fuel tank has a capacity of
about 60 litres. The warning symbol
in the instrument
cluster lights up when the pointer reaches the reserve marking. There are now about 10.5 litres of fuel remaining in the ta
nk. This symbol is a reminder for you,
that you
must refuel
.
The following will be displayed in the information display*:
Please refuel!
An audible signal sounds as an additional warning signal.
A1
A4
A6
sgg.6.book Page 17 Thursday, September 24, 2009 2:32 PM
Page 19 of 271
Instruments and Indicator/Warning Lights
18
Caution
Never run the fuel tank completely empty!
The irregular supply of the fuel system can
lead to irregular running of
the engine. Unburnt fuel may get into the exhaust system
and damage the catalytic converter.
Note
After filling up, it can occur that during dy
namic driving (e.g. numerous curves, braking,
driving downhill and climbing a steep hill) the fuel gauge indicates approx. a fraction less. When stopping or during less dynamic
driving, the correct fuel supply quantity is
indicated. This effect is not a fault.Counter for distance drivenThe distance which you have driven with yo
ur vehicle is shown in kilometres (km). In
some countries the measuring unit “mile” is used. Reset button If you hold the reset button
⇒page 16, fig. 15
pressed for about 1 second, the trip
counter is set back to zero. Trip counter for distance driven The trip counter indicates the distance which you have driven
⇒fig. 16
since this
counter was last reset - in steps of 100 metres or 1/10 of a mile.
Counter for distance driven The counter for distance driven
⇒fig. 16
indicates the total distance in kilometers or
miles which the ve
hicle has driven.
Fa ult di spl ay If there is a fault in the inst
rument cluster, a co
nstant text will appear in the display
Error
. Have the fault rectified as soon as possible by a specialist workshop.WARNING
Never seek to adjust the trip counter for
distance driven while driving for safety
reasons!
Note
If vehicles which are fitted with the info
rmation display* the display of the second
speed is activated in mph or km/h, this driving speed is indicated instead of the counter for the total distance driven.Service Interval DisplayDepending on the equipment installed in the vehicle, the text can differ on the display. Service Interval Display Before the next service interval a key symbol
and the remaining kilometers are
indicated after switching on the ignition
⇒fig. 17
. At the same time, a display appears
regarding the remaining days until the next service interval.
Fig. 16 Display: Co
unter for distance
driven
A7
Fig. 17 Service Interval Display: Note
sgg.6.book Page 18 Thursday, September 24, 2009 2:32 PM
Page 20 of 271
Instruments and Indicator/Warning Lights
19
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The following will be displayed in the information display*:
Service in ... km or... days
The kilometre indicator or the days indicator reduces in steps of 100 km. or days until the service due date is reached. A flashing key symbol
and the text
Service
appears in the display for 20 seconds
as soon as the due date for the service is reached. The following will be displayed in the information display*:
Service now!
Display regarding the distance and days until the following service interval You can use the button to display the remaining distance driven and the days until the next service interval
⇒page 16.
A key symbol
and a display regarding the remaining kilometers appear for 10
second in the display. At the same time, a display appears regarding the remaining days until the next service interval. On vehicles which are equipped with inform
ation display*, you ca
n call up this infor-
mation in the following menu on
⇒page 24:
„
SETUP (Settings)
„
Service Interval (Service)
„
Info
The following will be displayed in the information display* for 10 seconds:
Service in ... km or... days
Resetting Service Interval Display It is only possible to reset the Service Interval Display, if a service message or at least a pre-warning is shown on the display of the instrument cluster. We recommend having this resetting performed by a specialist garage.The specialist garage:•
resets the memory of the display after the appropriate inspection;
•
makes an entry in the Service schedule;
•
affix the sticker with the entry of the following service interval to the side of the
dash panel on the driver's side. Reset the service interval displays by using the reset button
⇒page 16 on the trip
counter. On vehicles which are equipped
with information display*, you can call up this infor-
mation in the following menu on
⇒page 24:
„
SETTINGS
„
Service Interval (Service)
„
ResetCaution
We recommend that you do not reset the Se
rvice Interval Display yourself otherwise
this can result in the service interval displa
y being incorrectly set, which may also result
in problems with operation of your vehicle.
Note
•
Never reset the display between service intervals otherwise this may result in
incorrect readouts.•
information is retained in the Service Inte
rval Display also after the battery of the
vehicle is disconnected.•
If the instrument cluster is exchanged after a repair, the correct values must be
entered in the counter for the Service Interval
Display. This work is carried out by a
specialist garage.•
The data displayed is the same after resetting the display with flexible service inter-
vals (QG1) using the reset button as that for a vehicle with fixed service intervals (QG2). We therefore recommend having the Service In
terval Display reset
only by an author-
ised Škoda Service Partner who is familiar with the procedure for resetting the display with a vehicle system tester.•
Please refer to the brochure Service schedule for extensive information about the
service intervals.
A3
A7
sgg.6.book Page 19 Thursday, September 24, 2009 2:32 PM
