air condition SKODA YETI 2009 1.G / 5L Owner's Manual

Contents3
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
ContentsLayout of this Owner's Manual
(explanations)
. . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system
. . . . . . . . . . . . . . . . . . . . . .
Cockpit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The brief instruction
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic functions and important information . . . . .
Instruments and Indicator/Warning Lights
. . .
General view of the instrument cluster . . . . . . . . .
Engine revolutions counter . . . . . . . . . . . . . . . . . . . .
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant temperature gauge . . . . . . . . . . . . . . . . . . .
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Counter for distance driven . . . . . . . . . . . . . . . . . . .
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . .
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-functional indicator (onboard computer) .
Information display* . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Check Control* . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unlocking and locking
. . . . . . . . . . . . . . . . . . . . . . . .
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the battery of the radio remote control
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . .
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Central locking system . . . . . . . . . . . . . . . . . . . . . . . .
Remote control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Synchonisation of the remote control . . . . . . . . . .
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . . . .
Power windows* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric sliding/tilting roof with electric sun screen*
Lights and Visibility
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and wash system . . . . . . . . . . . . .
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seats and Stowage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting front seats electrically* . . . . . . . . . . . . . . .
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Middle rear head restraint* . . . . . . . . . . . . . . . . . . . .
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage compartment . . . . . . . . . . . . . . . . . . . . . . . .
Variable loading floor* . . . . . . . . . . . . . . . . . . . . . . . . .
Variable loading floor* with spare wheel* . . . . . . .
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter*, power sockets . . . . . . . . . . . . . . .
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment on the front passenger side
Cooling of storage compartment on front passenger
side* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment on the dash panel* . . . . . . .
Storage compartment in front centre console . . .
Storage compartment for spectacles* . . . . . . . . . . .
Storage compartment in the front and rear doors
Storage compartment below front passenger seat*
Front seat armrest with storage compartment* . .
Storage compartment in rear centre console* . . .
Storage compartments in the luggage compartment*
Flexible storage compartment* . . . . . . . . . . . . . . . .Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removeable through-loading bag* . . . . . . . . . . . .
Heating and air conditioning system
. . . . . . . . .
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatic* (semi-automatic air conditioning system)
Climatronic* (automatic air conditioning) . . . . . .
Auxiliary heating (auxiliary heating and ventilation)*
Starting-off and Driving
. . . . . . . . . . . . . . . . . . . . . . .
Setting steering wheel position . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching off the engine . . . . . . . . . . . . . . . . . . . . . . .
Shifting (manual gearbox) . . . . . . . . . . . . . . . . . . . . .
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front and rear parking aid* . . . . . . . . . . . . . . . . . . . .
Park Assist* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control system (CCS)* . . . . . . . . . . . . . . . . . .
Automatic gearbox DSG*
. . . . . . . . . . . . . . . . . . . . .
Automatic gearbox DSG* . . . . . . . . . . . . . . . . . . . . . .
Communication
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multifunction steering wheel* . . . . . . . . . . . . . . . . .
Universal telephone preinstallation GSM II* . . . . .
Voice control of the telephone . . . . . . . . . . . . . . . . .
Inputs AUX-IN* and MDI* . . . . . . . . . . . . . . . . . . . . .
CD changer* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passive Safety
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . 6
7
9
9
11
11
16
16
17
17
17
17
18
18
20
20
24
26
29
39
39
39
40
40
40
45
46
46
47
5053
53
60
62
63
66
69
69
70
72
73
74
77
78
82
83
84
85
86
86
87
88
88
89
89
89
90
90
90
91
91
92
92
9293
93
95
95
96
98
101
105
109
109
109
110
111
112
112
113
114
115
119
121
121
126
126
129
132
135
135
137
137
137
138
sgg.6.book Page 3 Thursday, September 24, 2009 2:32 PM

Instruments and Indicator/Warning Lights
24Information display*IntroductionThe information display provides you with information in a convenient way concerning the
current operating state of your vehicle
. The information system also
provides you with data (depending on the equipment installed in the vehicle) relating to the radio, mobile phone, multi-function
al indicator, naviga
tion system, the unit
connected to the MDI input and the automatic gearbox. Certain functions and operating conditions
are always being checked on the vehicle
when the ignition is switched on and also while driving. Functional faults, if required
repair work and other information are indicated by red
symbols
⇒page 26 and yellow symbols
⇒page 27.
Lighting up of certain symbols is combined with an acoustic warning signal.Information and texts giving warnings
are also shown in the display
⇒page 29.
The display of text is possible in the following languages:
Czech, English, German, French, Italian,
Spanish, Portuguese, Russian and Chinese.
You can select the desired language in the setting menu.The following information can be shown in
the display (depending on the equipment
installed on the vehicle):
Caution
Pull out the ignition key while having co
ntact with the display (for example when
cleaning) in order to prevent any damage.Main menuFig. 23 Information display: Controls on the wi
ndshield wiper lever /
controls on the multi-
function steering wheelOperating with the buttons on the windshield wiper lever– You can activate the
MAIN MENU
by pressing the rocker switch
⇒fig. 23
for
more than 1 second.
– You can select indi
vidual menu points by means of the rocker switch . When the
pushbutton is briefly pressed, the info
rmation you have selected is displayed.
Operating with the buttons on the multifunction steering wheel*– You can call up the
MAIN MENU
by pressing the button
⇒fig. 23
.
Fig. 22 Instrument cluster: Information display
Main menu
⇒ page 24
Door, luggage compartment door and bonnet ajar warn- ing
⇒ page 25
Service Interval Display
⇒page 18
Selector lever positions for the automatic gearbox DSG
⇒page 122AAAA
AB
AC
sgg.6.book Page 24 Thursday, September 24, 2009 2:32 PM

Unlocking and locking

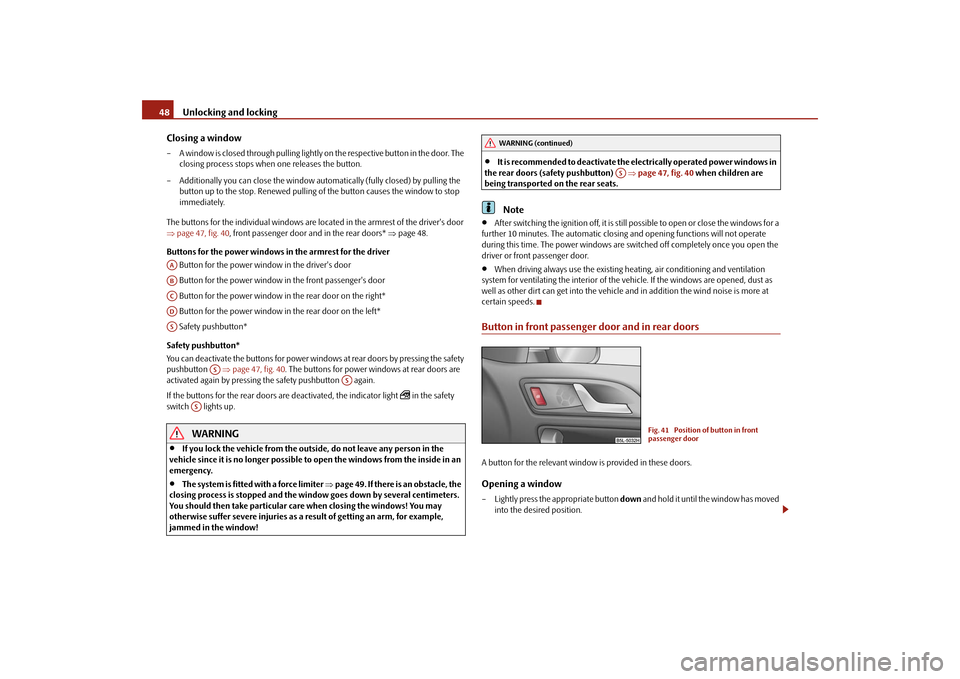

48 Closing a window– A window is closed through pulling lightly on the respective button in the door. The
closing process stops when
one releases the button.
– Additionally you can close the window auto
matically (fully clos
ed) by pulling the
button up to the stop. Renewed pulling of the button causes the window to stop immediately.
The buttons for the individual windows are located in the armrest of the driver's door ⇒ page 47, fig. 40
, front passenger door and in the rear doors*
⇒page 48.
Buttons for the power windows in the armrest for the driver Button for the power window in the driver's door Button for the power window in the front passenger's door Button for the power window in the rear door on the right* Button for the power window in the rear door on the left* Safety pushbutton* Safety pushbutton* You can deactivate the buttons for power wind
ows at rear doors by pressing the safety
pushbutton
⇒page 47, fig. 40
. The buttons for power windows at rear doors are
activated again by pressing
the safety pushbutton again.
If the buttons for the rear doors are deactivated, the indicator light
 in the safety
switch lights up.
WARNING
•
If you lock the vehicle from the outside, do not leave any person in the
vehicle since it is no longer possible to
open the windows from the inside in an
emergency.•
The system is fitted with a force limiter
⇒page 49. If there is an obstacle, the
closing process is stopped and the window
goes down by several centimeters.
You should then take particular care when closing the windows! You may otherwise suffer severe injuries as a re
sult of getting an arm, for example,
jammed in the window!
•
It is recommended to deactivate the el
ectrically operated
power windows in
the rear doors (safety pushbutton)
⇒page 47, fig. 40
when children are
being transported on the rear seats.
Note
•
After switching the ignition off, it is still
possible to open or close the windows for a
further 10 minutes. The automatic closing and opening functions will not operate during this time. The power windows are sw
itched off completely once you open the
driver or front passenger door.•
When driving always use the existing he
ating, air conditioning and ventilation
system for ventilating the interior of the vehicle. If the windows are opened, dust as well as other dirt can get into the vehicle an
d in addition the wind noise is more at
certain speeds.Button in front passenger door and in rear doorsA button for the relevant window is provided in these doors.Opening a window– Lightly press the appropriate button
down
and hold it until the window has moved
into the desired position.
AAABACADAS
AS
AS
AS
WARNING (continued)
AS
Fig. 41 Position of button in front passenger door
sgg.6.book Page 48 Thursday, September 24, 2009 2:32 PM

Lights and Visibility
55
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Rain lights If you switch on the windscreen wipe in th
e operation rain sensor* for longer than 10
seconds or in the operation permanent wipe (position 2 or 3)
⇒page 63 switching on
for longer than 15 seconds, the side lights
and low beam are switched on automati-
cally. The light switches off if the windscreen wipe is in operation rain sensor* for more than 4 minutes or is not switched
on in the operation permanent wipe.
WARNING
The automatic light control only operat
es as a support. Th
e driver is not
released from his responsibility to inspect the light and if necessary to switch on the light depending on the light conditions. The light sensor cannot detect for example rain or snow. For these conditions we recommend to switch on the low beam
!
Note
•
Do not affix any stickers in front of the light sensor, so that you do not impair its
function or put it out of operation.•
The same principles as for using the automa
tic light control also
apply to the light
which is switched on manually
⇒page 53.
Cornering lights*The cornering lights are used to illuminate
the curves by means of the cone of light
swiveling together with the front headlight with Xenon lights*. This function is active when the speed of the car increases to more than 10km/h. The swiveling function of the headlights ca
n be switched off / on via the menu point
Assistant
in the main menu of the Information display*
⇒page 24.
WARNING
If the cornering ligh
ts are defective, the headlights are automatically lowered to
the emergency position, which prevents a
possible dazzling of oncoming traffic.
Thus the illuminated length of the road is shortened. Drive carefully and have the car inspected immediatel
y by a specialist garage.
Coming Home FunctionThe function makes it possible to switch on the lights in the darkness for a short time after leaving the vehicle.Switching on Coming Home Function– The light switch is in the position automatic driving lamp control

and the low
beam illuminates.
– Switch off the ignition. – After opening the driver's door, the function Coming Home is switched on.– Close all the doors and the boot lid and lo
ck the vehicle. After a short time, switch
all lights off.
Depending on equipment fitted the function Coming Home switches on the following lights:•
Parking lights,
•
Low beam,
•
Entry lighting in the exterior mirrors,
•
Licence plate light.
Coming Home Function The lights go out 10 seconds after cl
osing all the doors and the boot lid.
If a door or the boot lid re
mains open, the lights go out
60 seconds after switching off
the ignition. The function Coming Home is controlled with the light sensor in the mount of the inte- rior rear mirror. If the light intensity is higher than the set value of the light sensor, the Coming Home Function is not switched on after switching off the ignition.
Note
•
If the Coming Home Function is switched
on constantly, the battery will be heavily
discharged particularly in short-haul traffic.•
The switching on of the described lights
should only be undertaken in accordance
with the legal requirements.
sgg.6.book Page 55 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
89
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Storage compartment on the front passenger sideOpening and closing the storage compartment on the front passenger side– Press the button
⇒fig. 94
- the lid folds down.
– Raise the lid and press it until the catch is heard to engage. In the storage compartment are pin holders.
WARNING
The storage compartment must always be closed when driving for safety reasons.
Cooling of storage compar
tment on front passenger
side*The compartment is fitted with an
isolatable entry for cooled air.
– You can switch on the cooling system by
pulling the lever in direction of arrow
⇒ fig. 95
.
– Switch off the cooling system by inserting the lever. Opening the air inlet when the air conditioning system is on causes fresh or interior air to flow into the storage compartment. We recommend that you switch off the cooling if it is operating in the heating mode or if you are not using the cooling system for the storage compartment.Storage compartment on the dash panel*
Fig. 94 Dash panel: Storage compart- ment on the front passenger side
Fig. 95 Storage compartment: Using cooling systemFig. 96 Dash panel: Storage compart-ment
sgg.6.book Page 89 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
91
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
Use the area
⇒page 90, fig. 99
of the storage compartment only for storing
objects which do not project so that the effectiveness of the side airbag is not impaired.Storage compartment below front passenger seat*The storage compartment is foreseen for storing small objects of up to 1.5 kg in weight. – Tilt the lock to open the flap and pull out the flap
⇒fig. 100
.
– Tilt the lock to close the
flap and press flap close.
Front seat armrest with storage compartment*Fig. 101 Armrest: Storage compartment / cooling of storage compartment
The armrest is adjustable for height and length.Opening storage compartment– Open the lid of the armrest in the direction of arrow
⇒fig. 101
.
Closing storage compartment– Open the lid up to the stop, then you can fold it downwards.Setting height– First of all fold the lid to the bottom and li
ft it in the direction of arrow into one of
the 4 fixed positions.
Adjusting in forward/back direction– Push the lid into the desired position.Opening air inlet– Pull the lock in upward direction
⇒fig. 101
.
Closing air inlet– Push the lock as far as the stop downwards. On vehicles fitted with air conditioning, the storage compartment is equipped with a lockable inlet for thermally treated (warmed-up) air. At open air supply, air flows into the storage with a temperature which is as high as the one out of the air outlet nozzles, depending on temperature setting. The air inlet in the storage compar
tment is connected to position
 through adjust-
ment of the control dial for air distribution. This position causes the maximum amount of air to flow into the storage compartmen
t (depending on the rotary regulator posi-
tion for the fan). You can use the storage compartment, for
example, to temper drinks cans, etc.
If you do not use the air inlet in the storage compartment, the end cover should always be kept closed.
AA
Fig. 100 Front passenger seat: Storage compartment
A1
AAAA
sgg.6.book Page 91 Thursday, September 24, 2009 2:32 PM

Heating and air conditioning system
95
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Heating and air conditioning systemAir outlet ventsThe information provided is valid for all vehicles.Fig. 106 Air vents at the front Fig. 107 Air vents at the rearOpen the air outlet vents 3 and 4– Turn the horizontal wheel (to the right)
⇒fig. 106
.
Open the air outlet vents 6– Turn the vertical wheel (between the end positions)
⇒fig. 107
.
Close air outlet vents 3 and 4– Turn the horizontal wheel into the end position (to the left).Close air outlet vents 6– Turn the vertical wheel into the end position.Change air flow of air outlet vents 3 and 4– In order to change the strength of the air
flow, swivel the horizontal lamellas with
the aid of the moveable adjuster.
– In order to change the lateral direction of the air flow, turn the vertical lamellas with
the aid of the moveable adjuster.
Change air flow of air outlet vents 6– In order to change the strength of the air
flow, swivel the horizontal lamellas with
the aid of the vertical wheel upwards or downwards.
– In order to change the lateral direction of the air flow, turn the vertical lamellas with
the aid of the horizontal wheel to the left or to the right.
The air outlet vents
3, 4 ⇒fig. 106
and
6 ⇒fig. 107
can be closed and opened individ-
ually. The air outlet vents
6 are only fitted on vehicles
with higher centre console.
Warmed, unwarmed or cooled air will flow out
of the air outlet vents according to the
setting of the regulator of the heating or the air conditioning system* and the atmos- pheric conditions.
sgg.6.book Page 95 Thursday, September 24, 2009 2:32 PM

Heating and air conditioning system
96HeatingUsing the system The heating system delivers air into the interior of the vehicle and warms it as required.Fig. 108 Heating: Control elementsSetting temperature– Turn the control dial
⇒fig. 108
to the right in order to increase the temperature.
– Turn the control dial to the left in order to increase the temperature.Controlling blower– Turn the blower switch into one of the po
sitions, 1 to 4, in order to switch the
blower on.
– Turn the blower switch into position 0 in order to switch the blower off. – If you wish to shut off the fresh air supply
, use the button - recirculated air mode
⇒
.
Control for air distribution– You can adjust the direction of the air
flow using the air distribution control
⇒ page 95.
Rear window heater– Press button . Further information
⇒page 62, “Rear window heater”.
Auxiliary heating (auxiliary heating)*– Press the button in order to directly switch on/off the auxiliary heating (auxiliary
heating and ventilation). Further information
⇒page 105, “Auxiliary heating (auxil-
iary heating and ventilation)*”.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating and ventilation systems operate properly. The heating effect is dependent upon the coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature. The blower should aways be on to prevent the windows from misting up.
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your atten- tion and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mo
de off as soon as the windows begin
misting up.
Note
•
The whole heat output will be needed to unfrost the windscreen and side windows.
No warm air will be fed to the footwell. Th
is can lead to restriction of the heating
comfort.•
The used air streams out through the air removal openings in the luggage
compartment.
AAAAABAB
A1
AC
A2A3
sgg.6.book Page 96 Thursday, September 24, 2009 2:32 PM

Heating and air conditioning system
97
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Set heatingRecommended settings of
heating controls for:
Note
We recommend that you leave the air outlet vents
3 ⇒page 95, fig. 106
in the opened
position.
Set-up
Setting of the control dial
Button
Air outlet vents 4
Defrosting the windscreen and side windows
To the right up to the
stop
3

Do not switch on
Open and align with the side win-
dow
Free windscreen and side windows from mist
Desired temperature
2 or 3

 
Do not switch on
Open and align with the side win-
dow
The fastest heating
To the right up to the
stop
3

briefly switched on
Opening
Comfortable heating
Desired temperature
2 or 3

Do not switch on
Opening
Fresh air mode - ventilation
To the left up to the
stop
Desired position

Do not switch on
Opening
A1
AA
AB
AC
sgg.6.book Page 97 Thursday, September 24, 2009 2:32 PM

Heating and air conditioning system
98Recirculated air mode In recirculated air mode air is sucked
out of the interior of the vehicle
and then fed back into the interior.Recirculated air mode prevents polluted air
outside the vehicle from getting into the
vehicle, for example when driving through a
tunnel or when standi
ng in a traffic jam.
Switching recirculated air mode on– Press the button - the warning light lights up in the button
⇒page 96, fig. 108
.
Switching recirculated air mode off– Press again the button - the warning light in the button goes out. The recirculated air mode is switched off automatically if the air distribution control is in position
 ⇒page 96, fig. 108
. You can also switch recirculated air mode on
again from this setting by re
peatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your atten-tion and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.Climatic* (semi-automatic air conditioning system)Description The Climatic is a combined cooling and heating system. It makes it possible to optimally control the air
temperature at any season of the
year.Description of the Climatic It is important for your safety and for your
driving comfort that the Climatic is operating
properly.
The cooling only operates if button
⇒page 99, fig. 109
is pressed, and the
following conditions are met:•
engine running,
•
outside temperature above approx. +2°C and
•
blower switch switched
on (positions 1 to 4).
If the cooling system is switched on, th
e temperature and air humidity drops in the
vehicle. The wellbeing of the occupants of the car is enhanced as a result of this partic- ularly at high outside temperatures and a high air humidity. The system prevents the windows misting up during the cold season of the year. The heating effect is dependent upon the coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature. It is possible to briefly activate recirculat
ed air mode in order to enhance the cooling
effect
⇒
.
Air at a temperature of about 5°C may flow
out of the vents under certain circum-
stances when the cooling system is operatin
g. Lengthy and uneven distribution of the
air flow out of the vents and large differences in temperature, for example when getting out of the vehicle, can result in chills in sensitive persons. The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating and cooling systems operate properly. After switching on the cooling
Condensation
from the evaporator of the air condi-
tioning may drip down and form a puddle be
low the vehicle. This is quite normal and
not an indication of a leak!
WARNING
•
For your own safety and that of other road users, ensure that all the
windows are free of ice, snow and misting. Please familiarize yourself about how to correctly operate
the heating and ventilation systems, how to demist
and defrost the windows, as well as with the cooling mode.•
You should not leave recirculated air mode on over a longer period of time,
as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mo
de off as soon as the windows begin
misting up.


AC

AC
A1
sgg.6.book Page 98 Thursday, September 24, 2009 2:32 PM
