■If a CD is dirty, never clean it in a circular motion, but instead work from the in-
side out. Use a soft, lint-free cloth. For heavy stains, we recommend that you
clean the CD with a commercially available CD cleaner and allow it to dry.■
It is possible that CDs protected by copyright or home-made CD-R/CD-RW will
not be played back at all or only in certain circumstances.
■
Please also note the additional information for MP3 mode.
■
The national copyright laws that apply in your country must be observed.
■
The CD-player does not contain parts that need to be serviced or repaired. In
the case of a defective CD player, please visit a specialist garage.
■
If the ejected CD is not taken out, it will be retracted again for safety reasons.
■
If a TP station was set before changing to CD mode, CD playback will be inter-
rupted during the traffic news and the device switches to radio mode. Once the
traffic news have ended, CD playback will resume.
Function SCAN
The function allows you to play the first 10 seconds of every track in turn.
›
Press the SCAN switch and select one of the following options:
›
CD
- Browsing of the CD's contents begins;
›
FOLDER - browsing of the current folder begins.
›
To return to normal operation, press the rocker switch SCAN again.
›
To select the previous or next track, press the rocker switch or .
MIX function
›
Press the
MENU rocker switch to select the Setup menu.
›
Use the function keys to select the
MIX menu function.
›
Use the adjustment knob
1
to select the desired setting.
MIX
Play function of titles in random order.
› MIX OFF
- the menu function is inactive;
› MIX CD
- random playback of tracks on a CD;
› MIX FLD
- random playback of tracks in a specific folder;
› MIX PLS
- Playback of the playlist (folder of selected tracks from individual fold-
ers, which is stored on the CD). Is only displayed when a play-list is created for
the replayed CD.
General information for MP3 operation
Requirements for the MP3 data and data carrier
› CD-ROM, CD-R, CD-RW with a capacity of 650 MB and 700 MB.
› The CDs must correspond to the ISO 9660 Level 2 standard as well as the Joliet
data system (single and multi-session).
› Data names must be no longer than 64 characters.
› The list structure is restricted to a depth of 8 list levels.
› The name of the artist, the album and the title of the played MP3 file can be dis-
played if such information is available in the form of so called ID3 tags. If there
is no ID3 tag only the directory or data name will be displayed.
Bit rate (data flow per time unit)
› The system supports MP3 data with bit rates of 32 to 320 KB/s as well as MP3
data with variable bit rates.
› The indicated playing time data with variable bit rates is not reliable.
Display of additional information (MP3 data)
The selection buttons 1
- 6 can be used to display the additional information
about MP3 files on the screen:
› 1
- Number of the folder and number of the track;
› 2 - Name of the track;
› 3 - Name of the performer;
› 4 - Name of the album;
› 5 - Name of the file;
› 6 - Name of the folder.
Buttons on the unit for controlling the current audio source
If there is a folder structure with files inside on the CD (MP3), navigation within
this structure takes place as follows:
›
- pressing briefly takes you back to the previous file in the selected folder.
›
- pressing briefly takes you to the next file in the selected folder.
›
- pressing briefly takes you to the previous track/playlist.
›
- pressing briefly takes you to the next track/playlist.
›
For fast forwarding or rewinding the track press and hold the or rocker
switch. Playback will continue upon releasing the rocker switch.
9CD player
Page 12 of 15
External sources
Using the system
Advice for dealing with external sources
An external audio source connected to the AUX input can be played in the car through the speakers of the device. External audio sources cannot be controlled
via the device.
A different audio source can be selected on the device at any time. As long as the
external audio source is not switched off, it always remains active in the back-
ground.
See the owner's manual of the specific manufacturer for operating the external
audio source.
Conditions for a successful connection
External audio sources are connected via the AUX input using a 3.5 mm standard
jack plug. If the external audio source does not have this jack plug, you must use
an adapter.
› Only USB devices with the specification 2.0 can be connected.
› The version of the file allocation table FAT (File Allocation Table) of the connec-
ted device must be FAT16 ( <2 GB) or FAT32 (> 2 GB).
› In order to replay from a unit with a hard disk (HDD) which includes a large data
volume, it can lead to a time delay when reading in the overview of the music
data.
› In order to replay from a unit, which includes a complicated folder structure, it
can lead to a time delay when reading in the overview of the music data.
› The folder structure in the connected unit must not exceed a depth of 8 levels.
One folder must not contain more than 1000°data.
› A USB extension cable or USB distributor (HUB) must not be used to connect
the unit.
Adapter
We recommend that you purchase an adapter for connecting the USB devices, the
devices with Mini USB output or an iPod, at an authorised ŠKODA Service Partner.
Adjust the play function volume of the external audio source
The playback volume of the external audio source can be adjusted via the volume
control on the device.
Depending on the connected audio source, the output volume on the external au-
dio source can be changed.
You can also change the input sensitivity of the external audio source, » page 4,
AUX , in order to adapt the play volume of the external audio source to that of the
other audio sources or to avoid distortions.WARNING■ Never place external sources on the console panel. They could be thrown in-
to the passenger compartment during sudden driving manoeuvres, thereby in-
juring the occupants.■
Never place external sources close to the airbags. These could be thrown in-
to the passenger compartment when the airbags are deployed, injuring the
occupants.
■
Never hold external sources in your hand or on your knees while driving.
They could be thrown into the passenger compartment during sudden driving
manoeuvres, thereby injuring the occupants.
■
Always route the connection cable for the external source such that it does
not restrict you when driving.
CAUTION
The AUX input must only be used for audio sources!
Note
■ See the owner's manual of the specific manufacturer for instructions on operat-
ing the external source.■
If an external audio source equipped with an adapter for external power supply
is connected via AUX, it is possible that the audio signal may become disrupted. This depends on the quality of the adapter which is used.
■
The loudspeakers in the vehicle are designed for a power output of the device
of 4x20 W.
■
For the equipment sound system, the loudspeakers are matched to a power
output of the amplifier of 4x40°W + 6x20 W.
AUX Input
The AUX input for external audio sources is located below the armrest of the front seats and is marked with the symbol.
10External sources
Page 13 of 15

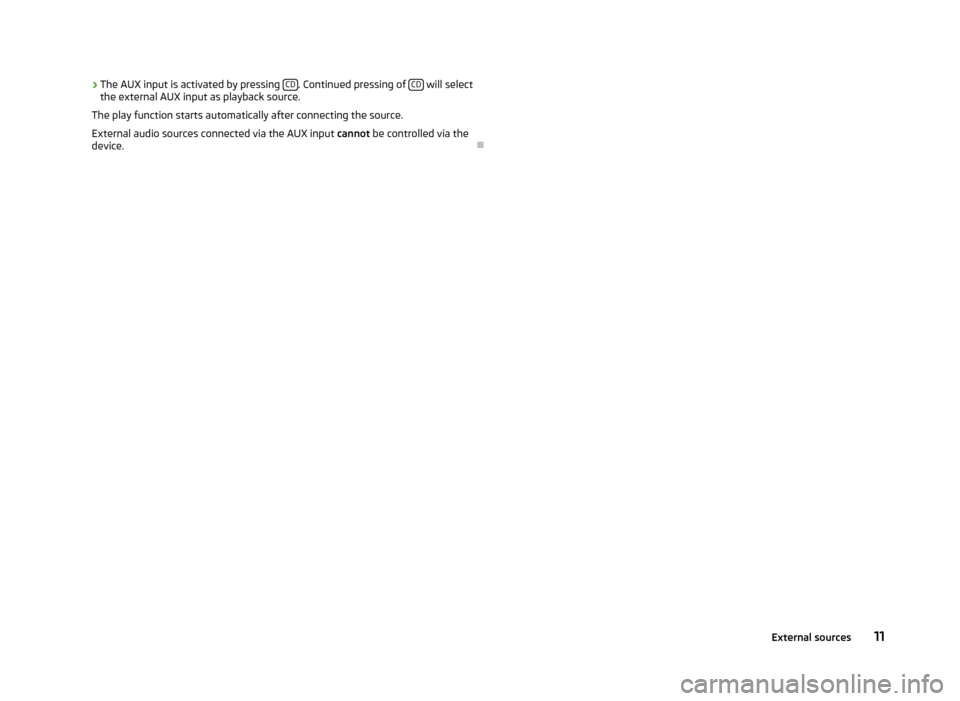

›The AUX input is activated by pressing
CD. Continued pressing of CD will select
the external AUX input as playback source.
The play function starts automatically after connecting the source.
External audio sources connected via the AUX input cannot be controlled via the
device.
11External sources
Page 14 of 15

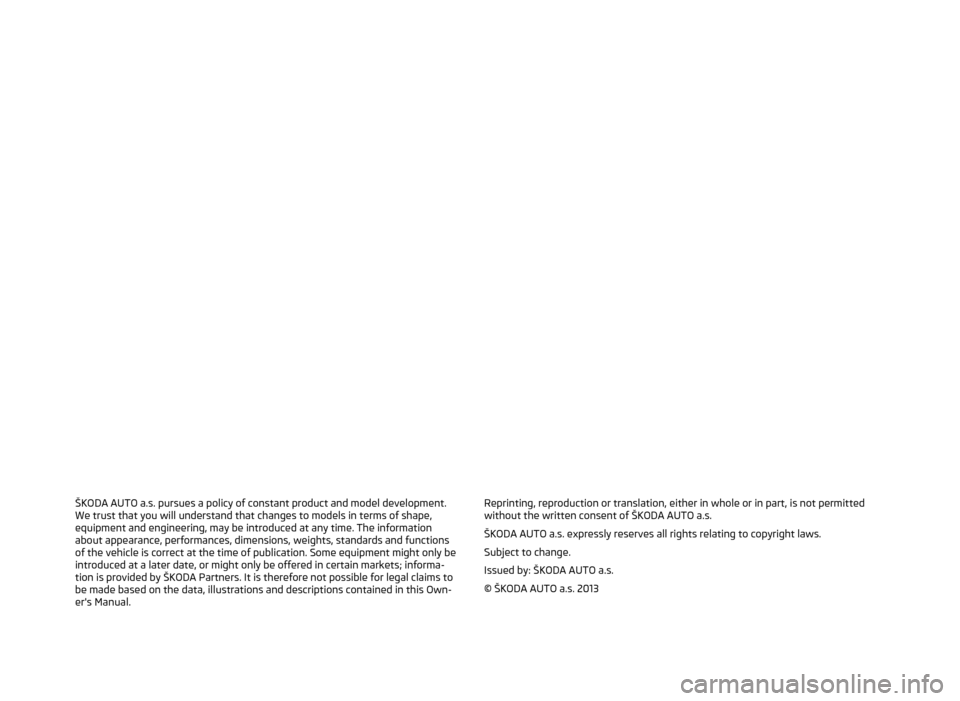

ŠKODA AUTO a.s. pursues a policy of constant product and model development.We trust that you will understand that changes to models in terms of shape,equipment and engineering, may be introduced at any time. The informationabout appearance, performances, dimensions, weights, standards and functions
of the vehicle is correct at the time of publication. Some equipment might only be introduced at a later date, or might only be offered in certain markets; informa-
tion is provided by ŠKODA Partners. It is therefore not possible for legal claims to
be made based on the data, illustrations and descriptions contained in this Own-
er's Manual.Reprinting, reproduction or translation, either in whole or in part, is not permitted without the written consent of ŠKODA AUTO a.s.
ŠKODA AUTO a.s. expressly reserves all rights relating to copyright laws.
Subject to change.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2013
Page 15 of 15

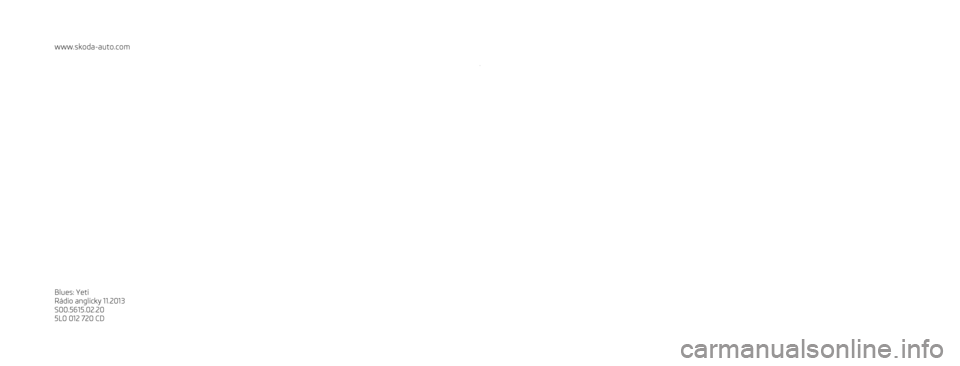

www.skoda-auto.com
