Assignment of the fuses in the dash panelFig. 194
Fuses
Read and observe and on page 214 first.
No.Consumer1Heating of the gearbox vent (diesel engine)
Control unit for automatic gearbox DSG2Towing hitch - left light3Towing hitch - right light4Instrument cluster control lever under the steering wheel, camera5Air blower for heating, radiator fan, air conditioning system, Clima-
tronic6Rear window wiper7Phone8Towing hitch - contact in the socket9Vehicle voltage control unit - interior lights
Rear fog light10Rain sensor, light switch, diagnosis connector, removable light11Left side cornering lights12Right side cornering lights13Radio, DVD14Central control unit, engine control unit15Light switch16Haldex17KESSY controller, steering wheel locking18Diagnostic socket, engine control unit, brake sensor, HaldexNo.Consumer19Control unit for ABS, ESP, switch for tyre air pressure control, con-
trol unit for parking aid, switch for OFF ROAD mode, START STOP button20Switch and airbag control unit21WIV, tail lamp, dimming mirror, pressure sensor, telephone prepara-
tion, air mass sensor, control unit for headlight range control and
headlight tilt22Instrument cluster controller for electro-mechanical power steer-
ing, control unit for data bus23Central locking system and bonnet lid24Rear power window25Rear window heater, auxiliary heating and ventilation26Power socket in the boot27Panorama window - sliding / tilting roof, electric sunblind28Fuel pump, injection valves29Front power window30front and rear lighter31Headlight cleaning system32Front seat heating, regulator for seat heating33Heating, air conditioning, Climatronic, remote control for auxiliary
heating34Alarm, spare horn35Control unit for DSG automatic gearbox36Control unit for trailer detection215Fuses and light bulbs

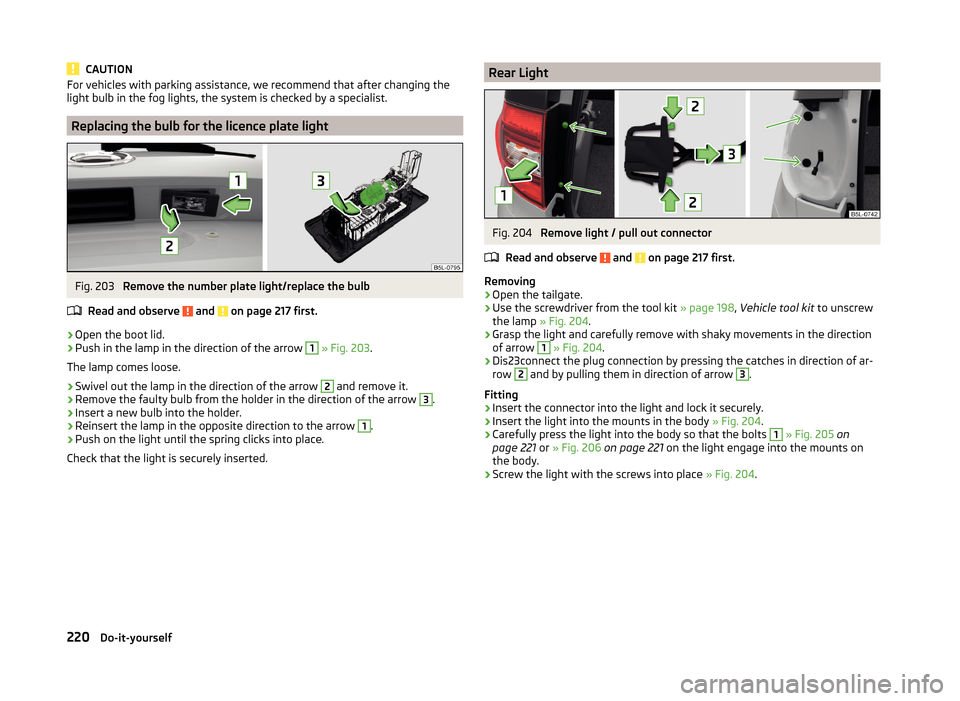

CAUTIONFor vehicles with parking assistance, we recommend that after changing the
light bulb in the fog lights, the system is checked by a specialist.
Replacing the bulb for the licence plate light
Fig. 203
Remove the number plate light/replace the bulb
Read and observe
and on page 217 first.
›
Open the boot lid.
›
Push in the lamp in the direction of the arrow
1
» Fig. 203 .
The lamp comes loose.
›
Swivel out the lamp in the direction of the arrow
2
and remove it.
›
Remove the faulty bulb from the holder in the direction of the arrow
3
.
›
Insert a new bulb into the holder.
›
Reinsert the lamp in the opposite direction to the arrow
1
.
›
Push on the light until the spring clicks into place.
Check that the light is securely inserted.
Rear LightFig. 204
Remove light / pull out connector
Read and observe
and on page 217 first.
Removing
›
Open the tailgate.
›
Use the screwdriver from the tool kit » page 198, Vehicle tool kit to unscrew
the lamp » Fig. 204 .
›
Grasp the light and carefully remove with shaky movements in the direction
of arrow
1
» Fig. 204 .
›
Dis23connect the plug connection by pressing the catches in direction of ar-
row
2
and by pulling them in direction of arrow
3
.
Fitting
›
Insert the connector into the light and lock it securely.
›
Insert the light into the mounts in the body » Fig. 204.
›
Carefully press the light into the body so that the bolts
1
» Fig. 205 on
page 221 or » Fig. 206 on page 221 on the light engage into the mounts on
the body.
›
Screw the light with the screws into place » Fig. 204.
220Do-it-yourself

Ball rodinstalling161
removing162
Bar with sliding hook98
Battery In the remote control key
210
Belts12
Belt tensioners15
Bonnet Closing
181
Opening181
Boot Class N1 vehicles
102
See Boot lid57
Boot lid automatic locking
58
Closing57
Opening57
Warning light36
Brake information messages
35
warning light35
Brake booster136
brake fluid specification
187
Brake fluid186
Checking186
information messages35
Brake pedal (automatic gearbox) warning light
41
brakes Driving in
140
Brakes Brake booster
136
Brake fluid186
Braking and stabilisation systems142
Handbrake136
Brakes and parking135
Braking Information on braking
135
Break recommendationSee Fatigue detection157
C
Camera Lens care
173
Camera lens care
173
Car care Jack
173
Car computer See multifunction display
44
Care and maintenance166
Car park ticket holder86
Carrier Roof rack
103
Cavity protection173
CD changer128
Central locking51
Problems55
Central locking button54
Change bulb for high beam
218
bulb for low beam218
engine oil183
light bulb in tail light220
Change engine oil
183
Changing Wheels
200
Changing a wheel Follow-up tasks
201
Preparation200
Removing and refitting a wheel201
Charging a vehicle battery189
Check Fit ball head properly
161
CheckingBattery electrolyte level188
Brake fluid186
Coolant185
Engine oil184
Oil level184
Windscreen washer fluid182
Checks Statutory checks
166
Children and safety23
Child safety Side airbag
25
Child safety lock55
Child safety seat Use of child safety seats
25
Child seat Classification
25
ISOFIX26
on the front passenger seat24
TOP TETHER27
Use of ISOFIX child seats26
Chrome parts see vehicle care
172
Cigarette lighter89
cleaning chrome parts
172
Cleaning Alcantara
175
and maintaining belts176
artificial leather175
headlight glasses172
materials175
natural leather175
plastic parts171
seats covers of the electrically heated seats176
wheels173
Cleaning safety belt
176
Cleaning seat covers
176
232Index

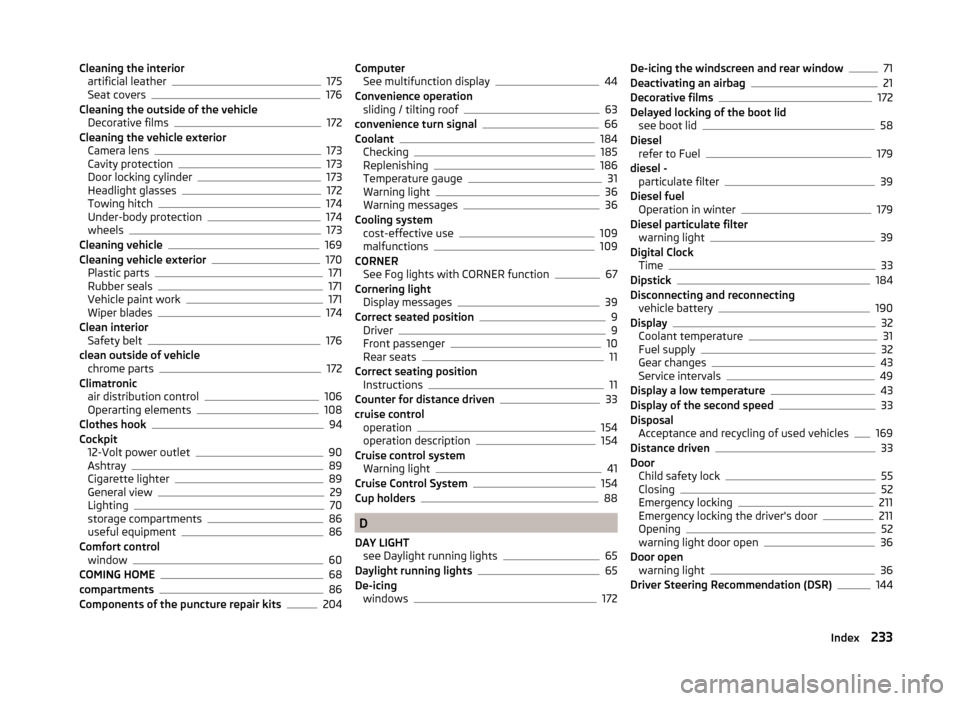

Cleaning the interiorartificial leather175
Seat covers176
Cleaning the outside of the vehicle Decorative films
172
Cleaning the vehicle exterior Camera lens
173
Cavity protection173
Door locking cylinder173
Headlight glasses172
Towing hitch174
Under-body protection174
wheels173
Cleaning vehicle169
Cleaning vehicle exterior170
Plastic parts171
Rubber seals171
Vehicle paint work171
Wiper blades174
Clean interior Safety belt
176
clean outside of vehicle chrome parts
172
Climatronic air distribution control
106
Operarting elements108
Clothes hook94
Cockpit 12-Volt power outlet
90
Ashtray89
Cigarette lighter89
General view29
Lighting70
storage compartments86
useful equipment86
Comfort control window
60
COMING HOME68
compartments86
Components of the puncture repair kits204
Computer See multifunction display44
Convenience operation sliding / tilting roof
63
convenience turn signal66
Coolant184
Checking185
Replenishing186
Temperature gauge31
Warning light36
Warning messages36
Cooling system cost-effective use
109
malfunctions109
CORNER See Fog lights with CORNER function
67
Cornering light Display messages
39
Correct seated position9
Driver9
Front passenger10
Rear seats11
Correct seating position Instructions
11
Counter for distance driven33
cruise control operation
154
operation description154
Cruise control system Warning light
41
Cruise Control System154
Cup holders88
D
DAY LIGHT see Daylight running lights
65
Daylight running lights65
De-icing windows
172
De-icing the windscreen and rear window71
Deactivating an airbag21
Decorative films172
Delayed locking of the boot lid see boot lid
58
Diesel refer to Fuel
179
diesel - particulate filter
39
Diesel fuel Operation in winter
179
Diesel particulate filter warning light
39
Digital Clock Time
33
Dipstick184
Disconnecting and reconnecting vehicle battery
190
Display32
Coolant temperature31
Fuel supply32
Gear changes43
Service intervals49
Display a low temperature43
Display of the second speed33
Disposal Acceptance and recycling of used vehicles
169
Distance driven33
Door Child safety lock
55
Closing52
Emergency locking211
Emergency locking the driver's door211
Opening52
warning light door open36
Door open warning light
36
Driver Steering Recommendation (DSR)144
233Index
