SMART FORTWO COUPE 2008 Manual Online

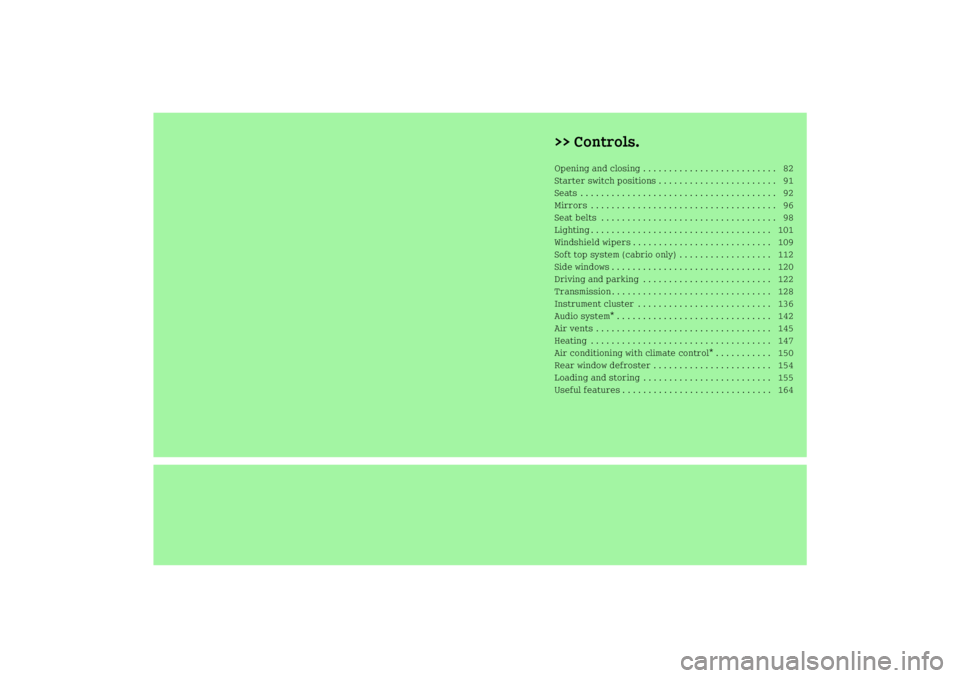

>> Controls.Opening and closing . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Starter switch positions . . . . . . . . . . . . . . . . . . . . . . . 91
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Soft top system (cabrio only) . . . . . . . . . . . . . . . . . . 112
Side windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Driving and parking . . . . . . . . . . . . . . . . . . . . . . . . . 122
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Audio system* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Air conditioning with climate control* . . . . . . . . . . . 150
Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 154
Loading and storing . . . . . . . . . . . . . . . . . . . . . . . . . 155
Useful features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Opening and closing
82
>> Controls.
KeyKey with remote control1
ª
Lock button
2
»
Opening the retractable soft top
1/
unlocking the upper tailgate
2
3
 Panic button (

page 71)
4
©
Unlock buttonThe remote control centrally locks and
unlocks:
• the driver door
• the fuel filler flap
• the passenger door
• the upper tailgate
!
To prevent possible malfunction, avoid
exposing the remote control to high levels of
electromagnetic radiation.
!
If you can no longer lock or unlock the
vehicle with the remote control, the batteries
in the remote control are discharged, or the
remote control is malfunctioning.
>Check the batteries in the remote control
and replace them if necessary
(
page 252).
>If you do not have a spare transmitter
battery at hand, use the key to open the
driver door and the fuel filler flap
(
page 250).
If the remote control is malfunctioning,
contact an authorized smart center.
1 cabrio only.
2 coupé only.
P80.35
2313
31
G
Warning!
When leaving the vehicle, always remove
the key from the starter switch, take it
with you, and lock the vehicle. Do not
leave children unattended in the vehicle,
or with access to an unlocked vehicle. It
is possible for children to open a locked
door from the inside, which could result
in an accident and/or serious personal
injury.

Opening and closing
>> Controls.
83
i
USA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the follow

ing two conditions:
(1) This device may not cause harmful inter

ference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS
210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference,
and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
!
The remote control has an operating range
of approximately 50 ft (15 meters).
This can fluctuate greatly as a consequence of
local conditions (reflective or absorbing
objects) and interference emitted by other
radio
transmission systems. Similarly, the
operating range fluctuates in line with the
direction from which the remote control is
activated.
To prevent theft, however, it is advisable to
only unlock the vehicle when you are in close
proximity to it.
Locking and unlocking from the
outside> Selective unlocking: Press button
©
on
the key once. All turn signal lamps flash
once.
The anti
theft warning system* is disarmed.
The driver’s door and the fuel filler flap are
unlocked.
•Global unlocking: Press button
©
on the
key twice. All turn signal lamps flash once
again. The passenger door and the tailgate
are unlocked in addition to the driver’s
door and the fuel filler flap.
> Global locking: Press button
ª
on the key.
With the doors, the tailgate(s), and the fuel
filler flap closed the turn signal lamps flash
three times.
The anti
theft warning system* is armed.
The indicator lamp on the central locking
switch (

page 85) flashes.
The interior and exterior
1 lamps come on
and then go out again after 12 seconds.
1 Vehicles with rain
light sensor* only.

Opening and closing
84
>> Controls.
Automatic lockingAuto
relock function
The vehicle will lock again automatically within
approximately 60 seconds of unlocking with
the key if neither the driver’s nor passenger
door is opened.!
To prevent an inadvertent lockout, never
leave your key lying in the vehicle.
Drive lock function
The vehicle locks automatically when the igni

tion is switched on and the wheels are turning
at vehicle speeds of approximately 8 mph
(14 km/h) or more. The drive lock function is
enabled at the factory.>Switching on: Switch off the ignition.
>Press the central locking switch
(

page 85) and button
ª
on the key
simultaneously.
An acoustic signal sounds.
The drive lock function is switched on.
>Switching off:
Switch off the ignition.
>Press the central unlocking switch
(

page 85) and button
©
on the key
simultaneously.
An acoustic signal sounds.
The drive lock function is switched off.
Locking and unlocking from the
insideYou can lock and unlock the vehicle from
inside using the central locking or unlocking
switch. This can be useful, for example, if you
want to unlock the passenger door from inside
or lock the vehicle before starting to drive.G
Warning!
When leaving the vehicle, always remove
the key from the starter switch, take it
with you, and lock the vehicle. Do not
leave children unattended in the vehicle,
or with access to an unlocked vehicle.
A child’s unsupervised access to a vehi

cle could result in an accident and/or
serious personal injury.

Opening and closing
>> Controls.
85
1
Central locking switch
2
Central unlocking switch
>Locking: Press central locking switch
1.
The indicator lamp on central locking
switch
1 comes on, when the starter switch
is in position 1.
The indicator lamp on central locking
switch1 flashes, when the starter switch is
in position 0.
With the doors and the tailgate closed, the
vehicle locks.> Unlocking: Press central unlocking
switch
2.
The vehicle unlocks and the indicator lamp
on central locking switch
1 goes off.
Opening the doors from the insideYou can open a locked door from the inside.
O p e n d o o r o n l y w h e n c o n d i ti o n s a r e sa f e to d o
so.1
Inside door handle>Pull on inside door handle
1.
With the driver’s door open a warning signal
sounds if the exterior lamps are switched
on and the ignition is switched off P54.25
5339
31
P72.10
3347
31

Opening and closing
86
>> Controls.
Opening the upper tailgate on the
coupé1
Handle recess>Press button
©
on the key twice.
>Press and hold button
»
on the key for ap

proximately two seconds.
or
>Pull the release handle in handle recess
1
of the lower tailgate.
The upper tailgate is unlocked.
>Swivel the upper tailgate upwards to open.
Observe information on loading the vehicle
(

page 155).
For information on vehicle weights, see
(
page 301).
Opening the lower tailgate on the
coupé
G
Warning!
Make sure the tailgate is closed when the
engine is running and while driving.
Among other dangers, deadly carbon
monoxide (CO) gases may enter vehicle
interior resulting in unconsciousness
and death.
G
Warning!
High outside temperature, stop
and
go
traffic, driving on long uphill grades, or
driving at high engine speed may in

crease the temperature in the engine
compartment. Therefore the area around
the air slots in the rear apron may be hot.
Let the engine cool off before touching
this area to prevent burns.

Opening and closing
>> Controls.
87
>Open the upper tailgate (

page 86).
1
Release lever
>Pull both release levers
1 backwards
either simultaneously or one after the
other.
The lower tailgate is unlocked.>Swivel the lower tailgate downwards to
open.
The lower tailgate is held in the horizontal
position by means of the two retaining
straps.
!
When folded down, the lower tailgate can
bear loads up to maximum of 220lbs (100 kg).
Observe information on loading the vehicle
(

page 155).
For information on vehicle weights, see
(
page 301).
Closing the tailgate(s) on the
coupéG
Warning!
To prevent possible personal injury,
always keep hands and fingers away from
the cargo compartment opening when
closing the tailgate(s). Be especially
careful when small children are around.

Opening and closing
88
>> Controls. >Swivel the lower tailgate upwards to close.
Allow the two release levers to engage
audibly.
>Swivel the upper tailgate downwards to
close.
Opening and closing the retract

able soft top
1
You can fully open the retractable soft top
with the key.
Key with remote control1
ª
Lock button
2
»
Opening the retractable soft top
3
 Panic button
4
©
Unlock button> Opening: Press button
»
on the key for
approximately two seconds.
The retractable soft top opens.
i
Pressing symbols
©, ª
or
»
on the
key with remote control while opening the re

tractable soft top will interrupt the opening
procedure.
>Closing: Press symbol± on the retract

able soft top switch (

page 114).
i
The remote control has an operating range
of approximately 50 ft (15 meters). Take care
that you do not open your vehicle’s retract

able soft top inadvertently.
G
Warning!
When leaving the vehicle, always remove
the key from the starter switch, take it
with you, and lock the vehicle. Do not
leave children unattended in the vehicle,
or with access to an unlocked vehicle.
A child’s unsupervised access to a vehi

cle could result in an accident and/or
serious personal injury.
1 cabrio only.
P80.35
2313
31
G
Warning!
When closing the retractable soft top,
make sure that there is no danger of
anyone being harmed by the closing
procedure.

Opening and closing
>> Controls.
89 Opening the tailgate on the cabrio
1
Handle recess
>Press button
©
on the key twice.
>Pull the release handle in handle recess
1
of the tailgate.
The tailgate is unlocked.
>Swivel the tailgate downwards to open.
Opening and closing the rear soft
top
1
You can open the rear soft top to ease loading
and unloading.1
Release lever
G
Warning!
Make sure the tailgate is closed when the
engine is running and while driving.
Among other dangers, deadly carbon
monoxide (CO) gases may enter vehicle
interior resulting in unconsciousness
and death.G
Warning!
High outside temperature, stop
and
go
traffic, driving on long uphill grades, or
driving at high engine speed may in

crease the temperature in the engine
compartment. Therefore the area around
the air slots in the rear apron may be hot.
Let the engine cool off before touching
this area to prevent burns.
1 cabrio only.
