SMART FORTWO COUPE 2011 Owners Manual

Digital clock
Example illustration (U.S. vehicles)
i Canada vehicles: The digital clock
shows a 24 h-clock instead of a
12 h-clock.
The time can only be set as long as the colon
in the digital clock flashes.
XActivating time setting: Press and hold
right button 0047 until the colon in the
digital clock starts flashing.XSetting the time in 1 minute
increments: Press left button 0046 or right
button 0047 repeatedly until the desired
time is set.XSetting the time quickly: Press left
button 0046 or right button 0047 for longer
than one second.
The setting speed increases.XSetting the time in 10 minute
increments: Press left button 0046 or right
button 0047 for longer than five seconds.
The time is set in 10 minute increments.XConfirm time setting: Refrain from
pressing either left button 0046 or right
button 0047 until the colon in the digital
clock stops flashing.
The time is set.
i The digital clock in the multifunction
display is not synchronized with the
cockpit clock* ( Y page 92).
Outside temperature display
GWarning!
The outside temperature display is not
designed as an ice-warning device and is
therefore unsuitable for that purpose.
Indicated temperatures just above the
freezing point do not guarantee that the
road surface is free of ice. The road may
still be icy, especially in wooded areas or
on bridges. Your vehicle could start to skid
if you do not adjust your driving style
accordingly.
Therefore, always adjust your driving style
to the prevailing road and weather
conditions.
Example illustration (U.S. vehicles)
i Canada vehicles: The outside
temperature display shows °C instead
of °F.
The outside temperature display appears
in the multifunction display continuously.
A change of the outside temperature will be
displayed with delay.
Instrument cluster89>> Controls.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 89Z

Freeze warning (Canada vehicles only)
When the outside temperature falls below
3 ¥ , the multifunction display makes you
aware of the fact that the road may be icy.
An additional freeze warning, i.e. an ice
crystal symbol, in the multifunction
display flashes. After 60 seconds, the
freeze warning stops flashing but
continues to be displayed. When the
outside temperature rises above 3 ¥, the
freeze warning goes out.
Fuel level display
Example illustration (U.S. vehicles)
The fuel level display shows the tank’s fuel
level with the aid of eight segments. The
number of dark segments indicates the fuel
level in the tank. If all eight segments are
dark, the tank is full.
You are driving on reserve fuel if there are
no more than 1.0 US gal (3.78 l) of fuel in the
tank.
If this occurs,
R the fuel pump symbol in the fuel level
display flashes
R the reserve fuel indicator shows the fuel
level in the tank in 0.1 US gal (0.5 l)
increments
For selecting the reserve fuel indicator to
be displayed in the status indicator, see
“Reserve fuel indicator” ( Y page 92).
Selecting display for status indicator
You can select the information to be
displayed in the status indicator:
R Trip odometer display ( Y page 91)
R Maintenance service interval display
( Y page 91)
R Reserve fuel indicator ( Y page 92)
(when less than 1.0 US gal (3.78 l) of fuel
is in the tank)
0046Selecting display for status indicator,
setting the clock, activating
maintenance service interval display0047Setting the clock, adjusting instrument
cluster illumination90Instrument cluster>> Controls.
BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 90

Trip odometer display
Example illustration (U.S. vehicles)
XSelecting trip odometer display: Press
left button 0046 (Y page 90) repeatedly
until the trip odometer display appears
in the status indicator.XResetting trip odometer display: Press
and hold left button 0046 (Y page 90) until
the value is set to 0.
Maintenance service interval display
Example illustration (U.S. vehicles)
i Canada vehicles: The maintenance
service interval display shows km
instead of miles.
The maintenance service interval display
will notify you approximately one month
before the next maintenance service is
due.
The following information will be
displayed after starting the engine:
R Days or distance to next maintenance
service
This information will be displayed
instead of the main odometer display.
The main odometer display will reappear
after approximately ten seconds
( Y page 88).
R Type of service that is due
This information will be displayed in
the status indicator.XStart the engine.XSelecting maintenance service interval
display: Press button 0046 on the
instrument cluster repeatedly until the
maintenance service interval display
appears in the status indicator.
Depending on the type of maintenance
service that is due, symbol ¬ or } is
displayed.XClearing maintenance service interval
display: Press button 0046 once.
The maintenance service interval
display is cleared.XActivating maintenance service
interval display: Press button 0046 twice
in quick succession.Instrument cluster91>> Controls.BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 91Z

Reserve fuel indicator
Example illustration (U.S. vehicles)
The reserve fuel indicator is only
displayed when driving on reserve fuel.
XSelecting reserve fuel indicator: Press
button \000F on the instrument cluster
repeatedly until the reserve fuel
indicator appears in the status
indicator.
Auxiliary instruments*
\000FTachometer\000GCockpit clock
Tachometer*
The tachometer displays the engine speed
in units of 1 000 rpm.
The tachometer can be turned by
approximately 90°.
The tachometer illumination comes on when
you switch on the ignition and the exterior
lighting.
! Do not hang any objects on the
tachometer.
This could cause the tachometer to be
torn from its mountings and damage it.
Cockpit clock*
The cockpit clock can be turned by
approximately 90°.
The cockpit clock illumination comes on
when you switch on the ignition and the
exterior lighting.
The buttons for setting the time are on the
top of the cockpit clock.
XSetting the time back in 1 minute
increments: Press button \000F repeatedly
until the desired time is set.
XSetting the time back quickly: Press
button \000F for longer than two seconds.
The setting speed accelerates.
XSetting the time forward in 1 minute
increments: Press button \000G repeatedly
until the desired time is set.
XSetting the time forward quickly: Press
button \000G for longer than two seconds.
The setting speed accelerates.
! Do not hang any objects on the cockpit
clock.
This could cause the cockpit clock to be
torn from its mounting and damage it.
92Instrument cluster>> Controls.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 92

Adjusting instrument cluster
illumination
You can adjust the illumination of the
switches, the dials in the instrument
cluster, the radio*, the climate control*
panel and the auxiliary instruments*. Five
settings are possible.
XMake sure the key is in starter switch
position 1.
XSwitch on the parking lamps.XTo brighten or dim illumination: Press
button \000F on the instrument cluster
repeatedly until the desired setting is
reached.
The current setting is stored.
Control system*
Introduction
The control system is activated when you
turn the key in the starter switch to
position 1.
GWarning!
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
In order to avoid distraction which could
lead to an accident, the driver should
select features and change settings in the
control system only vehicle at a standstill
or when traffic and road conditions permit
it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h ), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
Control lever
You can select the displays in the
multifunction display and change settings
in the control system with the control
lever.
Control lever (example illustration coupé)
\000FControl switch
Pressing up selects a menu.
\000GOK button
Confirming a selection.
Scrolling through stored messages
in the Messages menu

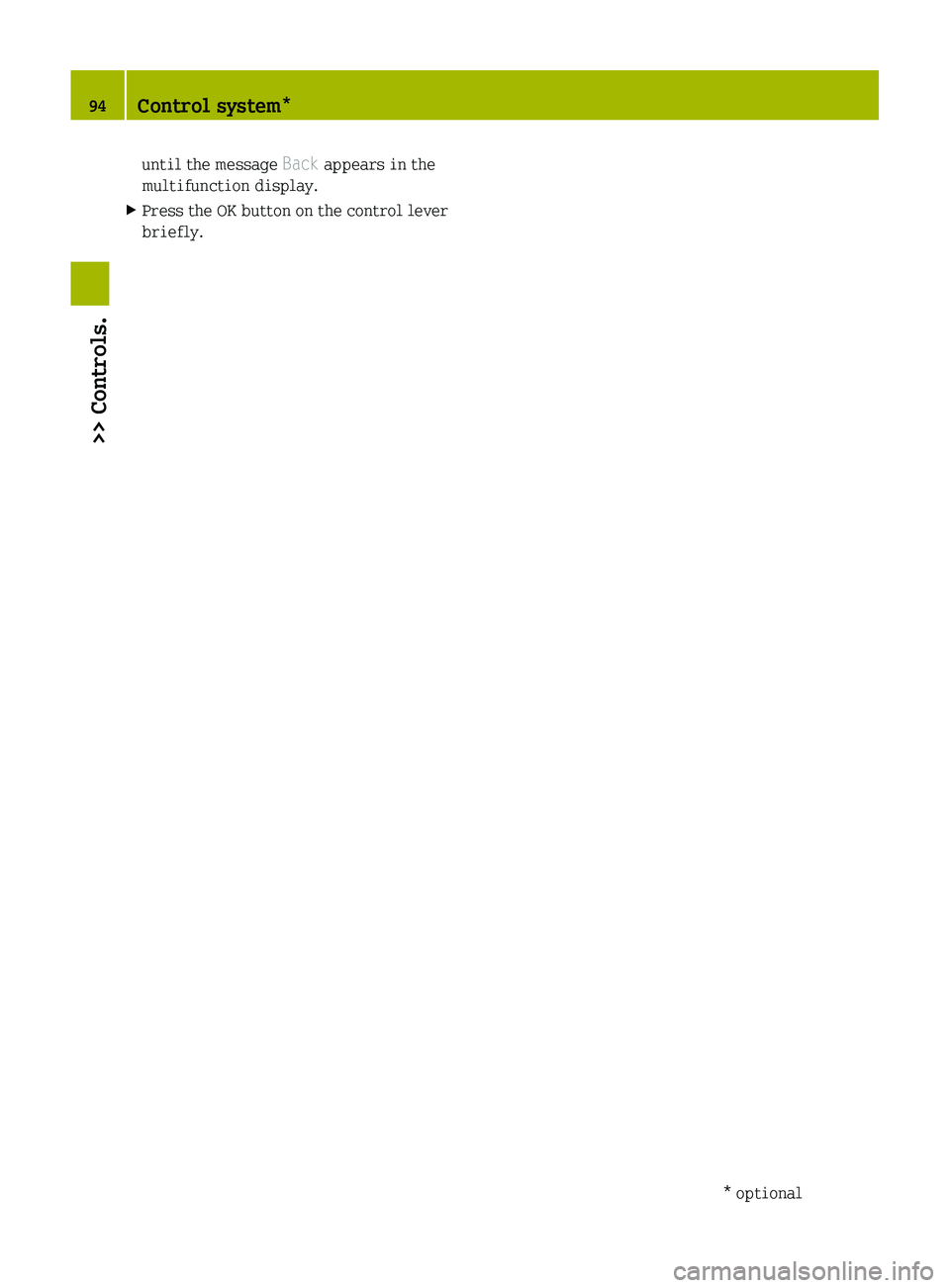

\000

until the message Back appears in the
multifunction display.XPress the OK button on the control lever
briefly.94Control system*>> Controls.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 94

Menus and submenusFunction0046Odometer menu0047Consumption menu008ASTART menu (trip statistics since start)0088RESET menu (trip statistics since last reset)0086Messages menu0087Settings menu006ETime menuOdometer menu
The Odometer menu shows you either the
main odometer and the trip odometer or the
trip odometer with the amount of fuel left
the fuel tank.0046Main odometer0047Trip odometer008ARemaining fuelXPress the control switch on the control
lever ( Y page 93) up or down until theControl system*95>> Controls.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 95Z

Odometer menu appears in the
multifunction display.XTo switch between submenus: Press the OK
button on the control lever briefly.XTo reset the trip odometer: Select the
trip odometer display.XPress button 0046 (Y page 90) on the
instrument cluster until the trip
odometer is reset to 0.
Consumption menu
The Consumption menu shows you the
current fuel consumption.
XPress the control switch on the control
lever ( Y page 93) up or down until the
Consumption menu appears in the
multifunction display.
The current current fuel consumption
appears.
i Depending on the selected unit in the
settings menu ( Y page 97), the
consumption is displayed in in miles per
gallon (mpg) or in liters per 100
kilometers (l/100 km). When the vehicle
is standing, the fuel consumption is
displayed in gallons per hour (gal/h) or
liters per hour (l/h).
Start menu
The START menu menu shows you the trip
statistics since start.
0046Average speed since start0047Time elapsed since start008ADistance driven since start0088Average fuel consumption since startXPress the control switch on the control
lever ( Y page 93) up or down until the
START menu appears in the multifunction
display.XTo reset: Press button 0046 (Y page 90) on
the instrument cluster until the START
menu is reset to 0.
i
The START menu is reset to 0
automatically
R when the ignition has been switched
off for more than 4 hours
R after driving more than 9 999 miles or
kilometers
Reset menu
The RESET menu menu shows you the trip
statistics since the last reset.
0046Average speed since last reset0047Time elapsed since since last reset008ADistance driven since last reset0088Average fuel consumption since since
last resetXPress the control switch on the control
lever ( Y page 93) up or down until the96Control system*>> Controls.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 96

RESET menu appears in the multifunction
display.XTo reset: Press button 0046 (Y page 90)on
the instrument cluster until the RESET
menu is reset to 0.
Messages menu
The Messages menu stores messages that
you can call up.
i When no messages have been stored, the
Messages menu is not displayed.
XPress the control switch on the control
lever ( Y page 93) up or down until the
Messages menu appears in the
multifunction display.
The number of stored messages is 0046
displayedXPress the OK button on the control lever
briefly.
The first stored message appears.XTo scroll through messages: Press the OK
button on the control lever briefly.
For more information on display messages,
see ( Y page 160).
Maintenance service interval display
The maintenance service interval display
will notify you when the next maintenance
service is due and what type of maintenance
service is required.
Example:
R 009B Care Service in XXX mi
R 009C Main Service in XXX mi
R 009C Main Service in XX Days
XTo confirm: Press the OK button on the
control lever briefly.
The mesage is stored.
When the due date for the maintenance
service has been has been passed, the
number of miles (kilometers) or days since
are preceeded by a minus sign.
! Failure to have the maintenance
service performed at the designated
times/mileage, may result in vehicle
damage that is not covered by the smart
Limited Warranty.
Settings menu
In the Settings menu, you can select
individual settings for your vehicle.
The following functions are available:
R Setting the language
R Setting the temperature unit
R Setting the distance and speed unit
XPress the control switch on the control
lever ( Y page 93) up or down until the
Settings menu appears in the
multifunction display.XPress the OK button on the control lever
briefly.
Setting the language
The following languages are available:
R German
R English
R French
R Italian
R Spanish
Control system*97>> Controls.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 97Z

XPress the control switch on the control
lever ( Y page 93) up or down until the
Language submenu appears in the
multifunction display.XPress the OK button on the control lever
briefly.XPress the control switch on the control
lever ( Y page 93) up or down until the
desired language is selected.XPress the OK button on the control lever
briefly to confirm.
The selected language is stored.
Setting the temperature unit
The following units are available:
R †
R ‡
XPress the control switch on the control
lever ( Y page 93) up or down until the
°F/°C submenu appears in the
multifunction display.XPress the OK button on the control lever
briefly.XPress the control switch on the control
lever ( Y page 93) up or down until the
desired unit is selected.XPress the OK button on the control lever
briefly to confirm.
The selected unit is stored.
Setting the distance and speed unit
The following units are available:
R Miles (mi)
R Kilometers (km)
XPress the control switch on the control
lever (Y page 93) up or down until the mi–
km submenu appears in the multifunction
display.XPress the OK button on the control lever
briefly.XPress the control switch on the control
lever ( Y page 93) up or down until the
desired unit is selected.XPress the OK button on the control lever
briefly to confirm.
The selected unit is stored.
i Canada only: The unit for the cruise
control ( Y page 101) does not change,
regardless of which unit is set in this
menu.
Time menu
The Time menu lets you set the time and
offers different display modes.
The following submenus are available:
R Setting time display mode (12-hour or
24-hour mode)
R Setting period of day, am or pm 11
R Setting the hours
R Setting the minutes
XPress the control switch on the control
lever ( Y page 93) up or down until the
Time menu appears in the multifunction
display.XPress the OK button on the control lever
briefly.
Setting the time display mode
XPress the control switch on the control
lever ( Y page 93) up or down until the
12h 24h submenu appears in the
multifunction display.XPress the OK button on the control lever
briefly.XPress the control switch on the control
lever ( Y page 93) up or down until the
desired setting is selected.XPress the OK button on the control lever
briefly to confirm.
The selected mode is stored.11 Only available in 12-hour mode.98Control system*>> Controls.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 98
