SMART FORTWO COUPE ELECTRIC DRIVE 2013 Workshop Manual

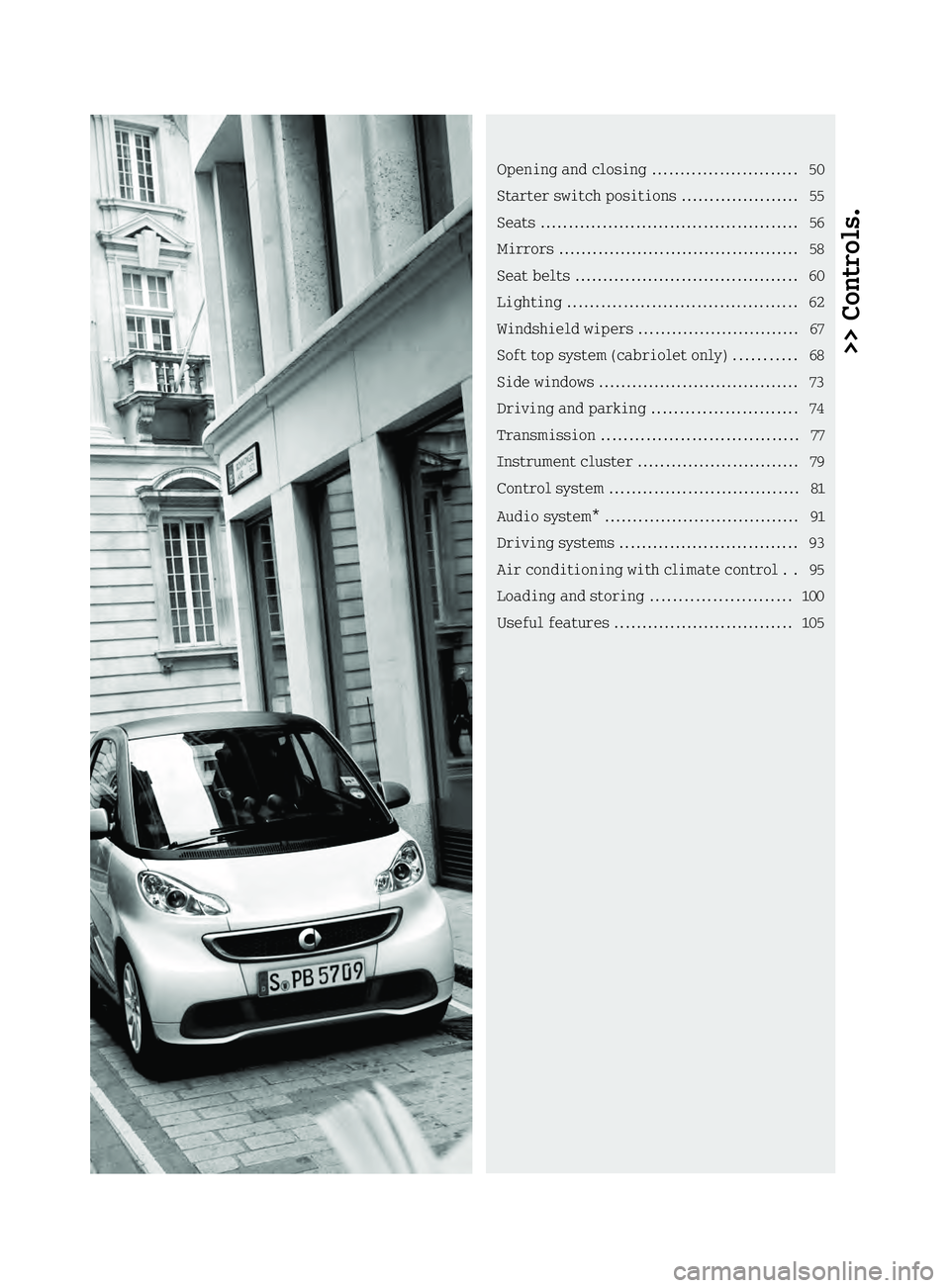

>> Controls.Openin
gand closing .......................... 50
Starter switch positions .....................55
Seats .............................................. 56
Mirrors ........................................... 58
Seat belts ........................................ 60
Lighting ......................................... 62
Windshield wipers ............................. 67
Soft top system (cabriolet only) ...........68
Side windows .................................... 73
Driving and parking .......................... 74
Transmission ................................... 77
Instrument cluster ............................. 79
Control system .................................. 81
Audio system* ................................... 91
Driving systems ................................ 93
Air conditioning with climate control ..95
Loading and storing ......................... 100
Useful feature s................................ 105

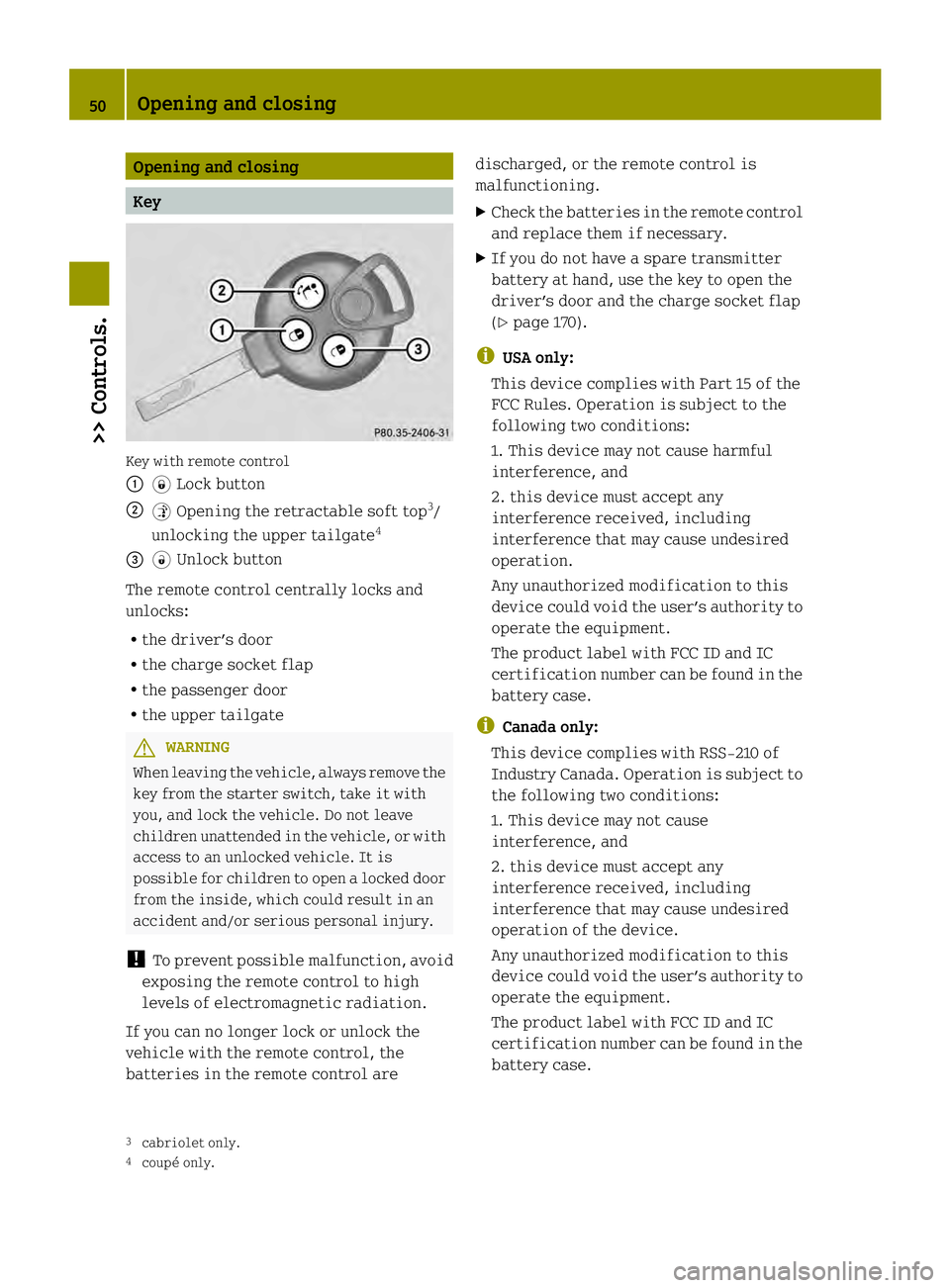

Opening and closing
Key
Key with remote control
0002
0004Lock button
0003 0005Opening the retractable soft top 3
/
unlocking the upper tailgate 4
002B 0006Unlock button
The remote control centrally locks and
unlocks:
R the driver’s door
R the charge socket flap
R the passenger door
R the upper tailgate G
WARNING
When leaving the vehicle, always remove the
key from the starter switch, take it with
you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is
possible for children to open a locked door
from the inside, which could result in an
accident and/or serious personal injury.
! To prevent possible malfunction, avoid
exposing the remote control to high
levels of electromagnetic radiation.
If you can no longer lock or unlock the
vehicle with the remote control, the
batteries in the remote control are discharged, or the remote control is
malfunctioning.
X
Check the batteries in the remote control
and replace them if necessary.
X If you do not have a spare transmitter
battery at hand, use the key to open the
driver’s door and the charge socket flap
(Y page 170).
i USA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference, and
2. this device must accept any
interference received, including
interference that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority to
operate the equipment.
The product label with FCC ID and IC
certification number can be found in the
battery case.
i Canada only:
This device complies with RSS‑210 of
Industry Canada. Operation is subject to
the following two conditions:
1. This device may not cause
interference, and
2. this device must accept any
interference received, including
interference that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority to
operate the equipment.
The product label with FCC ID and IC
certification number can be found in the
battery case.
3 cabriolet only.
4 coupé only. 50

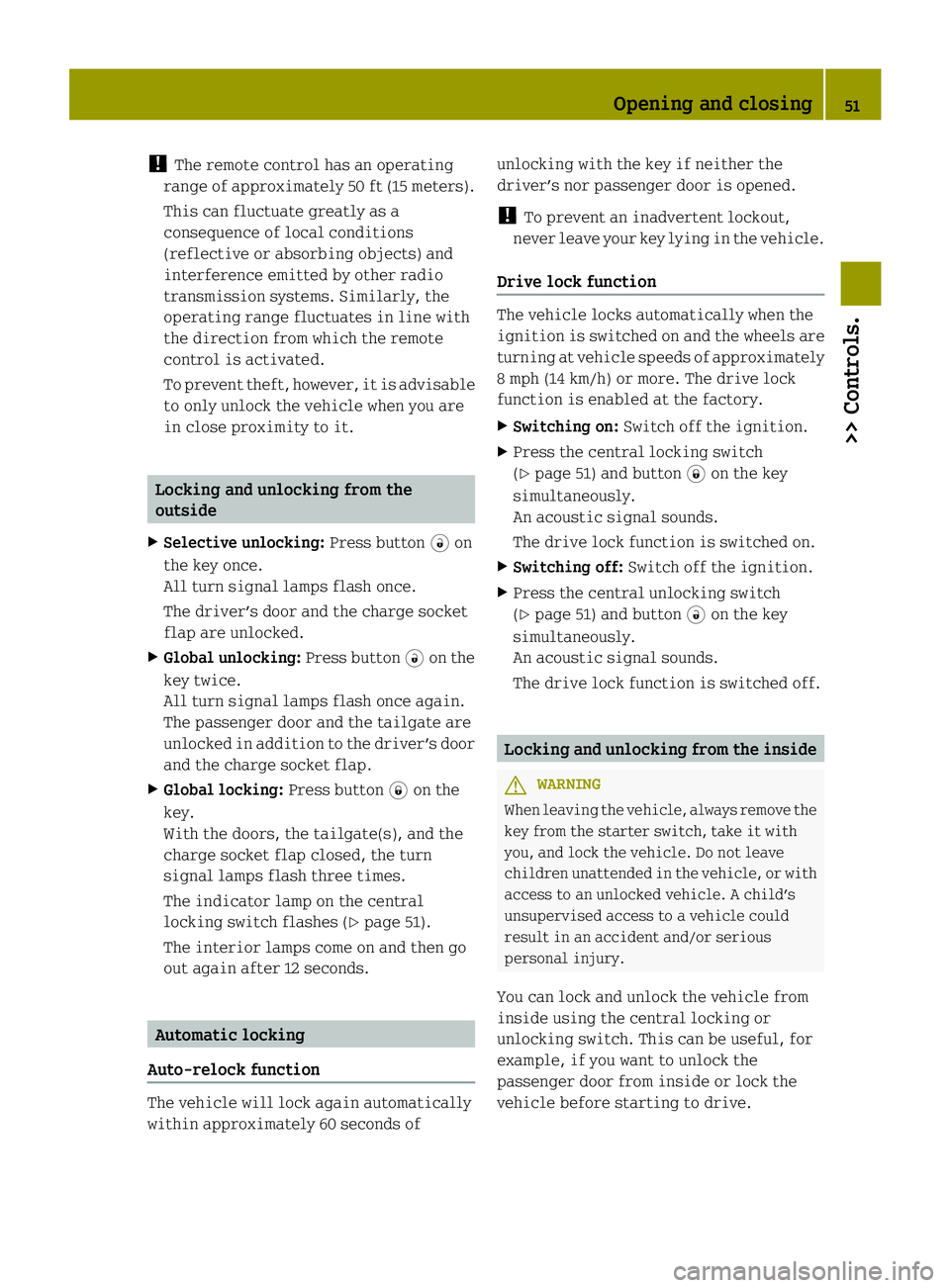

Opening and closing>> Controls.

!
The remote control has an operating
range of approximately 50 ft (15 meters).
This can fluctuate greatly as a
consequence of local conditions
(reflective or absorbing objects) and
interference emitted by other radio
transmission systems. Similarly, the
operating range fluctuates in line with
the direction from which the remote
control is activated.
To prevent theft, however, it is advisable
to only unlock the vehicle when you are
in close proximity to it. Locking and unlocking from the
outside
X Selective unlocking: Press button0006on
the key once.
All turn signal lamps flash once.
The driver’s door and the charge socket
flap are unlocked.
X Global unlocking: Press button0006on the
key twice.
All turn signal lamps flash once again.
The passenger door and the tailgate are
unlocked in addition to the driver’s door
and the charge socket flap.
X Global locking: Press button0004on the
key.
With the doors, the tailgate(s), and the
charge socket flap closed, the turn
signal lamps flash three times.
The indicator lamp on the central
locking switch flashes (Y page 51).
The interior lamps come on and then go
out again after 12 seconds. Automatic locking
Auto-relock function The vehicle will lock again automatically
within approximately 60 seconds of unlocking with the key if neither the
driver’s nor passenger door is opened.
!
To prevent an inadvertent lockout,
never leave your key lying in the vehicle.
Drive lock function The vehicle locks automatically when the
ignition is switched on and the wheels are
turning at vehicle speeds of approximately
8 mph (14 km/h) or more. The drive lock
function is enabled at the factory.
X
Switching on: Switch off the ignition.
X Press the central locking switch
(Y page 51) and button 0004on the key
simultaneously.
An acoustic signal sounds.
The drive lock function is switched on.
X Switching off: Switch off the ignition.
X Press the central unlocking switch
(Y page 51) and button 0006on the key
simultaneously.
An acoustic signal sounds.
The drive lock function is switched off. Locking and unlocking from the inside
G
WARNING
When leaving the vehicle, always remove the
key from the starter switch, take it with
you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
You can lock and unlock the vehicle from
inside using the central locking or
unlocking switch. This can be useful, for
example, if you want to unlock the
passenger door from inside or lock the
vehicle before starting to drive. Opening and closing

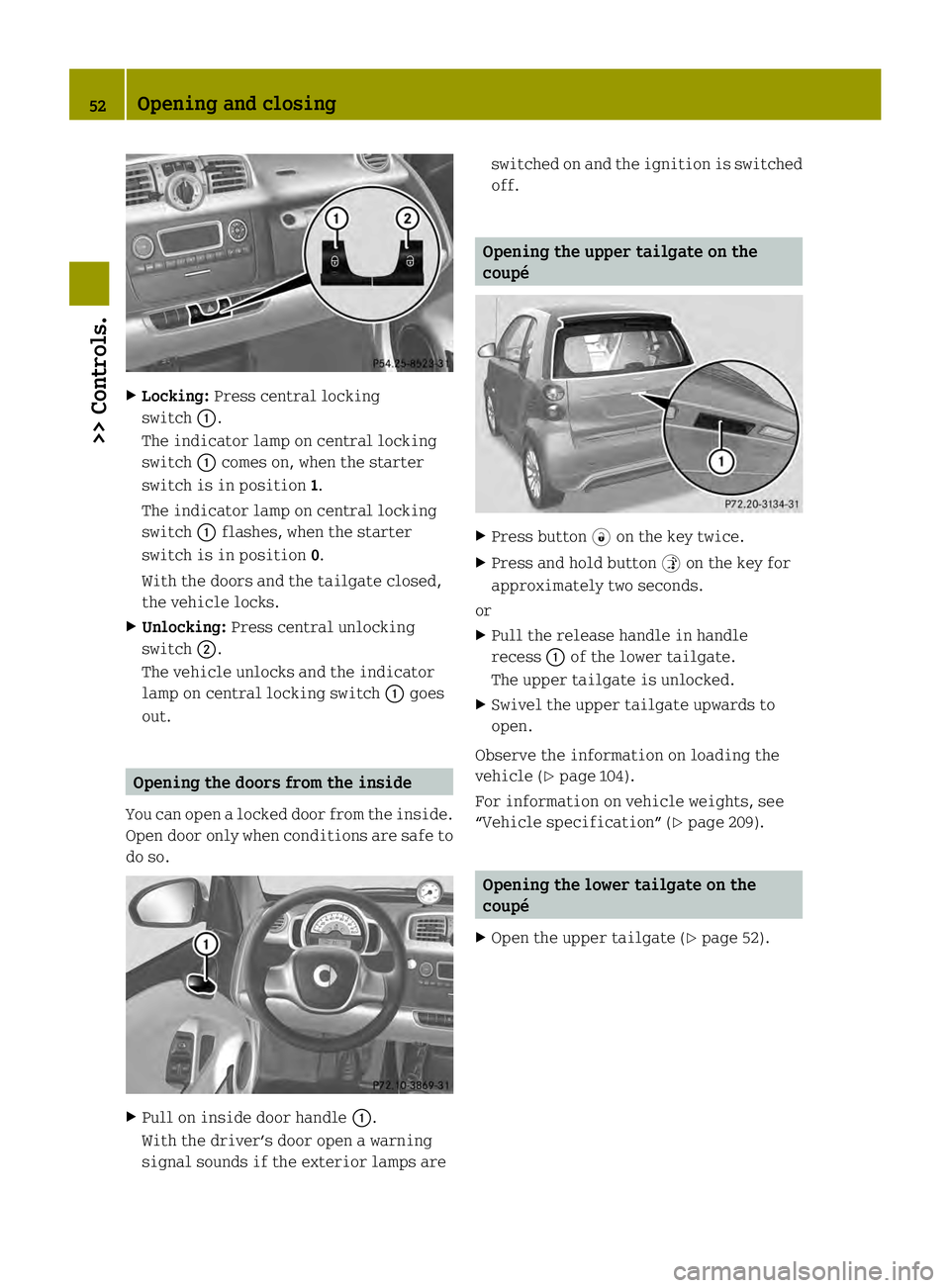

51>> Controls. Z

X
Locking: Press central locking
switch 0002.
The indicator lamp on central locking
switch 0002comes on, when the starter
switch is in position 1.
The indicator lamp on central locking
switch 0002flashes, when the starter
switch is in position 0.
With the doors and the tailgate closed,
the vehicle locks.
X Unlocking: Press central unlocking
switch 0003.
The vehicle unlocks and the indicator
lamp on central locking switch 0002goes
out. Opening the doors from the inside
You can open alocked door from the inside.
Open door only when conditions are safe to
do so. X
Pull on inside door handle 0002.
With the driver’s door open a warning
signal sounds if the exterior lamps are switched on and the ignition is switched
off. Opening the upper tailgate on the
coupé
X
Press button 0006on the key twice.
X Press and hold button 0005on the key for
approximately two seconds.
or
X Pull the release handle in handle
recess 0002of the lower tailgate.
The upper tailgate is unlocked.
X Swivel the upper tailgate upwards to
open.
Observe the information on loading the
vehicle (Y page 104).
For information on vehicle weights, see
“Vehicle specification” (Y page 209). Opening the lower tailgate on the
coupé
X Open the upper tailgate (Y page 52).52

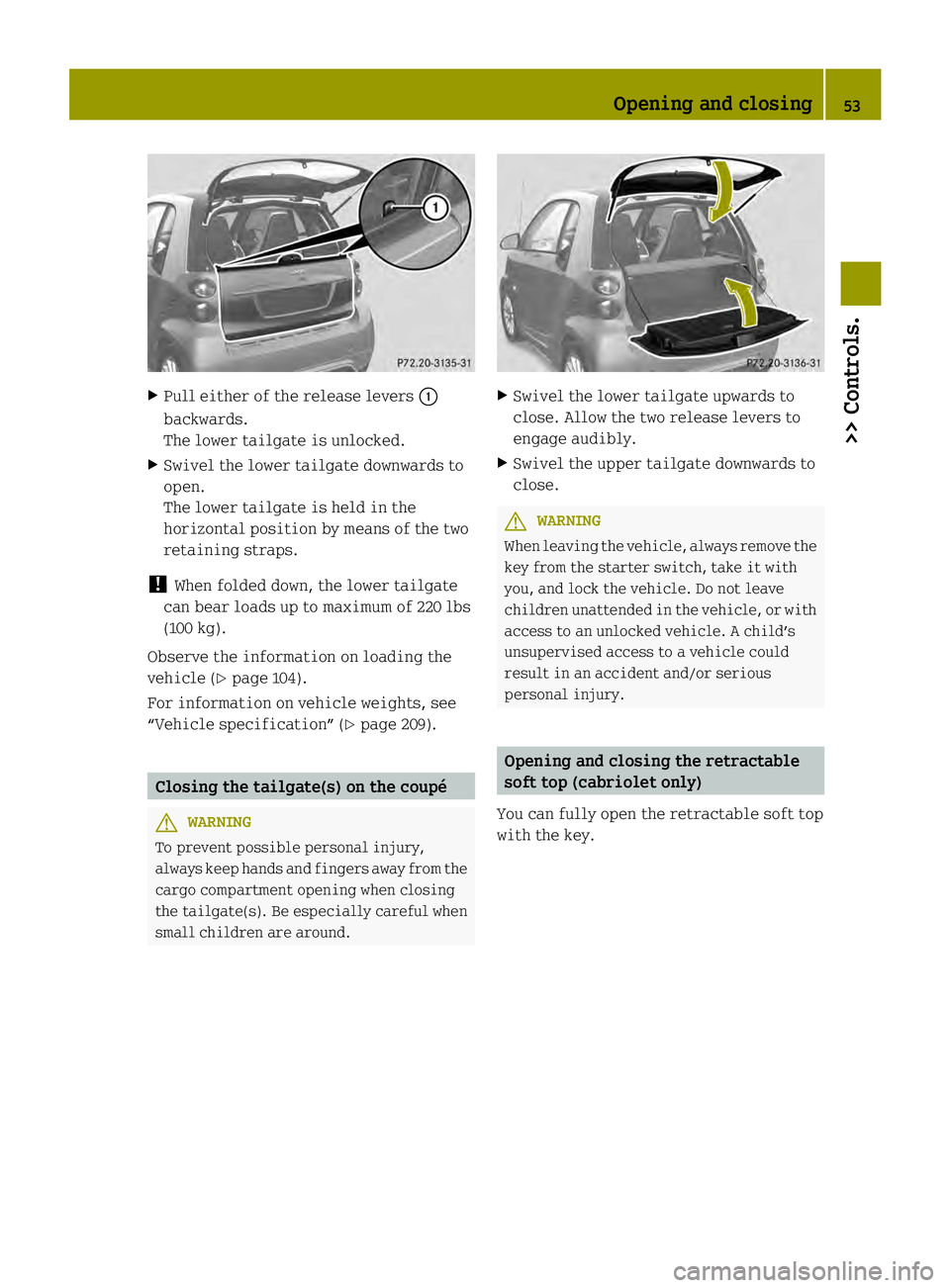

Opening and closing>> Controls.

X
Pull either of the release levers 0002
backwards.
The lower tailgate is unlocked.
X Swivel the lower tailgate downwards to
open.
The lower tailgate is held in the
horizontal position by means of the two
retaining straps.
! When folded down, the lower tailgate
can bear loads up to maximum of 220 lbs
(100 kg).
Observe the information on loading the
vehicle (Y page 104).
For information on vehicle weights, see
“Vehicle specification” (Y page 209).Closing the tailgate(s) on the coupé
G
WARNING
To prevent possible personal injury,
always keep hands and fingers away from the
cargo compartment opening when closing
the tailgate(s). Be especially careful when
small children are around. X
Swivel the lower tailgate upwards to
close. Allow the two release levers to
engage audibly.
X Swivel the upper tailgate downwards to
close. G
WARNING
When leaving the vehicle, alway sremove the
key from the starter switch, take it with
you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury. Opening and closing the retractable
soft top (cabriolet only)
You can fully open the retractable soft top
with the key. Opening and closing

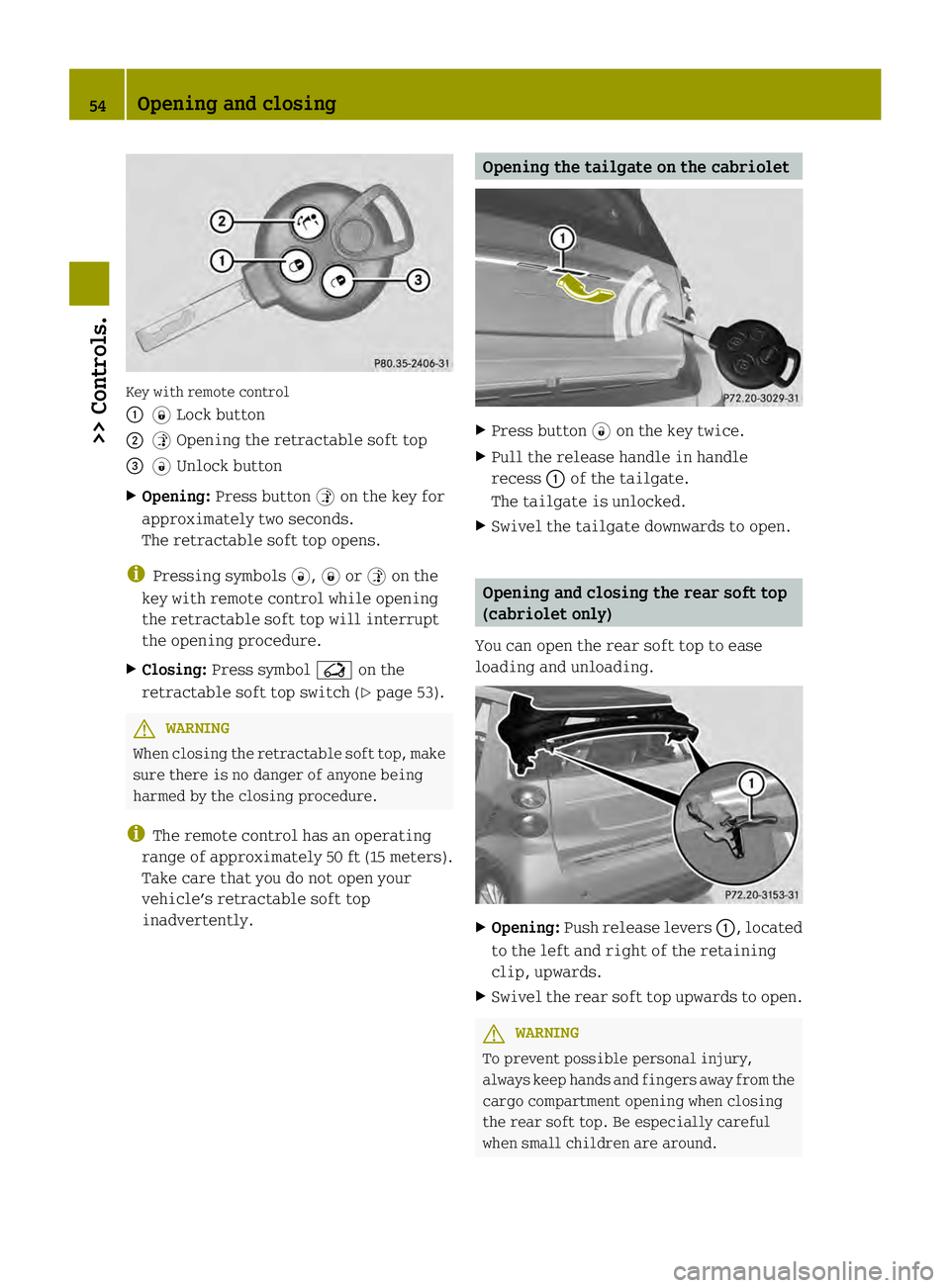

53>> Controls. Z

Key with remote control
0002
0004Lock button
0003 0005Opening the retractable soft top
002B 0006Unlock button
X Opening: Press button 0005on the key for
approximately two seconds.
The retractable soft top opens.
i Pressing symbols 0006,0004or0005 on the
key with remote contro lwhile opening
the retractable soft top will interrupt
the opening procedure.
X Closing: Press symbol 0003on the
retractable soft top switc h(Ypage 53). G
WARNING
When closing the retractable soft top, make
sure there is no danger of anyone being
harmed by the closing procedure.
i The remote control has an operating
range of approximately 50 ft (15 meters).
Take care that you do not open your
vehicle’s retractable soft top
inadvertently. Opening the tailgate on the cabriolet
X
Press button 0006on the key twice.
X Pull the release handle in handle
recess 0002of the tailgate.
The tailgate is unlocked.
X Swivel the tailgate downwards to open. Opening and closing the rear soft top
(cabriolet only)
You can open the rear soft top to ease
loading and unloading. X
Opening: Push release levers 0002, located
to the left and right of the retaining
clip, upwards.
X Swivel the rear soft top upwards to open. G
WARNING
To prevent possible personal injury,
always keep hands and fingers away from the
cargo compartment opening when closing
the rear soft top. Be especially careful
when small children are around. 54

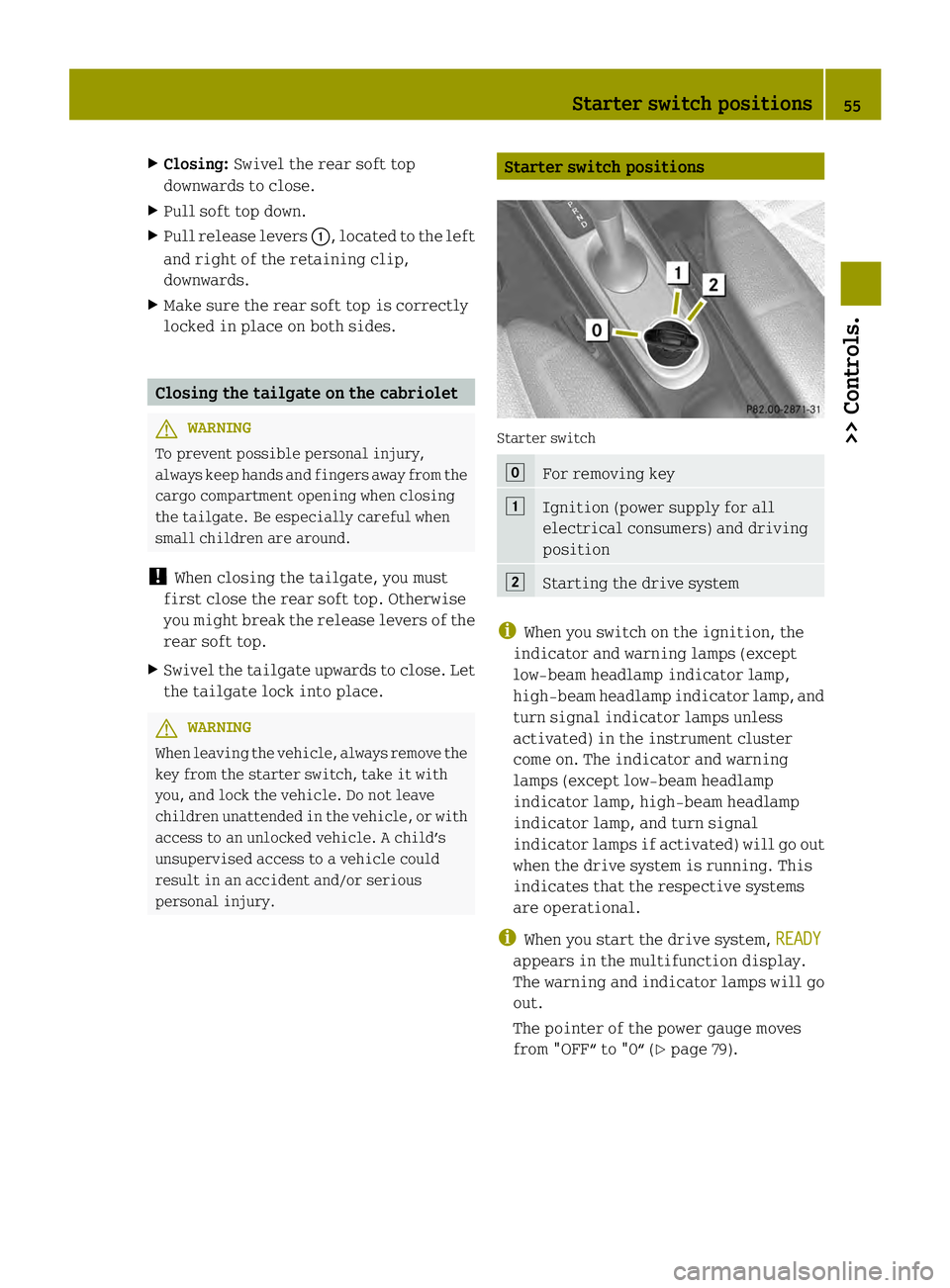

Opening and closing>> Controls.

X
Closing: Swivel the rear soft top
downwards to close.
X Pull soft top down.
X Pull release levers 0002, located to the left
and right of the retaining clip,
downwards.
X Make sure the rear soft top is correctly
locked in place on both sides. Closing the tailgate on the cabriolet
G
WARNING
To prevent possible personal injury,
always keep hands and fingers away from the
cargo compartment opening when closing
the tailgate. Be especially careful when
small children are around.
! When closing the tailgate, you must
first close the rear soft top. Otherwise
you might break the release levers of the
rear soft top.
X Swivel the tailgate upwards to close. Let
the tailgate lock into place. G
WARNING
When leaving the vehicle, always remove the
key from the starter switch, take it with
you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury. Starter switch positions
Starter switch
0008
For removing key
0004
Ignition (power supply for all
electrical consumers) and driving
position
0005
Starting the drive system
i
When you switch on the ignition, the
indicator and warning lamps (except
low‑beam headlamp indicator lamp,
high‑beam headlamp indicator lamp, and
turn signal indicator lamps unless
activated) in the instrument cluster
come on. The indicator and warning
lamps (except low‑beam headlamp
indicator lamp, high‑beam headlamp
indicator lamp, and turn signal
indicator lamps if activated) will go out
when the drive system is running. This
indicates that the respective systems
are operational.
i When you start the drive system, READY appears in the multifunction display.
The warning and indicator lamps will go
out.
The pointer of the power gauge moves
from "OFF“ to "0“ (Y page 79). Starter switch positions
55>> Controls. Z

Seats
Safety notes
G
WARNING
All seat adjustments, as well as fastening
of seat belts, must be done before the
vehicle is operated. G
WARNING
When adjusting the seat, make sure no one
becomes trapped.
Do not adjust the driver’s seat while
driving. Adjusting the seat while driving
could cause the driver to lose control of the
vehicle.
Never ride in amoving vehicle with the seat
backrest in an excessively reclined
position as this can be dangerous. You
could slide under the seat belt in a
collision. If you slide under the seat belt,
it could apply force at the abdomen or neck,
potentially causing serious or fatal
injuries. The seat backrest and seat belts
provide the best restraint when the wearer
is in a position that is as upright as
possible and seat belts are properly
positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt.
Observe the following points:
R Adjust the seat backrest until your arms
are slightly angled when holding the
steering wheel.
R Adjust the seat to a comfortable seating
position that still allows you to reach the
accelerator/brake pedal safely. The
position should be as far back as
possible with the driver still able to
operate the controls properly.
R Never place hands under the seat or near
any moving parts while a seat is being
adjusted.
Failure to do so could result in an accident
and/or serious personal injury.
Observe the notes on the air bag system. G
WARNING
Children 12 years old and under must be
seated and properly secured in an
appropriately sized infant restraint,
toddler restraint, or booster seat
recommended for the size and weight of the
child. For additional information, see
“Children in the vehicle”.
A child’s risk of serious or fatal injuries
is significantly increased if the child
restraints are not properly secured in the
vehicle and/or the child is not properly
secured in the child restraint. G
WARNING
Contact an authorized electric drive smart
center if the seats have become damaged.
The seat is an integral part of the vehicle’s
safety system in the same way as seat belts
and air bags. Damage to the seats may
reduce their ability to protect the
occupants in an accident. Seat adjustment
0002
Seat backrest tilt
0003 Seat fore and aft adjustment
Seat backrest tilt X
Pull adjustment lever 0002upwards and
adjust the seat backrest until your arms 56
Seats>> Controls.

are slightly angled when holding the
steering wheel.
X Release adjustment lever 0002when the
desired seat backrest tilt is reached.
When you hear an audible click, the seat
backrest is again fixed into place.
X Check for proper engagement before
driving.
Seat fore and aft adjustment X
Pull adjustment handle 0003upwards and
slide the seat to a seating position that
still allows you to reach the accelerator/
brake pedal safely.
X Release adjustment handle 0003when the
desired seating position is reached.
When you hear an audible click, the seat
is again fixed into place.
X Check for proper engagement before
driving.
Seat height The seat guide is inclined in the
horizontal plane. Seat fore and aft
adjustment also alters the seat height.
Armrest* on driver’s seat
Folding up and down
X
Folding up: Hold front of armrest and fold
it up in direction of arrow 0002.
X Folding down: Hold front of armrest and
fold it down in direction of arrow 0003.Adjusting armrest angle
You can adjust the angle of the armrest when
it is folded down.
X
Turn thumb wheel 002B.
R Direction of arrow 002A: down
R Direction of arrow 0028: up Passenger seat
You can expand the cargo compartment by
folding down the passenger seat.
Observe the loading instructions
(Y page 104).
Folding down X
Remove the seat belt from seat belt
guide 0002.
X Move the passenger seat backward as far
as it will go. Seats
57>> Controls.
* optional Z

X
Hold the backrest with one hand back.
X Pull adjustment lever 0003upwards and
unlock the seat backrest.
X Fold the seat backrest forward.

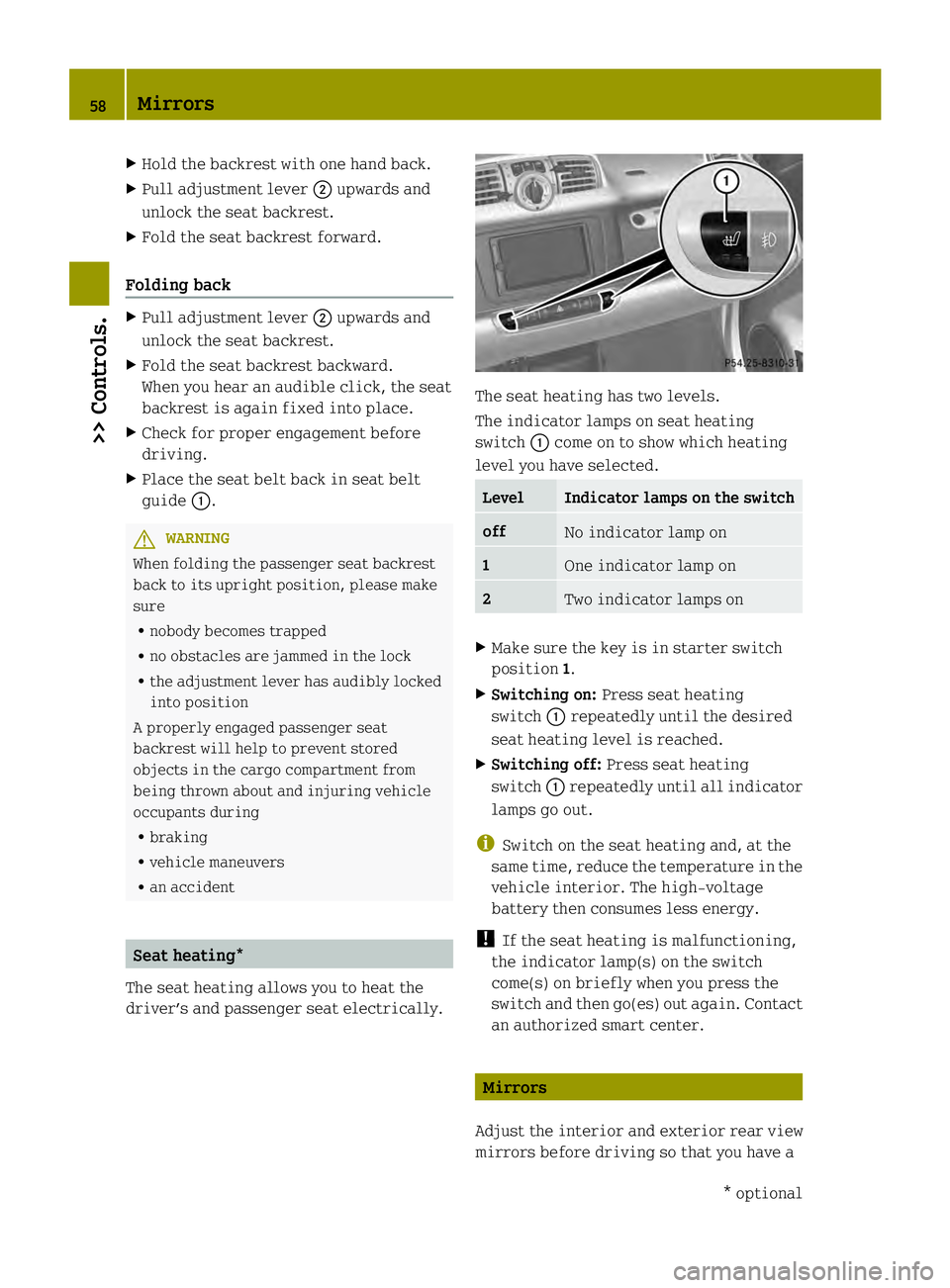

Folding back X
Pull adjustment lever 0003upwards and
unlock the seat backrest.
X Fold the seat backrest backward.
When you hear an audible click, the seat
backrest is again fixed into place.
X Check for proper engagement before
driving.
X Place the seat belt back in seat belt
guide 0002. G
WARNING
When folding the passenger seat backrest
back to its upright position, please make
sure
R nobody becomes trapped
R no obstacles are jammed in the lock
R the adjustment lever has audibly locked
into position
A properly engaged passenger seat
backrest will help to prevent stored
objects in the cargo compartment from
being thrown about and injuring vehicle
occupants during
R braking
R vehicle maneuvers
R an accident Seat heating*
The seat heating allows you to heat the
driver’s and passenger seat electrically. The seat heating has two levels.
The indicator lamps on seat heating
switch
0002come on to show which heating
level you have selected. Level Indicator lamps on the switch
off
No indicator lamp on
1
One indicator lamp on
2
Two indicator lamps on
X
Make sure the key is in starter switch
position 1.
X Switching on: Press seat heating
switch 0002repeatedly until the desired
seat heating level is reached.
X Switching off: Press seat heating
switch 0002repeatedly until all indicator
lamps go out.
i Switch on the seat heating and, at the
sam etime, reduce the temperature in the
vehicle interior. The high‑voltage
battery then consumes less energy.
! If the seat heating is malfunctioning,
the indicator lamp(s) on the switch
come(s) on briefly when you press the
switch and then go(es) out again. Contact
an authorized smart center. Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a 58
Mirrors>> Controls.
* optional
