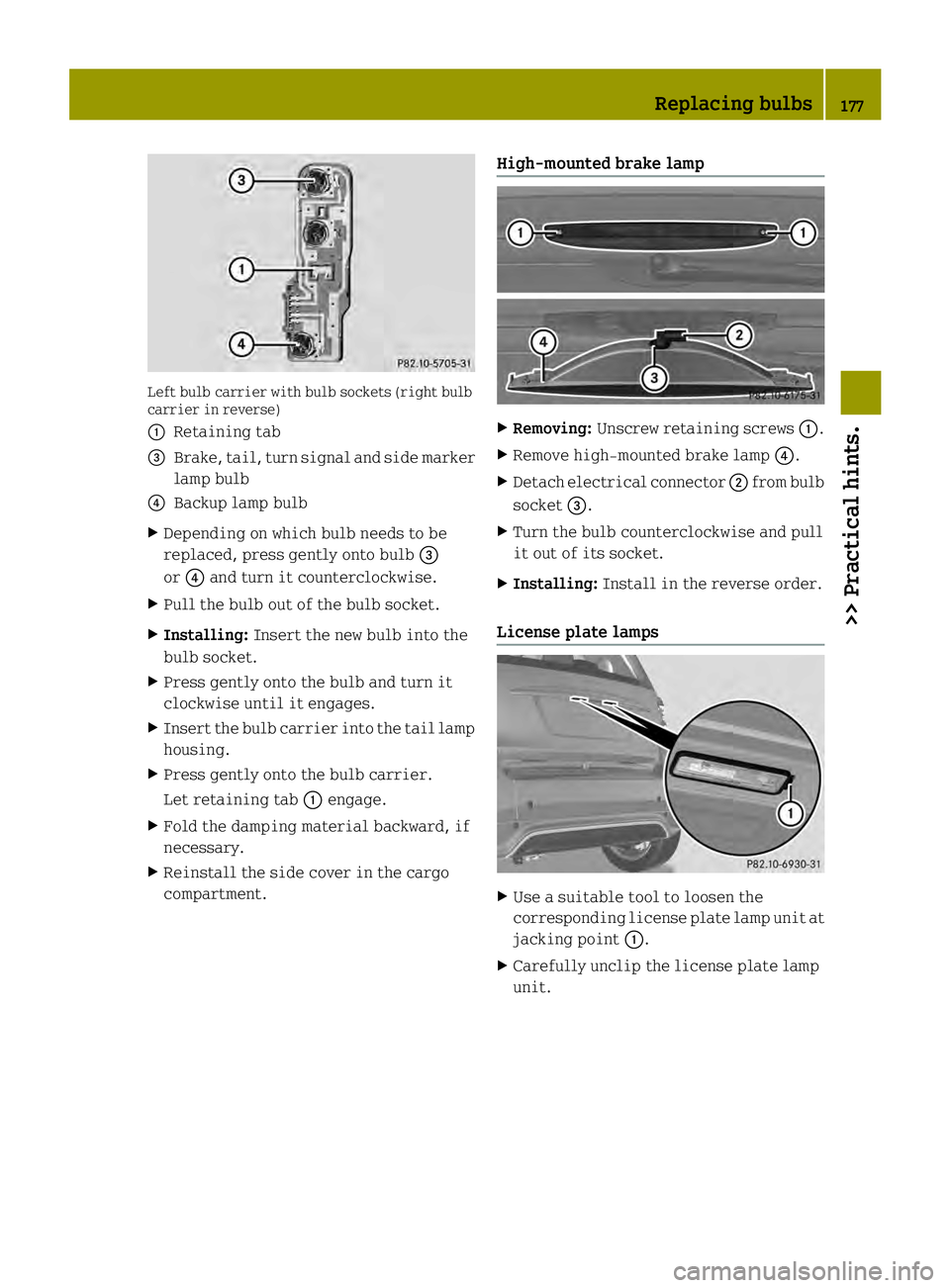

Left bulb carrier with bulb sockets (right bulb
carrier in reverse)
0002 Retaining tab
002B Brake, tail, turn signal and side marker
lamp bulb
002A Backup lamp bulb
X Depending on which bulb needs to be
replaced, press gently onto bulb 002B
or 002A and turn it counterclockwise.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Press gently onto the bulb and turn it
clockwise until it engages.
X Insert the bulb carrier into the tail lamp
housing.
X Press gently onto the bulb carrier.
Let retaining tab 0002engage.
X Fold the damping material backward, if
necessary.
X Reinstall the side cover in the cargo
compartment. High-mounted brake lamp X
Removing: Unscrew retaining screws 0002.
X Remove high-mounted brake lamp 002A.
X Detach electrical connector 0003from bulb
socket 002B.
X Turn the bulb counterclockwise and pull
it out of its socket.
X Installing: Install in the reverse order.
License plate lamps X
Use a suitable tool to loosen the
corresponding license plate lamp unit at
jacking point 0002.
X Carefully unclip the license plate lamp
unit. Replacing bulbs
177>> Practical hints. Z

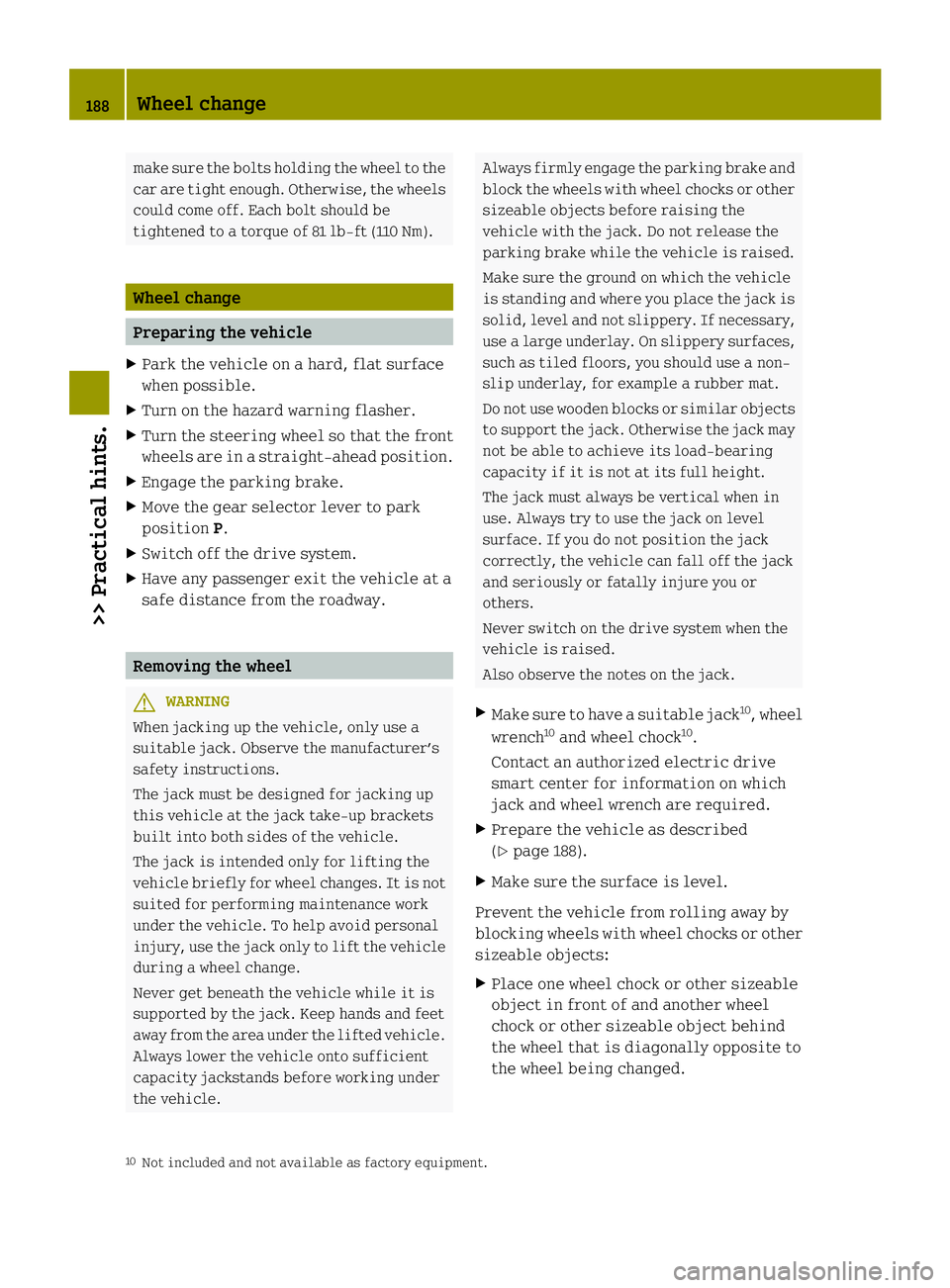

make sure the bolts holding the wheel to the
car are tight enough. Otherwise, the wheels
could come off. Each bolt should be
tightened to a torque of 81 lb‑ft (110 Nm).
Wheel change
Preparing the vehicle
X Park the vehicle on a hard, flat surface
when possible.
X Turn on the hazard warning flasher.
X Turn the steerin gwheel so that the front
wheels are in a straight-ahead position.
X Engage the parking brake.
X Move the gear selector lever to park
position P.
X Switch off the drive system.
X Have any passenger exit the vehicle at a
safe distance from the roadway. Removing the wheel
G
WARNING
When jacking up the vehicle, only use a
suitable jack. Observe the manufacturer’s
safety instructions.
The jack must be designed for jacking up
this vehicle at the jack take-up brackets
built into both sides of the vehicle.
The jack is intended only for lifting the
vehicle briefly for wheel changes. It is not
suited for performing maintenance work
under the vehicle. To help avoid personal
injury, use the jack only to lift the vehicle
during awheel change.
Never get beneath the vehicle while it is
supported by the jack. Keep hands and feet
away from the area under the lifted vehicle.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle. Always firmly engage the parking brake and
block the wheels with wheel chocks or other
sizeable objects before raising the
vehicle with the jack. Do not release the
parking brake while the vehicle is raised.
Make sure the ground on which the vehicle
is standing and where you place the jack is
solid, level and not slippery. If necessary,
use a large underlay. On slippery surfaces,
such as tiled floors, you should use a non-
slip underlay, for example a rubber mat.
Do not use wooden blocks or similar objects
to support the jack. Otherwise the jack may
not be able to achieve its load-bearing
capacity if it is not at its full height.
The jack must always be vertical when in
use. Always try to use the jack on level
surface. If you do not position the jack
correctly, the vehicle can fall off the jack
and seriously or fatally injure you or
others.
Never switch on the drive system when the
vehicle is raised.
Also observe the notes on the jack.
X Make sure to have a suitable jack 10
, wheel
wrench 10
and wheel chock 10
.
Contact an authorized electric drive
smart center for information on which
jack and wheel wrench are required.
X Prepare the vehicle as described
(Y page 188).
X Make sure the surface is level.
Prevent the vehicle from rolling away by
blocking wheels with wheel chocks or other
sizeable objects:
X Place one wheel chock or other sizeable
object in front of and another wheel
chock or other sizeable object behind
the wheel that is diagonally opposite to
the wheel being changed.
10 Not included and not available as factory equipment. 188
Wheel change>> Practical hints.

G
WARNING
Failure to follow these instructions can
result in severe injury or death.
Observe all safety instructions and
precautions when handling automotive
batteries.
Never lean over batteries while
connecting, you might get injured.
Batter yfluid contains sulfuric acid. Do not
allow this fluid to come in contact with
eyes, skin or clothing. In case it does,
immediately flush affected area with water
and seek medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc. G
WARNING
Do not place any metal objects on a battery.
You could otherwise cause a short circuit
and the battery’s highly flammable
chemicals could ignite.
Never allow any metal object to contact both
battery terminals or the positive terminal
and the vehicle body at the same time. This
might short circuit the battery and ignite
the highly flammable and explosive
hydrogen gas generated by the battery,
causing serious personal injury. G
WARNING
Keep flames or sparks away from battery,
avoid improper connection of jumper
cables, smoking, etc.
R When disconnecting the battery, always
disconnect the negative terminal first,
followed by positive terminal.
R When connecting the battery, always
connect the positive terminal first,
followed by the negative terminal.
R Do not loosen or disconnect the battery
terminal clips while the drive system is running or the key is in the starter
switch.
! Never loosen or detach battery terminal
clamps while the drive system is running
or the key is in the starter switch.
Otherwise, electronic components could
be severely damaged.
Have the battery checked regularly at an
authorized electric drive smart center.
Refer to Maintenance Booklet for
maintenance intervals or contact an
authorized electric drive smart center
for further information.
! Never invert the terminal connections! Notes on the high‑voltage battery
Have work on the high-voltage battery
performed by an authorized electric drive
smart center only. Observe the safety notes
on (Y page 15) as well as the notes on the 12-
volt battery (Y page 190). G
WARNING
The electrolyte of the high-voltage
battery, i.e. the battery fluid, is toxic and
caustic. Do not allow this fluid to come in
contact with eyes, skin or clothing, for
example in case of an accident.
In case it does, immediately flush affected
area with water and seek medical help
immediately.
The high-voltage battery is located in the
vehicle underbody. Keep this in mind when
jacking up the vehicle. The vehicle has
designated take-up brackets for the jack.
For more information, see (Y page 189).
! Only position the jack on the
designated take-up brackets.
You must not position the jack under the
high-voltage battery. Otherwise, the
high-voltage battery could be damaged. Batteries
191>> Practical hints. Z
