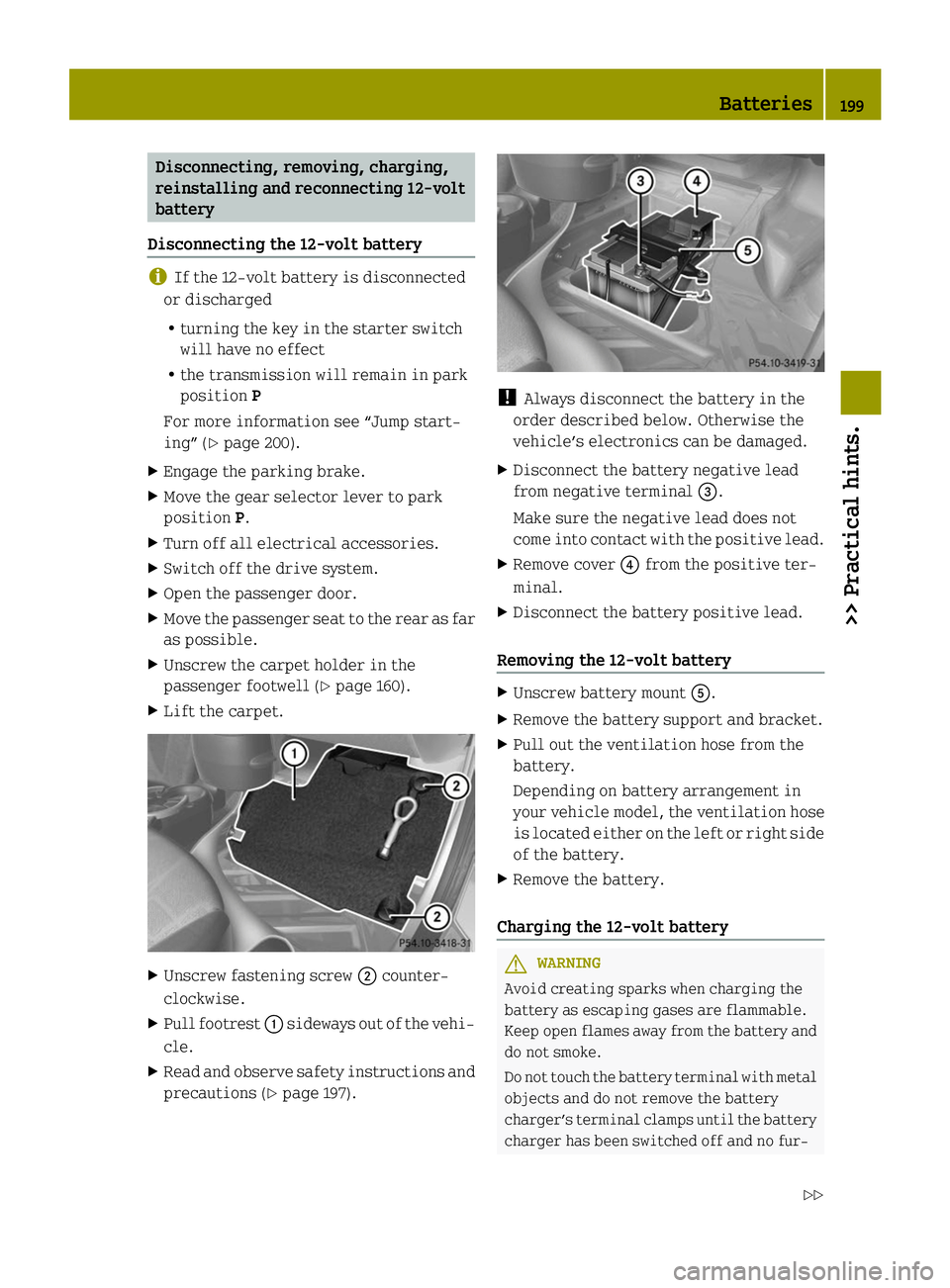

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual Disconnecting, removing, charging,
reinstalling and reconnecting 12‑volt
battery
Disconnecting the 12-volt battery i
If the 12-volt battery is disconnected
or discharged
R turning the key in the sta

Page 202 of 222

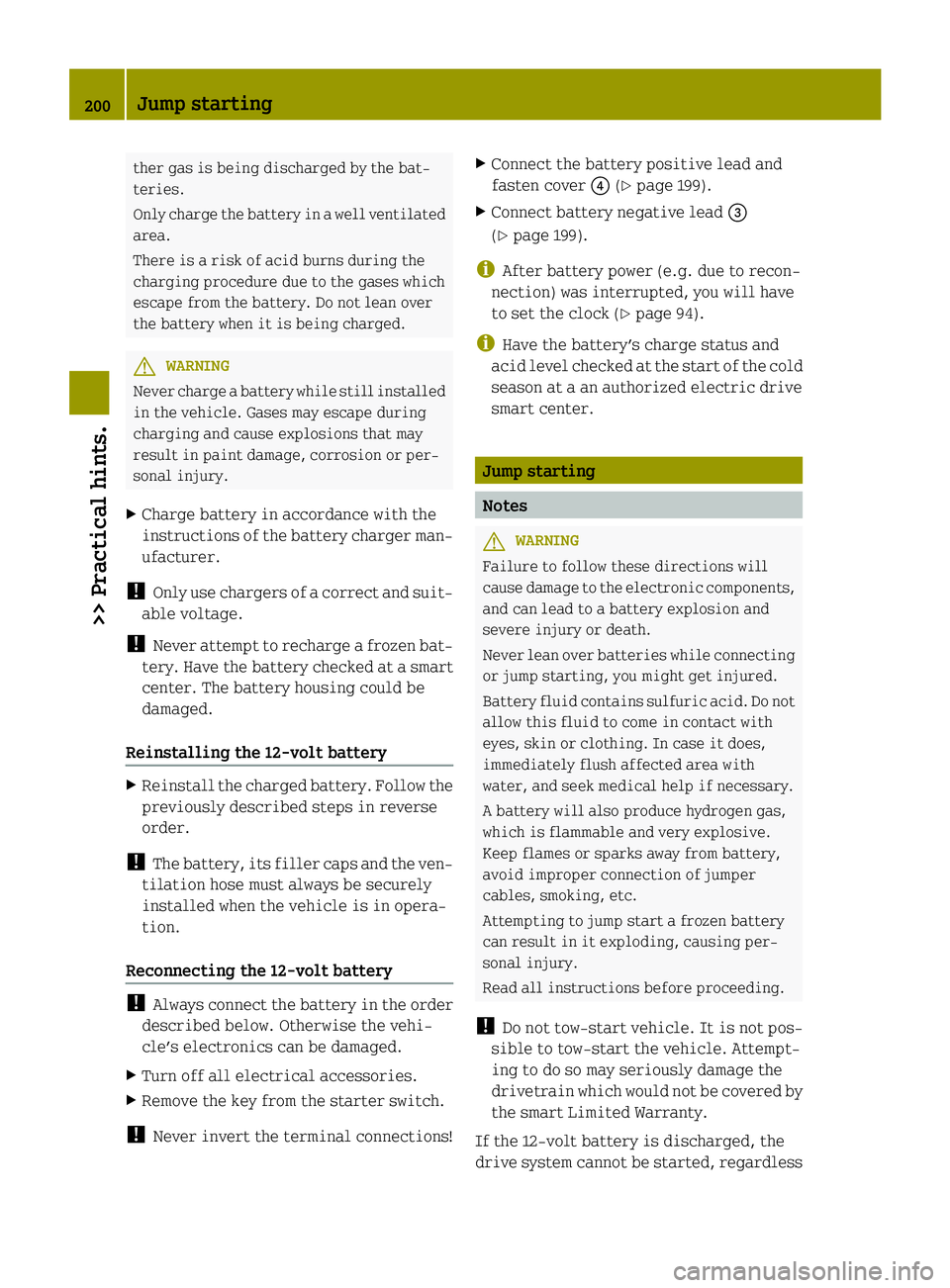

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual ther gas is being discharged by the bat-
teries.
Only charge the battery in a well ventilated
area.
There is a risk of acid burns during the
charging procedure due to the gases which
escape from the b

Page 203 of 222

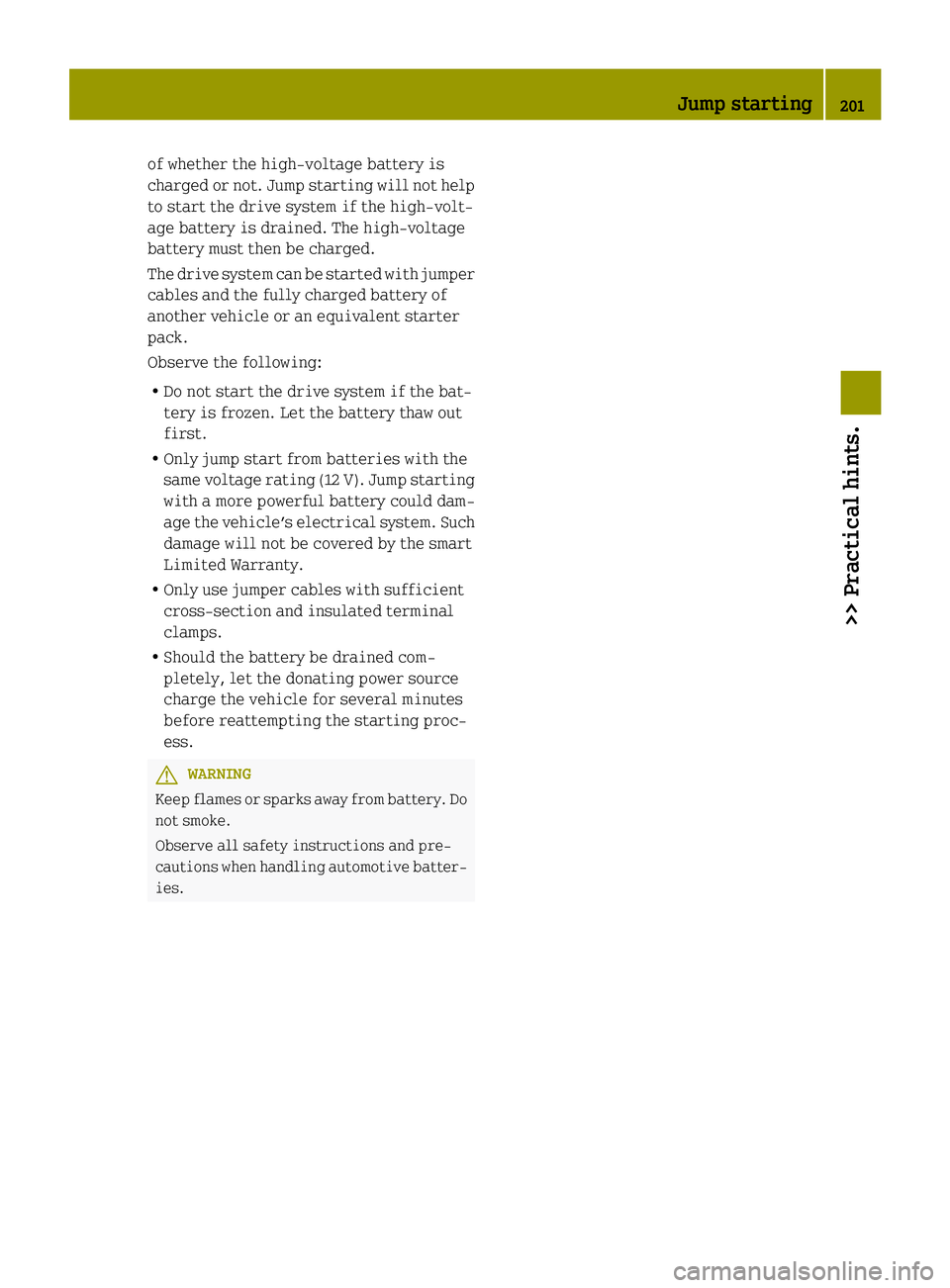

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual of whether the high-voltage battery is
charged or not. Jump starting will not help
to start the drive system if the high-volt-
age battery is drained. The high-voltage
battery must then be charged.
Th

Page 204 of 222

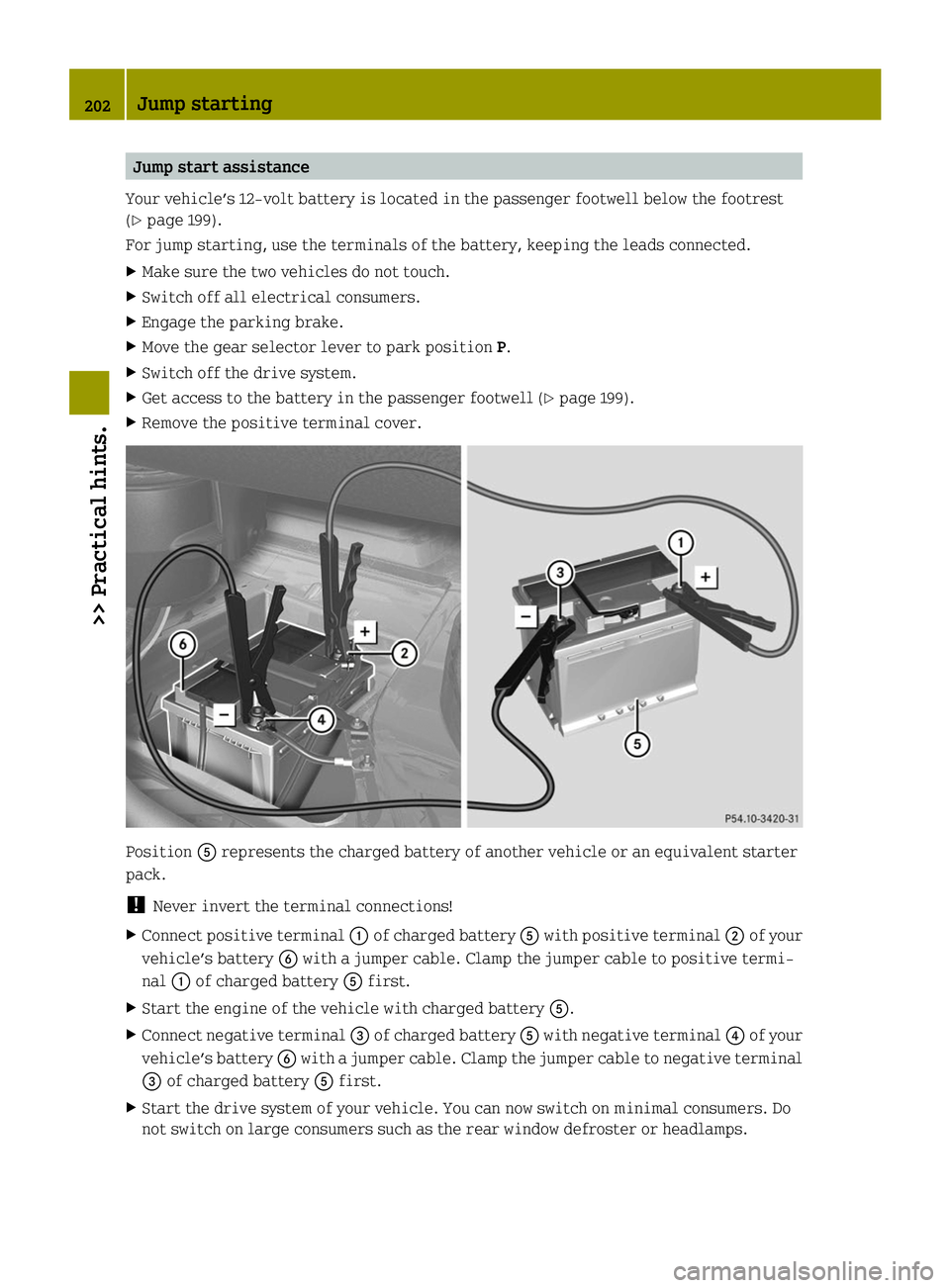

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual Jump start assistance
Your vehicle’s 12-volt battery is located in the passenger footwell below the footrest
(Y page 199).
For jump starting, use the terminals of the battery, keeping the leads conn

Page 205 of 222

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual X

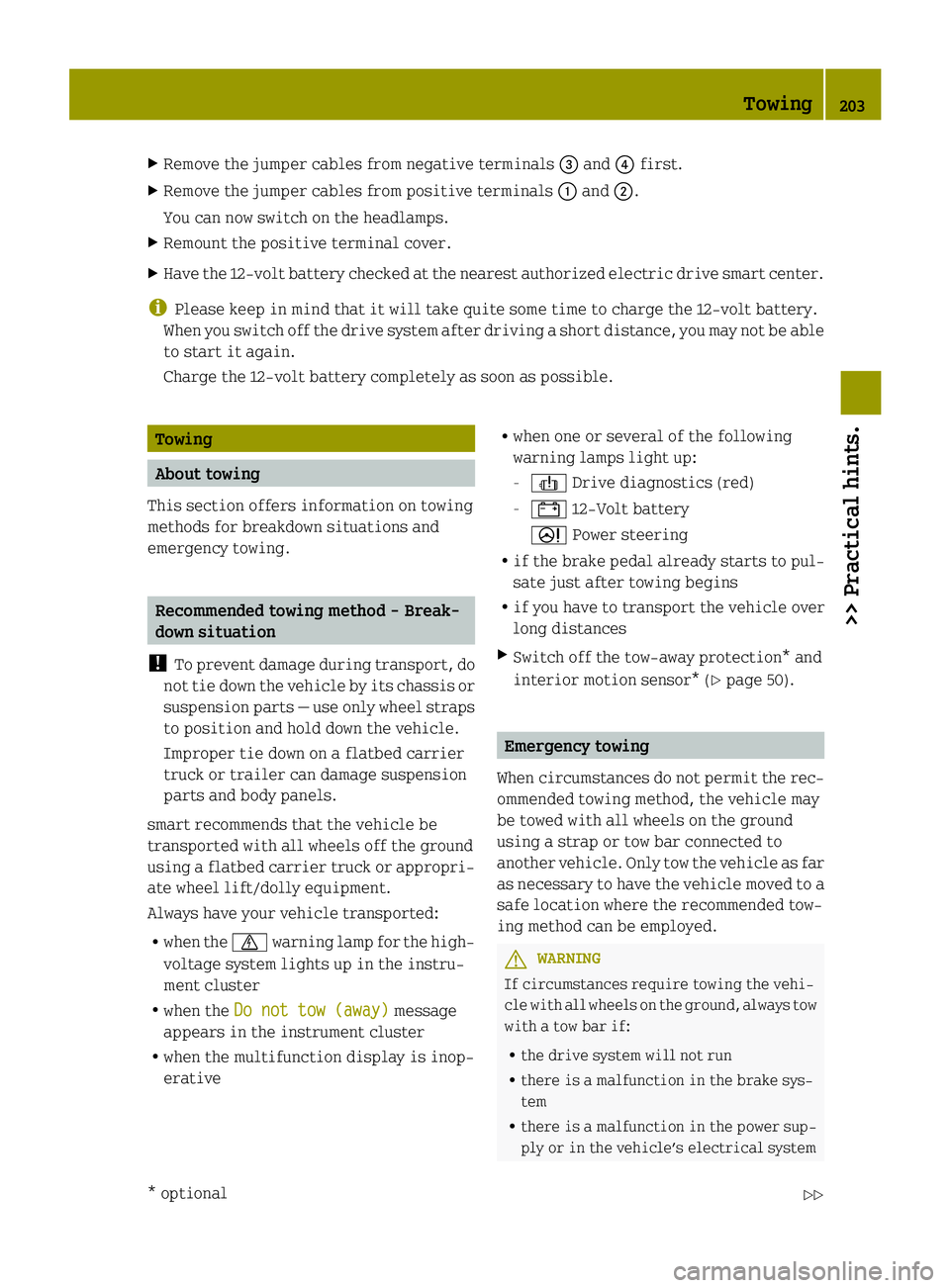

Remove the jumper cables from negative terminals 0087and 0085first.
X Remove the jumper cables from positive terminals 0043and 0044.
You can now switch on the headlamps.
X Remount the positive termi

Page 206 of 222

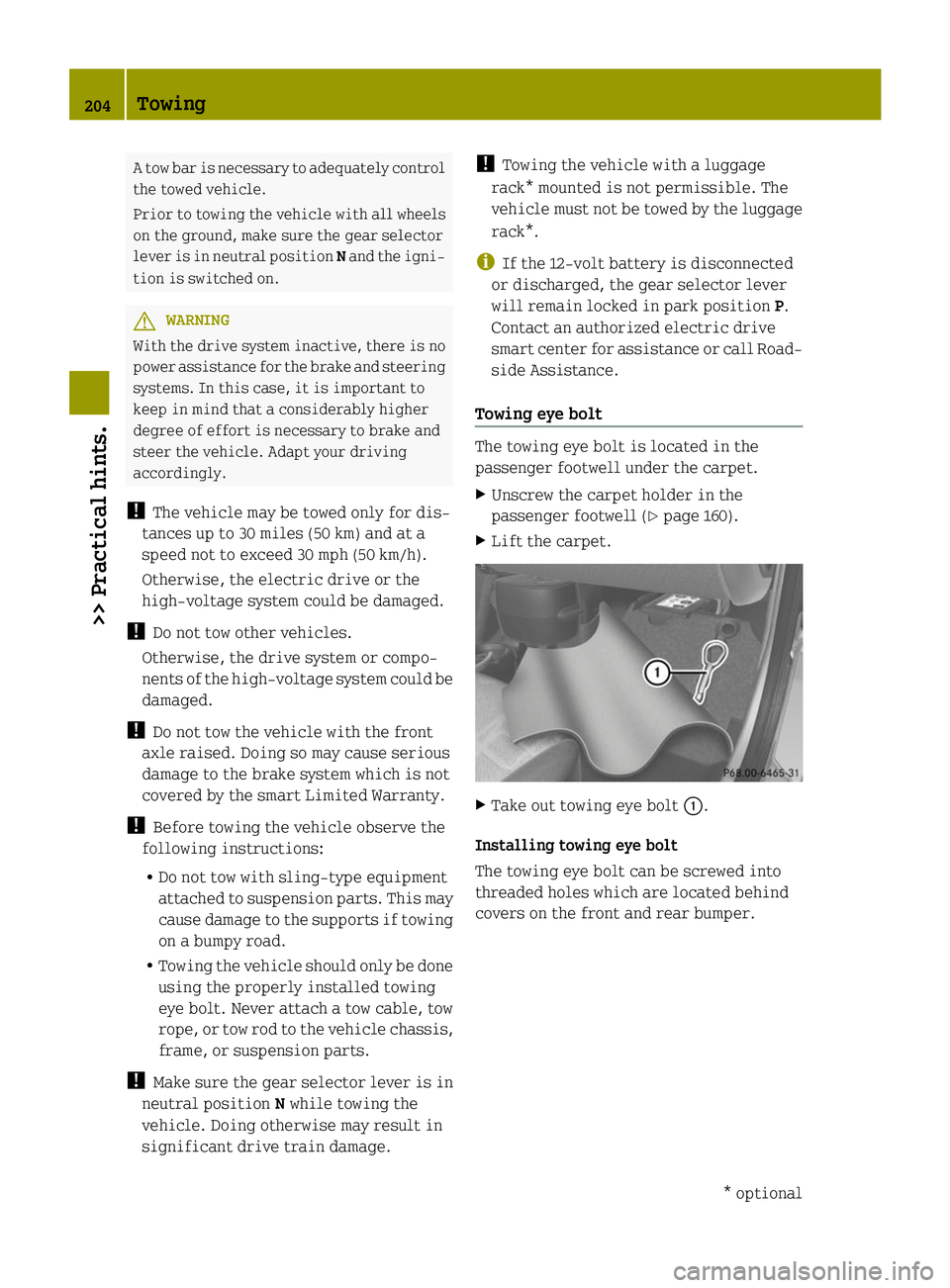

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual A tow bar is necessary to adequately control
the towed vehicle.
Prior to towing the vehicle with all wheels
on the ground, make sure the gear selector
lever is in neutral position Nand the igni-
tion

Page 207 of 222

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual Front cover
Rear covers
X
Remove respective cover 0043or0044 using
a suitable object to reveal the threaded
hole for the towing eye bolt.
X Screw towing eye bolt in clockwise to its
stop and tighten w

Page 208 of 222

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual R
Switch off the drive system.

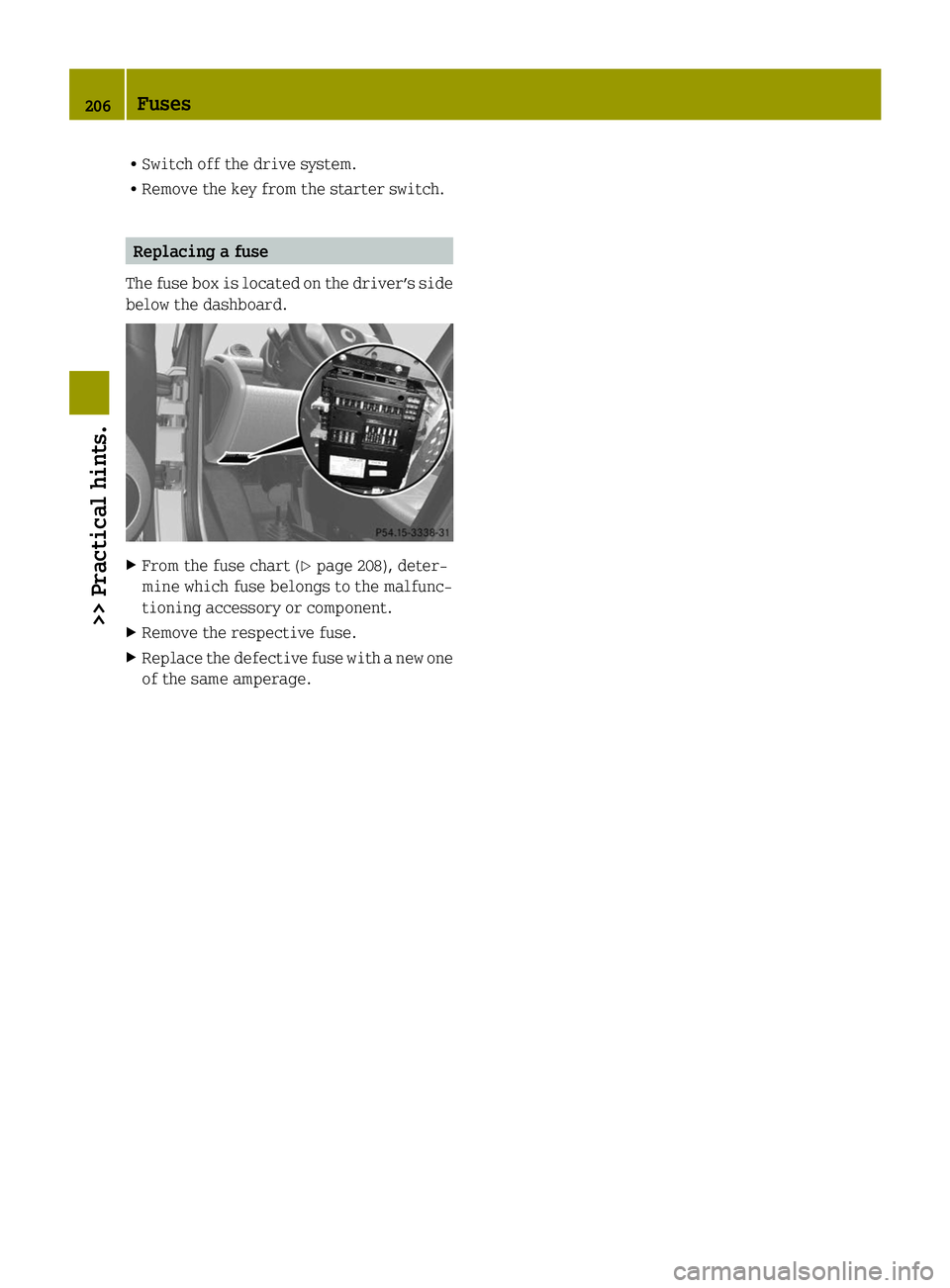

R Remove the key from the starter switch. Replacing a fuse
The fuse box is located on the driver’s side
below the dashboard. X
From the fuse chart (Y page 208), deter-

Page 209 of 222

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual Fuse box

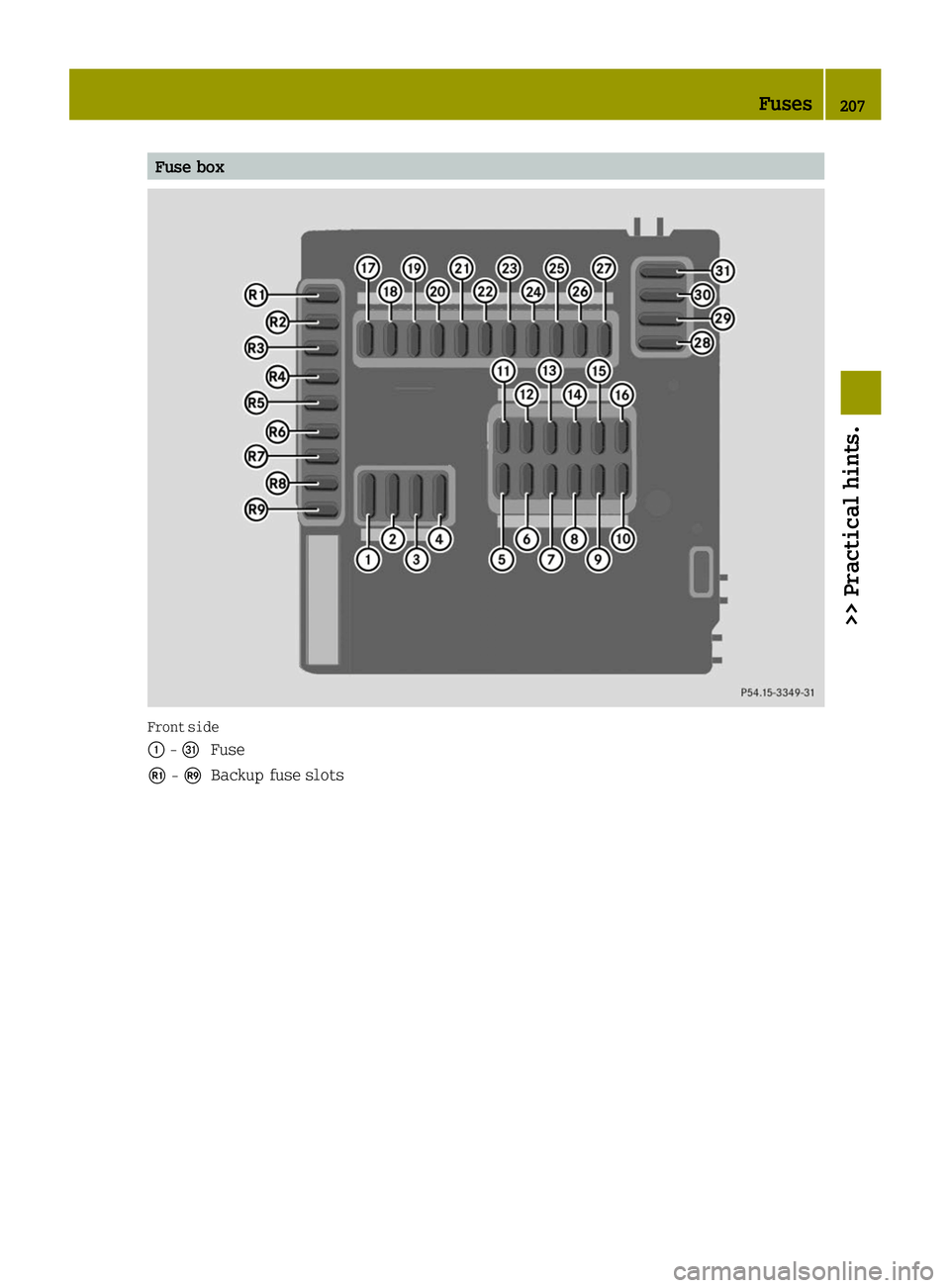

Front side
0043
-006A
Fuse
009A -00A2
Backup fuse slots Fuses
207>> Practical hints. Z

Page 210 of 222

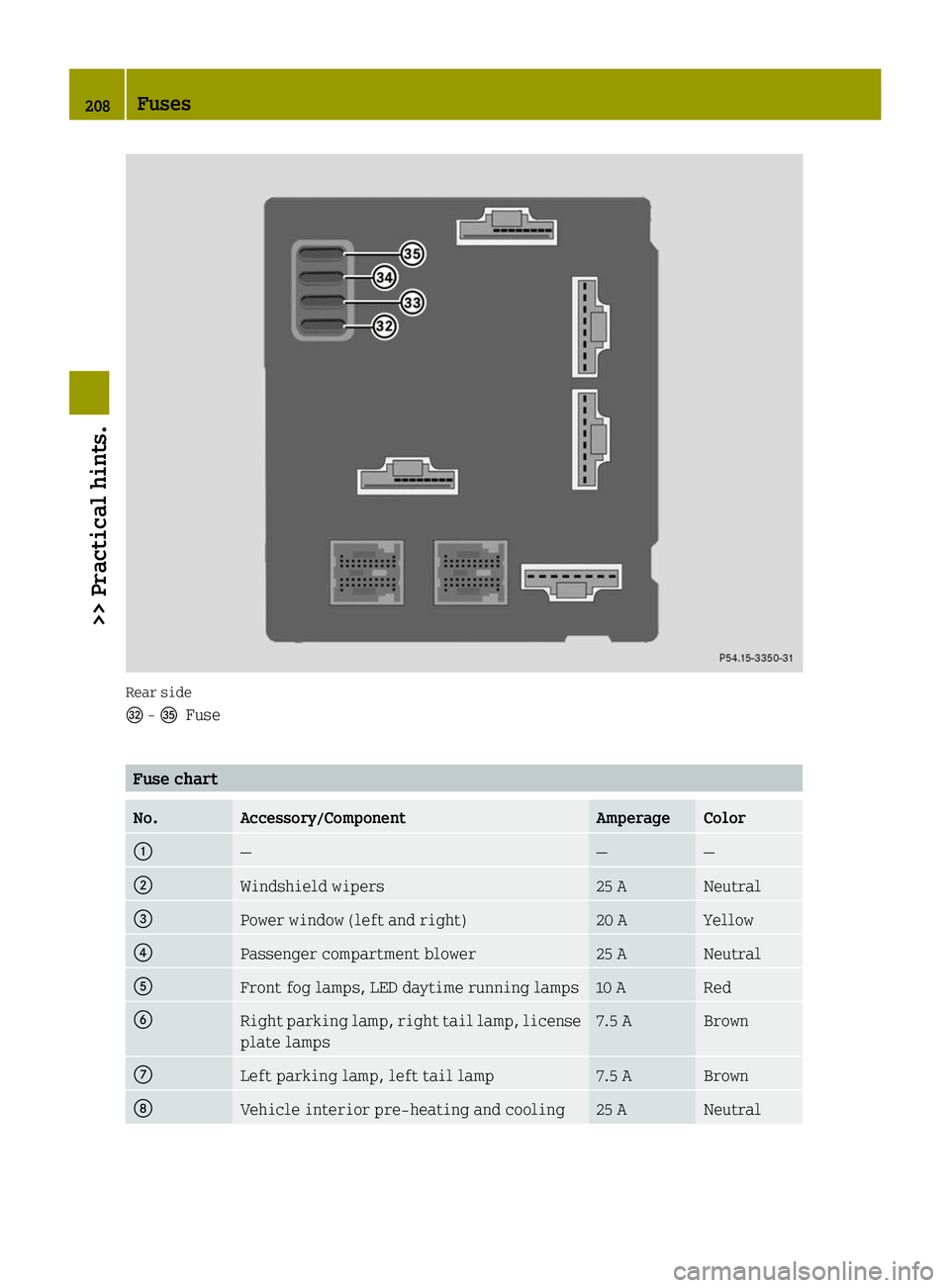

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual Rear side
0069
-00B7
Fuse Fuse chart
No. Accessory/Component Amperage Color
0043
— — —
0044
Windshield wipers 25 A Neutral
0087
Power window (left and right) 20 A Yellow
0085
Passenger compartme
