SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual !
Check the polarity when inserting the
new transmitter battery. You could oth-
erwise damage parts of the electrical
system. When inserting the batteries,
make sure they are clean and free of lint.
X

Page 182 of 222

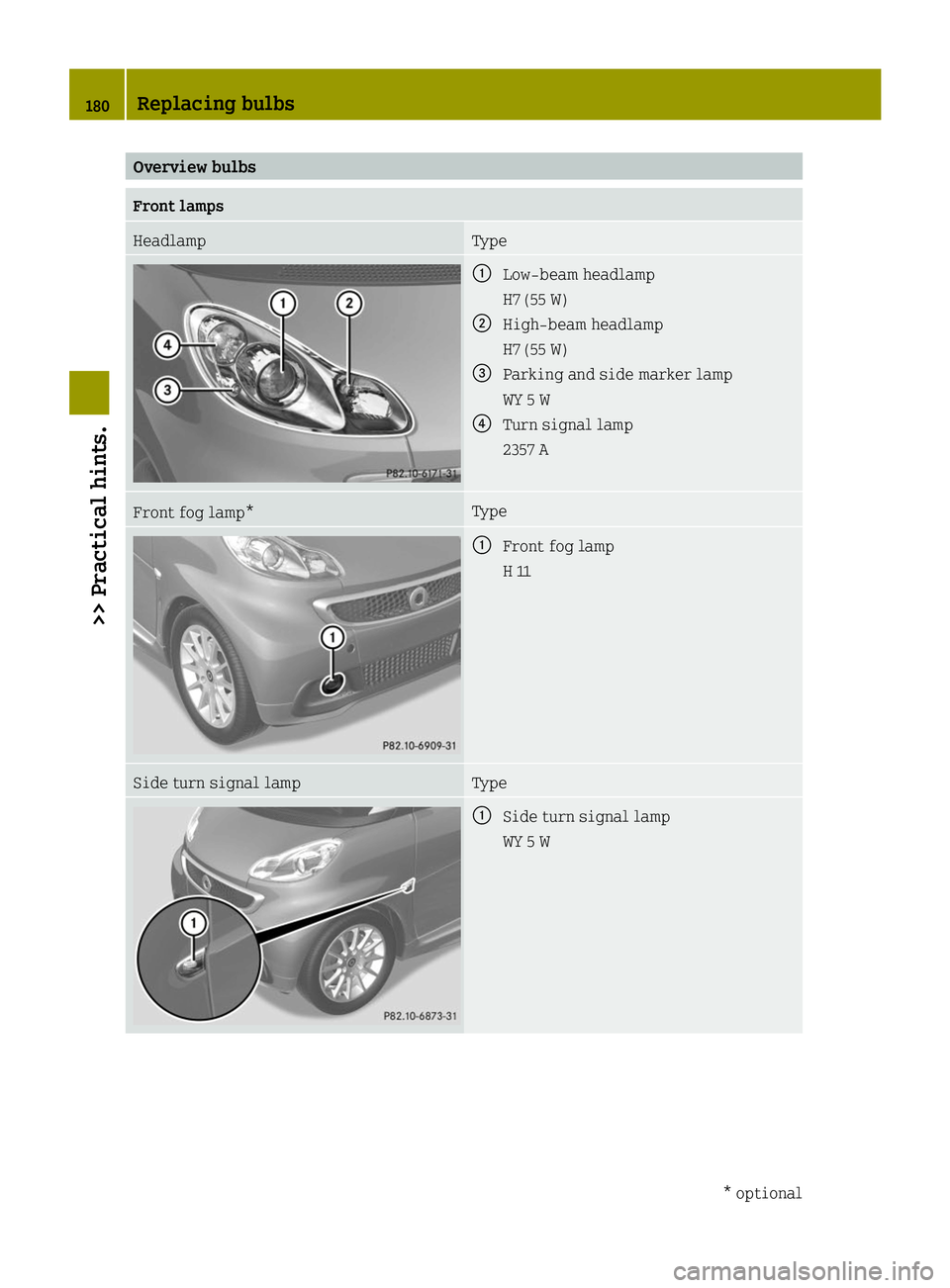

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual Overview bulbs
Front lamps
Headlamp Type
0043
Low‑beam headlamp
H7 (55 W)
0044 High‑beam headlamp
H7 (55 W)
0087 Parking and side marker lamp
WY 5 W
0085 Turn signal lamp
2357 A Front fog lamp* Ty

Page 183 of 222

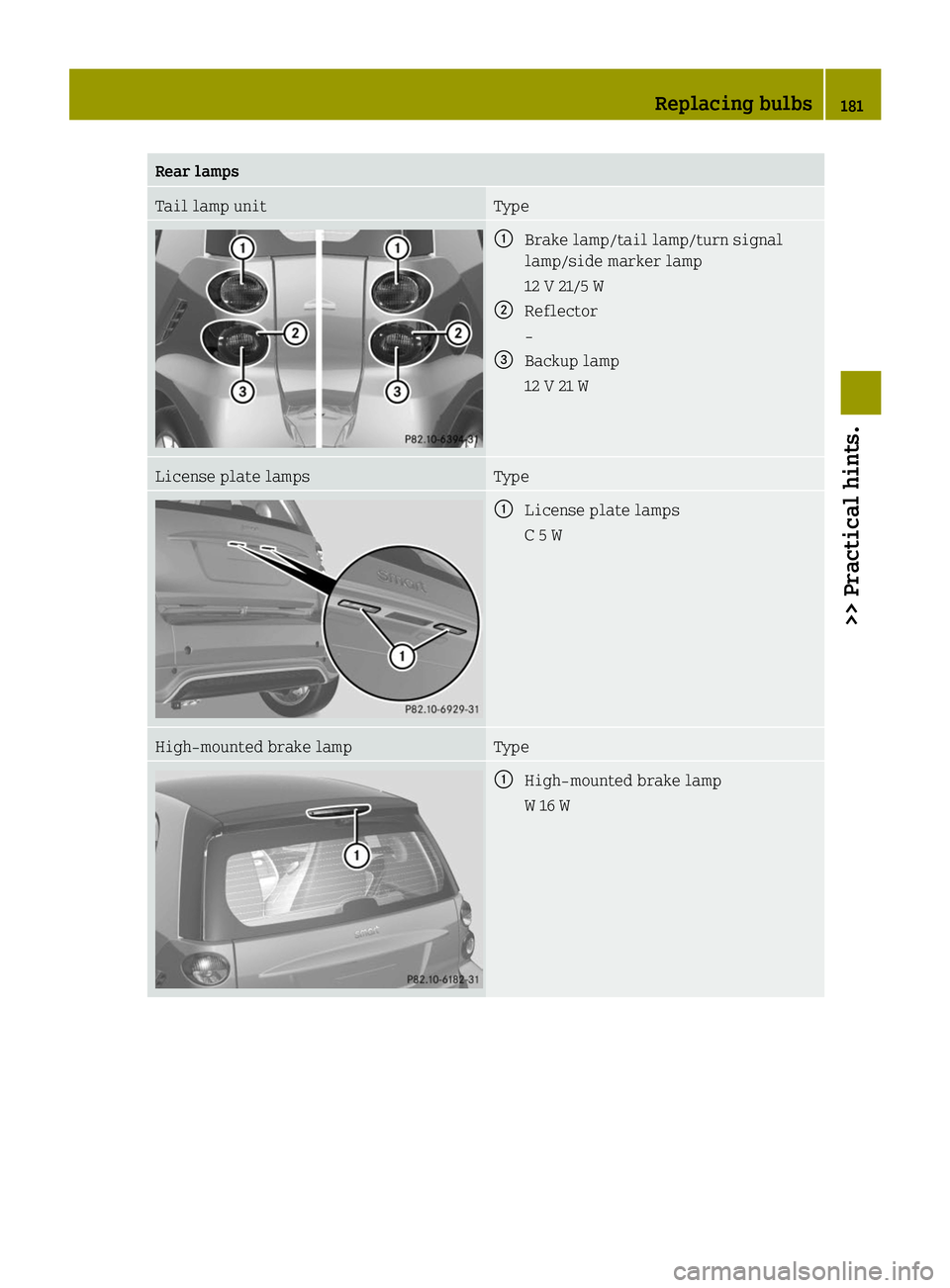

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual Rear lamps
Tail lamp unit Type
0043
Brake lamp/tail lamp/turn signal
lamp/side marker lamp
12 V 21/5 W
0044 Reflector
-
0087 Backup lamp
12 V 21 W License plate lamps Type
0043
License plate lamps
C 5

Page 184 of 222

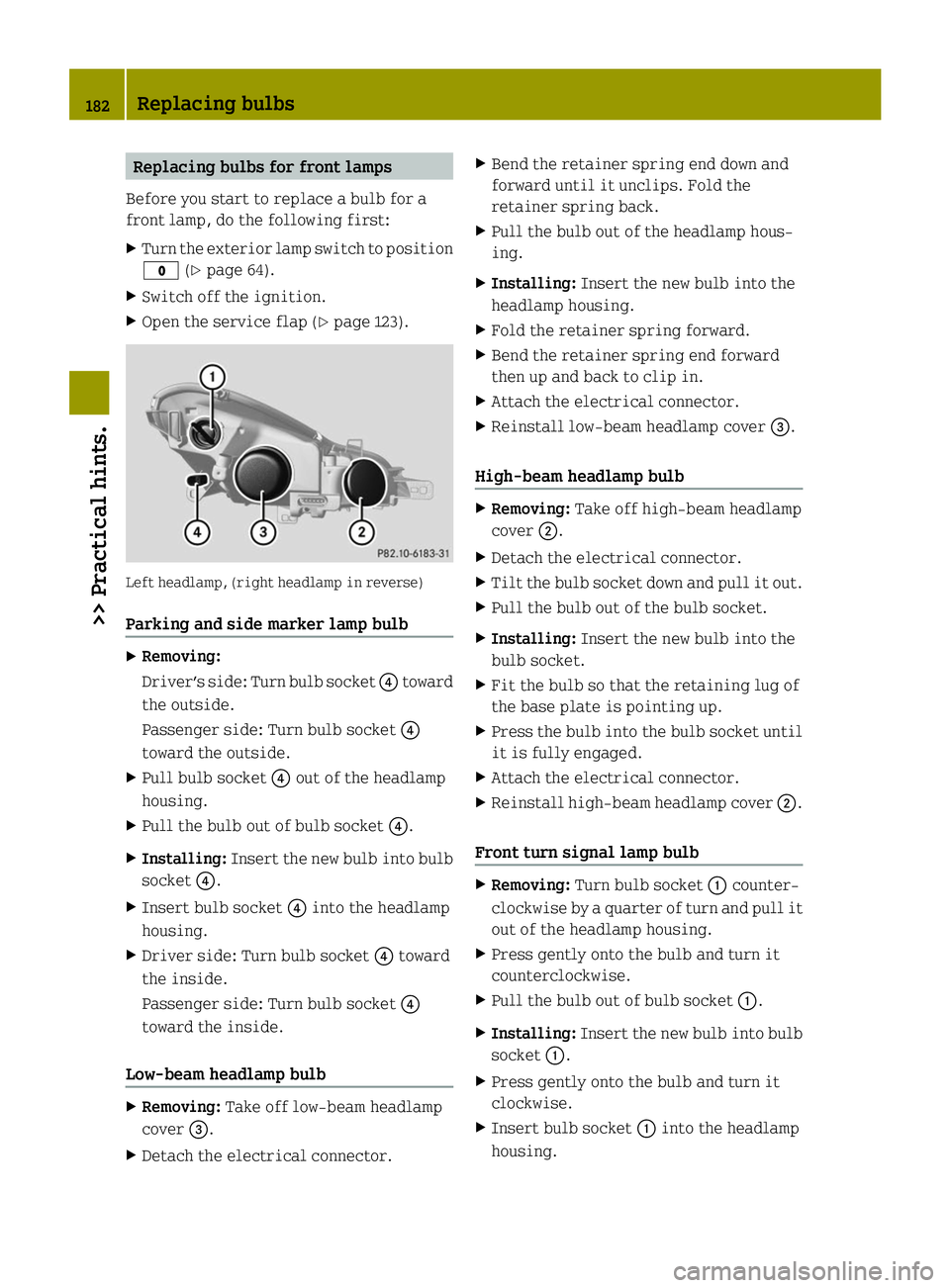

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
X Turn the exterior lamp switch to position
003F (Ypage 64).
X Switch off the ignition.
X O

Page 185 of 222

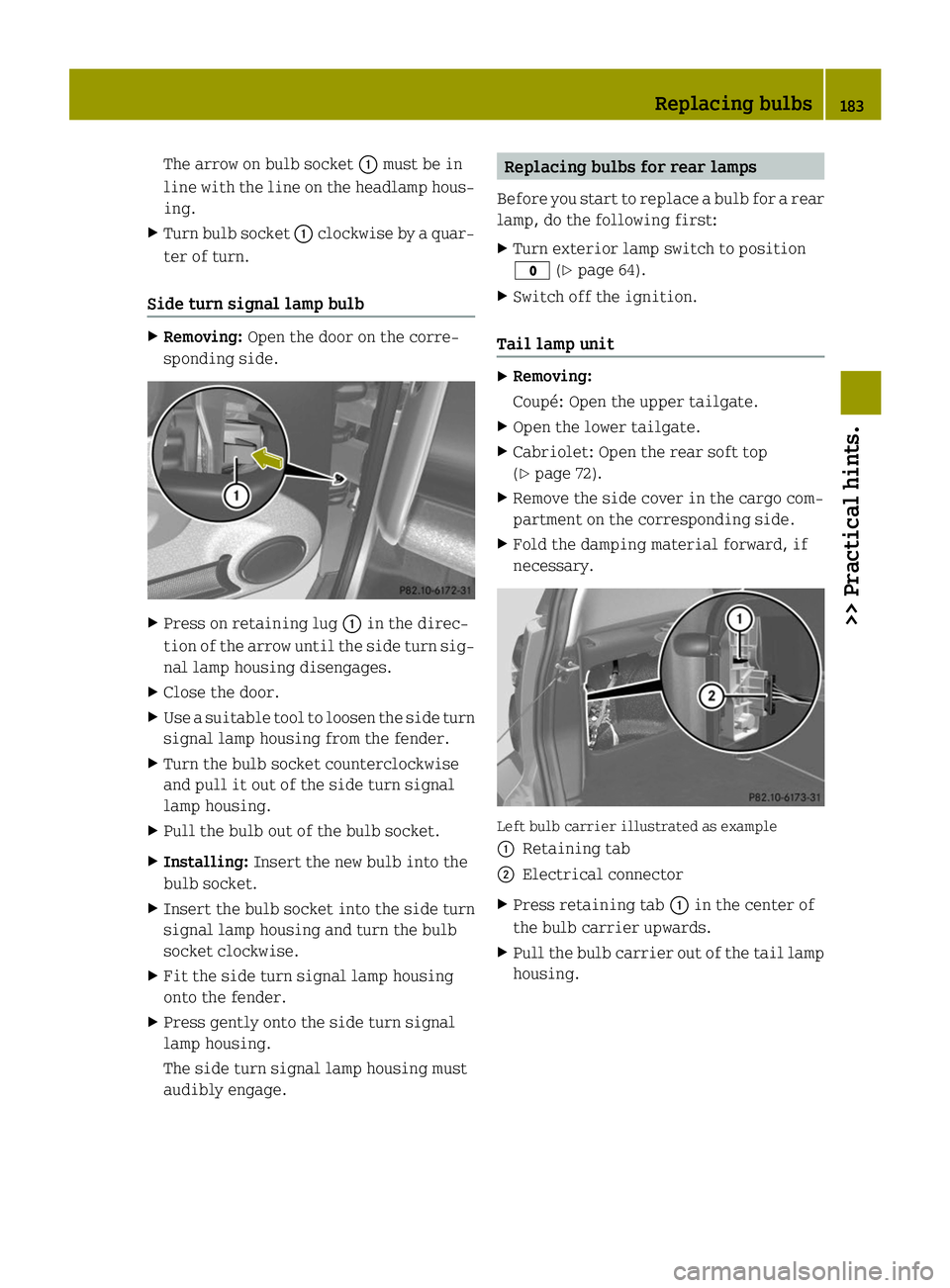

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual The arrow on bulb socket
0043must be in
line with the line on the headlamp hous-
ing.
X Turn bulb socket 0043clockwise by a quar-
ter of turn.
Side turn signal lamp bulb X
Removing: Open the door on t

Page 186 of 222

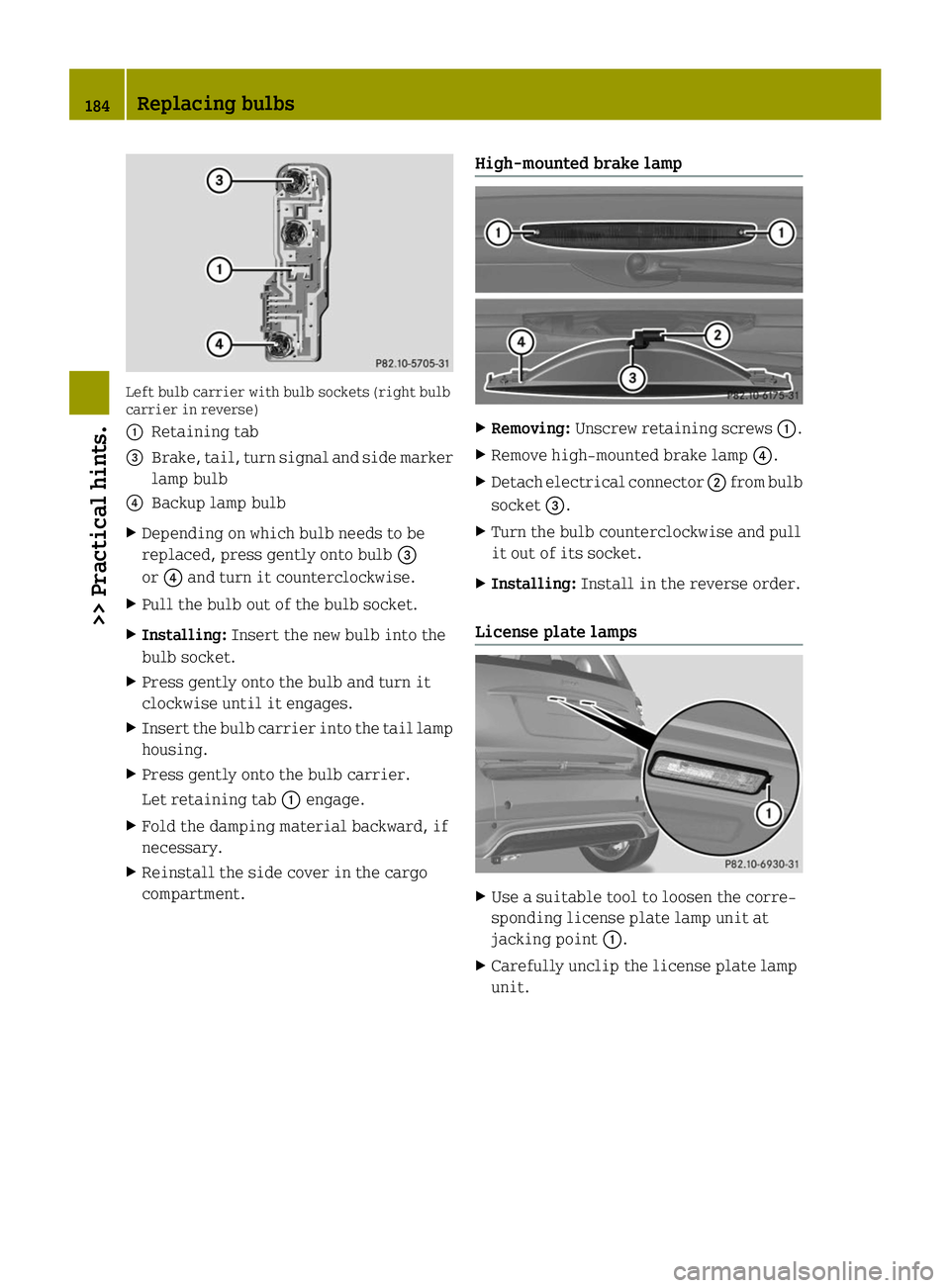

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual Left bulb carrier with bulb sockets (right bulb
carrier in reverse)
0043 Retaining tab
0087 Brake, tail, turn signal and side marker
lamp bulb
0085 Backup lamp bulb
X Depending on which bulb needs to

Page 187 of 222

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual X
Detach electrical connectors 0044.
X Remove bulb 0087.
X Insert the new bulb.
X Attach electrical connectors 0044.
X Fit the license plate lamp unit on the
right and press gently on the left.
The li

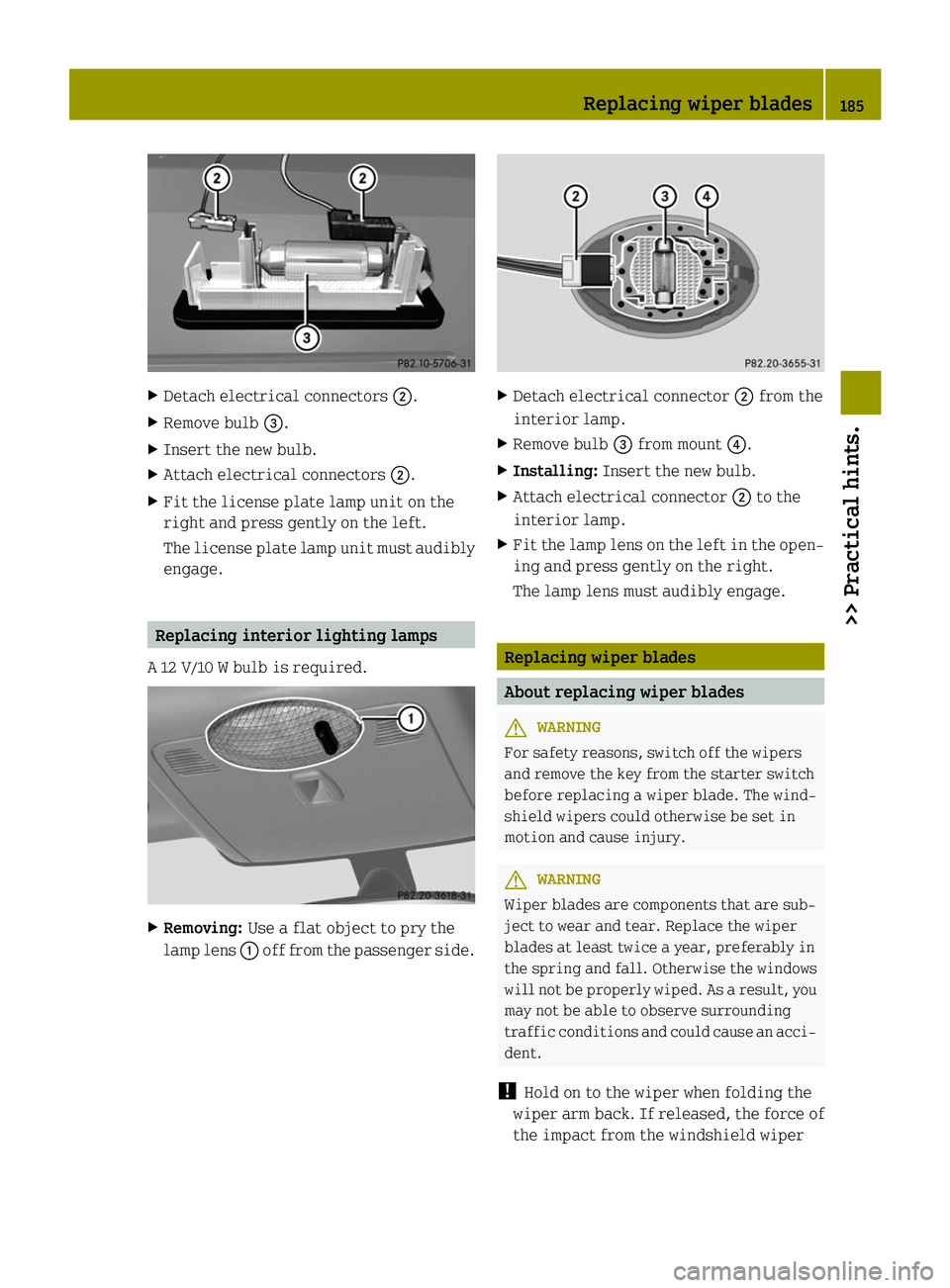

Page 188 of 222

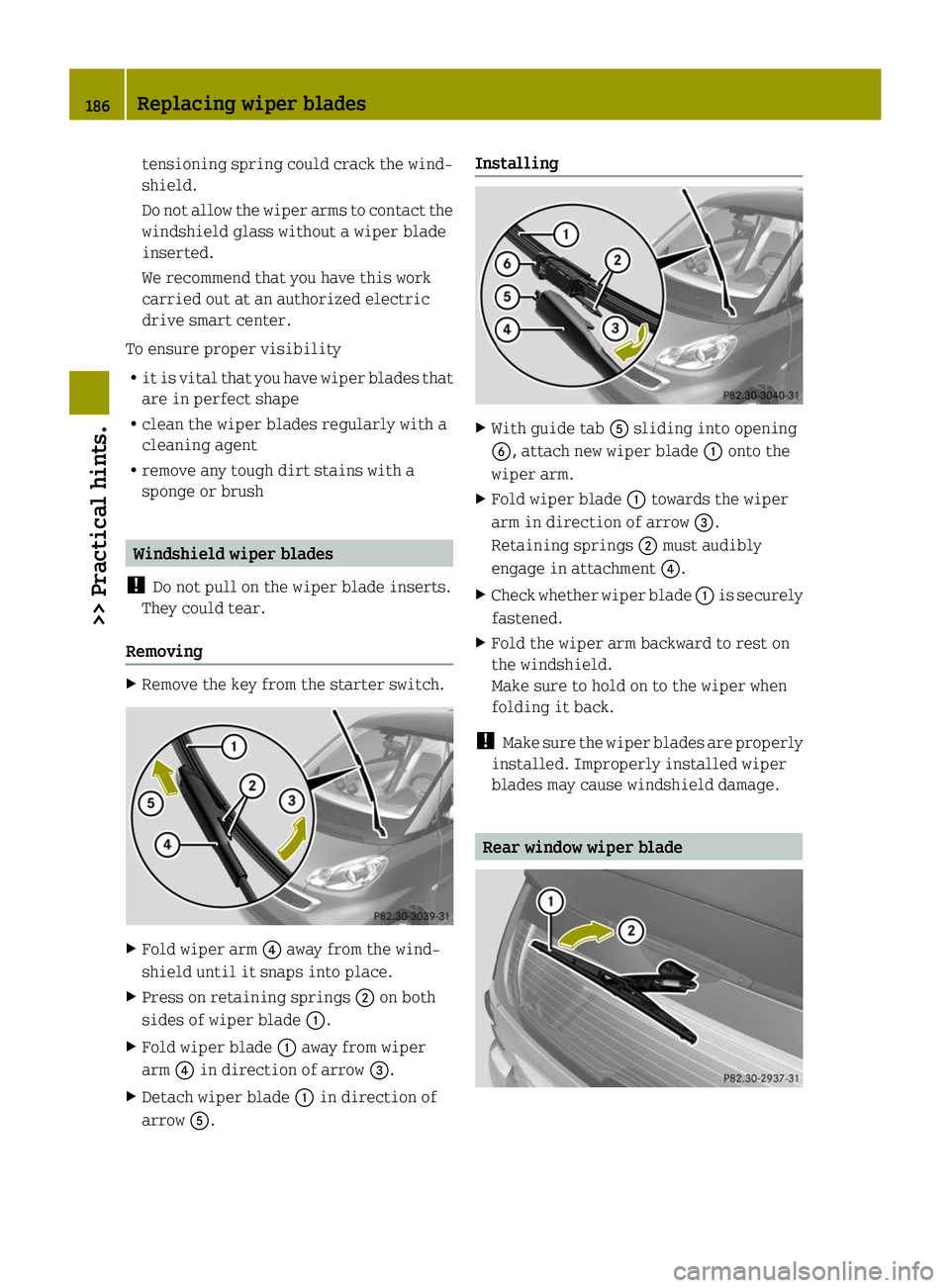

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual tensioning spring could crack the wind-
shield.
Do not allow the wiper arms to contact the
windshield glass without a wiper blade
inserted.
We recommend that you have this work
carried out at an autho

Page 189 of 222

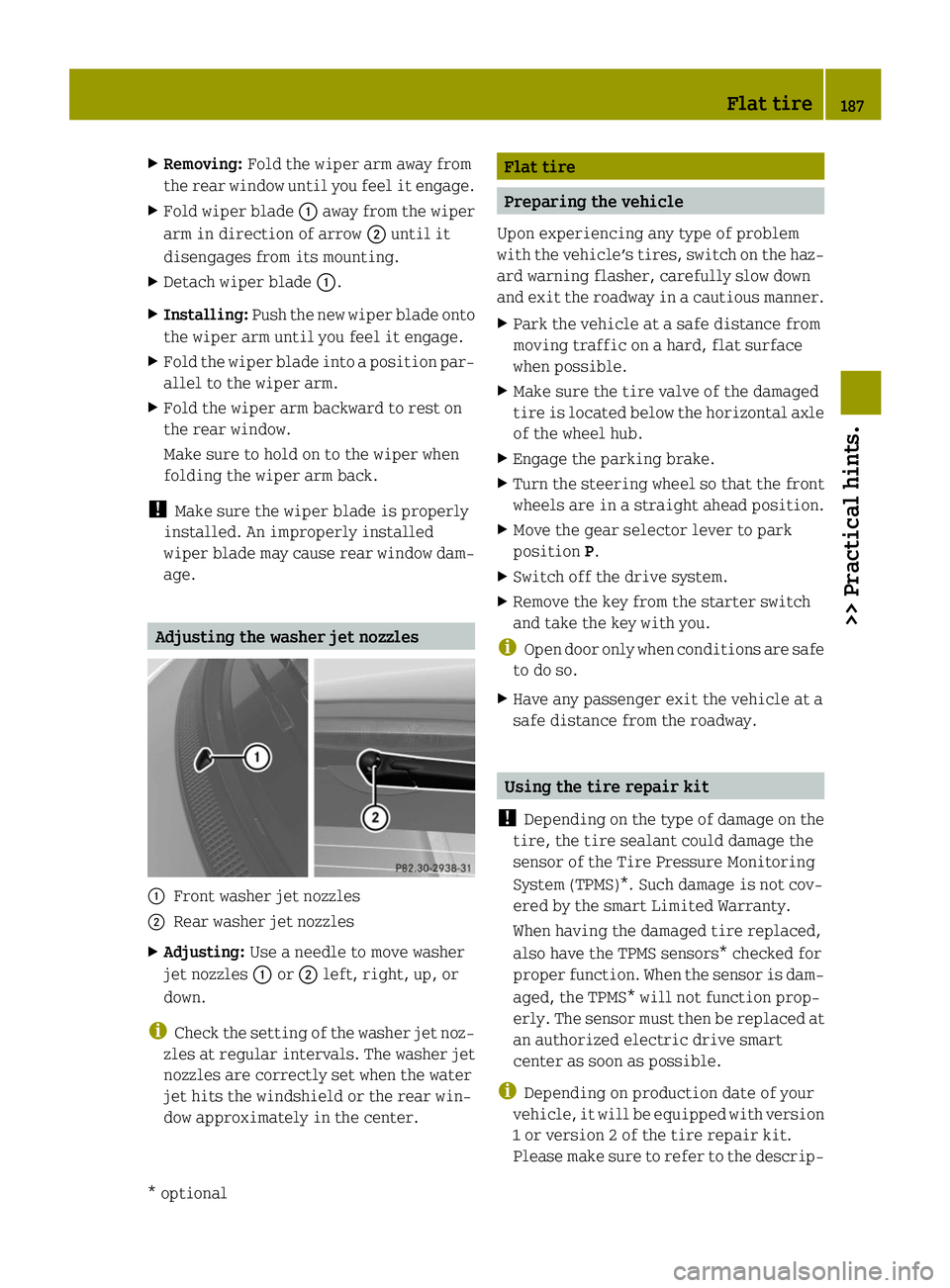

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual X
Removing: Fold the wiper arm away from
the rear window until you feel it engage.
X Fold wiper blade 0043away from the wiper
arm in direction of arrow 0044until it
disengages from its mounting.
X Det

Page 190 of 222

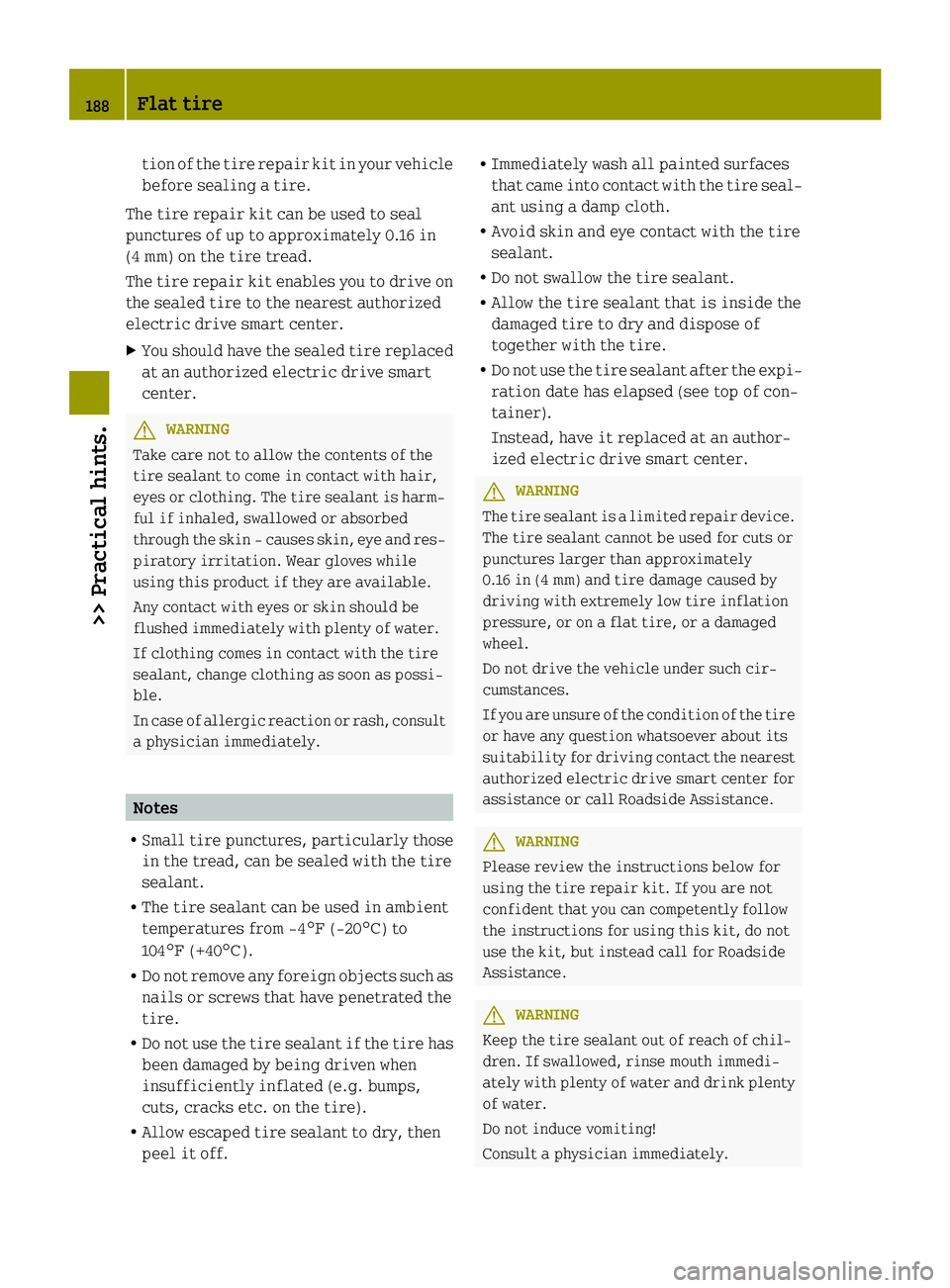

SMART FORTWO COUPE ELECTRIC DRIVE 2014  Owners Manual tion of the tire repair kit in your vehicle
before sealing a tire.
The tire repair kit can be used to seal
punctures of up to approximately 0.16 in
(4 mm) on the tire tread.
The tire repair kit enable
