GENERAL INFORMATION 0B -- 3
D AEW OO M Y_2000
Clutch - Manual Type
Application661LA662NA662LA2.0L
DOHC2.3L
DOCH3.2L
DOCH
Ty p eSingle Dry Diaphram
Outside Diameter (mm)225225240225225240
Inside Diameter (mm)150150150150150155
Thickness9.29.29.29.29.29.3
FluidCommon use :Brake Fluid
Manual Transmission
Application661LA662NA662LA2.0L
DOHC2.3L
DOCH3.2L
DOCH
MakerTREMECTREMECTREMECTREMECTREMECTREMEC
Type or ModelT5T5T5T5T5T5
Gear Ratio : 1st3.9693.9693.9693.9693.9693.969
2nd2.3412.3412.3412.3412.3412.341
3rd1.4571.4571.4571.4571.4571.457
4th1.0001.0001.0001.0001.0001.000
5th0.8510.8510.8510.8510.8510.851
Reverse3.7053.7053.7053.7053.7053.705
Final Drive Ratio4.554.554.554.894.553.73
Oil Capacity (L)3.43.43.43.43.43.4
Auto Transmission
Application661LA662LA2.3L DOCH3.2L DOCH
MakerBTRABTRABTRABTRA
Type or ModelM74 4WDM74 4WDM74 4WDM74 4WD
Gear Ratio : 1st2.7412.7412.7412.741
2nd1.5081.5081.5081.508
3rd1.0001.0001.0001.000
4th0.7080.7080.7080.708
Reverse2.4292.4292.4292.429
Final Drive Ratio5.3804.8905.8604.890
Oil Capacity (L)9999
Brake
ApplicationSpecifications
Booster Sizenon-- ABS8inch + 9inch
ABS 5.07inch + 8inch
ABS 5.38inch + 9inch
Master Cylinder Diameter(mm)φ25.4
Booster Ratio5.6 : 1
Front Brake : Disc Type
Rear Brake : Disc TypeVentilated
Solid

0B -- 10 GENERAL INFORMATION
D AEW OO M Y_2000
Chassis and Body
MAINTENANCE ITEMMAINTENANCE INTERVAL
Kilometers or time in months, whichever comes first
x1,000 km1153045607590105120
Months--1224364860728496
Exhaust pipes & mountings--IIIIIIII
Brake/Clutch fluid (3)(4)--IRIRIRIR
Parking brake/Brake pads F & R (5)--IIIIIIII
Brake line & connections (including booster)IIIIIIIII
Manual transmission oil (3)IIIRIIRII
Clutch & brake pedal free play--IIIIIIII
Front & Rear Differential Fluid (3)IIIRIIRII
Transfer case fluidIIIRIIRII
Automatic transmission fluid
(MB W4A040) (6)IIIRIIIII
Automatic transmission fluid (BTRA M74)IIIIIIIII
Chassis & underbody bolts & nuts tight/secureIIIIIIIII
Tire condition & inflation pressureIIIIIIIII
Wheel alignment (7)Inspect & adjust when abnormal condition is noted
Steering wheel & linkage--IIIIIIII
Power steering fluid & lines* (3)--IIIIIIII
Drive shaft boots--IIIIIIII
Seat belts, buckles & anchorsIIIIIIIII
Lubricate locks, hinges & bonnet latch--IIIIIIII
Chart Symbols:
I -- Inspect these items and their related parts. If necessary, correct, clean, replenish, adjust or replace.
R -- Replace or change.
(3) Refer to “Recommended fluids and lubricants”.
(4) Change the brake / clutch fluid every 15,000 km if the vehicle is mainly driven under severe conditions:
-- Driving in hilly or mountainous terrain, or
-- Towing a trailer frequently
(5) More frequent maintenance is required if under severe condition : short distance driving, extensive idling, fre-
quent low -- speed operation in stop-- and-- go traffic or driving in dusty condition.
(6) Change automatic transaxle fluid and filter every 75,000 km if the vehicle is mainly driven under severe condi-
tions.
-- In heavy city traffic where the outside temperature regularly reaches 32°C(90°F) or higher, or
-- In hilly or mountainous terrain, or
-- When doing frequent trailer towing, or
-- Uses such as found in taxi, police or delivery service.
(7) If necessary, rotate and balance wheels.

0B -- 12 GENERAL INFORMATION
D AEW OO M Y_2000
Chassis and Body
MAINTENANCE ITEMMAINTENANCE INTERVAL
Kilometers or time in months, whichever comes first
x1,000 km1102030405060708090100
Months--6121824303642485460
Exhaust pipes & mountings--IIIIIIIIII
Brake/clutch fluid (3) (4)IIIRIIRIIRI
Parking brake/Brake pads (F & R) (5)--IIIIIIIIII
Brake line & connections (including
booster)--IIIIIIIIII
Manual transmission fluid (3)--IIIIRIIIIR
Clutch & brake pedal free play--IIIIIIIIII
F & R Differential fluid (3)IIIIIRIIIIR
Transfer case fluid (3)--IIIIRIIIIR
Automatic transmission
fluid (BTRA M74) (6)--IIIIIIIIII
Chassis & underbody bolts & nuts
tight/secureIIIIIIIIIII
Tire condition & inflation pressureIIIIIIIIIII
Wheel alignment (7)Inspect & adjust when abnormal condition is noted
Steering wheel & linkage--IIIIIIIIII
Power steering fluid & lines* (3)--IIIIIIIIII
Drive shaft bootsIIIIIIIIIII
Seat belts, buckles & anchorsIIIIIIIIIII
Lubricate locks, hinges & bonnet latchIIIIIIIIIII
Chart Symbols:
I -- Inspect these items and their related parts. If necessary, correct, clean, replenish, adjust or replace.
R -- Replace or change.
(3) Refer to “Recommended fluids and lubricants”.
(4) Change the brake / clutch fluid more regularly if the vehicle is mainly driven under severe conditions :
-- Driving in hilly or mountainous terrain, or
-- Towing a trailer frequently
(5) More frequent maintenance is required if under severe condition : short distance driving, extensive idling, fre-
quent low
-- speed operation in stop-- and-- go traffic or driving in dusty condition.
(6) Change automatic transmission fluid every 70,000 km if the vehicle is mainly driven under severe conditions.
-- In heavy city traffic where the outside temperature regularly reaches 32°C(90°F) or higher, or
-- In hilly or mountainous terrain, or
-- When doing frequent trailer towing, or
-- Uses such as found in taxi, police or delivery service.
(7) If necessary, rotate and balance wheels.

GENERAL INFORMATION 0B -- 15
D AEW OO M Y_2000
RECOMMENDED FLUIDS AND LUBRICANTS
UsageCapacityFluid/Lubricant
Engine Oil
(Change with filter)3.2L DOHC8.2 LQuality class -- API ; SH grade or above
ACEA ; A2 or A3
(Changewithfilter)
2.3L DOHC7.5 L
ACEA;A2orA3
MB sheet ; 229.1
Viscosity -- MB sheet ; 224.1
662LA9.5 LQuality class -- API ; CG grade or above
ACEA ; B2 or B3
MBsheet;22812283661LA8.0 LMBsheet ; 228.1, 228.3,
228.5, 229.1
Viscosity -- MB sheet ; 224.1
Engine Coolant3.2L DOHC11. 3 LALUTEC P-- 78g
2.3L DOHC10.5 L
662LA10.5 -- 11.0 L
661LA9.5 -- 10.0 L
Brake / Clutch FluidApprox. 0.5L level must
be maintained between
MAX&MINlevelDOT -- 3 & SAE J 1703
Power Steering System1.0 LATF DEXRON--II
Parking Brake CableAs requiredGrease
Hood Latch AssemblyAs requiredGrease
Hood and Door Hinges
Fuel Door Hinge
Rear Compartment Lid HingesAs requiredSpray type grease
WeatherstripsAs requiredSilicone grease

1A1 -- 4 GENERAL ENGINE INFORMATION
D AEW OO M Y_2000
SIDE VIEW
23 Camshaft Adjuster
24 Cooling Fan and Viscous Clutch
25 Piston
26 Flywheel of Drive Plate27 Oil Pump Drive Chain
28 Oil Return Pipe
29 Timing Chain
30 Oil Pump

M162 ENGINE MECHANICAL 1B1 -- 5
D AEW OO M Y_2000

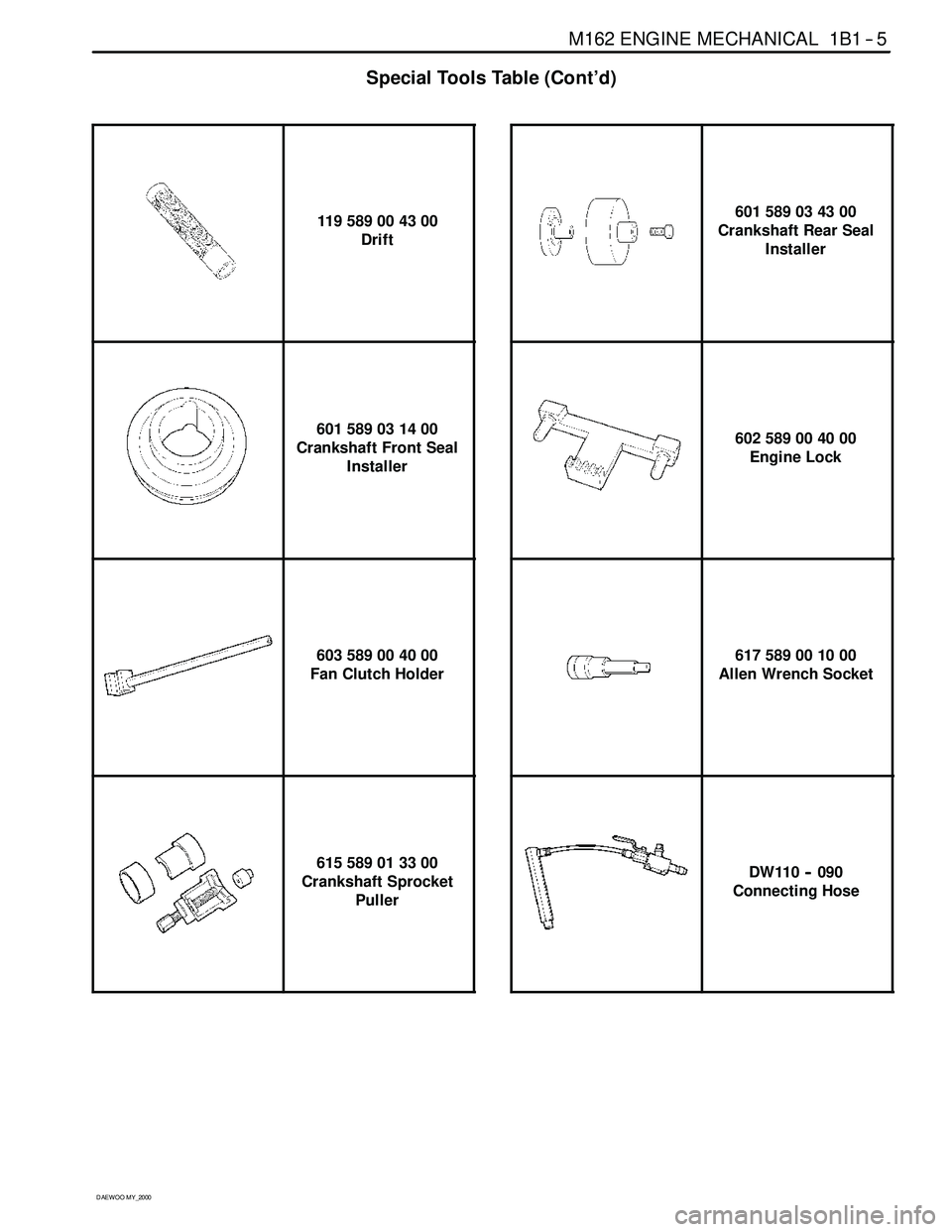

Special Tools Table (Cont’d)
119 589 00 43 00
Drift
601 589 03 14 00
Crankshaft Front Seal
Installer
603 589 00 40 00
Fan Clutch Holder
615 589 01 33 00
Crankshaft Sprocket
Puller
601 589 03 43 00
Crankshaft Rear Seal
Installer
602 589 00 40 00
Engine Lock
617 589 00 10 00
Allen Wrench Socket
DW110 -- 090
Connecting Hose

1B1 -- 32 M162 ENGINE MECHANICAL
D AEW OO M Y_2000
Removal & Installation Procedure
1. Put the alignment marks (arrows) on the timing chain
and camshaft sprocket.
2. Unscrew the A/C bracket bolts (1) and remove the
bracket.
Installation Notice
Tightening Torque
22.5 -- 27.5 NSm
(16.6 -- 20.3 lb-ft)
3. Remove the cooling fan and the viscous clutch. Un-
screw the three bolts from the cooling fan bracket and
remove the bracket (arrows).
Installation Notice
Tightening Torque
22.5 -- 27.5 NSm
(16.6 -- 20.3 lb-ft)
4. Remove the timing gear case cover after unscrewing
the bolts (3) and (4) from the timing gear case cover
and the bolt (9) from the oil pan.
Notice:Be careful not to damage the oil pan gasket.
Installation Notice
TighteningTorque
Bolt (3, 4): 22.5 -- 27.5 NSm
(16.6 -- 20.3 lb-ft)
TighteningTorqueBolt (9): 9 -- 11 NSm
(80 -- 97 lb-in)
DApply the sealant after cleaning the timing gear
case cover surface.
DBe careful not to stain the oil chamber of chain
tensioner with the sealant.
5. Installation should follow the removal procedure in
the reverse order.
6. Warm up the engine and check for oil leaks.

M162 ENGINE MECHANICAL 1B1 -- 35
D AEW OO M Y_2000
BELT PULLEY AND VIBRATION DAMPER
Preceding Work: Removal of cooling fan and viscous clutch
Removal of fan shroud
Removal of drive belt
1 Vibration Damper Center Bolt (M18 x 50)
1st step 200+20 NSm (148+15 lb-ft) ..........
2nd step 90°+10°
2 Vibration Damper Disk
3 Bolt (M6 x 20, 6 pieces)
7.7-- 9.5 NSm (68.1-- 84.1 lb-in) ...............4 Vibration Damper Assembly
5 Woodruff Key
6 Bolt (M6 x 12, 4 pieces)
9--11 NSm (80-- 97 lb-in) .....................
7 Cooling Fan Pulley

D AEW OO M Y_2000
SECTION 1D1
M162 ENGINE COOLING
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless other -
wise noted.
TABLE OF CONTENTS
Specifications 1D1 -- 2............................
General Specifications 1D1-- 2....................
Fastener Tightening Specifications 1D1 -- 2..........
Special Tools 1D1 -- 3.............................
Special Tools Table 1D1-- 3.......................
Diagnosis 1D1 -- 4.................................
System Leakage Test 1D1-- 4.....................
Maintenance and Repair 1D1 -- 5...................
On-- Vehicle Service 1D1-- 5.........................Coolant Drain and Fill Up 1D1 -- 5..................
Coolant Connection Fitting 1D1 -- 7.................
Wat er Pum p 1D1 -- 8.............................
Thermostat 1D1 -- 10.............................
Oil Cooler Pipe Line 1D1 -- 11.....................
Cooling Fan and Viscous Clutch 1D1 -- 12...........
Cooling Fan Shroud 1D1 -- 14.....................
Radiator 1D1-- 15................................

1D1 -- 2 M162 ENGINE COOLING
D AEW OO M Y_2000
SPECIFICATIONS
GENERAL SPECIFICATIONS
ApplicationDescription
Cooling TypeWater Cooling Forced Circulation
RadiatorCirculation TypeDouble Cross Flow
Radiation Capability70,000 kcal/h
Dimension(Width x Height x Thickeness)580 x 482 x 45 mm
Cooling Fanφ460, Six Blades
Anti-- Freeze AgentALUTEC -- P78
Mixing Ratio of Anti-- Freeze Agen with Water (Anti-- Freeze Agent : Water)50 : 50
Coolant Capacity11. 3 L
Reservoir Capacity3.4 L
Cap Operating Pressure (Reservoir Tank Pressure Cap)1.4 bar
FASTENER TIGHTENING SPECIFICATIONS
ApplicationNSmLb-FtLb-In
Coolant Drain Plug3022--
Engine Hanger Bracket and Coolant Outlet
Port Bolt22.5 -- 27.516.6 -- 20.3--
Thermostat Cover Bracket Bolts9--11--80 -- 97
Oil Cooler Pipe Line Bolts9--11--80 -- 97
Cooling Fan Bolts9--11--80 -- 97
Viscous Clutch Mounting Bolts40.5 -- 49.529.8 -- 36.5--
Automatic Transmission Fluid Cooler Pipe2015--
Cooling Fan Shroud Bolts3--7--27 -- 62
Automatic Transmission Radiator Tube
Assembly Mounting Bolt7--62
Radiator Bracket Mounting Bolts3--7--27 -- 62
