SSANGYONG KORANDO 2012 Service Manual

03-6
Check the installed components again and connect the negative battery cable. Start the engine and
check the operating status.
With Scan Tool, check if there are current faults and erase the history faults. 8.
9.

03-70000-00
2) Diagnostic Test for Engine Fuel System
(1) Overview
If a DTC is displayed on the diagnostic device, check the low pressure- and high pressure fuel systems
before removing the components.
To run the system properly, the electric system must be intact but for the DI engine, the fuel pressure
should be measured also when there is a malfunction even after the diagnostic test with a diagnostic
device.
(2) Hydraulic system

03-8

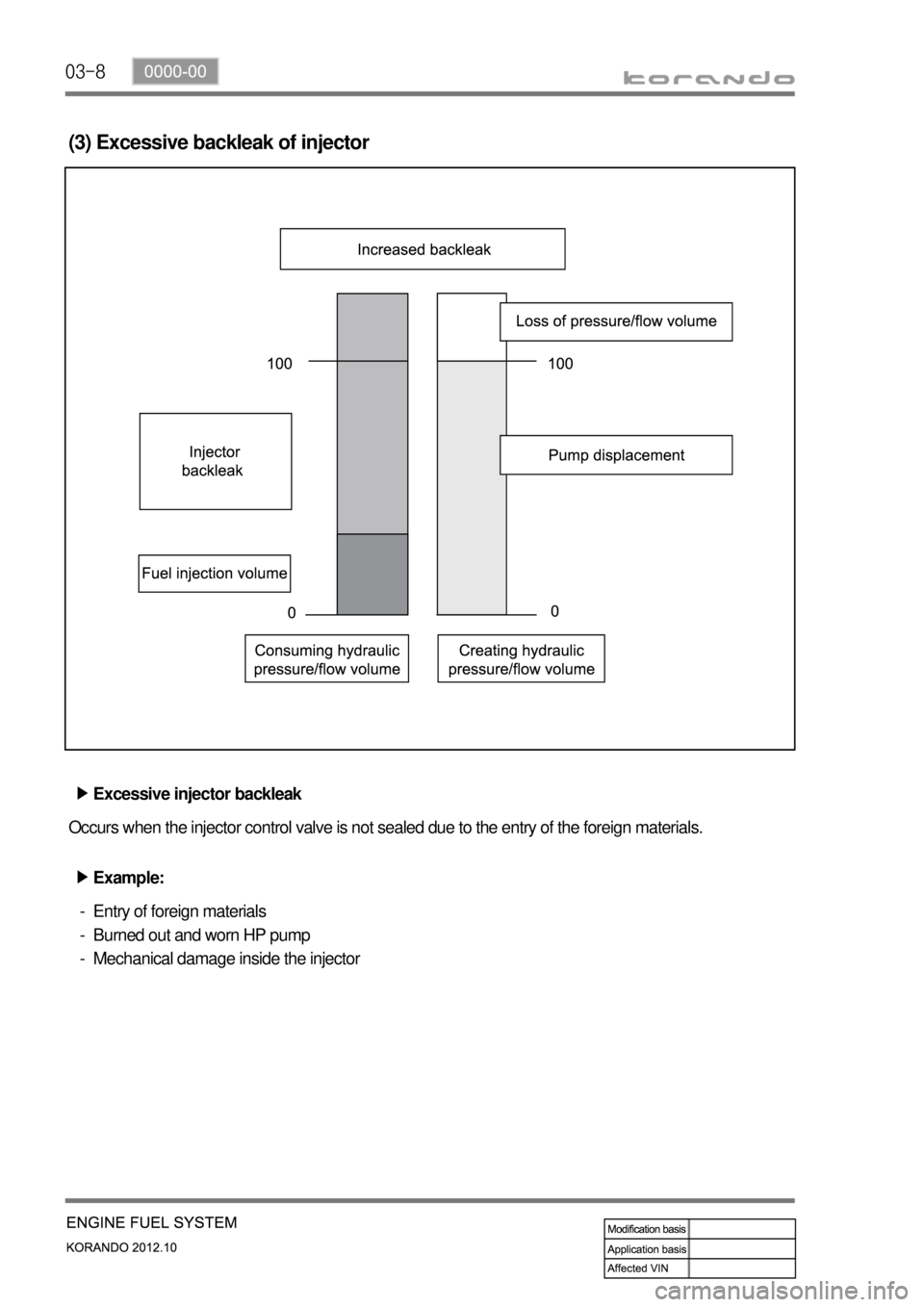

(3) Excessive backleak of injector
Excessive injector backleak ▶
Occurs when the injector control valve is not sealed due to the entry of the foreign materials.
Example: ▶
Entry of foreign materials
Burned out and worn HP pump
Mechanical damage inside the injector -
-
-

03-90000-00
(4) Loss of pump pressure/flow
Loss of HP pump pressure/flow ▶
Faulty fuel supply line, or damaged or worn pump causes the lack of flow pressure and flow volume
Example: ▶
Air in fuel supply line
Excessive load on fuel supply line (←400 mBar)
Burned out and mechanical worn pump
High temperature of fuel supply (> 85℃) -
-
-
-

03-10
3) Pressure Test for Fuel System in DI Engine
(1) Test device (Tool kit)
Tool kit for high pressure line
Tool kit for low pressure line
(2) Pre-inspection
Connections in fuel supply line
Fuel level in fuel tank
Air in fuel supply line (air bubbles in fuel supply line or fuel)
Fuel leaks from fuel supply line (low/high pressure line)
Used the specified
Fuel filter contamination -
-
-
-
-
-

03-110000-00
(3) DTC Check
If several DTCs are output simultaneously, check the electric wiring for open or short circuit.
Check the low pressure fuel system and fuel filter and confirm that there are no abnormalities. Carry
out the high pressure fuel system check.

03-12
(4) Fuel System Check Procedure

03-130000-00
(5) High Pressure System Pressure Test
Fuel rail pressure test ▶
Disconnect the fuel rail pressure sensor
connector and then IMV connector. 1.
Connect the pressure tester to the fuel rail
pressure sensor connector. 2.
Crank the engine 2 times for 5 seconds. 3.
Read the highest pressure value displayed
on the tester display.
If the highest pressure value is 1,050 bar or
less, refer to the section "Fuel System
Check Process". -
-

03-14
How To Use Pressure Tester ▶
Press the "TEST" button on the tester to
check if the message "TEST?" is displayed.
If the button is pressed again at 4 seconds
after starting engine cranking, the highest
pressure is displayed on the tester. 1.
2.
The fuel rail pressure value can be checked using a diagnostic device.

03-150000-00
(6) Low Pressure System Pressure Test
Inspection procedure ▶
All wirings/connectors and fuel lines should be
connected and the engine should work
properly.
Prepare a special tool for low pressure test
and clean it thoroughly to prevent foreign
materials from entering. 1.
2.
Disconnect the key connector for fuel filter connection, and connect both connectors to the fuel filter
and hose. 3.
Start the engine and check visually for clogged low pressure fuel system, excessive air or air entry.
If the fuel flow is not sufficient or air is in the fuel, repair the leak area. 4.
5.
