3. CAUTIONS FOR DI ENGINE
1) Cautions for DI Engine
This chapter describes the cautions for DI engine equipped vehicle. This includes the water separation
from engine, warning lights, symptoms when engine malfunctioning, causes and actions.
DI Engine 1.
Comparatively conventional diesel engines, DI engine controls the fuel injection and timing electrically,
delivers high power and reduces less emission.
System Safety Mode 2.
When a severe failure has been occurred in a vehicle, the system safety mode is activated to protect the
system. It reduces the driving force, restricts the engine speed (rpm) and stops engine operation. Refer
to "Diagnosis" section in this manual.
Engine CHECK Warning Lamp 3.
The Engine CHECK warning lamp on the instrument cluster comes on when the fuel or
major electronic systems of the engine are not working properly. As a result, the
<008c0095008e00900095008c02c5009a004700970096009e008c009900470096009c009b0097009c009b00470094008800a00047008b008c008a0099008c0088009a008c0047009600990047009b008f008c0047008c0095008e00900095008c0047009400
8800a00047009a009b0088009300930055>
Water Separator Warning Lamp 4.
When the water level inside water separator in fuel filter exceeds a certain level (approx.
45 cc), this warning light comes on and buzzer sounds.
Also, the driving force of the vehicle decreases (torque reduction). If these conditions
occur, immediately drain the water from fuel filter.

12-138530-00
Do not move the shift lever to Neutral position while driving with the cruise control turned on.
Otherwise, it may result in system malfunction or accidents.
Always be prepared to use the brake or accelerator pedal for safe driving while the cruise control
system is running.
The actual speed can be different from the set speed momentarily when driving on a uphill or
downhill. So, it is recommended to disable the cruise control function on a uphill or downhill. hen
driving on a steep hill use the engine brake and foot brake properly to protect the vehicle system
and for a safe driving.
Ensure that the safe distance is maintained and use the brake pedal if needed. 1.
2.
3.
4.
(1) Abnormal Cancellation of the Cruise Control
Sharp acceleration or deceleration
- 50 km/h faster than set speed
- 25 km/h faster than set speed for one minute
- 70 km/h slower than set speed
- 65 km/h slower than set speed for 3 minutes
When the cruise control lever is faulty.
When the brake switch and the brake light switch input signal are implausible. 1.
2.
3.
When the cruise control function is cancelled abnormally or intermittent problems occur, stop the vehicle
and turn off the ignition switch and remove the key to reset the system. After a while, turn on the ignition
switch again to operate the cruise control system.

12-138530-00
Do not move the shift lever to Neutral position while driving with the cruise control turned on.
Otherwise, it may result in system malfunction or accidents.
Always be prepared to use the brake or accelerator pedal for safe driving while the cruise control
system is running.
The actual speed can be different from the set speed momentarily when driving on a uphill or
downhill. So, it is recommended to disable the cruise control function on a uphill or downhill. hen
driving on a steep hill use the engine brake and foot brake properly to protect the vehicle system
and for a safe driving.
Ensure that the safe distance is maintained and use the brake pedal if needed. 1.
2.
3.
4.
(1) Abnormal Cancellation of the Cruise Control
Sharp acceleration or deceleration
- 50 km/h faster than set speed
- 25 km/h faster than set speed for one minute
- 70 km/h slower than set speed
- 65 km/h slower than set speed for 3 minutes
When the cruise control lever is faulty.
When the brake switch and the brake light switch input signal are implausible. 1.
2.
3.
When the cruise control function is cancelled abnormally or intermittent problems occur, stop the vehicle
and turn off the ignition switch and remove the key to reset the system. After a while, turn on the ignition
switch again to operate the cruise control system.

01-30000-00
Front turn signal lamp
Side repeater lamp
Puddle lamp

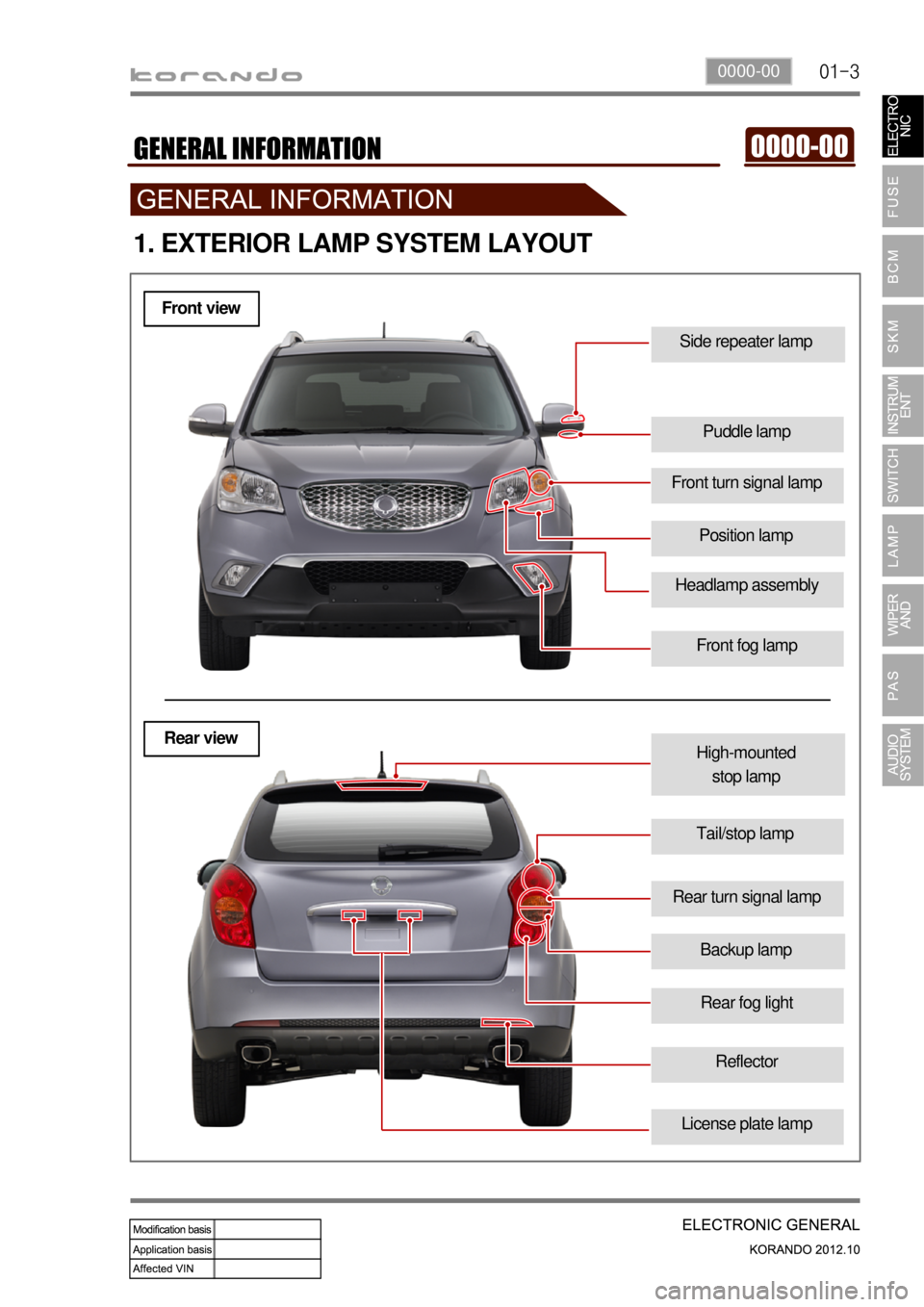

1. EXTERIOR LAMP SYSTEM LAYOUT
Front fog lamp
Position lamp
Headlamp assembly
Rear turn signal lamp
High-mounted
stop lamp
Tail/stop lamp
Reflector
Backup lamp
Rear fog light
License plate lamp
Front view
Rear view

03-56
16) Time Lag Power Window Control
When turning the ignition switch to ON position, the power window relay is turned ON.
The power window relay keeps ON for 30 seconds even when stopping the engine.
However, the power window relay is turned OFF when opening a front door.
When locking the door (activation of theft deterrent mode), the power window relay is
immediately turned OFF. 1.
2.
3.
17) Sleep Mode
If the driver door/passenger door/rear doors/tailgate lock switch is not changed for 6 seconds with all
driver door/passenger door/rear doors/tailgate closed, key removed, IGN1 and IGN2 OFF, the
vehicle enters into sleep mode for system power down.
If any of conditions in Step (1) is not satisfied, the System Wake-up mode is activated.
When output such as room lamp, key hole illumination, tail lamps and power window is activating or
all the doors keep closed for 30 seconds after door is unlocked for conditions in Step (1), the system
is in normal mode. Then, if there is no change within 6 seconds with all output conditions and ready
conditions released and all the doors closed, the sleep mode is activated.
When turning on the overhead room lamp switch, the overhead room lamps come on for 10 minutes
and go off, and the sleep mode is activated after 6 seconds.
When the coming home light OFF conditions are satisfied, the sleep mode is activated.
In this condition, when opening a door or inserting the ignition key into key hole, the sleep mode is
deactivated. 1.
2.
3.
4.
5.
6.

06-18
Rear door switch (LH) Rear door switch (RH)
3) Rear Door Switches
Warmer switch
Power window switch
The window is up and down while this switch is pressed. Press the switch to heat the seat and press again to stop the seat heating. During
heating, the indicator light on the switch comes on.
