FATC-HAVC 7D-9
Diagnosis Item and Fault Code Self-diagnosis Display
1. Data will be displayed at the set temperature display as 2-digit number during self-diagnosis function and other settemperature displays will be OFF.
2. Display of self-diagnosis fault code will be blinking fault code number in the intervals of 0.5 sec.
3. Following fault code number will be displayed at the set temperature display during self-diagnosis function.
4. If no defective, normal display number (00) will blink. Display during continuous action
A. Normal or 1 fault (00 or 11) 15: coolant Sensor Open
16: coolant Sensor Short
17: temperature Actuator Open/Short
18: temperature Actuator Drive Fault
00: normal
11: incar Sensor Open
12: incar Sensor Short
13: ambient Sensor Open
14: ambient Sensor Short
B. Multiple faults (11,13,15.........) Display during step action
A. Normal or 1 fault : the same as continuous action
B. Multiple faults

0.1 sec. 0.1 sec.
0.5 sec.
ON
0.5 sec.OFF
ON
OFF
Display
Buzzer
0.5 sec.Fault 13
0.5 sec.OFF
Fault 15
OFF
Display
Buzzer
Fault 13 Fault 17
Display Buzzer AUTO switch pressedFault
17 Fault 17
Airconditioner switchpressedFault11 Fault 11


0.1 sec. 0.1 sec.

SUPPLEMENTAL RESTRAINT SYSTEM(SRS) 8B-3
CAUTIONS
Failure to follow the correct service procedure can cause air bag damage or personal injury due to unexpected air
bag deployment. Before service (removal and installation of part, check for replacement), please be weal noticed offollowing items for your correct service.
1. For service, turn the ignition switch to ‘LOCK’ position and wait for 30 seconds after disconnecting the negative battery cable.
2. If the vehicle collapsed, remove the air bag ECU first to reserve the crash records.
3, Never use other vehicles’ air bag components and replace with specified new part.
4. Never disassemble or repair the air bag module, air bag unit and wiring harness to re-use.
5. Replace the air bag module and air bag unit with new if it dropped, cracked or damaged.
6. Only qualified technicians in service shop should check or repair the air bag,
7. Before service, should be well noticed of warning labels on the vehicle.
A. Sun Visor Side
[Warning] Pull down the sun visor and see SRS air bag warning lamp on the head lining. B. Head Lining
[Warning]
1 . This vehicle is equipped with air bag. Air bag is supplemental device for the seatbelt. Fasten your seatbelt.
2. This air bag should be replaced by authorized supplier within replacement intervals.
3. When the ignition key is turned to ON position, SRS warning lamp will turn on for 6 sec. and go off. In this case, the system is normal. For the following cases, see service manual. - SRS warning lamp does not turn on. - SRS warning lamp does not go off.- SRS warning lamp continues to blink.
C. Steering Wheel Body Inner
[Warning] Before removing the steering wheel, read service manual first. Set the front wheels straight forward
and align the center position marks of SRS clock spring. Improper removal or installation of the steering wheel can damage the SRS components. D. Engine Compartment
[Warning] This vehicle is equipped with air bag. Before checking the engine compartment, read servicemanual first. Faultuy check and service can cause SRS air bag deployment and system defects that can be led to severe damage. E. Battery Cable
[Warning]
Before disconnecting the battery power, read service manual first.

SUPPLEMENTAL RESTRAINT SYSTEM(SRS) 8B-9
Diagnosis Air bag control unit diagnoses each function in the intervals of 250ms - 20 sec. during start-up or driving to prevent unwanted air bag deployment. If there is defect, it turns on or blinks warning lamp to indicate defects in the air bag
system to the driver. And fatal defect is found, air bag control unit enters overall or partial shutdown status and fault code will be stored. Air bag control unit diagnoses following items.- Ignition TR - Acceleration
- Microprocessor, RAM and ROM
- Watchdog - Shutdown Switch
Diagnosis Condition Diagnosis ItemsStart-up (ignition ON)
During Driving
Lamp Blinking Mode There are 2 kinds of blinking mode
1. When system internal fault is found, the lamp will stay on.
2. The lamp will blink according to external fault and there are 2 blinking codes.
Blinking code 1 (Squib resistance fault in the driver’ s air bag squib line)
Blinking code 2 (Squib short on plus and minus in the air bag squib line)Lamp blinking code is as follows. The last blinking will be within 0.5 sec. and 1 cycle of blinking will be repeated every 5 seconds.
Blinking Code 1
(Sec.) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5
Blinking Code 3
(Sec.) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 - Squib resistance - Squib line short to battery and ground - Energy reserve system - Lamp output- Battery voltage- ASIC communication- Arming sensor - ASIC overheating - RAM and W/D- EEPROM

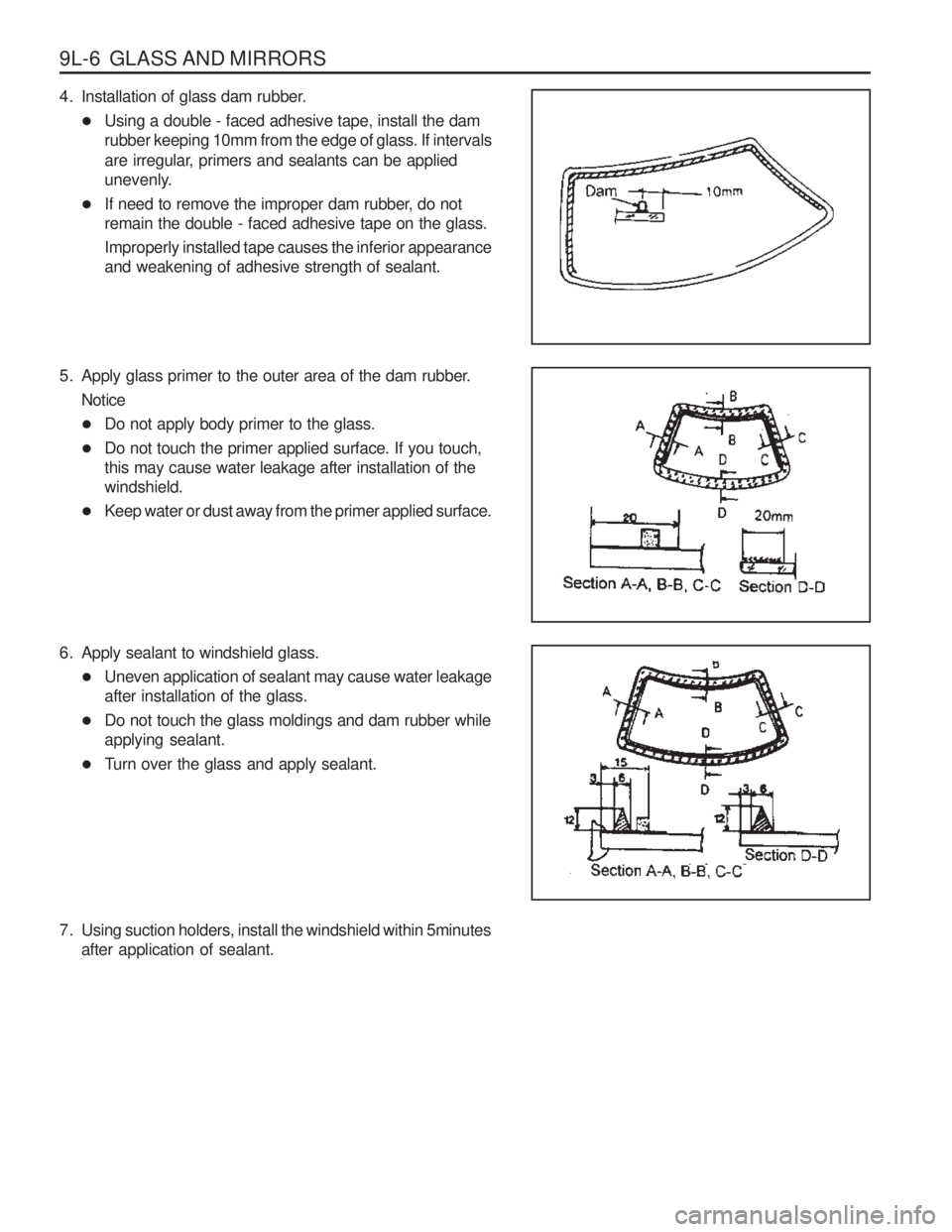

9L-6 GLASS AND MIRRORS
4. Installation of glass dam rubber. Using a double - faced adhesive tape, install the dam rubber keeping 10mm from the edge of glass. If intervals
are irregular, primers and sealants can be applied
unevenly.
If need to remove the improper dam rubber, do notremain the double - faced adhesive tape on the glass. Improperly installed tape causes the inferior appearance and weakening of adhesive strength of sealant.
5. Apply glass primer to the outer area of the dam rubber.
Notice
Do not apply body primer to the glass.
Do not touch the primer applied surface. If you touch, this may cause water leakage after installation of thewindshield.
Keep water or dust away from the primer applied surface.
6. Apply sealant to windshield glass. Uneven application of sealant may cause water leakageafter installation of the glass.
Do not touch the glass moldings and dam rubber whileapplying sealant.
Turn over the glass and apply sealant.
7. Using suction holders, install the windshield within 5minutes after application of sealant.
