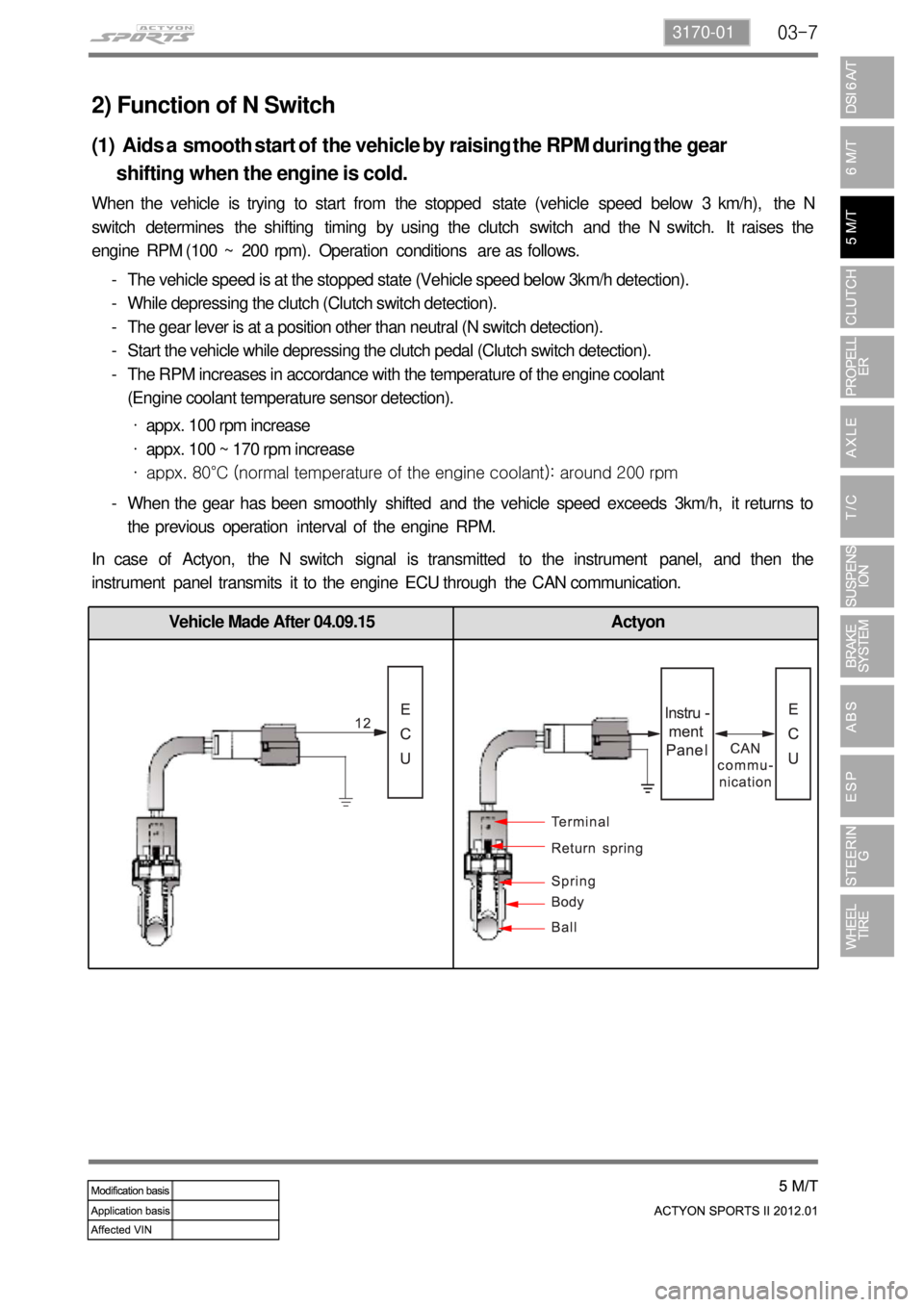

2) Function of N Switch
(1) Aids a smooth start of the vehicle by raising the RPM during the gear
shifting when the engine is cold.
When the vehicle is trying to start from the stopped state (vehicle speed below 3 km/h), the N
switch determines the shifting timing by using the clutch switch and the N switch. It raises the
engine RPM (100 ~ 200 rpm). Operation conditions are as follows.
The vehicle speed is at the stopped state (Vehicle speed below 3km/h detection).
While depressing the clutch (Clutch switch detection).
The gear lever is at a position other than neutral (N switch detection).
Start the vehicle while depressing the clutch pedal (Clutch switch detection).
The RPM increases in accordance with the temperature of the engine coolant
(Engine coolant temperature sensor detection). -
-
-
-
-
appx. 100 rpm increase
appx. 100 ~ 170 rpm increase
<008800970097009f00550047005f005700b6006a0047004f0095009600990094008800930047009b008c00940097008c00990088009b009c0099008c00470096008d0047009b008f008c0047008c0095008e00900095008c0047008a009600960093008800
95009b005000610047008800990096009c0095008b00470059>00 rpm ·
·
·
When the gear has been smoothly shifted and the vehicle speed exceeds 3km/h, it returns to
the previous operation interval of the engine RPM. -
In case of Actyon, the N switch signal is transmitted to the instrument panel, and then the
instrument panel transmits it to the engine ECU through the CAN communication.
Vehicle Made After 04.09.15 Actyon

09-34850-01
1. SPECIFICATION
Unit Description Specification
Front brake Type Ventilated disc
Outer diameter of discØ294 mm
Inner diameter of caliper cylinderØ43.0 x 2 mm
Thickness of disc 28 mm (wear limit: 25.4 mm)
Area of brake pad Above 60 cm2
Pad wear indicator Mechanical type
Rear brake Type Solid disc
Outer diameter of discØ299 m
Thickness of disc 10.4 mm (wear limit: 8.5 mm)
Area of brake pad Above 28.8 cm2
Pad wear indicator Mechanical type
Brake booster Type Vacuum assist type
Size8” + 9” (Tandem)
Master cylinder Type Tandem type(integrated level sensor)
Inner diameter of cylinderØ26.99 mm
Brake pedal Maximum operating stroke 150 mm
Pedal ratio 4 : 1
Free play 3 to 10 mm
Parking brake Type Mechanically expanded rear lining
Operating type Hand operated type
Inner diameter of drumØ190 mm
Brake oil Specification DOT 4
Capacity 0.7 to 0.8 liters
Service Interval: Change the brake oil at every 2 years
DOT?
It is the quality grade of brake fluid established by US Department of Transportation.

09-54850-01
3) Parts Arrangement
Part nameVehicle with CBSVehicle with ABS/EBDVehicle with ESP
HECU
Not appliedAppliedApplied Front wheel speed sensor
Rear wheel speed sensor
ABS warning lamp
EBD indicator
Longitudinal G sensor 2WD: N/A, 4WD: Applied Not applied
Sensor cluster
(Yaw rate sensor,
lateral/longitudinal G sensor)
Not applied Applied
ESP indicator
ESP OFF switch and warning
lamp
Steering wheel angle sensor
4) Components
ABS ESP+ARP
2WD 4WD 2WD 4WD
Whhel speed sensor 4 4 4 4
Sensor cluster N/A N/A Applied Applied
G-sensor N/A Applied N/A N/A
2H G-sensor - Operating - -
4H G-sensor - Operating - -
4L G-sensor - Operating - -
2H sensor cluster - - Operating Operating
4H sensor cluster - - Operating Operating
4L sensor cluster - - Operating Operating

09-28
Front Brake AssemblyFront Wheel Speed Sensor (4WD)
HECU
2. SYSTEM LAYOUT
Master Cylinder and Booster
Brake Pedal

09-294850-01
Rear Wheel Speed Sensor (4WD)
Rear Brake Assembly
ABS/EBD Indicators
Parking Brake Lever
Parking Brake

10-34892-01
1. SPECIFICATION
Unit DescriptionSpecification
Remark
ABS ESP
HECU Clock frequency 32MHz 50MHz
Memory 128KB 256KB
S-sensor Operating voltage 4.75~5.25V
None (functions
in sensor cluster)Installed in IP
panel behind
audio (only for
4WD) Operating temperature-30 ~ 85℃
Operating range -1.5 ~ 1.5g
Output voltage 0.5 ~ 4.5V
Wheel
speed
sensorSupplying voltage 4.5 ~ 16V←
Output current (approx. 2.7
km/h of vehicle speed)7mA(Lo) ~ 14mA
+20%←
Operating temperature-40 ~ 150℃ ←
Operating frequency 1~2500Hz←

10-54892-01
2) ABS System
Sensor - front wheel speed
Sensor - rear wheel speed
Screw (7.8~11.8 Nm)
Clip - cable holder
Clip - sensor cable mounting, rear
Plug - blind
G-sensor
Nut (9.8~10.8 Nm) 1.
2.
3.
4.
5.
6.
9.
11.

10-8
Rear wheel speed sensor (4WD)
Located at both ends of rear axle.
Rear discRear caliper assembly (2WD/4WD)
Located on the knuckle.
ABS warning lampG-sensor
Located on the floor under center
fascia.
2. COMPONENT
EBD warning lamp
(two indicators come on)

10-94892-01
Front wheel speed sensor (4WD)
Located on the hub assembly.
Front discFront caliper assembly (2WD/4WD)
Located on the knuckle.
ABS hydraulic device and control unit
Located near the brake booster in engine compartment.

10-10
3. ABS CONTROL LOGIC
The principal ABS control logic is the determination of the reference speed by choosing one
wheel meeting a certain condition, while sensing the speed information from 4 wheel speed
sensors when the vehicle is being driven.
For example, when the comparison of the reference speed with front right wheel speed shows a
slip, the control signal is determined according to whether it's deceleration or acceleration. If the
control conditions are met, the brake for the front right wheel will be got under control.
