01-8
Front View ▶
NO. FUNCTION NO. FUNCTION
1 HFM Sensor 12 Intake Manifold
2 Intake Air Duct 13 Cylinder Head
3 Cylinder Head Cover 14 Exhaust Manifold
4 Ignition Coi 15 Dipstick Guide Tube and Gauge
5 Spark Plug Connector 16 Connecting Rod
6 Fuel Distributor 17 Crankshaft
7 Injector 18 Engine Mounting Bracket
8 Exhaust Camshaft 19 Starter
9 Intake Camshaft 20 Crankcase
10 Valve Tappet 21 Oil Pump Sprocket
11 Intake Valve 22 Oil Pan
NO. FUNCTION NO. FUNCTION
23 Camshaft Adjuster 29 Oil Pump Drive Chain
24 Oil Filler Cap 30 Oil Strainer
25 Engine Hanger Bracket 31 Oil Pump
26 Cooling Fan and Viscous Clutch 32 Ring Gear and Flywheel of Drive Plate
27 Oil Filter 33 Piston
28 Timing Chain
Side View ▶

04-8
The cooling fans are mounted behind the radiator in the engine compartment. The electric cooling
fans increase the flow of air across the radiator fins and across the condenser on air conditioned
(A/C)-equipped vehicles.
This helps to speed cooling when the vehicle is at idle or moving at low speeds.
All models have two fans. The main fan is 320 mm (12. 6 inches) in diameter with seven blades to
aid the airflow through the radiator and the condenser. An electric motor attached to the radiator
support drives the fan.
The auxiliary fan is 320 mm (12.6 inches) in diameter.
A/C Off or Non-AC Model ▶
The cooling fans are actuated by the engine control module (ECM) using a low-speed
cooling fan relay, a high-speed cooling fan relay and a cooling fan motor relay.
The ECM will turn the cooling fans on at low speed when the coolant temperature reaches
95°C(203°F) and at high speed when the coolant temperature reaches 105°C(221°F).
The ECM will change the cooling fans from high peed to low speed at 100°C(212°F) and
will turn the cooling fans off at 90°C (194°F). -
-
-
A/C On ▶
The ECM will turn the cooling fans on at low speed when the A/C system is on. The ECM
will change to high speed when the high side A/C pressure reaches 1860 kPa (269.8 psi).
The cooling fans will return to low speed when the high side A/C pressure reaches 1378
kPa (199.8 psi). -
-
7) Engine Coolant Temperature Sensor
The Engine Coolant Temperature (ECT) sensor uses a temperature to control the signal voltage to
the Engine Control Module (ECM).
8) Coolant Temperature Gauge
The coolant temperature gauge controls the instrument panel temperature indicator. The coolant
temperature gauge is located with ECT sensor.

04-112112-01
5) Shutting-off Condition of the A/C Compressor
Coolant temperature ▶
When coolant temperature is below 20°C or over 115°C, engine speed is below 650 rpm or
over 4500 rpm for 4 seconds after engine starting, abrupt acceleration and A/C refrigerant
pressure sensor detecting the followings
A/C compressor is turned off when the refrigerant pressure is below 2.0 kg/cm2 and then
is turned on when the refrigerant pressure is over 2.4 kg/cm2.
A/C compressor is turned off when the refrigerant pressure is over 30 kg/cm2 and then is
turned on when the refrigerant pressure is below 21.4 kg/cm2. -
-
-

02-4
Input Signals ▶
NO. Input Signal Name Logic Status
1 IGN1 ON = BAT
(IGN ON or START)
2 IGN2 ON = BAT (IGN ON)
3 ALT_D ON = BAT (engine started)
4 Key reminder switch IN = BAT (key in)
5 Driver's door switch OPEN = GND, CLOSE = OPEN
6 Passenger's door switch OPEN = GND, CLOSE = OPEN
7 Rear door switch - OPEN (one of rear doors) = GND
- CLOSE (all rear doors) = OPEN
8 Hood switch OPEN = GND, CLOSE = OPEN
9 Driver's door lock/unlock switch LOCK = OPEN, UNLOCK = GND
10 Passenger's door lock/unlock switch LOCK = OPEN, UNLOCK = GND
11 Rear door lock/unlock switch - UNLOCK (one of rear doors)
= GND
- LOCK (all rear doors) = OPEN
12 Tailgate lock/unlock switch LOCK = OPEN, UNLOCK = GND
13 Rear defogger switch ON = GND, OFF = OPEN
14 Seat belt switch Unfastened = GND, Fastened = OPEN
15 Sunroof open switch ON = GND, OFF = OPEN
16 Parking brake switch ON = GND, OFF = OPEN
17 Air bag collision sensor ON = 200 ms output (LOW), OFF = OPEN
18 Wiper motor (parking) switch STOP = BAT VOLTAGE, ROTATING = GND
19 Washer switch ON = BAT, OFF = OPEN
20 INT-AUTO switch ON = BAT, OFF = OPEN
21 Auto washer switch ON = BAT, OFF = OPEN
22 Intermittent resistance 0W ~ 51KW (for intermittent wiper)
23 Speed sensor ON = GND (PWM), OFF = OPEN
24 Mirror lock/unlock switch ON = GND, OFF = OPEN
25 Front defogger switch ON = GND, OFF = OPEN
26 Auto hazard switch ON = GND, OFF = OPEN

02-58710-01
NO. Input Signal Name Logic Status
27 Central door lock switch ON = GND, OFF = OPEN
28 Multifunction auto light switch ON = GND, OFF = OPEN
29 Turn signal lamp switch ON = BAT/GND, OFF = OPEN
(approx. 5.1 V ~ 9.2 V)
30 Rain sensor ON = GND (DATA), OFF = BAT
31 Telematics ON = GND (DATA), OFF = BAT
32 Diagnosis ON = GND (DATA), OFF = BAT (KWP2000)

02-118710-01

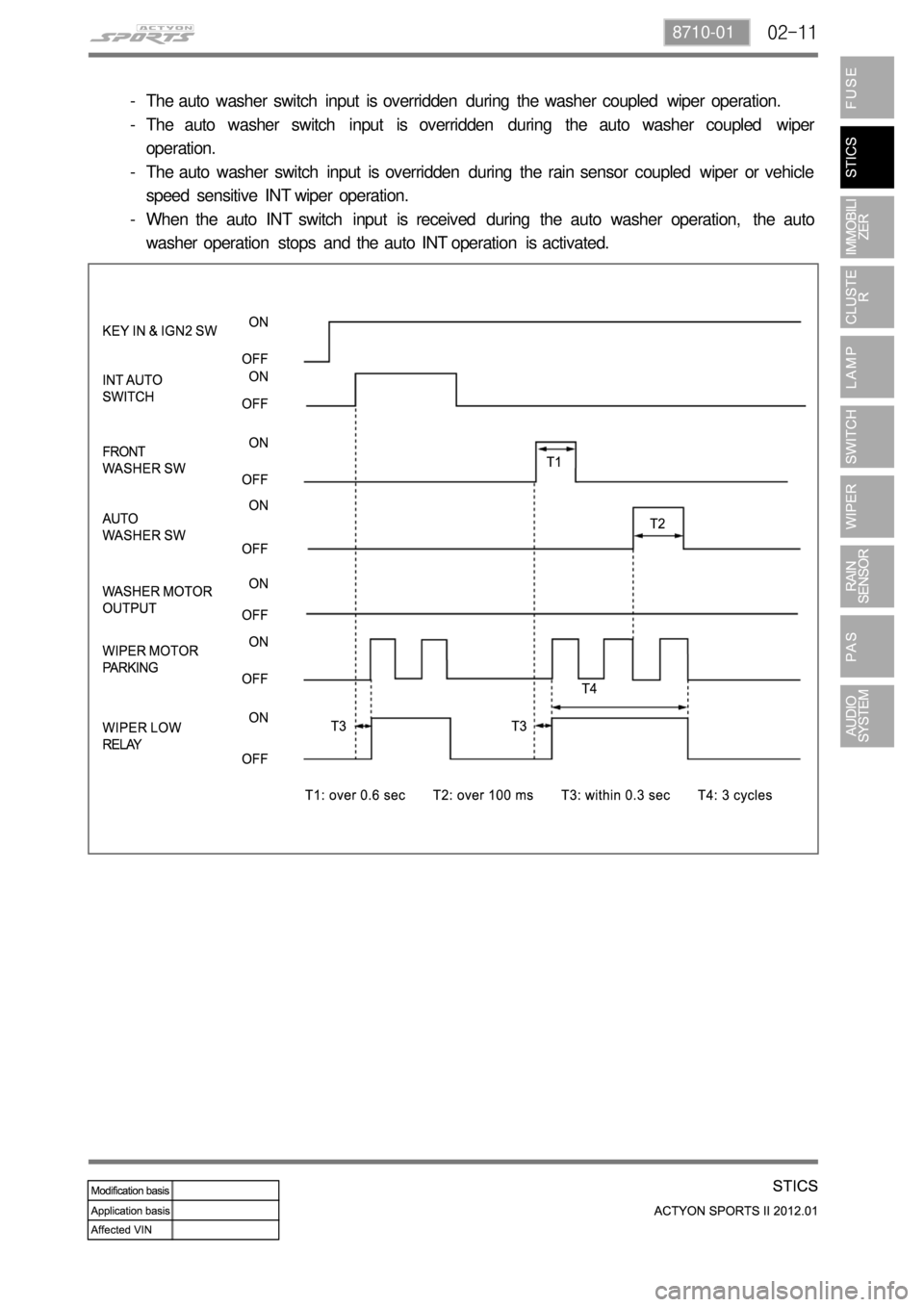

The auto washer switch input is overridden during the washer coupled wiper operation.
The auto washer switch input is overridden during the auto washer coupled wiper
operation.
The auto washer switch input is overridden during the rain sensor coupled wiper or vehicle
speed sensitive INT wiper operation.
When the auto INT switch input is received during the auto washer operation, the auto
washer operation stops and the auto INT operation is activated. -
-
-
-

02-12
▶Rain Sensor Coupled Wiper and Auto Light Control
If equipped with RKSTICS rain sensor, it has following operation system. -
▶System layout

02-138710-01
Rain sensing unit
(AUTO light integrated type)
▶INT Switch Auto Position Reminder (Power-Up Reminder Wiper)
When turning off and on the auto INT switch, the system drives the wiper motor through
LOW relay regardless of communication with rain sensor.
When turning the INT-AUTO switch from the "OFF" to "ON" position with the ignition switch
in the "ON" mode, the LOW relay operates to drive the wiper motor for 1 cycle, regardless
of the rain sensor communication.
After that, when turning the INT-AUTO switch from the "OFF" to "ON" position, the LO
W
relay operates to drive the wiper motor for 1 cycle only if data from the rain sensor
indicates rain drops. -
-
Multifunction wiper switch:
AUTO and sensitivity control
A sensor that emits infrared rays through LED
and then detects the amount of rain drops by
receiving reflected rays against sensing section
(rain sensor mounting section on the
windshield) with photodiode (auto light sensor
integrated type)AUTO: Wiper operates automatically by rain
sensor
FAST↔SLOW: Auto delay/Auto speed control. A
position that can control sensitivity against rains
on the windshield and transmits wiping demand
signal accordingly

02-14
▶Washer Coupled Wiper in Rain Sensing Mode
The washer coupled wiper is operated when receiving the washer switch input with the
ignition switch and the INT-AUTO switch "ON" in the rain sensing mode. At this moment,
the communication with the rain sensor is overridden. However, a washer input is overridden
if there is an output for continuous operation.
The operation data is sent to the rain sensor even during the washer coupled wiper's
operation. -
-

02-158710-01
▶Sensitivity Control
The wiper LOW relay is turned on and the wiper motor runs one cycle when the volume
sensitivity is increased (ex: sensitivity 0 ⇒ 1) while the ignition switch and the INT switch is
in the "ON" position, and the wiper motor is in "Parked" position). However, the wiper motor
can be operated only when the rain sensor detects the "Rain Detected" signal.
If the volume sensitivity is changed more than 2 stages within 2 seconds, the wiper motor
runs only one cycle. -
※
