▶Defective Rain Sensor
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 2 from 3 during receiving the malfunction signal from the rain
sensor, while the ignition key is in "ON" position and the wiper switch is in "ON" position. -
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 3 from 4 during receiving the malfunction signal from the rain
sensor, while the ignition key is in "ON" position and the wiper switch is in "ON" position. -

02-18
Check whether the multifunction wiper switch is in the "AUTO" position.
Check the power to the sensor. Check the conditions of the pin 3 (Ground) and the pin
4 (IGN).
Check the wiper relay for defective. 1)
2)
3) Symptom 2. It rains but the system does not work in "AUTO" position. TROUBLE SHOOTING ▶
The wiper does not operate one cycle when turning the multifunctio
n
wiper switch to the "AUTO" from the "OFF" position or starting the engine
while the wiper switch is in the "AUTO" position.
When starting the engine with the multifunction wiper switch in the "AUTO" position,
the wiper operates one cycle to remind a driver that the wiper switch is in the "AUTO"
position.
When the multifunction wiper switch is turned to "AUTO" from "OFF", the wiper
operates one cycle.
It always operates one cycle for the initial operation, however, the wiper does not
operate afterwards to prevent the wiper blade wear if not raining when turning the
wiper switch to "AUTO" from "OFF". However, the wiper operates up to 5 minutes
after rain stops. If this function does not occur, check No. 8 pin. If the pin is normal,
check the wiper relay related terminals. 1)
2)
Symptom 3. The wiper operates 3 or 4 times at high speed abruptly.
Check whether the variable resistance knob on the multifunction wiper switch is set in
"FAST". The "FAST" is the highest stage of sensitivity and very sensitive to small amount
of rain drops. Therefore, change the knob to low sensitivity.
Symptom 4. The wiper operates continuoulsy even on the dry windshield glass.
Check the wiper blade for wear. If the wiper blade cannot wipe the glass uniformly
and clearly, this problem could be occurred. In this case, replace the wiper blade
with new one.
Check whether the variable resistance knob on the multifunction wiper switch is set
in "FAST" The "FAST" is the highest stage of sensitivity and very sensitive to small
amount of rain drops. Therefore, change the knob to low sensitivity. 1)
2) Symptom 1.

02-22
Cautions for wiper control
1. Speed sensitive INT (intermittent) wiper
The wiper relay continues to output for remaining "ON" time even when the INT switch
is turned off during its operation.
IGN switch "ON", INT switch "OFF": Resume the intermittent time when turning "ON"
IGN switch "OFF", INT switch "ON": Resume the intermittent time when turning "ON" 1)
2)
3)
2. Controls when the wiper motor parking is defective
The wiper relay continues to output when the parking terminal is fixed at the ground or
IGN while the wiper relay is "ON" (INT switch = ON or washer switch = ON)
(The output stops immediately after turning off the switch) - [Pause time of vehicle speed sensitive INT wiper]
Pause time against vehicle speed

02-238710-01
▶Ignition Key Reminder Warning
The chime buzzer sounds continuously when opening the driver's door while the ignition
key is in ignition switch.
When removing the ignition key or closing the driver's door during chime buzzer operation,
the buzzer stops.
This function does not work when the IGN1 switch is in "ON" position. -
-
- (The function has priority over the "TAILLAMP ON WARNING".)
Chime Buzzer
PAS buzzer
ICM relay box
STICS

02-338710-01
▶STICS Circuit for Tail Lamp Auto Cut (Battery Saver)
▶Tail Lamp Auto Cut (Battery Saver)
The tail lamp is turn on or off according to the operations of the tail lamp switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door after
removing the ignition key without turning off the tail lamp.
The tail lamp relay is turned on when inserting the ignition key into the ignition switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door
while the ignition key is removed and the tail lamp is turned on. 1.
2.
3.
4.

02-38
▶Headlamp Control (Escort)
The headlamp control supplies the power to headlamp relay for 20 seconds and turns off
when receiving the escort signal from the remote control key after receiving the lock signal
from the remote control key (armed) with the ignition switch off.
If the escort signal is received again during this time, the operation is extended once for
20 seconds.
However, only when the system is in armed mode when receiving the escort signal from
the remote control key, the power supply and output is turned on.
The headlamp relay output is turned off immediately after receiving the lock signal from
the remote control key during its operation.
However, signals other than lock or escort signal from the remote control key will be
overridden. 1.
2.

02-418710-01
▶Door Lock/Unlock Control by Remote Control Key
The door lock relay output is "ON" for 0.5 seconds when receiving the lock signal from the
remote control key.
The door unlock relay output is "ON" for 0.5 seconds when receiving the unlock signal
from the remote control key. 1.
2.

02-44
▶Time Lag Power Window Control
The power window relay output is "ON" when turning on the ignition switch.
The power window relay output is "ON" for 30 seconds when turning off the ignition
switch.
The power window relay output is "OFF" when opening the driver's door or the
passenger's door.
The power window relay is turned "OFF" when receiving the remote control key lock signal
(armed mode) during its extended operation period of 30 seconds. 1.
2.
3.

02-538710-01
Door Unlock ▶
The door unlock operates when pressing the door switch on the remote control key for longer
than 0.5 seconds.
The door unlock relay is "ON" for 0.5 seconds when receiving the door unlock message from
the remote control key.
The hazard warning lamps blink once only when all the doors unlocked successfuly. 1.
2.
3.

03-14

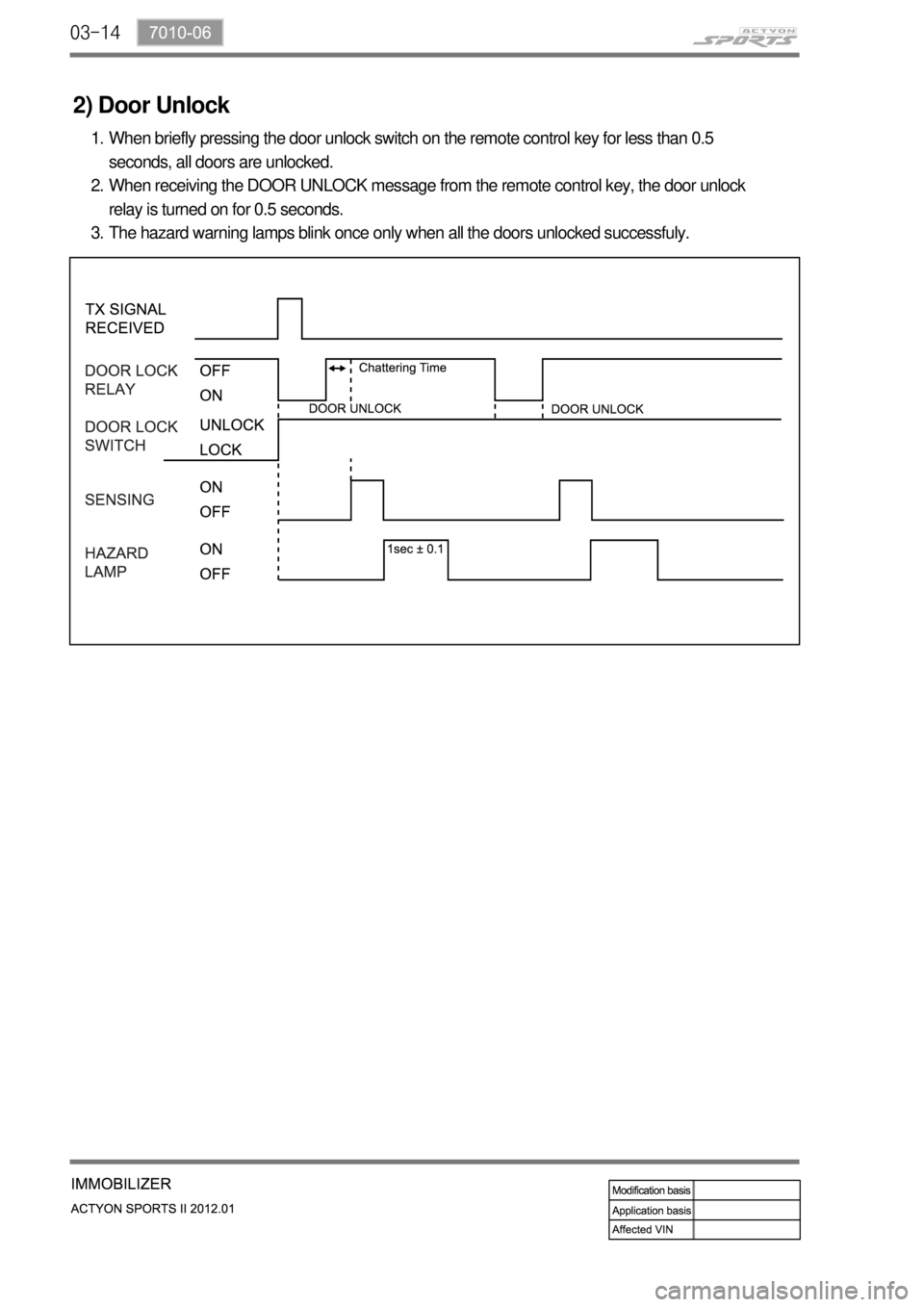

2) Door Unlock
When briefly pressing the door unlock switch on the remote control key for less than 0.5
seconds, all doors are unlocked.
When receiving the DOOR UNLOCK message from the remote control key, the door unlock
relay is turned on for 0.5 seconds.
The hazard warning lamps blink once only when all the doors unlocked successfuly. 1.
2.
3.
