SSANGYONG NEW ACTYON SPORTS 2012 Service Manual

01-373680-01
7) Power Flow - 5th Gear (D)
Functioning elements ▶
Control ▶C1 applied, Rear Planet Carrier driven
C3 applied, RSG (Rear Sun Gera) driven -
-
S1 OFF, S2 and S3 ON
S2 ON, C2 shift valve moved to the left end, C2 clutch not engaged
C1 shift valve open (S1 OFF), C1 clutch engaged by drive oil
S3 and S7 ON, C3 shift valve moved to the left end, C3 clutch engaged -
-
-
-
Connecting Components ▶
Gear
ratioON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
0.87 ON ON 0 1 1 0-1
Gear
ratioEngaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
0.87 ON ON
Power Flow Diagram ▶

01-38
5th gear (D) (0.87:1) ▶

01-393680-01
8) Power flow - 6th gear (D)
Functioning elements ▶
Control ▶C1 applied, Rear Planet Carrier driven
B1 applied, RSG (Rear Sun Gera) locked -
-
S1 OFF, S2 and S4 ON
S3 ON, C2 shift valve moved to the left end, C2 clutch not engaged
C1 shift valve open (S1 OFF), C1 clutch engaged by drive oil
S4 ON, B1 shift valve moved to the left end, B1 Band engaged -
-
-
-
Connecting Components ▶
Gear
ratioON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
0.68 ON ON 0 1 1 0-1
Gear
ratioEngaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
0.68 ON ON
Power Flow Diagram ▶

01-40
6th gear (D) (0.68:1) ▶

01-413680-01
9) Power flow - Reverse (R)
Functioning elements ▶
Control ▶C3 applied, RSG (Rear Sun Gera) locked
B2 applied, Rear Planet Carrier locked -
-
S1, S2 and S3 ON
Line pressure applied to B2 Band directly through manual valve
S3 ON, Pressure to C3 increased or regulated
S1 and S2 ON, C1 not engaged in any case -
-
-
-
Connecting Components ▶
Gear
ratioON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
3.09 ON ON ON 1 1 1 0-1
Gear
ratioEngaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
3.09 ON ON ON
Power Flow Diagram ▶

01-42
Reverse gear (R) (3.09:1) ▶

01-433680-01
10) Power Flow - Reverse (R) Limp Home Mode
Connecting Components ▶
Gear
ratioON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
3.09 0 0 0 0 0 0
Gear
ratioEngaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
3.09 ON ON ON
Power Flow Diagram ▶

01-44
Reverse (R) Limp Home Mode ▶

01-453680-01
11) Power flow - Park (P)
Connecting Components ▶
Gear
ratioON / OFF solenoids Variable pressure sol. valve-VBS
S1 S2 S3 S4 S5(A) S6(A) S7(A) S8(A) S9(A) S10(A)
N/A ON ON ON
Gear
ratioEngaged element
C1 C2 C3 B1 B2 OWC Lock-up
clutch
AO AI R AO AI
N/A

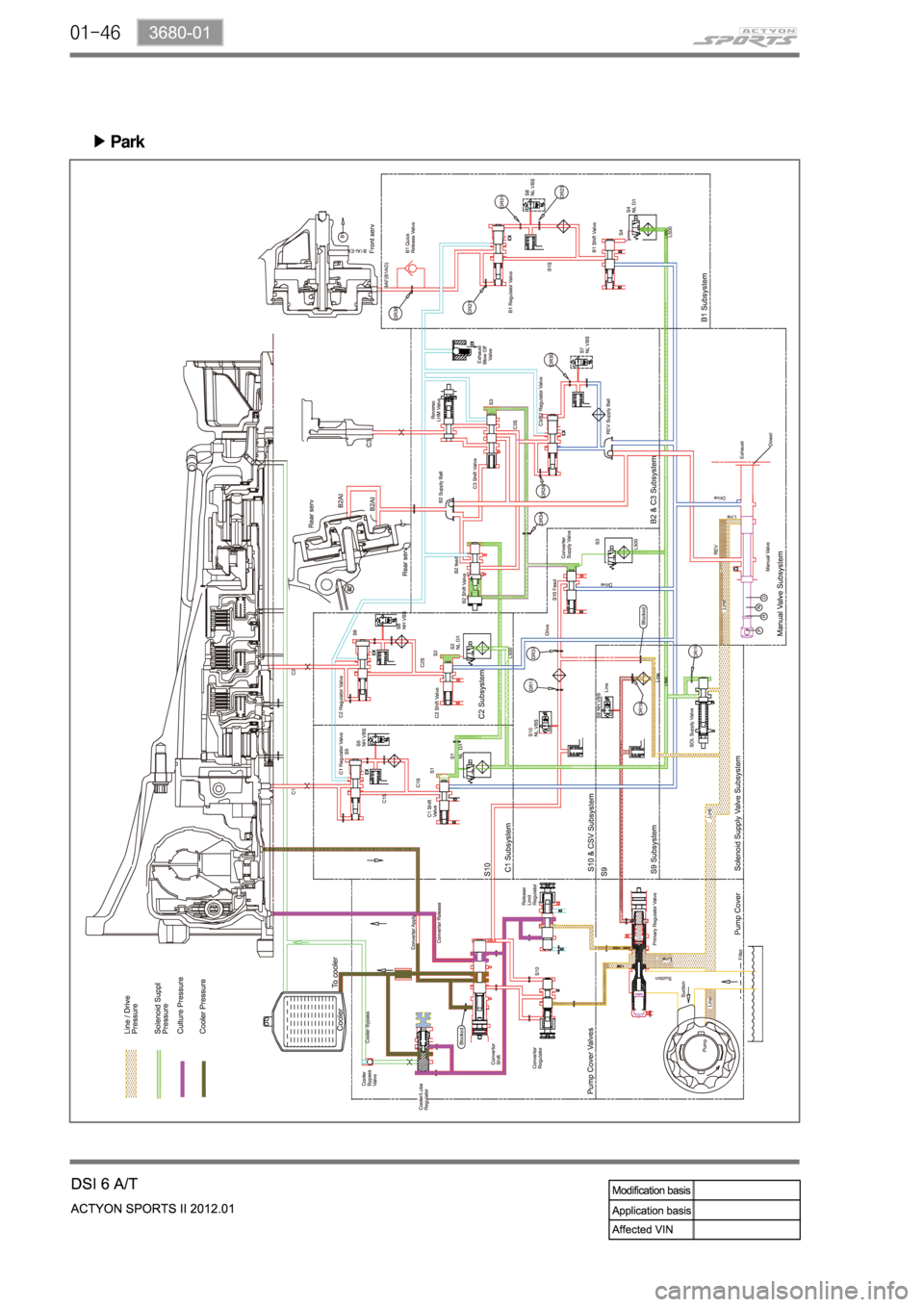

Power Flow Diagram ▶

01-46
Park ▶
