key SSANGYONG NEW ACTYON SPORTS 2013 Owner's Manual

02-418710-01
The door lock system outputs "LOCK" when the vehicle speed maintains over 30 km/h.
However, it doesn't output "LOCK" when all doors are locked or failed.
If any of doors is unlocked after outputting "LOCK" in step 1, outputs "LOCK" up to 5 times
(except step (1)) at the interval of one second.
If any of doors is unlocked after 5 times of "LOCK" outputs, the door (driver's/passenger's/rear) is
regarded as "FAIL".
If the door that was regarded as fail is changed (UNLOCK to LOCK), it will be recognized as a
normal one.
If any door is regarded as FAIL, the auto door lock function does not work. (if it is occurred when
the vehicle speed is over 30 km/h, the auto door lock output does not occur even if the vehicle
speed falls below 30 km/h and accelerates again to over 30 km/h.) Nonetheless, the central
door lock function works properly.
When the system receives "UNLOCK" signal fr om a door switch, it outputs "LOCK" signals 5
times. If additional "LOCK" signal from another door switch is detected during \
the period, the
system outputs five "LOCK" signals 5 times for the switch.
The door lock system outputs "UNLOCK" automatically if the "LOCK" output conditions are
established by this function or the key is cycled (IGN=OFF) (even when there is no "LOCK"
output while the vehicle speed maintains over 30 km/h under lock conditi\
on).
(If the LOCK condition is established with the ignition switch ON, the system outputs UNLOCK
signal unconditionally when turning the ignition switch to OFF position.\
)
However, when the ignition key is turned to "OFF" position, the lock output conditions will be
cancelled.
The "FAIL" condition of the door will be erased when the ignition key is\
turned to "OFF" position.
1.
2.
3.
4.
5.
6.
7.
8.
▶Auto Door Lock
T2: 0.5 s
(*1) LOCK: Driver's & Passenger's & Rear door & = Lock

02-42

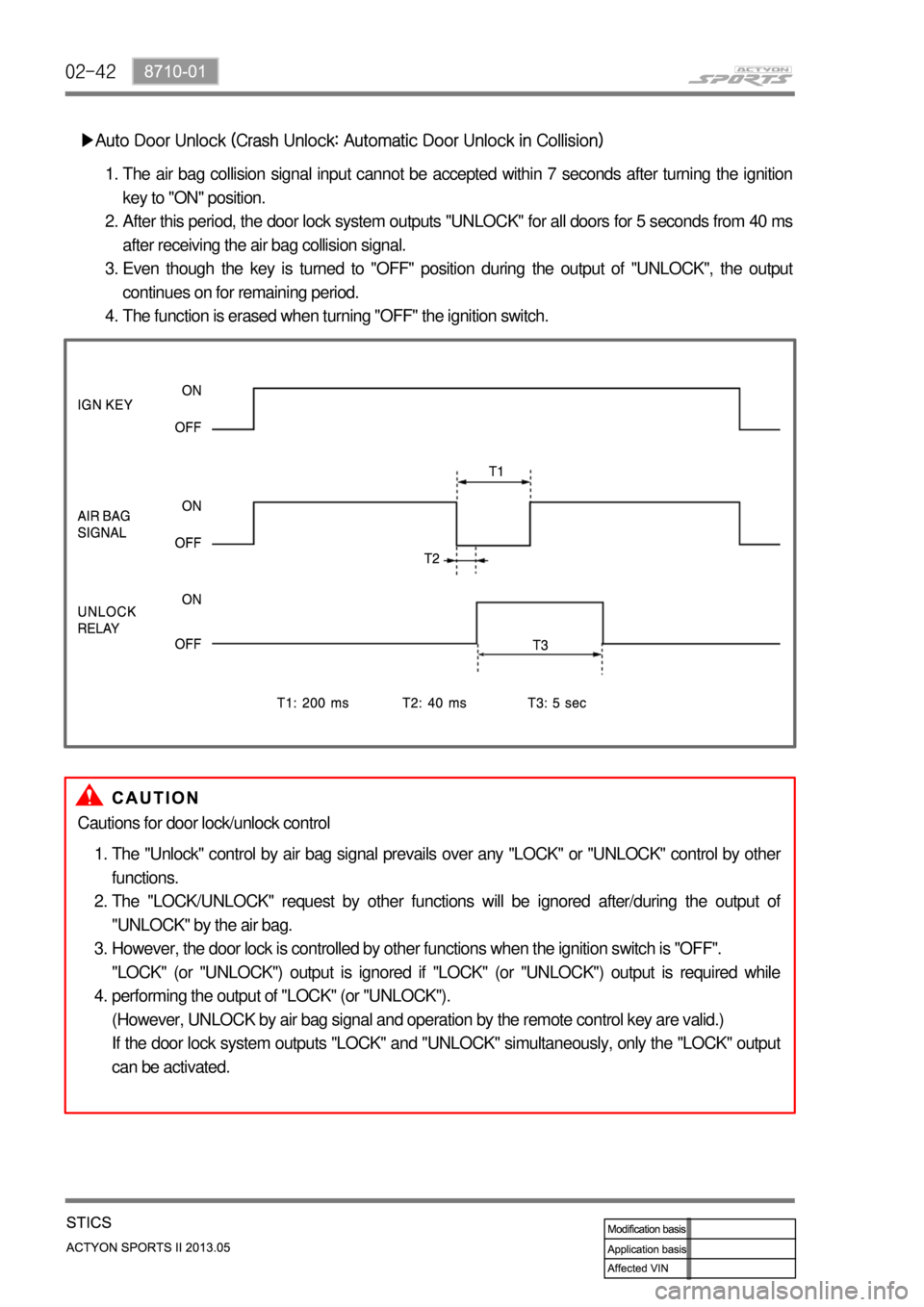

▶Auto Door Unlock (Crash Unlock: Automatic Door Unlock in Collision)
The air bag collision signal input cannot be accepted within 7 seconds after turning the ignition
key to "ON" position.
After this period, the door lock system outputs "UNLOCK" for all doors for 5 seconds from 40 ms
after receiving the air bag collision signal.
Even though the key is turned to "OFF" position during the output of "UNLOCK", the output
continues on for remaining period.
The function is erased when turning "OFF" the ignition switch.
1.
2.
3.
4.
Cautions for door lock/unlock control
The "Unlock" control by air bag signal prevails over any "LOCK" or "UNLOCK" control by othe
r
functions.
The "LOCK/UNLOCK" request by other functions will be ignored after/durin\
g the output o
f
"UNLOCK" by the air bag.
However, the door lock is controlled by other functions when the ignitio\
n switch is "OFF".
"LOCK" (or "UNLOCK") output is ignored if "LOCK" (or "UNLOCK") output is required while
performing the output of "LOCK" (or "UNLOCK").
(However, UNLOCK by air bag signal and operation by the remote control \
key are valid.)
If the door lock system outputs "LOCK" and "UNLOCK" simultaneously, only\
the "LOCK" output
can be activated.
1.
2.
3.
4.

02-438710-01
▶Time Lag Power Window Control
The power window relay output is "ON" when turning on the ignition switc\
h.
The power window relay output is "ON" for 30 seconds when turning off th\
e ignition switch.
The power window relay output is "OFF" when opening the driver's door or the passenger's
door.
The power window relay is turned "OFF" when receiving the remote control\
key lock signal
(armed mode) during its extended operation period of 30 seconds.
1.
2.
3.

02-458710-01

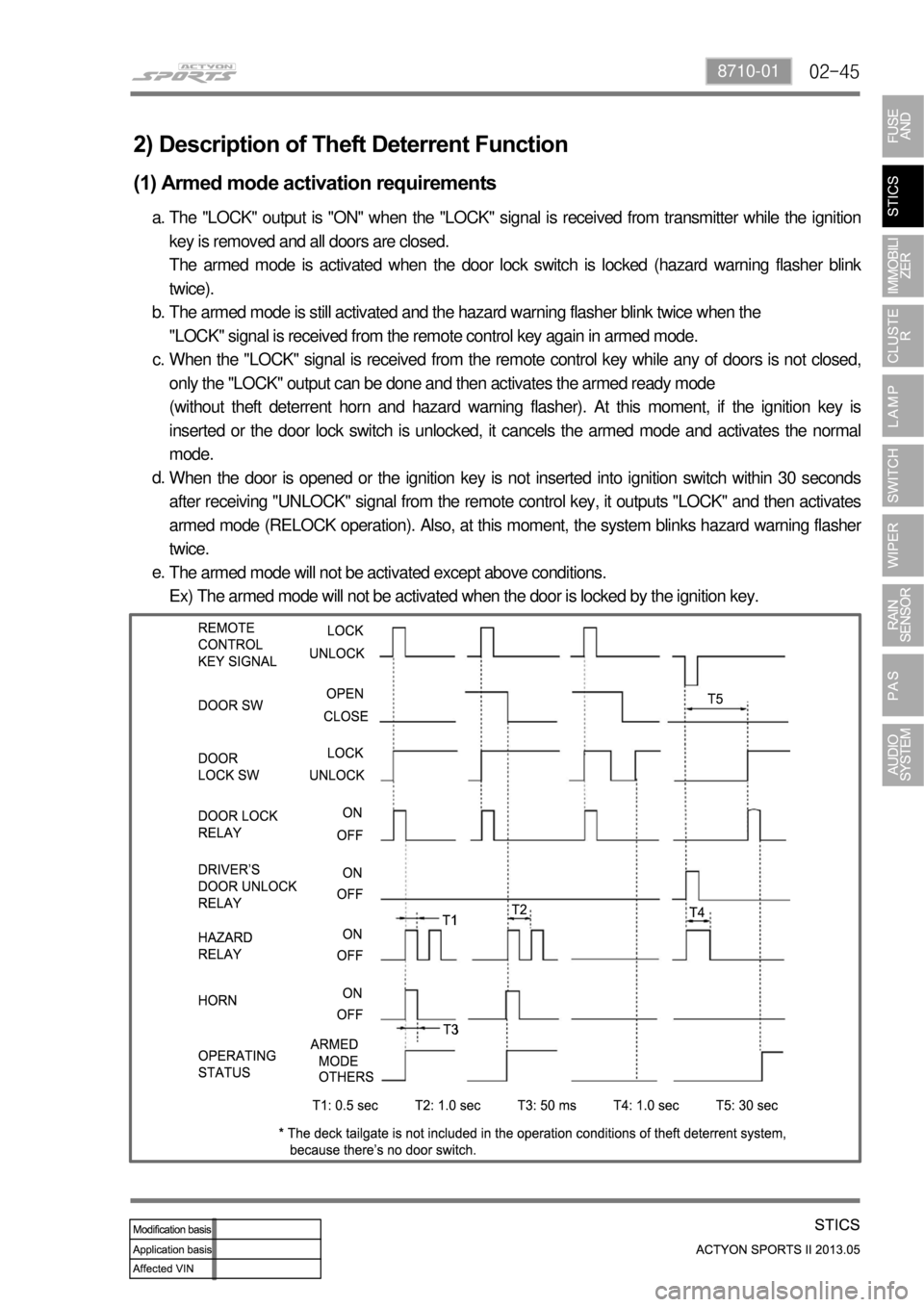

2) Description of Theft Deterrent Function
(1) Armed mode activation requirements
The "LOCK" output is "ON" when the "LOCK" signal is received from transmitter while the ignition
key is removed and all doors are closed.
The armed mode is activated when the door lock switch is locked (hazard warning flasher blink
twice).
The armed mode is still activated and the hazard warning flasher blink t\
wice when the
"LOCK" signal is received from the remote control key again in armed mod\
e.
When the "LOCK" signal is received from the remote control key while any of doors is not closed,
only the "LOCK" output can be done and then activates the armed ready mo\
de
(without theft deterrent horn and hazard warning flasher). At this moment, if the ignition key is
inserted or the door lock switch is unlocked, it cancels the armed mode and activates the normal
mode.
When the door is opened or the ignition key is not inserted into ignition switch within 30 seconds
after receiving "UNLOCK" signal from the remote control key, it outputs "LOCK" and then activates
armed mode (RELOCK operation). Also, at this moment, the system blinks hazard warning flashe
r
twice.
The armed mode will not be activated except above conditions.
Ex) The armed mode will not be activated when the door is locked by the\
ignition key.
a.
b.
c.
d.
e.

02-46
(2) Armed mode cancellation requirements(3) Warning operation requirements
(4) Warning operation
(5) Warning cancellation requirements
(6) Operation when warning is cancelled
Receiving UNLOCK signal from the remote control key or starting the engi\
ne.
a.
When opening the door in armed mode
When unlocking the door lock switch in armed mode by other than the remo\
te control key
When closing and then opening the door after completion of warning (27 \
seconds)
a.
b.
c.
The theft deterrent horn and hazard warning flasher output is "ON" for 2\
7 seconds at the interval of 1
second.
a.
Cancels warning by using any signal from the remote control key (LOCK, \
UNLOCK, PANIC) during
warning operation.
Cancels warning after 27 seconds (remaining time) while the ignition k\
ey is turned to "ON"
position.
If the ignition switch is turned to ON position when the warning is acti\
vated in armed mode, the
warning is cancelled immediately and the warning buzzer stops after 27 s\
econds (remaining time).
a.
b.
c.
The theft deterrent horn and hazard warning flasher outputs are "OFF".
a.

02-478710-01
(7) Operation when warning is cancelled
The theft deterrent horn and hazard warning flasher is activated when fi\
tting the battery in armed mode. (The
same operation as when alarm condition is met in armed mode is performed\
.)PANIC Warning
▶
The PANIC warning output is "ON" for 27 seconds using the horn and hazar\
d warning flasher,
when receiving the PANIC signal from the remote control key.
The PANIC warning output is "OFF" when pressing any button on the remote\
control key during
PANIC warning.
The followings are about the theft deterrent warnings.
1.
2.
3.
The theft deterrent warning is deactivated when receiving PANIC signal f\
rom the remote
control key during theft deterrent warning.
The theft deterrent warning output is "ON" when the theft deterrent cond\
itions are
established during PANIC warning (PANIC output is "OFF").
The PANIC warning output is "ON" when receiving the PANIC signal from th\
e remote control
key in Armed Ready / Armed / Warning Comp letion / Relock Ready mode (maintaining the
theft deterrent mode).
a.
b.
c.
This function operates only in armed mode.
4.
Removed Normal Armed Warning Remark
Normal O
RELOCK operation:
When the door is not opened
or the ignition key is not
inserted into ignition switch
for 30 seconds after
receiving "UNLOCK" signal,
outputs "LOCK" and then
activates armed mode
Armed Ready
O
Armed O
Warning O
Warning Completion O OO
RELOCK Ready O
Installed

02-48
Automatic Hazard Warning Lamp Switch (SHP: Safety Hazard Protection)
▶
When the automatic hazard warning lamp switch is pressed for approx. 0.1\
to 0.59 seconds, the
hazard warning lamp blinks 3 times at an interval of 0.35 seconds.
When the automatic hazard warning lamp switch is pressed for approx. 0.6\
seconds or longer,
the hazard warning lamp blinks 10 times at an interval of 0.35 seconds.
This function is only available when the ignition key is in the "ON" pos\
ition.
If the ignition key is turned to the "OFF" position dur ing this function is activated, this function is
immediately deactivated.
If the system receives signals for the turn signal lamp operation during\
this function is activated,
this function is immediately deactivated.
While the turn signal lamp signals are already inputted, pressing the au\
tomatic hazard warning
lamp switch does not activate the automatic hazard warning lamp function\
.
1.
2.
3.
4.
5.
6.
Automatic hazard warning lamp switch
▶
Press briefly (0.1 ~ 0.59 seconds): The hazard
warning lamp blinks three times.
Press and hold (more than 0.6 seconds): The
hazard warning lamp blinks ten times.
·
·

02-498710-01
▶Specifications of Remote Control Key
When any of switches on remote control key is pressed, the integrated CP\
U in remote control key sends
the coded control message to the CPU in receiver to control the vehicle.\
Door Unlock and Panic Function Breifly press (below 0.5 sec): Door unlock and theft deterrent mode is\

deactivated
Press and hold (over 2 sec): Panic function
Door unlock (Briefly press)
1.
If you send the door unlock signal using the remote control key, with al\
l the doors locked, the
door will be opened and the theft deterrent mode will be deactivated. If\
the door coupled switch
of front room lamp is pressed, the lamp will come on for 30 seconds. It \
will turn off immediately
after the lock button of the remote control is pressed.
·
Panic function: activated in the theft deterrent mode
2.
If you press and hold the door unlock and panic buttons, the buzzer will\
sound for 27 seconds
and the hazard warning flasher blinks.
The function is inactivated if any button of remote control is pressed.
* For the previous model, only the theft deterrent horn has been activat\
ed.
·
·
LED flasher
Briefly press: blink once
Press and hold: blink twice
Door Lock Function
Breifly press (below 0.5 sec): Door lock and theft deterrent mode is a\
ctivated
Door unlock (Briefly press)
1.
Pressing this button locks all doors and activates the theft deterrent m\
ode.
·

02-50
Battery Replacement
Key typeREKES key
Specification CR2032
Amount 1 EA
REKES key
Battery
Immobilizer key

02-518710-01
Specification of Receiver
▶
Operating requirements
1.
You should remove the ignition key.
-
Code registration requirement
2.
You can register the code only using the diagnostic device.
-
Transmitter code registration
3.
You can register up to 5 transmission codes to the remote control key.
The receiver does not output the received code during registration.
Connect the device to the diagnostic terminal.
The code can be registered only by the panic signal from the transmitter\
.
(Other switches (LOCK/UNLOCK) can't code.)
a.
b.
c.
Remote Door Lock
▶
All doors are locked when briefly pressing the door LOCK burron on remot\
e control key (less than
0.5 seconds).
The system outputs LOCK signal immediately a fter receiving the door lock message from the
remote control key. The system activates the theft deterrent mode when a\
ll doors are locked while
they are fully closed (the hazard warning lamps blink twice.).
1.
2.
