key SSANGYONG NEW ACTYON SPORTS 2013 User Guide

02-24
▶Ignition Key ReminderThe system outputs "UNLOCK" signal for 5 seconds after the driver's door is opened and the
door lock switch is changed to "LOCK" (while the ignition key is in ign\
ition switch).
The system outputs "UNLOCK" signal for 5 seconds when the door lock switch is changed to
"LOCK" from "UNLOCK" and the driver's door is closed within 0.5 seconds (while the ignition key
is in the ignition switch).
If the "UNLOCK" conditions are met, the system outputs "UNLOCK" signal unconditionally.
However, if the ignition key is removed after the door lock switch is ch\
anged from "UNLOCK" to
"LOCK", the system does not output "UNLOCK" signal.
-
-
-

02-258710-01
▶All Door Lock Prevention Function when a Door is OpenAll doors, except the tailgate and hood, output "UNLOCK" signal for 5 seconds when the "LOCK"
signal is inputted (while the ignition key is removed and one of any do\
ors is open).
When the door is closed during the UNLOCK output for approx. 5 seconds, the UNLOCK output
stops immediately.
When the ignition key is inserted during the 5 seconds output, the output continues for approx. 5
seconds.
If the ignition switch is in the "ON" position or the ignition switch is\
removed, the above steps are
performed. If the key is in the key cylinder, the ignition key reminder \
function is activated.
This function does not work if the vehicle speed is over 10 km/h.
-
-
-
-
-

02-26
▶Tail Lamp Left On WarningThe chime buzzer sounds with the interval of 0.8 second when opening the\
driver's door while the
tail lamp is turned on and the ignition key is removed.
The c/buzzer output stops when turning off the tail lamp and closing the\
driver's door.
The system outputs "UNLOCK" signal for 5 seconds when the driver's and p\
assenger's door lock
switch is locked (while the tail lamp is turned on and the driver's doo\
r is open).
This function does not work when the IGN1 switch is in "ON" position.
-
-
-
-

02-28

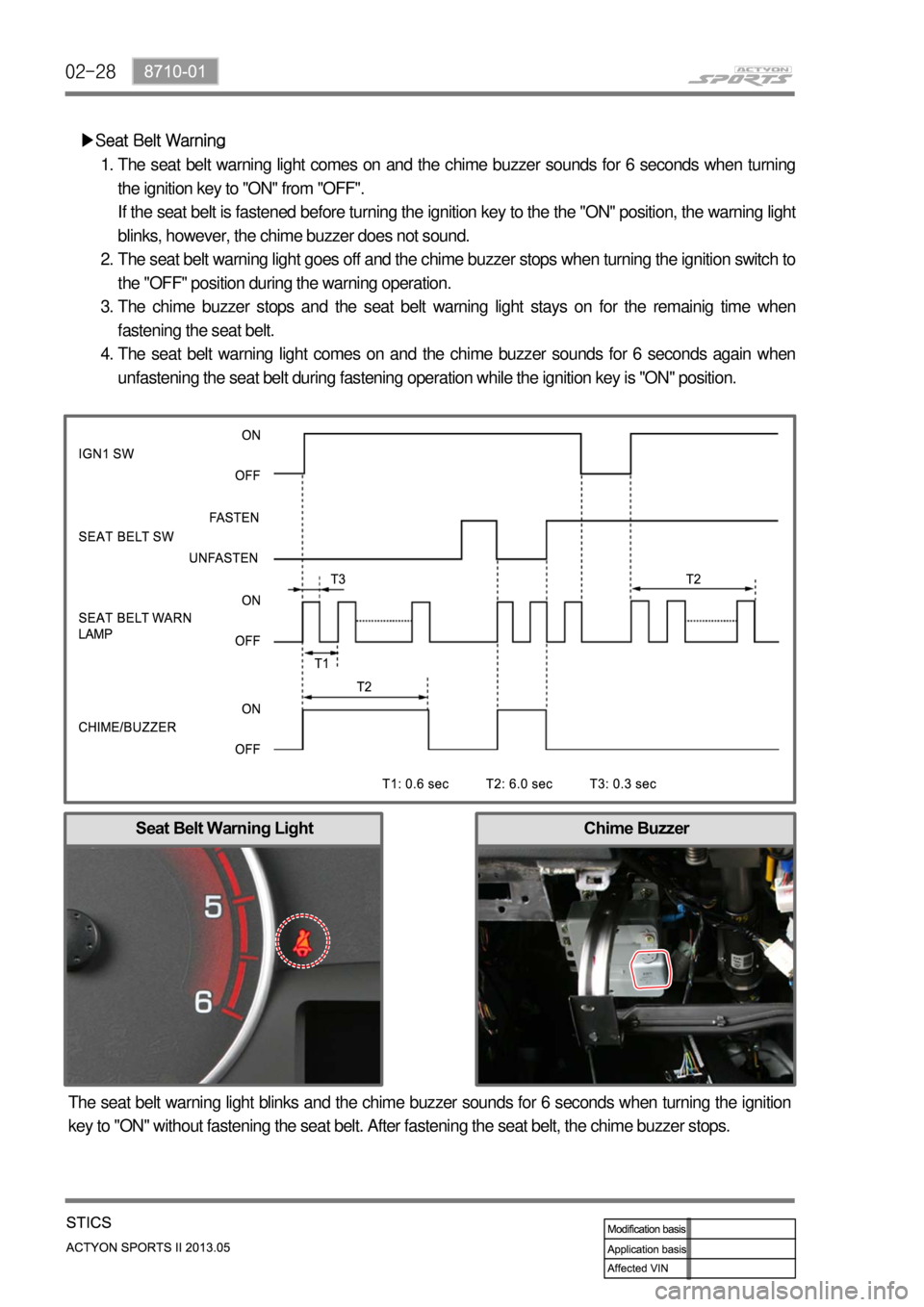

▶Seat Belt WarningThe seat belt warning light comes on and the chime buzzer sounds for 6 secon\
ds when turning
the ignition key to "ON" from "OFF".
If the seat belt is fastened before turning the ignition key to the the "ON" position, the warning light
blinks, however, the chime buzzer does not sound.
The seat belt warning light goes off and the chime buzzer stops when turning the ignition switch to
the "OFF" position during the warning operation.
The chime buzzer stops and the seat belt warning light stays on for the remainig time when
fastening the seat belt.
The seat belt warning light comes on and the chime buzzer sounds for 6 s\
econds again when
unfastening the seat belt during fastening operation while the ignition \
key is "ON" position.
1.
2.
3.
4.
The seat belt warning light blinks and the chime buzzer sounds for 6 seconds\
when turning the ignition
key to "ON" without fastening the seat belt. After fastening the seat be\
lt, the chime buzzer stops.
Seat Belt Warning LightChime Buzzer

02-298710-01
▶Parking Brake WarningThe parking brake warning light comes on for approx. 4 seconds when turning the ignition key
from the "OFF" to the "ON" position regardless of the vehicle speed and the parking brake switch
position. After this 4 seconds, the warning light comes on, goes off or blinks according to the
vehicle speed and the parking brake switch position.
The warning light comes on when the parking brake is applied and the veh\
icle speed is below 10
km/h.
The warning light goes off when releasing the parking brake under step (\
2).
The warning light blinks and the chime buzzer sounds for 2.5 seconds and stops for 1.5 seconds
when the vehicle speed is over 10 km/h for more than 2 seconds while the parking brake is
applied.
The warning light goes off and the chime buzzer stops when releasing the\
parking brake unde
r
step (4).
The warning light comes on and the chime buzzer stops when the vehicle speed goes down
below 10 km/h under step (4).
This function does not work when the ignition switch is in "OFF" positio\
n.
1.
2.
3.
4.
5.
6.
7.

02-30
▶Center Room Lamp Control
The overhead console lamp (front room lamp) and the center room lamp come on at 100% when
opening the door (driver's/passenger's/rear) while the center room lamp switch\
is at the doo
r
coupled/tailgate coupled operating position and the key reminder switch \
is "OFF".
When the door (driver's/passenger's/rear) is opened, the front and center room lamps come on at
100% and automatically go off after 30 seconds.
The room lamp stays on for 2 seconds and then dims through 3 seconds whe\
n closing the doors
within 30 seconds.
The dimming operation must have greater than 32 steps per one second.
The room lamp output should stop immediately after turning on the ignition key during the
dimming operation.
The front room lamp and the center room lamp come on for 30 seconds when\
receiving the
unlock signal from the remote control key while the doors are closed.
The front room lamp and the center room lamp output period is extended b\
y 30 seconds when
receiving the unlock signal from the remote control key again during output under step (5). (The
lamp stays on when unlocked by the remote control key.)
When a door is opened during its extended period, the lamp stays on. If closed, operates as in
step (2).
The room lamp output stops immediately after receiving the lock signal from door lock switches
while all doors are closed or entering into the anti-theft mode by pushi\
ng LOCK button on the
remote control key.
1.
2.
3.
4.
5.
6.
7.
8.

02-32
▶Ignition Key Hole IlluminationThe ignition key hole illumination comes on when opening the driver's door or passenger's doo
r
while the ignition key is removed.
The ignition key hole illumination stays on for 10 seconds when closing \
the door after step (1).
The output stops when the ignition key is turned to the "ON" position.
The output stops when receiving the lock signal from the remote control key and entering armed
mode.
1.
2.
3.
4.
▶Key cylinder with key hole illumination With diesel and gasoline engine With diesel engine With gasoline engine
Without immobilizer
→With key hole
illumination With immobilizer
→With key hole
illumination With immobilizer
→Without key hole
illumination function

02-338710-01
▶STICS Circuit for Tail Lamp Auto Cut (Battery Saver)
▶Tail Lamp Auto Cut (Battery Saver) The tail lamp is turn on or off according to the operations of the tail \
lamp switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door afte
r
removing the ignition key without turning off the tail lamp.
The tail lamp relay is turned on when inserting the ignition key into th\
e ignition switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door while the
ignition key is removed and the tail lamp is turned on.
1.
2.
3.
4.

02-38
▶Door Lock/Unlock Control by Door Lock Switch
The door lock system outputs "LOCK" signal for 0.5 seconds when positioning the driver's o
r
passenger's door lock knob to the lock from unlock position.
The door lock system outputs "UNLOCK" signal fo r 0.5 seconds when positioning the driver's o
r
passenger's door lock knob to the unlock from lock position.
"LOCK" or "UNLOCK" by the door lock switch is ignored when outputting th\
e "LOCK" o
r
"UNLOCK" signal by other functions.
All door lock signals are "UNLOCK" for 0.5 seconds just for once when receiving the "LOCK"
signal within 0.5 seconds after closing the driver's or passenger's door while the ignition key is
removed.
1.
2.
3.
4.

02-40
▶Door Lock/Unlock Control by Remote Control Key
The door lock relay output is "ON" for 0.5 seconds when receiving the lo\
ck signal from the
remote control key.
The door unlock relay output is "ON" for 0.5 seconds when receiving the unlock signal from the
remote control key.
1.
2.
