SSANGYONG NEW ACTYON SPORTS 2013 Service Manual

01-12
(3) Turn signal lamp (Hazard warning lamp operation)
The B+ power supplied through the No. F66 interior fuse on the right-hand of the engine compartment is
on standby on the No. 30 and 86 hazard warning lamp relay terminals via the ICM No. 18 terminal.
The STICS activates and/or controls the hazard warning lamp relay using the No. A26 terminal
depending on the operating conditions. The activated relay supplies the No. 87 and 87a terminals with
the power, which is on standby on the No. 30 hazard warning lamp relay terminal.
The supplied power flows to the corresponding circuit via the No. 7 and 16 ICM terminals.

01-138410-02
(4) Windshield de-icer operation
The B+ power supplied through the No. Ef14 fuse and relay box in the engine compartment is on
standby on the No. 30 and 86 windshield de-icer relay terminals via the ICM No. 10 terminal.
The STICS activates and/or controls the windshield de-icer relay using the No. A4 terminal depending
on the operating conditions. The activated relay supplies the No. 87 terminal with the power, which is on
standby on the No. 30 windshield de-icer lamp relay terminal.
The supplied power flows to the windshield de-icer circuit via the No. 1 ICM terminal.

02-38710-01
1. PERFORMANCE AND SPECIFICATIONS
1) Rated Load & Input Signals
Rated Load
▶
NO.
Item Rated Load
1 Chime bell / Buzzer DC 12V 350 mA (Inductive load)
2 Front room lamp DC 12V 16W (Lamp load)
3 Rear room lamp DC 12V 8W (Lamp load)
4 Ignition key illumination DC 12V 1.2W (Lamp load)
5 Seat belt indicator DC 12V 1.2W (Lamp load)
6 Parking brake warning lamp DC 12V 1.2W (Lamp load)
7 Door ajar warning lamp DC 12V 1.2W (Lamp load)
8 Door lock relay DC 12V 200 mA (Inductive load)
9 Door unlock relay DC 12V 200 mA (Inductive load)
10 Horn relay DC 12V 260 mA
11 Tail lamp relay DC 12V 200 mA (Inductive load)
12 Hazard warning lamp relay DC 12V 200 mA (Inductive load)
13 Power window relay DC 12V 200 mA (Inductive load)
14 Rear defogger relay DC 12V 200 mA (Inductive load)
15 Wiper LOW relay DC 12V 200 mA (Inductive load)
16 Wiper HIGH relay DC 12V 200 mA (Inductive load)
17 Front washer motor DC 12V 1.5A
18 Head lamp relay DC 12V 750 mA (Inductive load)
19 Front defogger relay DC 12V 200 mA (Inductive load)
20 Mirror lock relay DC 12V 200 mA (Inductive load)
21 Mirror unlock relay DC 12V 200 mA (Inductive load)

02-4
Input Signals
▶
NO.
Input Signal Name Logic Status
1 IGN1 ON = BAT
(IGN ON or START)
2 IGN2 ON = BAT (IGN ON)
3 ALT_D ON = BAT (engine started)
4 Key reminder switch IN = BAT (key in)
5 Driver's door switch OPEN = GND, CLOSE = OPEN
6 Passenger's door switch OPEN = GND, CLOSE = OPEN
7 Rear door switch - OPEN (one of rear doors) = GND
- CLOSE (all rear doors) = OPEN
8 Hood switch OPEN = GND, CLOSE = OPEN
9 Driver's door lock/unlock switch LOCK = OPEN, UNLOCK = GND
10 Passenger's door lock/unlock switch LOCK = OPEN, UNLOCK = GND
11 Rear door lock/unlock switch - UNLOCK (one of rear doors)
= GND
- LOCK (all rear doors) = OPEN
12 Tailgate lock/unlock switch LOCK = OPEN, UNLOCK = GND
13 Rear defogger switch ON = GND, OFF = OPEN
14 Seat belt switch Unfastened = GND, Fastened = OPEN
15 Sunroof open switch ON = GND, OFF = OPEN
16 Parking brake switch ON = GND, OFF = OPEN
17 Air bag collision sensor ON = 200 ms output (LOW), OFF = OPEN
18 Wiper motor (parking) switch STOP = BAT VOLTAGE, ROTATING = GND
19 Washer switch ON = BAT, OFF = OPEN
20 INT-AUTO switch ON = BAT, OFF = OPEN
21 Auto washer switch ON = BAT, OFF = OPEN
22 Intermittent resistance 0W ~ 51KW (for intermittent wiper)
23 Speed sensor ON = GND (PWM), OFF = OPEN
24 Mirror lock/unlock switch ON = GND, OFF = OPEN
25 Front defogger switch ON = GND, OFF = OPEN
26 Auto hazard switch ON = GND, OFF = OPEN

02-58710-01
NO.Input Signal Name Logic Status
27 Central door lock switch ON = GND, OFF = OPEN
28 Multifunction auto light switch ON = GND, OFF = OPEN
29 Turn signal lamp switch ON = BAT/GND, OFF = OPEN
(approx. 5.1 V ~ 9.2 V)
30 Rain sensor ON = GND (DATA), OFF = BAT
31 Telematics ON = GND (DATA), OFF = BAT
32 Diagnosis ON = GND (DATA), OFF = BAT (KWP2000)

02-6
1. GENERAL
STICS of KORANDO SPORTS, called as RKSTICS (REKES + STICS (Super Time \
& Integrated
Control System)), is almost the same as that of ACTYON SPORTS in terms\
of its function and role.
Chime
STICS unit
PAS buzzerICM relay box
Inside of Lower IP Cover on Driver Side

02-78710-01
1) Wiper and Washer Operations
When pulling up the lever, the wiper
operates once and the wiper lever returns
to the "OFF" position.
Stop the operation.
Operates automatically
according to the vehicle
speed or the amount of rain. Continuous wipe, slow
operation. Front Wiping Speed Control Switch
FAST: Fast interval
SLOW: Slow interval
Continuous wipe, fast operation
Front Wiper and Washer Coupled Operation
Pull the lever briefly (below 0.6 seconds):
One wiping cycle without washer spray
Pull and hold the lever for more than 0.6 seconds:
Three wiping cycles with washer spray
Front Auto Washer Switch (AFW)
When the front wiper switch is off and this switch is pressed,
washer fluid will be sprayed and the wiper will automatically
operate 4 times. Then, the fluid will be sprayed again and the
wiper will automatically operate 3 times.
MIST OFF
AUTO
LO HI
Previous model
Pressing the switch makes washer
fluid to be sprayed for 2 sec. with four
wiping, after having delay of 0.6 sec.,
washer fluid to be sprayed for 1.5 sec.
with three wiping
Pressing the switch makes washer
fluid to be sprayed for 2 sec. with four
wiping, and washer fluid to be sprayed
for 1.5 sec. with three wiping, with no
delay of time New model

02-8
2) Operation Logic
▶Wiper MIST and Front Washer Coupled Wiper
The wiper relay is turned on at 0.3 seconds after from the time when the washer switch is turned
on for 0.1 to 0.59 seconds with the ignition switch "ON".If the wiper parking terminal gets off, the
wiper relay is turned off.
-
The wiper relay is turned on at 0.3 seconds after from the time when the\
washer switch is turned
on for more than 0.6 seconds with the ignition switch "ON". The wiper re\
lay gets on 3 times
immediately after turning off the washer switch.
-

02-98710-01

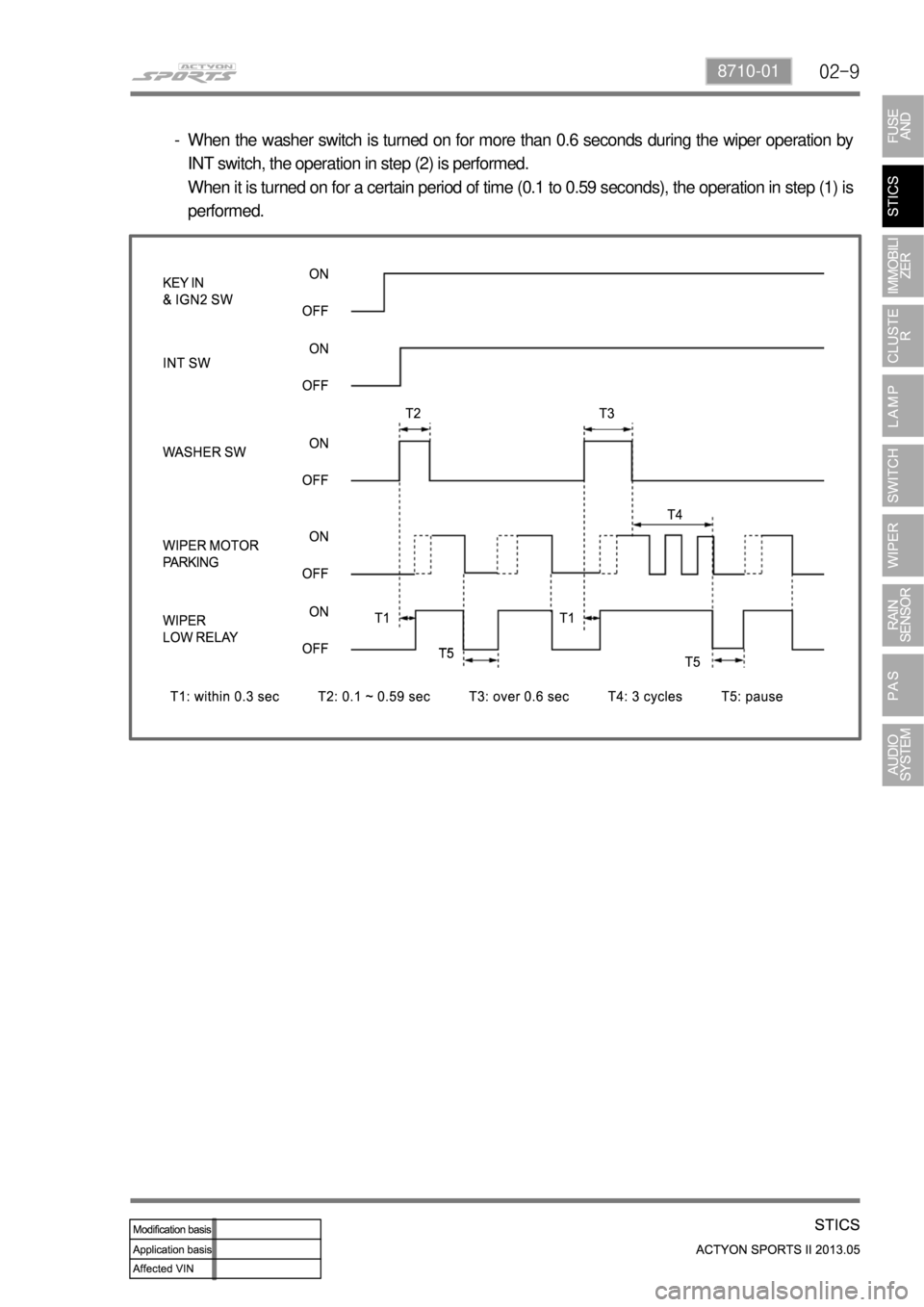

When the washer switch is turned on for more than 0.6 seconds during the wiper operation by
INT switch, the operation in step (2) is performed.
When it is turned on for a certain period of time (0.1 to 0.59 seconds), the operation in step (1) is
performed.
-

02-10
▶Auto Washer and Wiper Switch (AFW)When the auto washer switch is turned on with the ignition switch "ON" and the INT switch
"OFF", the washer motor output gets ON for 1 second. If the system recog\
nizes the output signal,
the wiper relay output gets ON during 4 cycles and the washer motor output gets ON for 1
second. Then, the wiper relay output gets OFF after 3 cycles.
-
