SSANGYONG NEW ACTYON SPORTS 2013 Service Manual

02-218710-01
▶Volume Sensitive INT (Intermittent) Wiper
For RKSTICS without the rain sensor, perform the following operation:
Controls the wiper intermittent operation by the values from the vehicle\
speed and the volume
(resistance).
-
Calculates and converts the Intermittent interv al automatically by obtaining the INT VOLUME
when the ignition switch and the INT switch is in the "ON" position.
The wipers are operated in vehicle speed sensitiv e mode when turning the INT switch to the
"ON" position with the engine running or starting the engine with the INT switch positioned to
"ON".
Intermittent interval (at 0 km/h): 3 ± 0.5 ~ 19 ± 2 seconds
˙
˙
˙
Vehicle speed calculation
-
[Input the vehicle speed]
It is calculated by the numbers of input pulses for one second.
VOLUME calculation
-
The pause time of the vehicle speed sensitive INT wiper is calculated by\
the INT volume (inpu
t
voltage). Each level has the hysteresis.
˙
Pause time calculation
-
Pause time means the duration that wipers are stopped at parking positio\
n.
Elapsed time means the duration after the wiper motor started to operate from parking
position.
The pause time is calculated by the vehicle speed and the VOLUME.
※If the pause time is below 1.0 second, the wipers operate without pause.
※If the pause time is over 1.5 seconds, the wipers operate intermittently.
˙
˙
˙ 60 [km/h] × 60 [sec]
1 [PULSE/SEC] =
637 × 4 PULSE ≒ 1.41 [km/h]

02-22
Cautions for wiper control1. Speed sensitive INT (intermittent) wiper
The wiper relay continues to output for remaining "ON" time even when the INT switch is
turned off during its operation.
IGN switch "ON", INT switch "OFF": Resume the intermittent time when tur\
ning "ON"
IGN switch "OFF", INT switch "ON": Resume the intermittent time when tur\
ning "ON"
1)
2)
3)
2. Controls when the wiper motor parking is defective The wiper relay continues to output when the parking terminal is fixed at the ground or IGN
while the wiper relay is "ON" (INT switch = ON or washer switch = ON)
(The output stops immediately after turning off the switch)
-
[Pause time of vehicle speed sensitive INT wiper]
Pause time against vehicle speed

02-238710-01
▶Ignition Key Reminder WarningThe chime buzzer sounds continuously when opening the driver's door whil\
e the ignition key is in
ignition switch.
When removing the ignition key or closing the driver's door during chime\
buzzer operation, the
buzzer stops.
This function does not work when the IGN1 switch is in "ON" position.
-
-
-
(The function has priority over the "TAILLAMP ON WARNING".)
Chime Buzzer
PAS buzzer
ICM relay box
STICS

02-24
▶Ignition Key ReminderThe system outputs "UNLOCK" signal for 5 seconds after the driver's door is opened and the
door lock switch is changed to "LOCK" (while the ignition key is in ign\
ition switch).
The system outputs "UNLOCK" signal for 5 seconds when the door lock switch is changed to
"LOCK" from "UNLOCK" and the driver's door is closed within 0.5 seconds (while the ignition key
is in the ignition switch).
If the "UNLOCK" conditions are met, the system outputs "UNLOCK" signal unconditionally.
However, if the ignition key is removed after the door lock switch is ch\
anged from "UNLOCK" to
"LOCK", the system does not output "UNLOCK" signal.
-
-
-

02-258710-01
▶All Door Lock Prevention Function when a Door is OpenAll doors, except the tailgate and hood, output "UNLOCK" signal for 5 seconds when the "LOCK"
signal is inputted (while the ignition key is removed and one of any do\
ors is open).
When the door is closed during the UNLOCK output for approx. 5 seconds, the UNLOCK output
stops immediately.
When the ignition key is inserted during the 5 seconds output, the output continues for approx. 5
seconds.
If the ignition switch is in the "ON" position or the ignition switch is\
removed, the above steps are
performed. If the key is in the key cylinder, the ignition key reminder \
function is activated.
This function does not work if the vehicle speed is over 10 km/h.
-
-
-
-
-

02-26
▶Tail Lamp Left On WarningThe chime buzzer sounds with the interval of 0.8 second when opening the\
driver's door while the
tail lamp is turned on and the ignition key is removed.
The c/buzzer output stops when turning off the tail lamp and closing the\
driver's door.
The system outputs "UNLOCK" signal for 5 seconds when the driver's and p\
assenger's door lock
switch is locked (while the tail lamp is turned on and the driver's doo\
r is open).
This function does not work when the IGN1 switch is in "ON" position.
-
-
-
-

02-278710-01

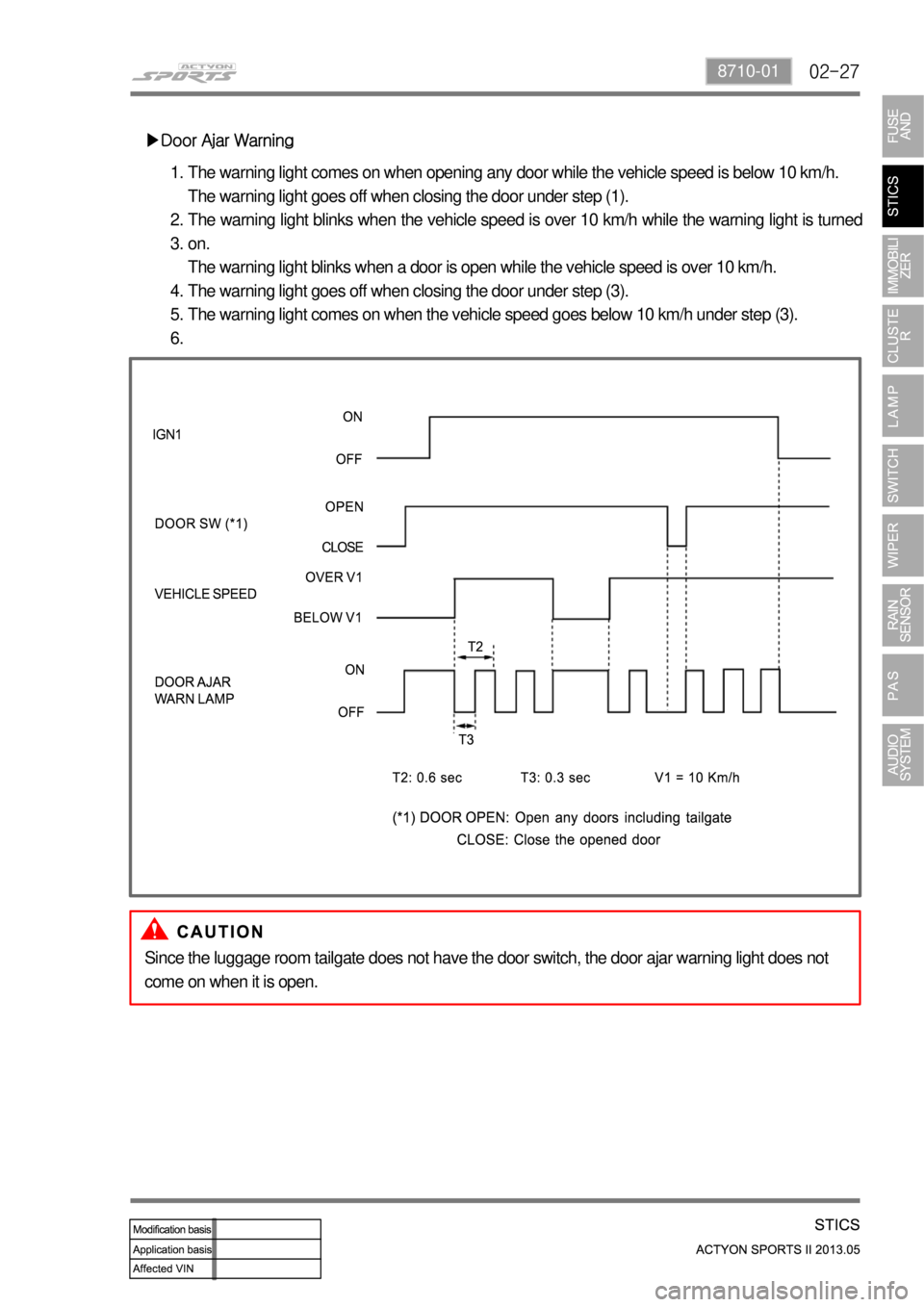

▶Door Ajar WarningThe warning light comes on when opening any door while the vehicle speed\
is below 10 km/h.
The warning light goes off when closing the door under step (1).
The warning light blinks when the vehicle speed is over 10 km/h while the warning light is turned
on.
The warning light blinks when a door is open while the vehicle speed is \
over 10 km/h.
The warning light goes off when closing the door under step (3).
The warning light comes on when the vehicle speed goes below 10 km/h und\
er step (3).
1.
2.
3.
4.
5.
6.
Since the luggage room tailgate does not have the door switch, the door \
ajar warning light does not
come on when it is open.

02-28
▶Seat Belt WarningThe seat belt warning light comes on and the chime buzzer sounds for 6 secon\
ds when turning
the ignition key to "ON" from "OFF".
If the seat belt is fastened before turning the ignition key to the the "ON" position, the warning light
blinks, however, the chime buzzer does not sound.
The seat belt warning light goes off and the chime buzzer stops when turning the ignition switch to
the "OFF" position during the warning operation.
The chime buzzer stops and the seat belt warning light stays on for the remainig time when
fastening the seat belt.
The seat belt warning light comes on and the chime buzzer sounds for 6 s\
econds again when
unfastening the seat belt during fastening operation while the ignition \
key is "ON" position.
1.
2.
3.
4.
The seat belt warning light blinks and the chime buzzer sounds for 6 seconds\
when turning the ignition
key to "ON" without fastening the seat belt. After fastening the seat be\
lt, the chime buzzer stops.
Seat Belt Warning LightChime Buzzer

02-298710-01
▶Parking Brake WarningThe parking brake warning light comes on for approx. 4 seconds when turning the ignition key
from the "OFF" to the "ON" position regardless of the vehicle speed and the parking brake switch
position. After this 4 seconds, the warning light comes on, goes off or blinks according to the
vehicle speed and the parking brake switch position.
The warning light comes on when the parking brake is applied and the veh\
icle speed is below 10
km/h.
The warning light goes off when releasing the parking brake under step (\
2).
The warning light blinks and the chime buzzer sounds for 2.5 seconds and stops for 1.5 seconds
when the vehicle speed is over 10 km/h for more than 2 seconds while the parking brake is
applied.
The warning light goes off and the chime buzzer stops when releasing the\
parking brake unde
r
step (4).
The warning light comes on and the chime buzzer stops when the vehicle speed goes down
below 10 km/h under step (4).
This function does not work when the ignition switch is in "OFF" positio\
n.
1.
2.
3.
4.
5.
6.
7.

02-30
▶Center Room Lamp Control
The overhead console lamp (front room lamp) and the center room lamp come on at 100% when
opening the door (driver's/passenger's/rear) while the center room lamp switch\
is at the doo
r
coupled/tailgate coupled operating position and the key reminder switch \
is "OFF".
When the door (driver's/passenger's/rear) is opened, the front and center room lamps come on at
100% and automatically go off after 30 seconds.
The room lamp stays on for 2 seconds and then dims through 3 seconds whe\
n closing the doors
within 30 seconds.
The dimming operation must have greater than 32 steps per one second.
The room lamp output should stop immediately after turning on the ignition key during the
dimming operation.
The front room lamp and the center room lamp come on for 30 seconds when\
receiving the
unlock signal from the remote control key while the doors are closed.
The front room lamp and the center room lamp output period is extended b\
y 30 seconds when
receiving the unlock signal from the remote control key again during output under step (5). (The
lamp stays on when unlocked by the remote control key.)
When a door is opened during its extended period, the lamp stays on. If closed, operates as in
step (2).
The room lamp output stops immediately after receiving the lock signal from door lock switches
while all doors are closed or entering into the anti-theft mode by pushi\
ng LOCK button on the
remote control key.
1.
2.
3.
4.
5.
6.
7.
8.
