SSANGYONG NEW ACTYON SPORTS 2013 Service Manual

03-97010-06
Immobilizer and Warning Lamp ▶
This indicator comes on when the ignition key is
communicating with the engine control unit
(during engine starting) and goes out after
starting the engine.
When turning the ignition key to the "ON"
position, the ECU (engine control unit) transmits
the challenge message to the immobilizer unit.
(This is to verify whether the key is valid. If the
verification fails, it transmits re-verification signals
3 times for 2 seconds. If three re-verifications fail,
it stops verification and starts re-verification after
10 seconds.) (1)
ECUOnly when the two signals are identical, it recognizes the
key as the authorized one and transmits the positive
message to the ECU. (6)
The ECU enable the engine to be started. (7)
Do not drop or shock to the transponder in the key as it may be damaged.
With a damaged transponder, the engine cannot be started.
When you erase the code or register an extra key, please attend on the site.
In any cases, the immobilizer system can not be removed from the vehicle. If you attempt to
remove it and damage the system, starting will be impossible, so never attempt to remove,
damage or modify it.
The remote engine starter cannot be installed to the vehicle equipped with the immobilizer system. ·
·
·
·
·ON: In communication
Blinks twice at one second intervals: Immobilizer
system fault
Blinks once at 2 second intervals: Immobilizer unit
not coded
The immobilizer indicator does not come on if
the communication time between immobilizer
key and ECU is too short.
Instrument
panel

03-10
3) Circuit Diagram

03-117010-06
5. REKES OPERATION LOGIC
1) Remote Door Lock
When briefly pressing the door lock switch on the remote control key for less than 0.5 seconds, all
doors are locked.
The system outputs the "LOCK" signal immediately after receiving the door lock message from the
remote control key. If the vehicle is locked while all doors including engine hood are closed, the theft
deterrent mode is activated (hazard warning lamps are blinking twice). 1.
2.

03-12
2) Door Unlock
When briefly pressing the door unlock switch on the remote control key for less than 0.5 seconds, all
doors are unlocked.
When receiving the DOOR UNLOCK message from the remote control key, the door unlock relay is
turned on for 0.5 seconds.
The hazard warning lamps blink once only when all the doors unlocked successfuly. 1.
2.
3.

03-137010-06
3) Remote Panic
When pressing and holding the PANIC button on the remote control key for more than 2 seconds,
the panic function is activated.
The vehicle activates the panic alarm by using the horn for 27 seconds when receiving the panic
message from the remote control key. 1.
2.

04-38210-01
1. SPECIFICATIONS
Item Specification
Rated voltage DC 13.5 V
Operating voltage DC 9 V ~ 16 V
Checking voltage DC 13.5 V
Operating temperature-30℃ ~ +80℃
Storage temperature-40℃ ~ +85℃
Illumination color Dial White
Pointer Red
LCD Red
Displays on Instrument
ClusterWarning and indicator
lamp1 blue indicator
13 red indicators
7 green indicators
8 yellow indicators
Gauge Vehicle speed
Fuel level
Engine coolant temperature
Engine speed (rpm)
LCD display Driving distance
Trip meter
Gear position display
Gear position display in
A/T(Left hand of LCD
display)A/T vehicle P, R, N, D, 1, 2, 3, 4, 5, 6
M/T vehicle R

04-4

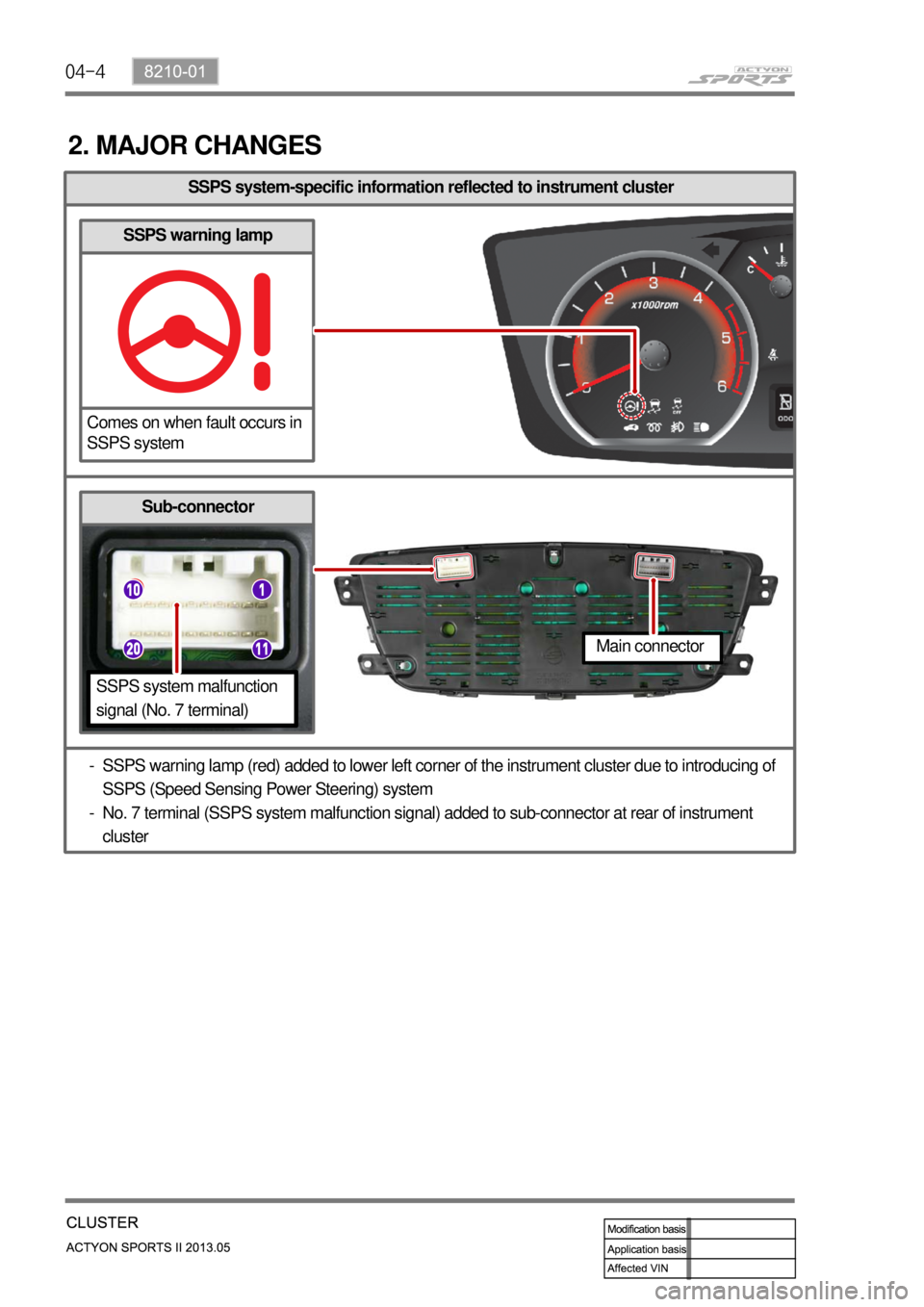

SSPS system-specific information reflected to instrument cluster
2. MAJOR CHANGES
SSPS warning lamp (red) added to lower left corner of the instrument cluster due to introducing of
SSPS (Speed Sensing Power Steering) system
No. 7 terminal (SSPS system malfunction signal) added to sub-connector at rear of instrument
cluster -
-
SSPS warning lamp
Comes on when fault occurs in
SSPS system
Sub-connector
Main connector
SSPS system malfunction
signal (No. 7 terminal)

04-58210-01
1. DESCRIPTIONS OF INDICATOR DISPLAY
Tachometer
SSPS warning light
Immobilizer indicator
Glow indicator
ESP indicator/warning light
Front fog light indicator
High beam indicator
ESP OFF indicator
Seat belt reminder (driver’s seat)
Seat belt reminder (passenger’s seat)
Engine oil pressure warning light
LCD Display
Engine overheat warning light
Engine check warning light
Auto cruise indicator
Light indicator
Winter mode indicator 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.Engine hood open warning light
Battery charge warning light
Hazard Indicator
Water separator warning light
Air bag warning light
4WD CHECK warning light
4WD LOW indicator
4WD HIGH indicator
Speedometer
Turn signal indicator
Coolant temperature gauge
Brake warning light
Door ajar warning light
ABS warning light
Fuel gauge
Low fuel level warning light 18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33. It sends and receives information to/from each unit through CAN communication line. The LCD display
and separate ESP ON/OFF indicator are newly added.

04-6
Main connector (gray)Sub connector (white)
System Layout ▶
Front view
Rear view

04-78210-01
Sub connector - 20-pin
(white)
Connector Pin Arrangement ▶
The connector pin sections illustrated below are viewed from the front of the instrument cluster. The
arrangement of the pins is the same for both the main connector and the sub connector.
1. IGN2+
2. CHARGE(ALT)
3. -
4. HAZARD
5. FRONT FOG
6. -
7. SSPS
8. PASSENGER SEATBELT
9. HOOD OPEN
10. -
11. -
12. PARKING BRAKE INPUT
13. OIL PRESSURE
14. TURN LEFT
15. HIGH BEAM+
16. TURN RIGHT
17. HIGH BEAM-
18. DRIVER SEATBELT
19. AIRBAG
20. -1. B+
2. -
3. DOOR OPEN
4. CHECK ENGIN (GSL ONLY)
5. -
6. ILL+
7. BUZZER OUTPUT
8. 4P OUTPUT
9. -
10. -
11. IGN1+
12. GND
13. FUEL GND
14. CAN HIGH
15. CAN LOW
16. MT R INPUT
17. MT N INPUT
18. RESET/MODE SW
19. FUEL INPUT
20. -
Main connector - 20-pin
