06-4
Outside rearview mirror control bezel switch ▶
Item Rated load
Outside rearview mirror switch 12 V-2 A
ESP OFF switch 12 V-0.1 A
Mirror folding switch 12 V-0.1 A
Steering wheel heating switch 12 V-0.1 A
Rear Fog Lamp Switch 12 V-0.1 A
CTR fascia switch bezel ▶
Item Rated load
4WD control switch 12 V-0.1 A (signal load)
Driver's heated seat switch 12 V-5 A (relay load)
Passenger's heated seat switch 12 V-5 A (relay load)
Head Lamp Leveling Switch 12 V-1 A (inductive load)
Rear heated seat switch ▶
Item Rated load
Rear heated seat switch 12 V-0.1 A

06-58610-08

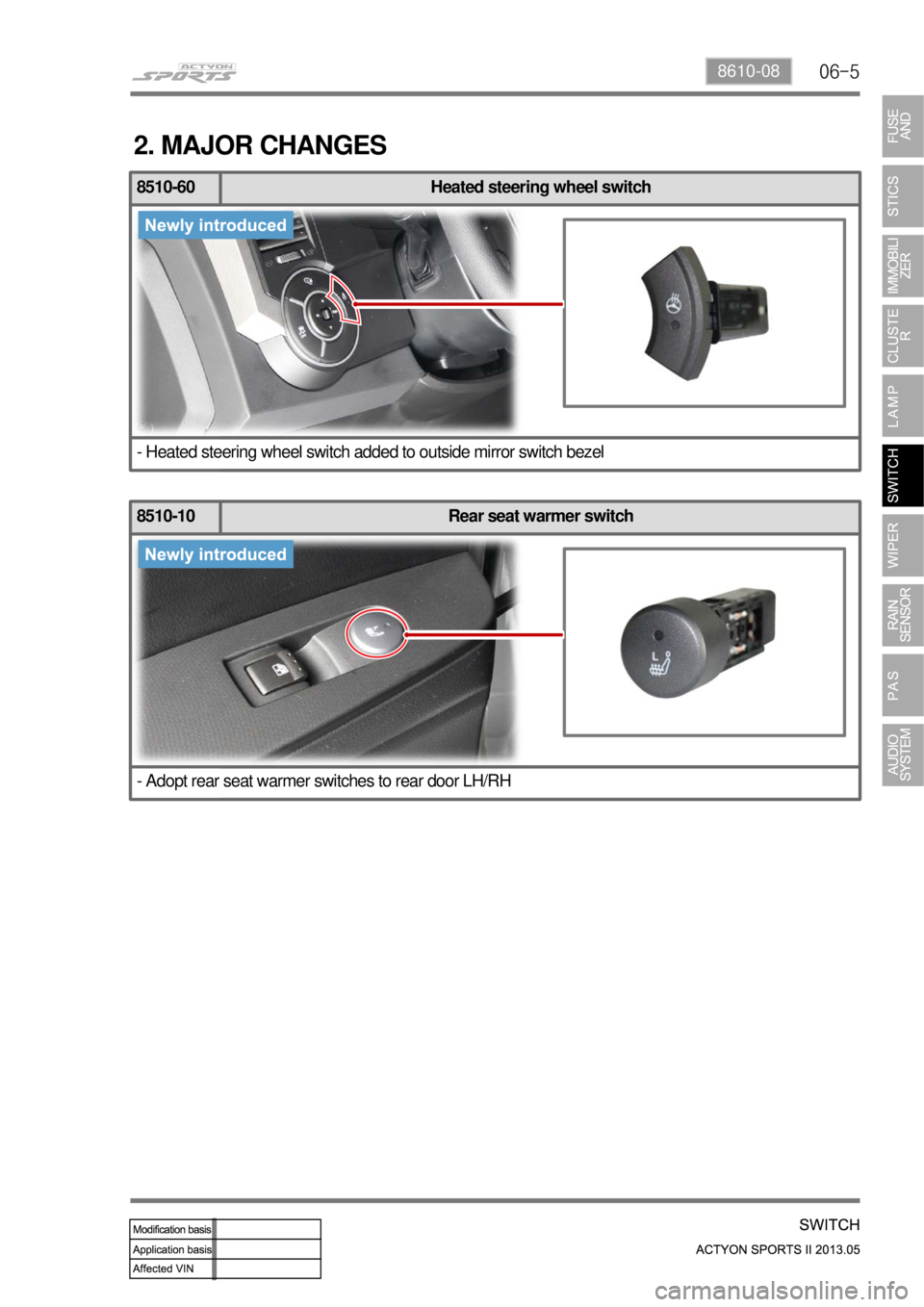

8510-60 Heated steering wheel switch
- Heated steering wheel switch added to outside mirror switch bezel
8510-10 Rear seat warmer switch
- Adopt rear seat warmer switches to rear door LH/RH
2. MAJOR CHANGES

06-6
8510-72 Multifunction switch
- Connector pin and layout changed due to heated steering wheel system adopted
- Mounting appearance changed due to changed steering wheel angle sensor
(wiring route changed) and contact coil (fixing key)
Fixing key
Mounting
groove

06-8
1. OVERVIEW
TRIP/RESET Switch
The mode is changed each time this button is
pressed as follows: TRIP A -> TRIP B -> DTE -
> Driving time -> Average fuel economy ->
Instant fuel consumption -> Tail lamp
illumination level.Windshield de-icer switch
Pressing switch activates windshield
heated glass for approx. 12 minutes
The main switch which allows the
driver to control all door windows,
door lock and window lock from the
driver seat. Tailgate and
outside rearview
mirror heated glass
switch
Pressing switch
activates tailgate and
outside rearview
mirror heated glass
for approx. 12
minutes
Driver power window switchESP ON/OFF switch
Pressing this switch deactivates the ESP (Electronic
Stability Program) system and turns on the ESP OFF
indicator on the instrument cluster. Pressing this
switch again turns off the ESP OFF indicator and
activates the ESP system. Outside rearview mirror folding/unfolding switch
Press the FOLD/UNFOLD switch to fold the outside
rearview mirror and press the switch again to unfold
the mirror.
Rear Fog Lamp Switch
The rear fog lamp comes on when
the rear fog lamp is turned on only
while the front fog lamp is ON.
Steering Wheel Heating
Switch
To heat the steering wheel,
press this switch. To stop
the heating, press it again.
The indicator on the
instrument cluster comes
on when heating and goes
off when turning off. The
heating function stops when
stopping the engine.

06-98610-08
Major Functions of Multifunction Switch (Added functions)
Automatic hazard warning flasher switch
<00470047004700470d960047006900990090008c008d009300a0004700970099008c009a009a00610047006f008800a100880099008b0047009e00880099009500900095008e0047008d00930088009a008f008c0099004700890093009000950092009a00
47009b008f0099008c008c0047009b00900094008c009a0055>
<00470047004700470d96004700770099008c009a009a004700880095008b0047008f00960093008b00610047006f008800a100880099008b0047009e00880099009500900095008e0047008d00930088009a008f008c009900470089009300900095009200
9a0047009b008c00950047009b00900094008c009a0055>Auto washer switch
Washer fluid is sprayed on
the windshield and the
wiper sweeps off 4 times.
Then, the fluid will be
sprayed again and the
wiper will automatically
operate 3 times.
Auto light switch
Front wiper and washer coupled operation
Pull the lever briefly (below 0.6 seconds):
Wiping without washer spray
Pull and hold the lever for more than 0.6 seconds:
Three wiping cycles with washer spray
4WD control switch
Driver's heated
seat switch
Passenger's heated
seat switchAudio remote control switch
Gear shift switch
Front room lamp spot switch
Sun roof switch
Main room lamp switch
Front wiper operation range
(move the wiper lever up/down)
Head lamp leveling
switch

07-37810-01
1. SPECIFICATIONS
Unit Item Specification
Wiper motor Rated voltage DC 12 V
Operating voltage DC 10 to 15 V
Lowest operating voltage DC 8 V or less
Low revolutions46 ± 5 RPM
High revolutions70 ± 9 RPM
Wiper arm and blade Wiper arm length Driver 508 mm
Passenger 537 mm
Wiper blade
lengthDriver 550 mm
Passenger 475 mm
Rain sensor Operating voltage DC 9 to 16 V
Load Max. 200 mA (relay load)
Operating temperature-30˚C to 85˚C
Mounting location Top center of inner side of windshield
glass
Washer reservoir tank Volume 3.0 L

07-4
2. MAJOR CHANGES
Wiper blade
- Changed from conventional type to aero blade type
- No change in wiper blade dimension and wiper arm
Driver: 550 mm (22 inches) Driver: 550 mm (22 inches)
Passenger: 475 mm (19 inches) Passenger: 475 mm (19 inches)

07-57810-01
3. CAUTIONS ON RAIN SENSOR
When the wiper switch is in the AUTO position, the wiper will operate for 1 cycle if the initial engine
start is made. This may cause the wiper blades to wear prematurely. Therefore, other than rainy days,
set the switch to the OFF position. Especially during the winter time, check if the wiper blades are not
frozen to the windshield.
Operating the wiper with the blades frozen can damage the wiper motor.
If you operate the wipers when the windshield is dry without spraying washer fluid, the windshield can
be scratched and the wiper blades can wear prematurely. Use the wiper with the washer fluid when
the windshield is dry.
When it does not rain, turn the wiper switch to the OFF position.
Turn the wiper switch to the OFF position before any car wash to avoid unwanted operation of the
wipers. -
-
-
-
When cleaning the windshield over the sensor with damp clothes, the wiper may operate suddenly. It
could cause serious injury. Make sure to place the wiper switch to the OFF position and ignition
switch OFF when not in use.
Irregular operation (abrupt operation) ▶
Check if the sensor is off the position.
Check if the rain sensor cover is securely installed.
Check if the customer is familiar to how to control the wiper sensitivity.
Check if the wiper sensitivity control is set to the FAST side (step 5).
Check the wiper blade for wear.
If the wiper blade cannot wipe the glass uniformly and clearly, it may cause the rain sensor to work
irregularly. Therefore, in this case, replace the wiper blade with a new one. -
-
-
-

07-6
1. OVERVIEW
The wiper & rain sensor system consists of the multifunction wiper switch, windshield wiper motor and
linkage, wiper arm and blade, rain sensor, wiper relay (LO/HI) and washer tank. The rain sensor does
not directly operate the rain sensing wiper and it sends only the data of the rainfall to the STICS. The
basic operation of the wiper and washer is controlled by the STICS according to the signal regarding the
multifunction switch operation modes (MIST, AUTO, LO/HI, washer, sensitivity adjustment).
Layout ▶
Windshield wiper motor & linkage
When the driver operates the switch so that
the wiper motor is activated, the linkage
converts the rotary motion to reciprocating
motion and transfers it to the wiper arm.
Windshield wiper arm & blade
It receives the power from the wiper linkage
and does a reciprocating motion (left to right).
Washer nozzle
Installed on both sides of the cowl grille
assembly (one on each side). Sprays washer
fluid in fan-shape to cover the windshield
area as much as possible.Washer reservoir tank
Tank that supplies washer fluid to front
washer system.
