▶STICS Circuit for Tail Lamp Auto Cut (Battery Saver)
▶Tail Lamp Auto Cut (Battery Saver) The tail lamp is turn on or off according to the operations of the tail \
lamp switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door afte
r
removing the ignition key without turning off the tail lamp.
The tail lamp relay is turned on when inserting the ignition key into th\
e ignition switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door while the
ignition key is removed and the tail lamp is turned on.
1.
2.
3.
4.

02-40
▶Door Lock/Unlock Control by Remote Control Key
The door lock relay output is "ON" for 0.5 seconds when receiving the lo\
ck signal from the
remote control key.
The door unlock relay output is "ON" for 0.5 seconds when receiving the unlock signal from the
remote control key.
1.
2.

02-438710-01
▶Time Lag Power Window Control
The power window relay output is "ON" when turning on the ignition switc\
h.
The power window relay output is "ON" for 30 seconds when turning off th\
e ignition switch.
The power window relay output is "OFF" when opening the driver's door or the passenger's
door.
The power window relay is turned "OFF" when receiving the remote control\
key lock signal
(armed mode) during its extended operation period of 30 seconds.
1.
2.
3.

02-52
Door Unlock
▶
The door unlock operates when pressing the door switch on the remote con\
trol key for longer than
0.5 seconds.
The door unlock relay is "ON" for 0.5 seconds when receiving the door un\
lock message from the
remote control key.
The hazard warning lamps blink once only when all the doors unlocked suc\
cessfuly.
1.
2.
3.

03-12
2) Door Unlock
When briefly pressing the door unlock switch on the remote control key for less than 0.5 seconds, all
doors are unlocked.
When receiving the DOOR UNLOCK message from the remote control key, the door unlock relay is
turned on for 0.5 seconds.
The hazard warning lamps blink once only when all the doors unlocked successfuly. 1.
2.
3.

04-8

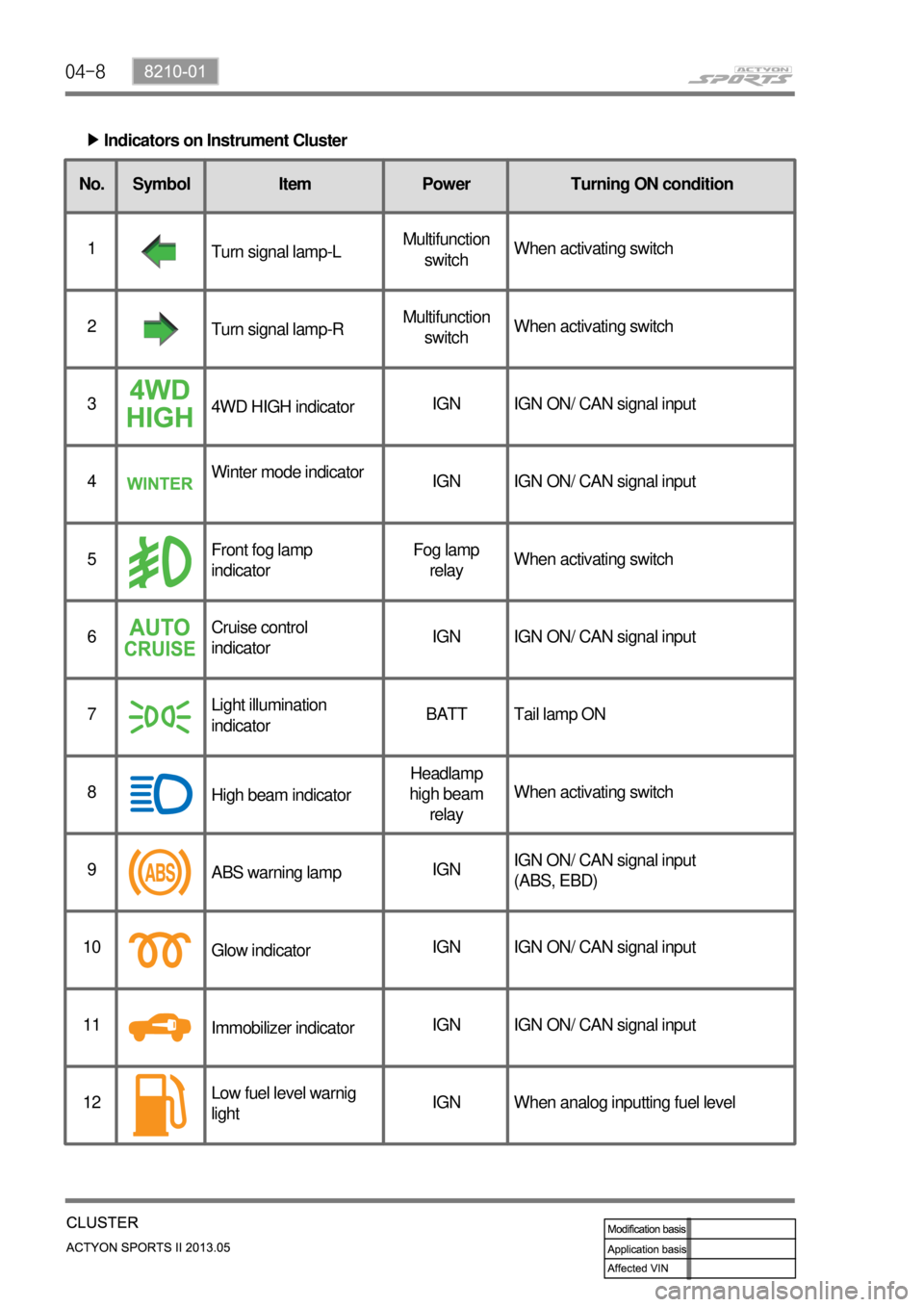

Indicators on Instrument Cluster ▶
No. Symbol Item
1
Turn signal lamp-L
2
Turn signal lamp-R
3
4WD HIGH indicator
4Winter mode indicator
5Front fog lamp
indicator
6Cruise control
indicator
7Light illumination
indicator
8
High beam indicator
9
ABS warning lamp
10
Glow indicator
11
Immobilizer indicator
12Low fuel level warnig
lightPower Turning ON condition
Multifunction
switchWhen activating switch
Multifunction
switchWhen activating switch
IGN IGN ON/ CAN signal input
IGN IGN ON/ CAN signal input
Fog lamp
relayWhen activating switch
IGN IGN ON/ CAN signal input
BATT Tail lamp ON
Headlamp
high beam
relayWhen activating switch
IGNIGN ON/ CAN signal input
(ABS, EBD)
IGN IGN ON/ CAN signal input
IGN IGN ON/ CAN signal input
IGN When analog inputting fuel level

06-38610-08

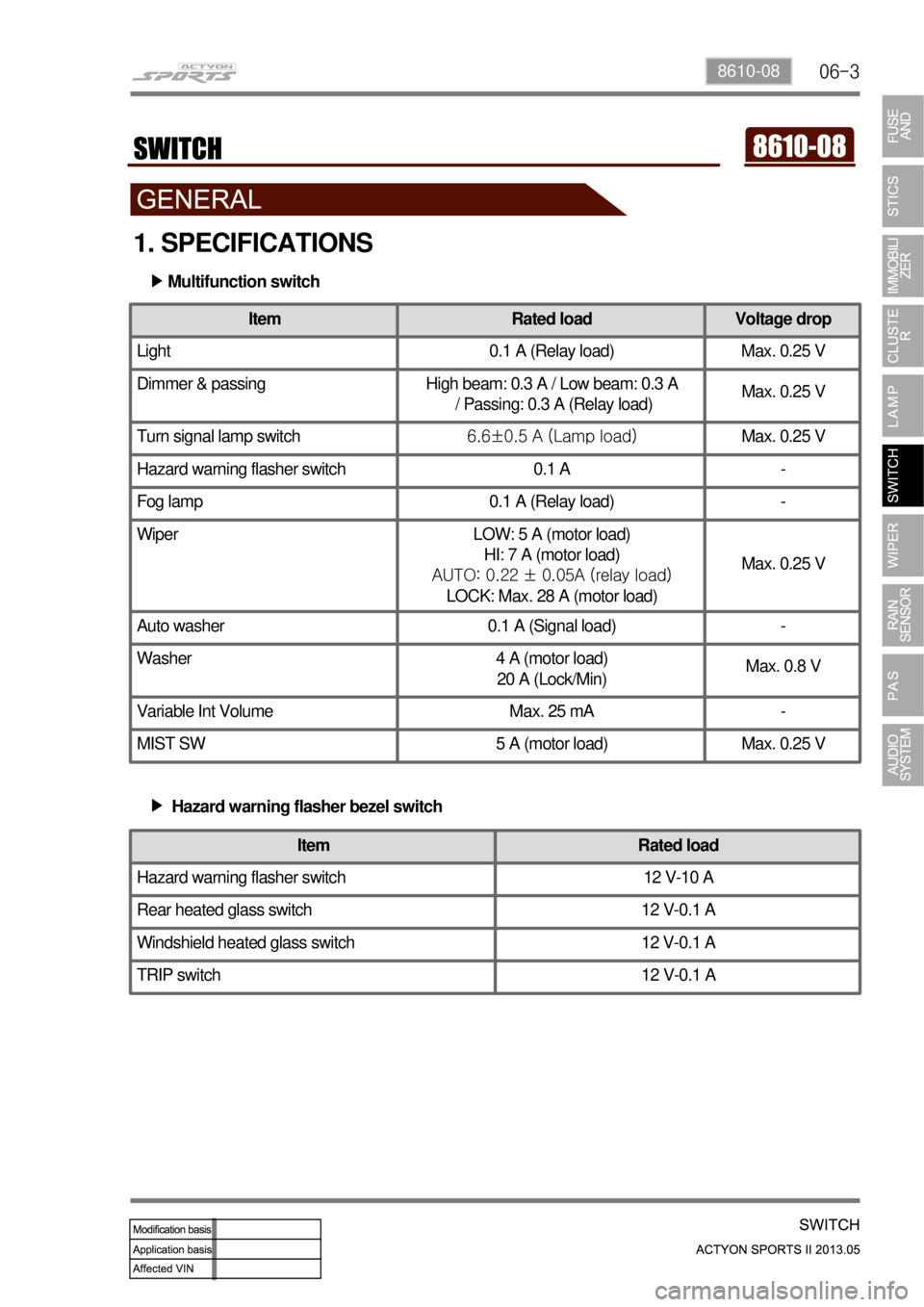

1. SPECIFICATIONS
Multifunction switch ▶
Item Rated load Voltage drop
Light 0.1 A (Relay load) Max. 0.25 V
Dimmer & passing High beam: 0.3 A / Low beam: 0.3 A
/ Passing: 0.3 A (Relay load)Max. 0.25 V
Turn signal lamp switch6.6±0.5 A (Lamp load)Max. 0.25 V
Hazard warning flasher switch 0.1 A -
Fog lamp 0.1 A (Relay load) -
Wiper LOW: 5 A (motor load)
HI: 7 A (motor load)
AUTO: 0.22 ± 0.05A (relay load)
LOCK: Max. 28 A (motor load)Max. 0.25 V
Auto washer 0.1 A (Signal load) -
Washer 4 A (motor load)
20 A (Lock/Min)Max. 0.8 V
Variable Int Volume Max. 25 mA -
MIST SW 5 A (motor load) Max. 0.25 V
Hazard warning flasher bezel switch ▶
Item Rated load
Hazard warning flasher switch 12 V-10 A
Rear heated glass switch 12 V-0.1 A
Windshield heated glass switch 12 V-0.1 A
TRIP switch 12 V-0.1 A

06-4
Outside rearview mirror control bezel switch ▶
Item Rated load
Outside rearview mirror switch 12 V-2 A
ESP OFF switch 12 V-0.1 A
Mirror folding switch 12 V-0.1 A
Steering wheel heating switch 12 V-0.1 A
Rear Fog Lamp Switch 12 V-0.1 A
CTR fascia switch bezel ▶
Item Rated load
4WD control switch 12 V-0.1 A (signal load)
Driver's heated seat switch 12 V-5 A (relay load)
Passenger's heated seat switch 12 V-5 A (relay load)
Head Lamp Leveling Switch 12 V-1 A (inductive load)
Rear heated seat switch ▶
Item Rated load
Rear heated seat switch 12 V-0.1 A

07-37810-01
1. SPECIFICATIONS
Unit Item Specification
Wiper motor Rated voltage DC 12 V
Operating voltage DC 10 to 15 V
Lowest operating voltage DC 8 V or less
Low revolutions46 ± 5 RPM
High revolutions70 ± 9 RPM
Wiper arm and blade Wiper arm length Driver 508 mm
Passenger 537 mm
Wiper blade
lengthDriver 550 mm
Passenger 475 mm
Rain sensor Operating voltage DC 9 to 16 V
Load Max. 200 mA (relay load)
Operating temperature-30˚C to 85˚C
Mounting location Top center of inner side of windshield
glass
Washer reservoir tank Volume 3.0 L

07-6
1. OVERVIEW
The wiper & rain sensor system consists of the multifunction wiper switch, windshield wiper motor and
linkage, wiper arm and blade, rain sensor, wiper relay (LO/HI) and washer tank. The rain sensor does
not directly operate the rain sensing wiper and it sends only the data of the rainfall to the STICS. The
basic operation of the wiper and washer is controlled by the STICS according to the signal regarding the
multifunction switch operation modes (MIST, AUTO, LO/HI, washer, sensitivity adjustment).
Layout ▶
Windshield wiper motor & linkage
When the driver operates the switch so that
the wiper motor is activated, the linkage
converts the rotary motion to reciprocating
motion and transfers it to the wiper arm.
Windshield wiper arm & blade
It receives the power from the wiper linkage
and does a reciprocating motion (left to right).
Washer nozzle
Installed on both sides of the cowl grille
assembly (one on each side). Sprays washer
fluid in fan-shape to cover the windshield
area as much as possible.Washer reservoir tank
Tank that supplies washer fluid to front
washer system.
