relay SSANGYONG NEW ACTYON SPORTS 2013 Workshop Manual

07-77810-01
Emitter lens
The LED which is located at
bottom emits the infrared rays and
the lens guides the infrared rays to
target point.
Auto light sensor
Enlarged auto light sensor section
Auto light sensor (Vertical)
Auto light sensor (Horizon)
Wiper (HI, LO) relays
Used 3-way relay consisting of 5-pinSTICS
It receives the signals regarding the rain
sensor, multifunction wiper switch and
vehicle speed to control the wiper system
with the various functions.
Multifunction wiper switches
AUTO: Wiper operates automatically by rain
sensor
FAST to SLOW: Auto delay/auto speed control. A
position that can control sensitivity against rains
on the windshield and transmits wiping demand
signal accordingly.
Wiper relay (LO) Wiper relay (HI)
Rain sensor unit
Integrated into the auto light sensor. Detects and sends amount of rain drops to STICS

07-10

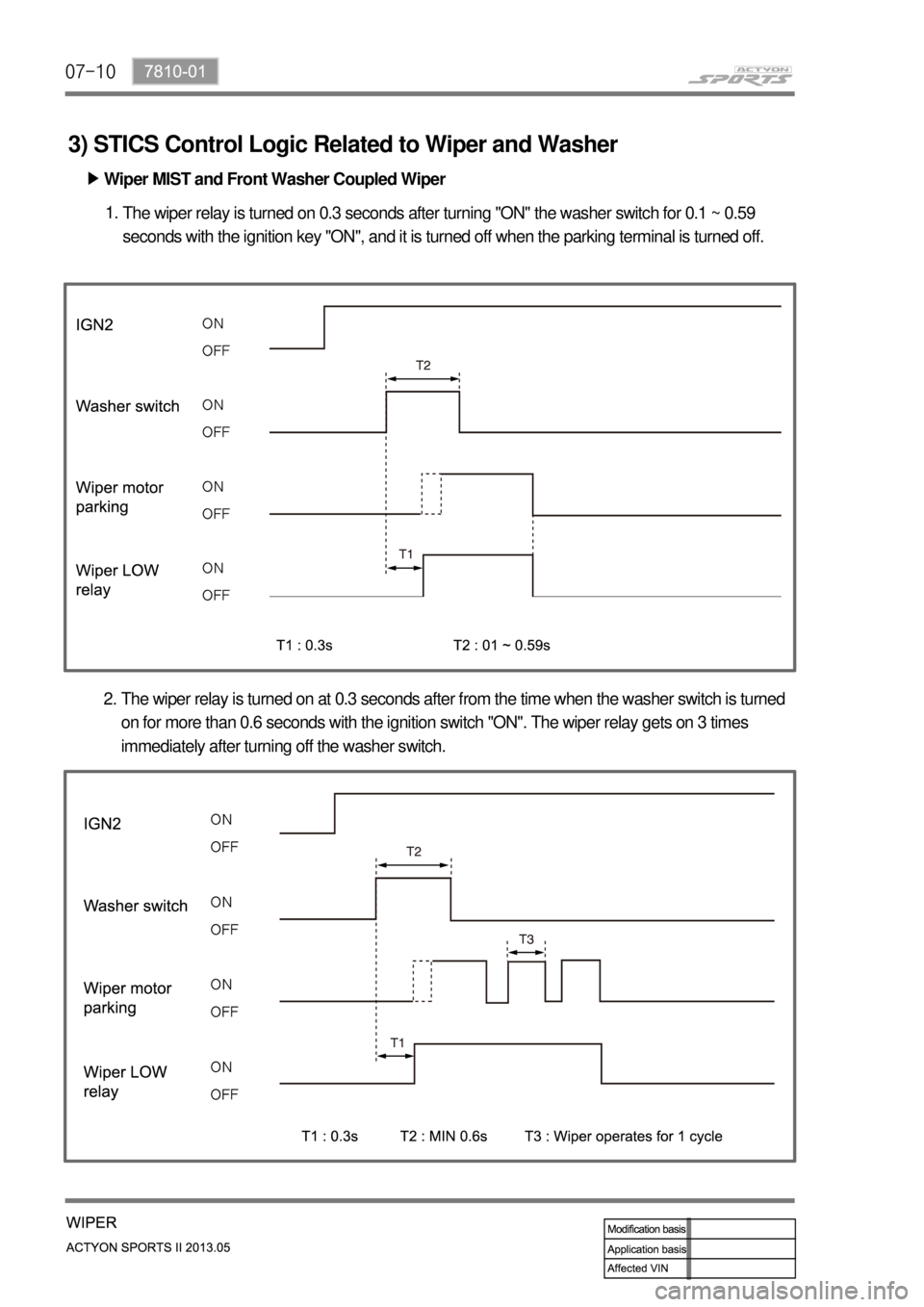

3) STICS Control Logic Related to Wiper and Washer
Wiper MIST and Front Washer Coupled Wiper ▶
The wiper relay is turned on 0.3 seconds after turning "ON" the washer switch for 0.1 ~ 0.59
seconds with the ignition key "ON", and it is turned off when the parking terminal is turned off. 1.
The wiper relay is turned on at 0.3 seconds after from the time when the washer switch is turned
on for more than 0.6 seconds with the ignition switch "ON". The wiper relay gets on 3 times
immediately after turning off the washer switch. 2.

08-4
STICS Engine Compartment Fuse Box
STICS ▶
The rain sensing unit detects the amount of rain drops and sends the operating signal to STICS, and
STICS drives the wiper directly. At this moment, STICS determines the wiper operation mode (washer,
MIST, AUTO), then sends the information to the rain sensor.
Auto Light Sensor and Rain Sensor Coupled Control ▶
Rain detected headlamp: If it rains heavy which requires the highest INT speed (almost LOW),
the headlamps are turned on automatically. -
Night detected wiping: When the auto light control turns on the headlamps and the rain sensor
detects the rain, the wiper sensitivity is automatically increased by one level in comparison with
daytime.
(i.e. the AUTO wiper switch is at the 3rd level, but the wiper operates at the 4th level.) -Wiper relay (HI)
Wiper relay (LO)

08-58610-09
1) Power-up Reminder Wiper Function
When turning off and on the auto INT switch, the system drives the wiper motor through LOW
relay regardless of communication with rain sensor. 1.
When turning the INT-AUTO switch from the "OFF" to "ON" position with the ignition switch in
the "ON" mode, the LOW relay operates to drive the wiper motor for 1 cycle, regardless of the
rain sensor communication.
After that, when turning the INT-AUTO switch from the "OFF" to "ON" position, the LOW relay
operates to drive the wiper motor for 1 cycle only if data from the rain sensor indicates rain
drops. 2.
2. FUNCTIONS OF RAIN SENSING WIPER

08-78610-09
3) Sensitivity Control
The wiper LOW relay is turned on and the wiper motor runs one cycle when the volume
<009a008c0095009a0090009b0090009d0090009b00a000470090009a004700900095008a0099008c0088009a008c008b0047004f008c009f00610047009a008c0095009a0090009b0090009d0090009b00a00047005700470d7d0047005800500047009e00
8f00900093008c0047009b008f008c00470090008e00950090>tion switch and the INT switch is
in the "ON" position, and the wiper motor is in "Parked" position). However, the wiper motor can
be operated only when the rain sensor detects the "Rain Detected" signal. 1.
If the volume sensitivity is changed more than 1 stage within 2 seconds, the wiper motor runs only
one cycle.
4) Auto Light Control
Only when the auto light switch is in "AUTO" position, it controls the tail lamp and headlamp by
communicating with the rain sensor (while the ignition key is in "ON" position). 1.

08-98610-09
6) Defective Rain Sensor
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 3 from 4 during receiving the malfunction signal from the rain sensor,
while the ignition key is in "ON" position and the wiper switch is in "ON" position. 2.The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 2 from 3 during receiving the malfunction signal from the rain sensor,
while the ignition key is in "ON" position and the wiper switch is in "ON" position. 1.

08-118610-09
Pause Time Table of Vehicle Speed Coupled INT Wiper ▶
Speed sensitive INT (intermittent) wiper 1.Pause time against vehicle speed ▶
Cautions for wiper control ※
The wiper relay continues to output for remaining "ON" time even when the INT switch is turned off
during its operation.
IGN switch "ON", INT switch "OFF": Resume the intermittent time when turning "ON".
IGN switch "ON", INT switch "ON": Resume the intermittent time when turning "ON". -
-
-
Controls when the wiper motor parking is defective 2.
The wiper relay continues to output when the parking terminal is fixed at the ground or IGN
while the wiper relay is "ON" i.e., with the INT switch ON or washer switch ON. (The output
stops immediately after turning off the switch) -

10-12
2) EBD (Electronic Brake-force Distribution) Warning Lamp
EBD warning lamps (brake warning lamp and ABS warning lamp) come on when the system performs
the self diagnosis and when it detects the malfunction of EBD system. However, the brake warning lamp
comes on regardless of EBD system when the parking brake is applied.
EBD warning lamp ON:
When turning the ignition switch to ON position, ABS warning lamp and the brake warning lamp
comes on for 3 seconds for self diagnosis and goes off if the system is OK (initialization mode).
When applying the parking brake, the brake warning lamp comes on.
When the brake fluid is not sufficient, the brake warning lamp comes on.
When disengaging the connector, the warning lamp comes on.
When the system is defective, ABS warning lamp and the brake warning lamp come on
simultaneously. A.
B.
C.
D.
E.
When the solenoid valve is defective
When one or more wheel sensors are defective
When ABS HECU is defective
When the voltage is abnormal
When valve relay is defective a.
b.
c.
d.
e.
When the communication between warning lamp CAN modules in meter cluster is failed, the
warning lamp comes on. F.

11-14
2) EBD (Electronic Brake-force Distribution) Warning Lamp (Brake
Warning Lamp)
EBD warning lamp when the system perform the self diagnosis and when it detects the malfunction of
EBD system. However, the brake warning lamp comes on regardless of EBD when the parking brake is
applied.
EBD warning lamp ON:
When turning the ignition switch to ON position, ABS warning lamp and the brake warning lamp
comes on for 3 seconds for self diagnosis and goes off if the system is OK (initialization mode).
When applying the parking brake, the brake warning lamp comes on.
When the brake fluid is not sufficient, the brake warning lamp comes on.
When disengaging the connector, the warning lamp comes on.
When the system is defective, ABS warning lamp and the brake warning lamp come on
simultaneously. 1.
2.
3.
4.
5.
When the solenoid valve is defective
When one or more wheel sensors are defective
When ABS HECU is defective
When the voltage is abnormal
When valve relay is defective a.
b.
c.
d.
e.
When the communication between warning lamp CAN module in meter cluster, the warning
lamp comes on. 6.
3) ESP OFF Indicator
ESP OFF indicator ON:
When turning the ignition switch to ON position, ESP warning lamp comes on for 3 seconds for self
diagnosis and goes off if the system is OK (initialization mode).
When the ESP OFF switch is pressed to turn off ESP function, ESP OFF indicator comes on. 1.
2.
4) ESP Warning Lamp
ESP warning lamp ON:
When turning the ignition switch to ON position, ESP warning lamp comes on for 3 seconds for
self diagnosis and goes off if the system is OK (initialization mode).
When the system is defective, the warning lamp comes on.
When the ESP function is activated, ESP warning lamp blinks with the interval of 2 Hz.
When the communication between warning lamp CAN module in meter cluster, the warning lamp
comes on. 1.
2.
3.
4.
5.
5) ESP OFF Switch
If ESP OFF switch is pressed, ESP function is deactivated and the ESP OFF indicator in the instrument
cluster comes on.
To resume the ESP function, press the switch again. At this time, ESP OFF indicator goes out.

02-158810-01
The "Unlock" control by air bag signal prevails over any "LOCK" or "UNLOCK" control by other
functions.
The "LOCK/UNLOCK" request by other functions will be ignored after/during the output of
"UNLOCK" by the air bag.
However, the door lock is controlled by other functions when the ignition switch is "OFF".
"LOCK" (or "UNLOCK") output is ignored if "LOCK" (or "UNLOCK") output is required while
performing the output of "LOCK" (or "UNLOCK").
However, UNLOCK by air bag signal and operation by the remote control key are valid.
If the door lock system outputs "LOCK" and "UNLOCK" simultaneously, only the "LOCK" output can
be activated. 1.
2.
3.
4.Cautions for Door Lock/Unlock Control ▶
ING KEY
SW(*1)
Deployment
signal
Door unlock
relayON
OFF
ON
OFF
ON
OFF
T1 : 200ms T2 : 40ms T3 : 5s T3 T2 T1
