Item Front view Rear view Internal structure
RKSTICS key
2. OVERVIEW
The Immobilizer System provides an additional theft deterrent to the vehicle in which it is installed and
prevents it from being started by unauthorized persons. The transponder integrated in the key and the
engine control unit has the same code. When the ignition key with the integrated transponder is turned to
the ON position, the ECU (Engine Control Unit) checks the crypto code of the key and, if correct, allows
your vehicle to start the engine.
Immobilizer unit
RKSTICS Key ▶

04-38210-01
1. SPECIFICATIONS
Item Specification
Rated voltage DC 13.5 V
Operating voltage DC 9 V ~ 16 V
Checking voltage DC 13.5 V
Operating temperature-30℃ ~ +80℃
Storage temperature-40℃ ~ +85℃
Illumination color Dial White
Pointer Red
LCD Red
Displays on Instrument
ClusterWarning and indicator
lamp1 blue indicator
13 red indicators
7 green indicators
8 yellow indicators
Gauge Vehicle speed
Fuel level
Engine coolant temperature
Engine speed (rpm)
LCD display Driving distance
Trip meter
Gear position display
Gear position display in
A/T(Left hand of LCD
display)A/T vehicle P, R, N, D, 1, 2, 3, 4, 5, 6
M/T vehicle R

04-58210-01
1. DESCRIPTIONS OF INDICATOR DISPLAY
Tachometer
SSPS warning light
Immobilizer indicator
Glow indicator
ESP indicator/warning light
Front fog light indicator
High beam indicator
ESP OFF indicator
Seat belt reminder (driver’s seat)
Seat belt reminder (passenger’s seat)
Engine oil pressure warning light
LCD Display
Engine overheat warning light
Engine check warning light
Auto cruise indicator
Light indicator
Winter mode indicator 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.Engine hood open warning light
Battery charge warning light
Hazard Indicator
Water separator warning light
Air bag warning light
4WD CHECK warning light
4WD LOW indicator
4WD HIGH indicator
Speedometer
Turn signal indicator
Coolant temperature gauge
Brake warning light
Door ajar warning light
ABS warning light
Fuel gauge
Low fuel level warning light 18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33. It sends and receives information to/from each unit through CAN communication line. The LCD display
and separate ESP ON/OFF indicator are newly added.

04-98210-01
Power Turning ON condition
IGN IGN ON/ CAN signal input
IGN IGN ON/ CAN signal input
IGNIGN ON/ CAN signal input
(ESP & buzzer activated)
IGN IGN ON/ CAN signal input
IGN IGN ON, CAN signal input (EBD)
IGN IGN ON/ CAN signal input
IGN Signal input
BATT When door opened
IGN Charge system fault
IGN Switch input
IGN Switch inputNo. Symbol Item
13Engine check warning
lamp
144WD LOW
indicator
15ESP indicator/ warning
light
16 ESP OFF indicator
17 Brake warning light
184WD CHECK
indicator
19Air bag warning lamp
20Door ajar waning light
21Charge warning lamp
22Seat belt warning light
(driver)
23Seat belt warning light
(passenger)

04-118210-01
2. CONFIGURATION
1) RPM Gauge
The tachometer indicates engine speed in revolutions per minute. Multiply 1,000 to the current number,
then it will be the current number of engine revolutions.
Under the normal engine operating temperature, the proper idling speed is 700 ~ 800 rpm. The red zone
(danger rpm range) starts from 4,500 rpm.
Connect the tachometer for tune-up test and start the engine.
Eliminate the hysteresis by tapping the tachometer.
Compare the values on the tester and tachometer and replace the tachometer if the tolerance is
excessive. 1.
2.
3.
If the tachometer (engine rpm gauge) pointer vibrates or stops moving at a certain range, or abnormal
noises are heard from the tachometer, the tachometer may have a malfunction. If you have reason to
suspect that the reading from the tachometer differs from the actual engine speed (rpm), connect a
diagnostic device and compare the value on tachometer with the reading from the diagnostic device.
Check Method

04-20
3. WARNING LIGHTS AND INDICATORS
ESP OFF Indicator
This lamp comes on when
pressing the "ESP OFF" switch or
the ESP system is defective.
When the ESP system is
activated, this lamp blinks and a
chime sounds.
Immobilizer Indicator
This indicator comes on
when the ignition key is
communicating with the
engine control unit for
approx. 0.5 seconds.Glow Indicator
When the ignition key is turned
ON, this indicator lamp comes on
and the combustion chamber is
warmed up. In the vehicle
equipped with direct injection type
engine, this indicator may come
on very shortly or may not come
on.
Fog Lamp / Headlamp
High Beam Indicator
This lamp comes on when
the fog lamp or high beam
headlamp operates to
indicate the operating
status.Engine Oil Pressure Warning
Light
This lamp comes on if there is any
fault in the engine oil system and
goes off when a certain amount of
time has elapsed after turning ON
the ignition switch.
Door ajar warning
light
This light comes on
when a door or
tailgate is either
opened or not closed
completely.Brake warning light
This warning light comes on
and warning buzzer sounds
when the parking brake is
applied and/or the brake fluid
level is lower than specified
level.Seat belt warning lamp
The seat belt warning light comes on and
the seat belt warning chime sounds for 6
seconds when the ignition switch is
turned to "ON" position unless the
driver's seat belt is securely fastened.
This reminding operation stops when the
driver fastens the seat belt.
Engine Coolant Overheat
Warning Light
When the coolant temperature is
abnormally hot (over 120℃), this
warning light blinks and a warning
buzzer sounds at 1 Hz. (check
cooling system)
SSPS warning light
This warning light comes on when
the SSPS system is defective.
When this warning light comes
on, the steerability becomes
heavier.

04-218210-01
ABS Warning Light
This warning light comes on
when the ignition switch is turned
to "ON" position and should go
out if the system is normal.
The vehicle with ABS performs
self-diagnosis. During this
diagnosis, brake pedal vibration
and noise may be apparent
when the driving motors
discharges the hydraulic
pressure from the internal
hydraulic device.4WD IndicatorLow Fuel Level
Warnig Light
This warning light
comes on when the
fuel will soon be
exhausted. The time
it takes turn on,
however, varies
according to the
gradient of the
vehicle.
4WD HIGH Indicator
The lamp blinks momentarily during
the change of driving mode.
4WD LOW Indicator
The lamp blinks momentarily during
the change of driving mode.
4WD CHECK Warning Light
This indicates that there is something
wrong in the transfer case system.
(check the system) -
-
-
Auto Cruise Control
Indicator
Operating the cruise
control switch turns on
the indicator lamp to
indicate the cruise
control system is
activated.
Water Separator Warning Light
This lamp comes on to warn the driver of
water in the fuel tank which causes the loss
of engine power. When a certain amount of
water is accumulated, the lamp comes on
and a chime sounds.
Engine CHECK Warning Light
This warning light comes on when the
ignition switch is turned to "ON"
position and should go out if the
system related to engine control is
normal.
This comes on when different sensors
and devices related to engine control
are defective.
Winter Mode
Indicator
Pressing the "W" side of the
automatic transmission mode
selector switch switches the driving
mode to winter mode and turns on
the indicator lamp.
Use this mode to drive off smoothly
on icy and slippery roads.
Charge Warning Light
This warning light comes on when the
ignition switch is turned on and go off when
the engine is started.
If this light doesn't go off after engine starting,
it means there is a malfunction in the system.
Engine Hood Open Warning Light
When the engine hood is open, this light
comes on to inform the driver.
Hazard Indicator
This indicator blinks when the
hazard warning flashers are
switched on.

04-22
How to enter self-diagnosis mode ▶
Turn the ignition ON with the TRIP switch pressed.
Press and hold the TRIP switch for 5 to 10 sec. with the ignition ON.
Press and hold the TRIP switch for less than 10 sec. and then cycle the switch between ON and
OFF 5 times within 3 sec.
Confirm that the self-diagnosis mode is activated through the instrument cluster. 1.
2.
3.
4.
4. SELF-DIAGNOSIS CHECK
Self-diagnosis OFF ▶
If the engine speed increases to 396 rpm or more while the engine is cranking or the ignition key is
turned OFF in self-diagnosis mode, the self-diagnosis mode is turned OFF automatically.
Operating process ▶
Speed gauge: changes from 0 to 220 km
RPM gauge: changes from 0 to 6,000 rpm
Fuel gauge: changes from E to F
Temperature gauge: changes from C to H
Warning/Indicator lamps: All indicator/warning lamps controlled by MICOM are turned ON.
Dimming: Illuminates at the highest lighting level.
LCD display: All elements are activated. 1.
2.
3.
4.
5.
6.
7.

07-57810-01

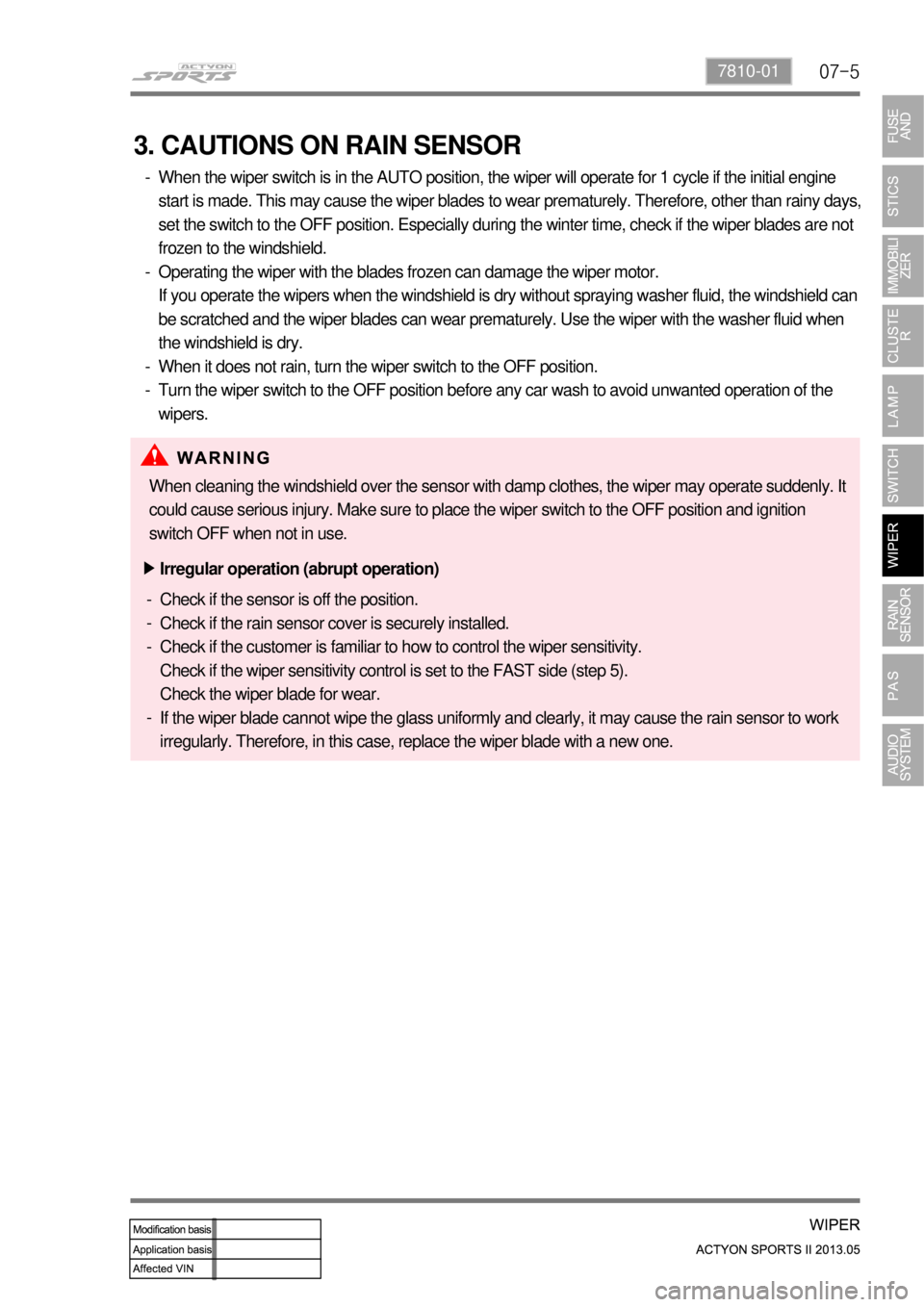

3. CAUTIONS ON RAIN SENSOR
When the wiper switch is in the AUTO position, the wiper will operate for 1 cycle if the initial engine
start is made. This may cause the wiper blades to wear prematurely. Therefore, other than rainy days,
set the switch to the OFF position. Especially during the winter time, check if the wiper blades are not
frozen to the windshield.
Operating the wiper with the blades frozen can damage the wiper motor.
If you operate the wipers when the windshield is dry without spraying washer fluid, the windshield can
be scratched and the wiper blades can wear prematurely. Use the wiper with the washer fluid when
the windshield is dry.
When it does not rain, turn the wiper switch to the OFF position.
Turn the wiper switch to the OFF position before any car wash to avoid unwanted operation of the
wipers. -
-
-
-
When cleaning the windshield over the sensor with damp clothes, the wiper may operate suddenly. It
could cause serious injury. Make sure to place the wiper switch to the OFF position and ignition
switch OFF when not in use.
Irregular operation (abrupt operation) ▶
Check if the sensor is off the position.
Check if the rain sensor cover is securely installed.
Check if the customer is familiar to how to control the wiper sensitivity.
Check if the wiper sensitivity control is set to the FAST side (step 5).
Check the wiper blade for wear.
If the wiper blade cannot wipe the glass uniformly and clearly, it may cause the rain sensor to work
irregularly. Therefore, in this case, replace the wiper blade with a new one. -
-
-
-

01-20
3) Transmission Control Monitoring System
TCU monitors all input and output signals to identify possible failures. If a fault is detected, TCU activates
<009b008f008c0047009a0088008d008c009b00a0004700940096008b008c0047009b009600470092008c008c00970047009b008f008c0047008b00990090009d008c009902c5009a0047009a0088008d008c009b00a0004700880095008b0047009b008f00
8c004700930090008d008c0047009a00970088009500470096>f transmission.
Monitoring the Supply Voltage ▶
Monitoring the Supply Voltage to Solenoid ▶
Monitoring the Gear Ratio ▶
Monitoring the Torque Converter ▶ If the battery voltage is too high or too low, the TCU sets the DTC.
TCU monitors the circuits for open or short to ground or supply. The monitoring function evaluates the
voltage characteristics while the switch is ON.
TCU monitors the gear is engaged properly in the allowed time.
TCU checks if the torque converter can be locked up properly. If it is failed, TCU releases the torque
converter clutch to activate the fail-safe operation.
4) Shift Energy Management
This function involves reducing or increasing the engine output torque during shifting. This reduces the
energy which is dissipated in the friction elements of the transmission during up-shift. This is done by
reducing the engine torque during the gear ratio change without interrupting the tractive drive.
This function is used for:
Increasing the life span of transmission by shortening the slipping time
Improving the shift comfort by reducing the step changes due to gearshift
Transferring a higher engine power -
-
-
Real-time control of engine torque is required to maintain the proper shift operations and the durability of
transmission. TCU controls the engine torque during the gearshift by synchronizing the operation of
transmission clutches.
