SSANGYONG NEW ACTYON SPORTS 2013 Service Manual

04-6
2) Sunroof Sliding Opening/Closing
Opening sunroof (Sliding open) ▶
Auto open
When turing the switch to the "OPEN" position briefly, the sunroof is tilted up and opened
automatically until it stops. The sunroof operation stops if you operate the switch during its operation.
Manual open
1st step (tilt up): When making a long turn of the switch to the "OPEN" position with the sunroof
closed, it is tilted up.
2nd step (opens by itself from tilted up condition): When making a long turn of the switch to the
"OPEN" position with the sunroof tilted up, it opens only whilst turning the switch. -
-
Closing sunroof (Sliding close) ▶
Manual close
While turning the switch to the "CLOSE" position, the sunroof is closed. Release the switch at the
desired position.
Since the sunshade blind does not operate together with the sunroof, you should open and
close it manually.

05-37710-06

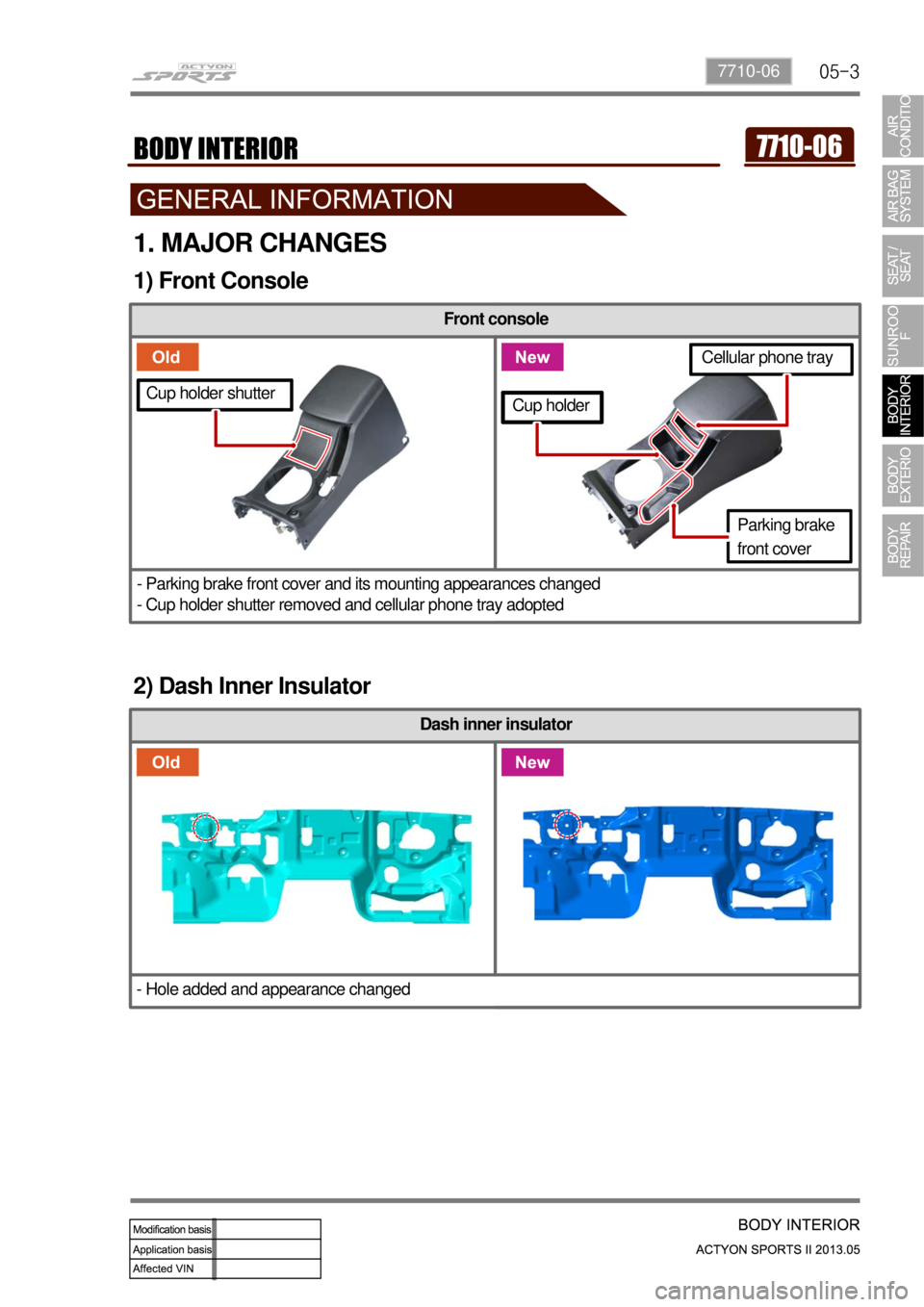

1. MAJOR CHANGES
1) Front Console
Front console
- Parking brake front cover and its mounting appearances changed
- Cup holder shutter removed and cellular phone tray adopted
2) Dash Inner Insulator
Dash inner insulator
- Hole added and appearance changed
Cup holder shutterCup holder
Cellular phone tray
Parking brake
front cover

05-4
3) Floor Mat
Floor mat
A. Hole added and appearance changed
B. Silt line added and appearance changed due to heated rear seat adoption
4) Floor Rear Insulator
Rear Front
Floor rear insulator
- Hole added and appearance changed
Rear Front

07-34110-01
Top view
Side view
Front view Rear view
1910
1790
3060
4990
1570
1570
1. DIMENSIONS
Unit: mmMajor Dimensions ▶

07-4
Detailed Dimensions ▶
Unit: mm
Headlamp
Front fog lamp
Side repeater
Front turn signal lamp
Position lamp 1.
2.
3.
4.
5.Stop/Tail lamp
Back-up lamp
License plate lamp
Rear turn signal lamp
Reflector 6.
7.
8.
9.
10.

07-54110-01
Unit: mm

07-6
2. LIFTING POINTS
Lifting point Lifting point

07-74110-01
3. DESIGN FOR IMPROVING NVH
1) Dual Type Dash Panel and Engine Tunnel with Foaming Pad
Dash
panel
Deadening sheet
Dash
reinforcement
Added an additional member to the bottom of
dash panel to minimize the possibility of engine
retreat when collision.
Reinforcement for Front Floor and Rear Floor ▶

07-8
2) Applied BPR (Body Panel Reinforcement) Sealer to the Door
Outer Panel
Foaming pad
Foaming pad Foaming pad
