01-5
FUSE AND RELAY
RODIUS 2005.07
8410-05
2. INTERIOR FUSE COMPARTMENT
The interior fuse box is located in the lower area of driver side instrument panel.
To check the fuses, open the driver side door and remove the fuse box cover. ·
·

01-6
RODIUS 2005.07
8410-05
FUSE AND RELAY
3. ICM(INTEGRATED CONTROL MODULE) BOX
COMPARTMENT
The ICM box is installed along with RK STICS on the bracket behind the Instrument panel
undercover.
It contains an integrated module with around 14 relays according to the vehicle model. Relays
in the module are installed on the integrated circuit with a safety circuit. This system operates
with small current (by using transistor) and minimizes the sparks that occur during operations
(connection/disconnection) of relays; therefore its durability and wear resistance has been
greatly increased compared to the conventional relays.
Relays in the ICM box cannot be replaced respectively; so when the internal components
(including relay) are defective, ICM box should be replaced as an assembly.
RK STICS
ICM box

01-7
FUSE AND RELAY
RODIUS 2005.07
8410-05

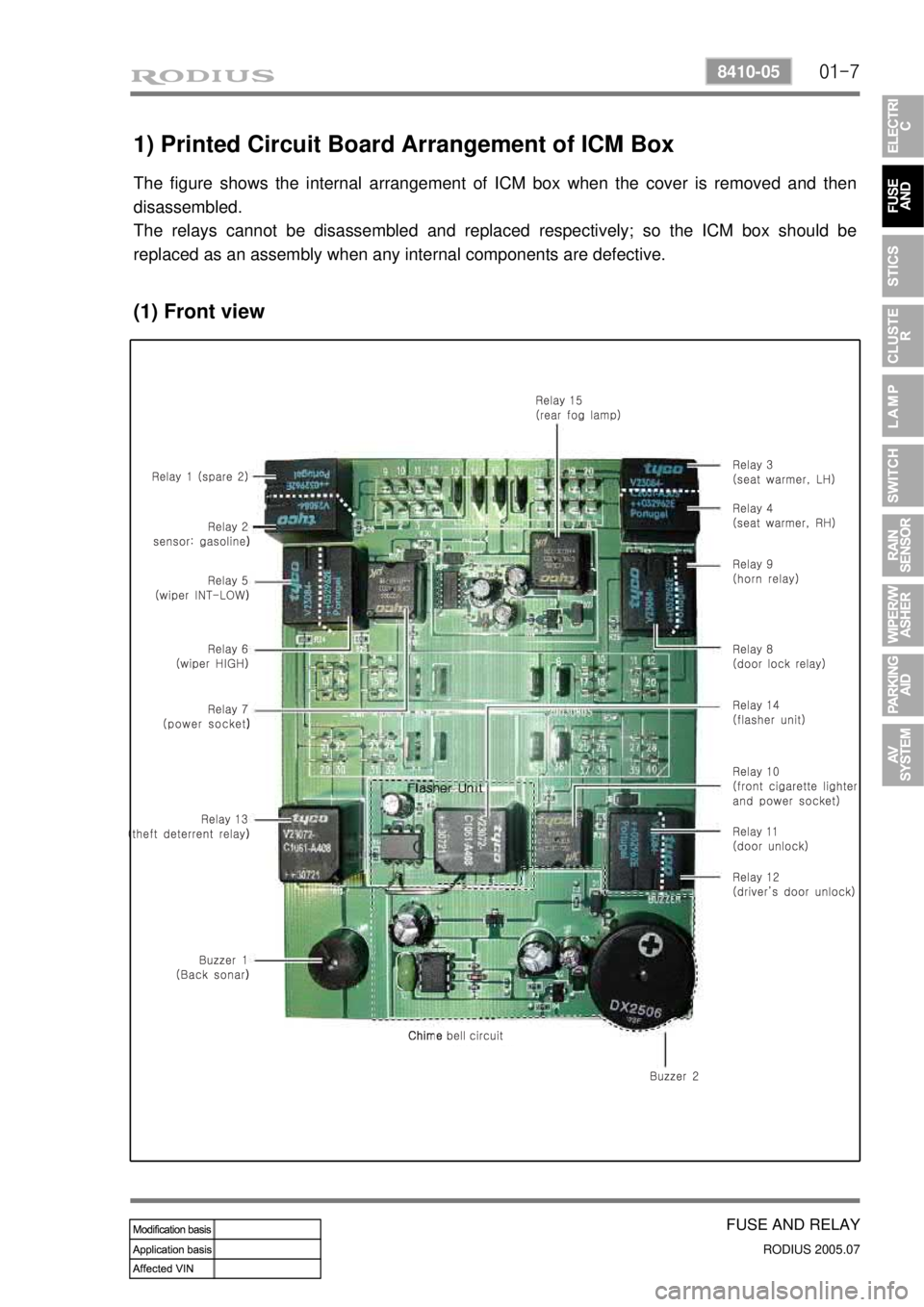

1) Printed Circuit Board Arrangement of ICM Box
The figure shows the internal arrangement of ICM box when the cover is removed and then
disassembled.
The relays cannot be disassembled and replaced respectively; so the ICM box should be
replaced as an assembly when any internal components are defective.
(1) Front view

0-27
STICS
RODIUS 2005.07
8710-01
This vehicle has the windshield heated glass and the tailgate and outside rearview mirror
heated glass. The heater relay in the ICM box controls the tailgate and outside rearview mirro
r
heated glass and its fuse (15A) is located in the engine compartment fuse box.
Defogger switch
