SSANGYONG RODIUS 2005 Service Manual

0-8
RODIUS 2005.07
8710-01
STICS
If the washer operating signal is inputted while the wipers are operating in intermittent or
AUTO mode, the system stores the previous intermittent interval and operates the washe
r
coupled wiper. After then, the wiper operation returns back to intermittent or AUTO mode
with the stored operating interval. 3.

0-9
STICS
RODIUS 2005.07
8710-01

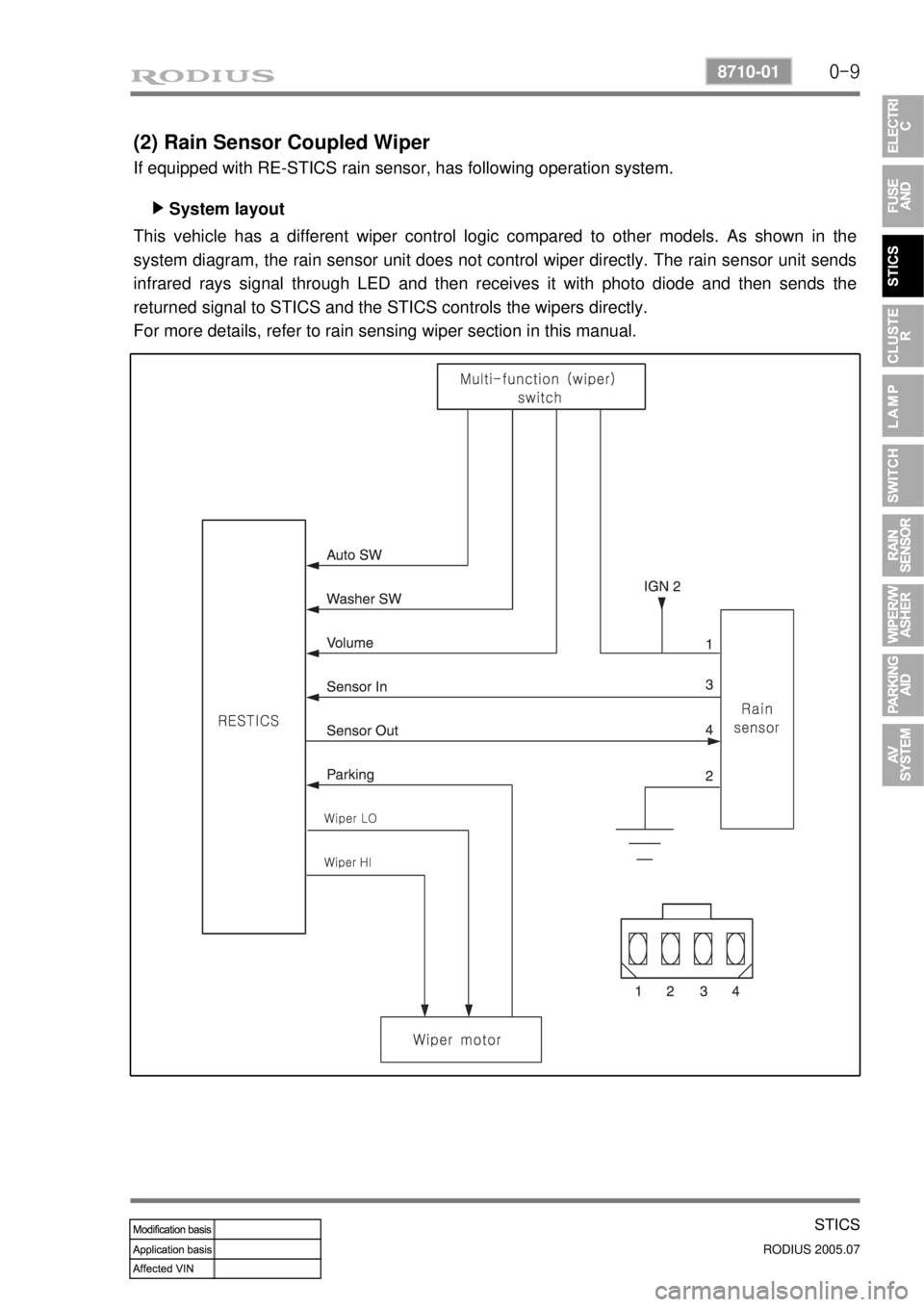

(2) Rain Sensor Coupled Wiper
If equipped with RE-STICS rain sensor, has following operation system.
System layout ▶
This vehicle has a different wiper control logic compared to other models. As shown in the
system diagram, the rain sensor unit does not control wiper directly. The rain sensor unit sends
infrared rays signal through LED and then receives it with photo diode and then sends the
returned signal to STICS and the STICS controls the wipers directly.
For more details, refer to rain sensing wiper section in this manual.

0-10
RODIUS 2005.07
8710-01
STICS
Rain sensing operation point ▶
The wiper relay is turned on and the wiper motor runs one cycle when the ignition key is
turned to “ON” position (while the wiper switch is in “AUTO” position).
The wiper relay (LO) is turned on and the wiper motor runs one cycle when changing the
wiper switch to “AUTO” position from any other positions (while the ignition key is in
“ON” position). When the wiper switch is turned to “AUTO” position again from other
positions, the system drives the wiper relay (LO) to run the wiper motor one cycle only when
the rain sensor detects the “Rain Detected” signal. 1)
2)
Rain sensing sensitivity control ▶
The wiper relay is turned on and the wiper motor runs one cycle when the volume sensitivity is
increased (ex: from 0 to 1) (while the ignition key is in “ON” position, the wiper switch is
in “AUTO” position, and the wiper motor is in “Parked” position). However, the wiper
motor can be operated only when the rain sensor detects the “Rain Detected” signal.
* If the volume sensitivity is changed more than 2 stages within 2 seconds, the wiper motor runs
only one cycle.

0-11
STICS
RODIUS 2005.07
8710-01
Wiper operation when the wiper parking terminal is grounded ▶
The wiper system continuously outputs the parking signal of current sensitivity when the
<009700880099009200900095008e0047009b008c00990094009000950088009300470090009a0047008e00990096009c0095008b008c008b0047004f009e008f00900093008c0047009b008f008c00470090008e00950090009b0090009600950047009200
8c00a000470090009a004700900095004702c80076007502c9> position and the wiper
switch is in “AUTO” position). 1)
The wiper motor runs only when the rain sensor requires. -
When the parking terminal is fixed to IGN (HIGH), the wiper system outputs the operating
signal of current sensitivity for 2 seconds, then continuously outputs the parking signal o
f
current sensitivity 2)
The wiper motor runs only when the rain sensor requires. -

0-12
RODIUS 2005.07
8710-01
STICS
Defective rain sensor ▶
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wipe
r
sensitivity is changed to 2 from 3 during receiving the malfunction signal (1) from the rain
sensor (while the ignition key is in “ON” position and the wiper switch is in “AUTO”
position). 1)
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper
sensitivity is changed to 3 from 4 during receiving the malfunction signal (2) from the rain
sensor (while the ignition key is in “ON” position and the wiper switch is in “AUTO”
position). 2)

0-13
STICS
RODIUS 2005.07
8710-01
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper
sensitivity is changed to 2 from 1 during receiving the malfunction signal (3) from the rain
sensor (while the ignition key is in “ON” position and the wiper switch is in “AUTO”
position). Also, the wiper relay (LO) is turned on and the wiper motor runs one cycle when
the wiper sensitivity is changed to 2 from 1 during receiving the ground fixed or IGN fixed
signal from the rain sensor. 3)

0-14
RODIUS 2005.07
8710-01
STICS
(3) Speed Sensitive INT (Intermittent) Wiper
For STICS without rain sensor, perform the following operation:
1. Controls the wiper intermittent operation by the values from vehicle speed and volume.
Calculates and converts the Intermittent interval automatically by using the vehicle speed
and INT VOLUME when the ignition switch is in “ON” position and the INT switch is in
“ON” position (the engine is running).
The wipers are operated in vehicle speed sensitive mode when turning the INT switch
to “ON” position with the engine running or starting the engine with the INT switch
positioned “ON”.
Intermittent interval (at 0 km/h): 3 ± 0.5 ~ 19 ± 2 seconds -
-
-
2. Vehicle speed calculation
[Input the vehicle speed]
It is calculated by the numbers of input pulses for one second.
1 [pulses/sec] = 60 [km/h] x 60 [sec] / 637 pulses = 1.41 [km/h]
3. VOLUME calculation
Calculates the INT VOLUME with 5 grades as shown in the table in next page. -
4. Pause time calculation
Pause time: the duration that wipers are stopped at parking position
Elapsed time: the duration after the wiper motor started to operate from parking position
The pause time is calculated by the vehicle speed and VOLUME value as shown in the
table in next page. -
-
-
If the pause time is below 1.0 second, the wipers operate without pause.
If the pause time is over 1.5 seconds, the wipers operate intermittently. ·
·

0-15
STICS
RODIUS 2005.07
8710-01
The wiper relay continues to output when the parking terminal is fixed at the ground or
IGN while the wiper relay is “ON” (INT switch = ON or Washer switch = ON) (The
output stops immediately after turning off the switch) - (1) Wiper MIST and washer coupled wiper
When turning on the washer switch while the wiper relay is operating. 1)
If the wiper relay “ON” request time is shorter than the remained “ON” time, it is
disregarded. -
(2) Speed sensitive INT (intermittent) wiper
The wiper relay continues to output for remaining “ON” time even when the INT
switch is turned off.
IGN 2 switch “ON”, INT switch “OFF”: resume the intermittent time when turning
“ON”
IGN 2 switch “OFF”, INT switch “ON”: resume the intermittent time when turning
“ON” 1)
2)
3)
(3) Controls when the wiper motor parking is defective

0-16
RODIUS 2005.07
8710-01
STICS
2) Ignition Key Reminder
(1) Key Reminder Warning
The chime buzzer output in the ICM box continues when opening the driver’s door
while the ignition key is inserted into ignition switch.
When removing the ignition key or closing the driver’s door during chime buzzer output,
the output turns off.
This function is not available when the ignition switch is “ON”. 1.
2.
3.
(2) Key Reminder
This function does not work if the vehicle speed is over 3 km/h.
The system outputs “UNLOCK” for 5 seconds (T2) from 0.5 seconds after the driver’s
door is opened and the door lock switch is changed to “LOCK” (while the ignition key
is in ignition switch).
The system outputs “UNLOCK” for 5 seconds (T2) when the door lock switch is
changed to “LOCK” from “UNLOCK” and the driver’s door is closed within 0.5
seconds (T1) (while the ignition key is in ignition switch). 1.
2.
3.
Operating conditions for (*1) and (*2)
<004f00510058005000610047006b00990090009d008c009902c5009a0047008b00960096009900470090009a004700960097008c0095008c008b004700880095008b0047008b00990090009d008c009902c5009a0047008b00960096009900470093009600
8a00920047009a009e0090009b008a008f00470090009a0047>turned to LOCK
<004f0051005900500061004700770088009a009a008c0095008e008c009902c5009a0047008b00960096009900470090009a004700960097008c0095008c008b004700880095008b004700970088009a009a008c0095008e008c009902c5009a0047008b00
9600960099004700930096008a00920047009a009e0090009b>ch is turned to LOCK -

0-17
STICS
RODIUS 2005.07
8710-01
(3) All Door Lock Prevention Function when a Door is Opened
1. When a door is opened, all doors should be unlocked for 5 seconds if inputs LOCK signal.
The LOCK signal means the central door locking (REKES, central door lock switch, knob
switch) except LOCK input by rear door knob.
After unlocking and opening only the driver’s door with remote control key under
armed mode (driver’s door is unlocked but passenger’s and rear doors are locked),
only the driver’s door generates unlock signal when trying to lock the driver’s door
with the driver’s door opened.
Above operations is regardless of key positions and have priority over the ignition key
reminder function. -
-
-
2. When the door is closed during unlock output for 5 seconds under item 1 condition, the
unlock
output stops.
All doors except tailgate and hood output “UNLOCK” for 5 seconds (T1) when the
“LOCK” signal is inputted (while the ignition key is removed and a of door is opened).
When the door is closed during unlock output for 5 seconds, the unlock output stops. -
-
