SSANGYONG RODIUS 2005 Service Manual

0-4
RODIUS 2005.07
7410-01
SEAT
Back flat adjust lever
Seat warmer switch
Sliding adjust lever
Seat control switch
Sliding control
1. COMPONENTS OF SEAT
Seat position control Seat height control Reclining control
Back supporter (Driver’s seat)

0-5
SEAT
RODIUS 2005.07
7410-01
Seat sliding adjust lever Seat swivel control lever
Rear 3rd seat back folding adjust lever
Back folding adjust leverHead rest

0-6
RODIUS 2005.07
7410-01
SEAT
â–¶ Rear 1st row (3 point + 2 point)
â–¶ Rear 2nd row (3 point + 2 point)
â–¶ Rear 3rd row (3 point + 2 point)
â–¶ Front Seat Belt (3 point)
2. COMPONENTS OF SEAT BELT
1) 11 Passengers

0-7
SEAT
RODIUS 2005.07
7410-01
2) 9 Passengers
â–¶ Front Seat Belt (3 point)
â–¶ Rear 1st row (3 point)
â–¶ Rear 2nd row (3 point)
â–¶ Rear 3rd row (3 point + 2 point)

0-8
RODIUS 2005.07
7410-01
SEAT
3) 7 Passengers
â–¶ Front Seat Belt (3 point)
â–¶ Rear 2nd row (3 point + 2 point)
â–¶ Rear 1st row (3 point)

0-9
SEAT
RODIUS 2005.07
7410-01

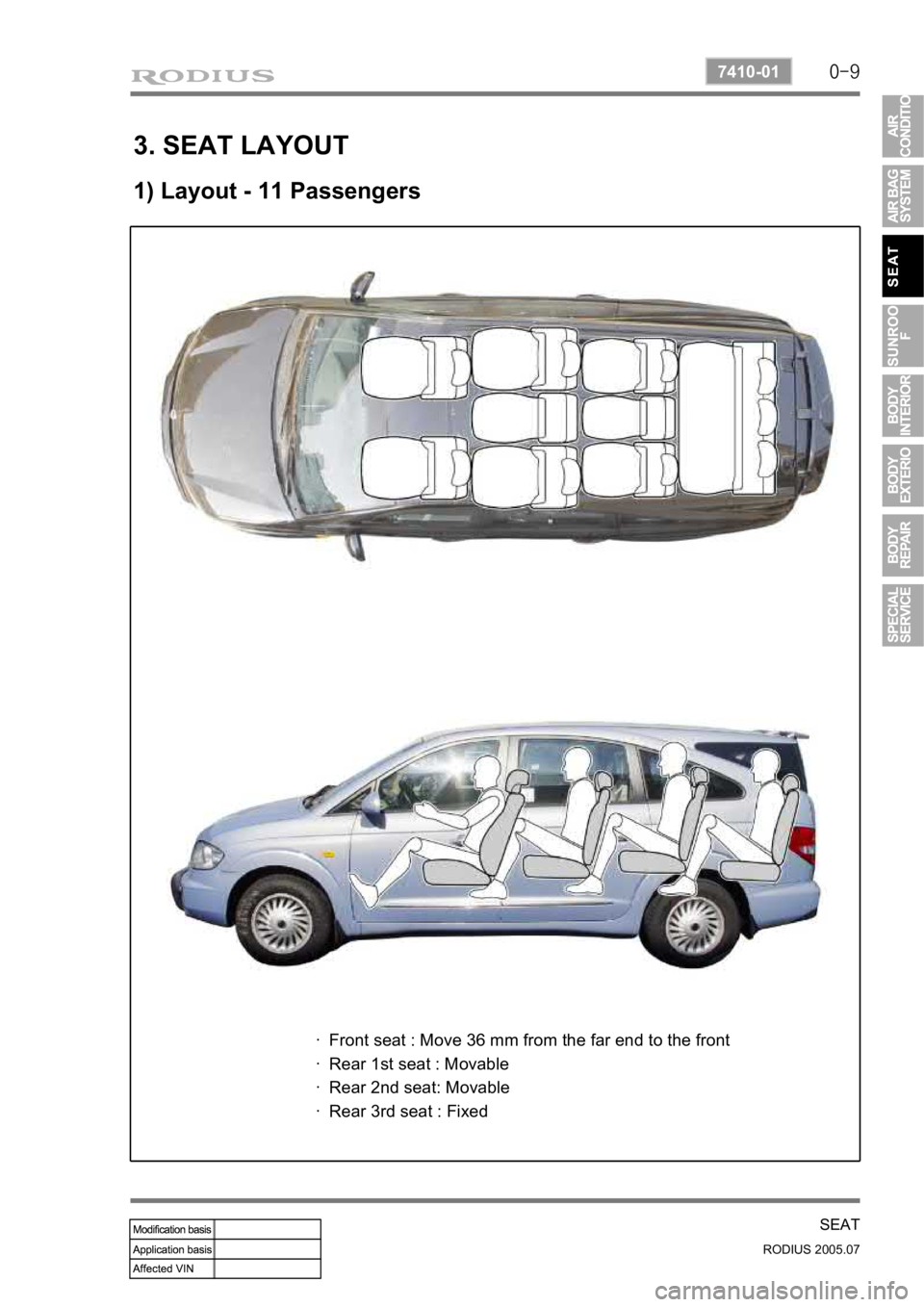

3. SEAT LAYOUT
1) Layout - 11 Passengers
Front seat : Move 36 mm from the far end to the front
Rear 1st seat : Movable
Rear 2nd seat: Movable
Rear 3rd seat : Fixed ·
·
·
·

0-10
RODIUS 2005.07
7410-01
SEAT
2) Layout - 9 Passengers
Front seat : Move 36 mm from the far end to the front
Rear 1st seat : Movable
Rear 2nd seat: Movable
Rear 3rd seat : Fixed ·
·
·
·

0-11
SEAT
RODIUS 2005.07
7410-01
3) Layout - 7 Passengers

0-12
RODIUS 2005.07
7410-01
SEAT
4) Various Seat Arrangement
â–¶ Front seat & rear 1st seat : Semi full flat
â–¶ Rear 1st & 2nd seat full flat
Front seat : Move to the far front
Back semi full flat
Rear 1st seat : Move to the far end
Rear 2nd seat: Move to the far end
Rear 3rd seat : Fixed
·
·
·
·
Front seat : Move 36 mm from the
far end to the front
Rear 1st seat : Move to the far
front Remove head
rest Back full flat
Rear 2nd seat: Move to the far
end Back semi full
flat
Rear 3rd seat : Fixed
·
·
·
·

0-13
SEAT
RODIUS 2005.07
7410-01
â–¶ Rear 1st seat (when swiveled)
â–¶ Rear 1st swiveled and rear 2nd seat back folding while drivin g
Rear 1st seat : Move to the far end
Center seat jumping
Swiveled
Rear 2nd seat: Move to the far end
Rear 3rd seat : Fixed
·
·
·
Rear 1st seat : Move to the far end
Center seat jumping
Swiveled
Rear 2nd seat: Move to the far end
Back folding
Rear 3rd seat : Fixed
·
·
·
