key SSANGYONG RODIUS 2005 Service Manual

0-31
CIRCUIT
RODIUS 2005.07
8710-03
8710-03
STICS
1) ESCORT, PANIC, POWER WINDOW, WARNING LAMP (PARKING BRAKE, SEAT BELT), ILL, KEY REMINDER SW
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
(1) CONNECTOR INFORMATION

0-5
MANUAL TRANSMISSION
RODIUS 2005.07
3170-01
1) Features
All gears use the helical type and high
strength materials. 3.
The helical type gear provides less noise.
The synchronizing devices are installed in
1/2, 3/4, 5/R gears. To prevent the double
engagement, the independent interlock
devices are installed. 4.
TSM54/52 transmission uses the inertia
lock type key to make smooth gea
r
engagement and to provide silent gea
r
engagement.
The clutch release system is available to
use CSC (Concentric Slave Cylinder) o
r
Fork type according to the vehicle model.
New Rexton uses the fork type
clutch release system.
The semi-remote control type gear shift
mechanism is used to prevent incorrect
shifting. 5.
6.

0-5
STICS
RODIUS 2005.07
8710-01
The STICS in this vehicle has similar functions with the one used in the new Rexton. Additional
function of diagnosing through SCAN-Tool has been added into new STICS.
The major difference in hardware-wise is that STICS receives vehicle collision signal from G-
sensor in the airbag module to activate automatic door unlock function when the vehicle
collided over 15 km/h of vehicle speed.
1. COMPONENTS LOCATOR
STICS / ICM module
Air bag ECU
Sends the vehicle collision
signals to STICS.
Theft deterrent horn
Installed under the battery. This
horn works only for the theft
deterrent function, panic
function, and remote starting.
SCAN-tool
SCAN-100 is used fo
r
REKES key coding and
trouble diagnosis.
REKES
Added the escort and
panic function
RK STICS
ICM module
This module contains
various relays, chime and
buzzer controlled by
STICS

0-7
STICS
RODIUS 2005.07
8710-01
3. FUNCTIONS OF RK STICS
1) Wiper Control
(1) Wiper MIST and Washer Coupled Wiper
The wiper relay is turned on 0.3 seconds (T1) after turning “ON” the washer switch for
0.2 ~ 0.59 seconds (T2) with the ignition key “ON”, and it is turned off when the
parking terminal is turned off. 1.
The wiper relay is turned on 0.3 seconds (T1) after turning “ON” the washer switch
over 0.6 seconds (T2) with the ignition key “ON”, and it is turned on three times
immediately after turning off the washer switch. 2.

0-10
RODIUS 2005.07
8710-01
STICS
Rain sensing operation point ▶
The wiper relay is turned on and the wiper motor runs one cycle when the ignition key is
turned to “ON” position (while the wiper switch is in “AUTO” position).
The wiper relay (LO) is turned on and the wiper motor runs one cycle when changing the
wiper switch to “AUTO” position from any other positions (while the ignition key is in
“ON” position). When the wiper switch is turned to “AUTO” position again from other
positions, the system drives the wiper relay (LO) to run the wiper motor one cycle only when
the rain sensor detects the “Rain Detected” signal. 1)
2)
Rain sensing sensitivity control ▶
The wiper relay is turned on and the wiper motor runs one cycle when the volume sensitivity is
increased (ex: from 0 to 1) (while the ignition key is in “ON” position, the wiper switch is
in “AUTO” position, and the wiper motor is in “Parked” position). However, the wiper
motor can be operated only when the rain sensor detects the “Rain Detected” signal.
* If the volume sensitivity is changed more than 2 stages within 2 seconds, the wiper motor runs
only one cycle.

0-12
RODIUS 2005.07
8710-01
STICS

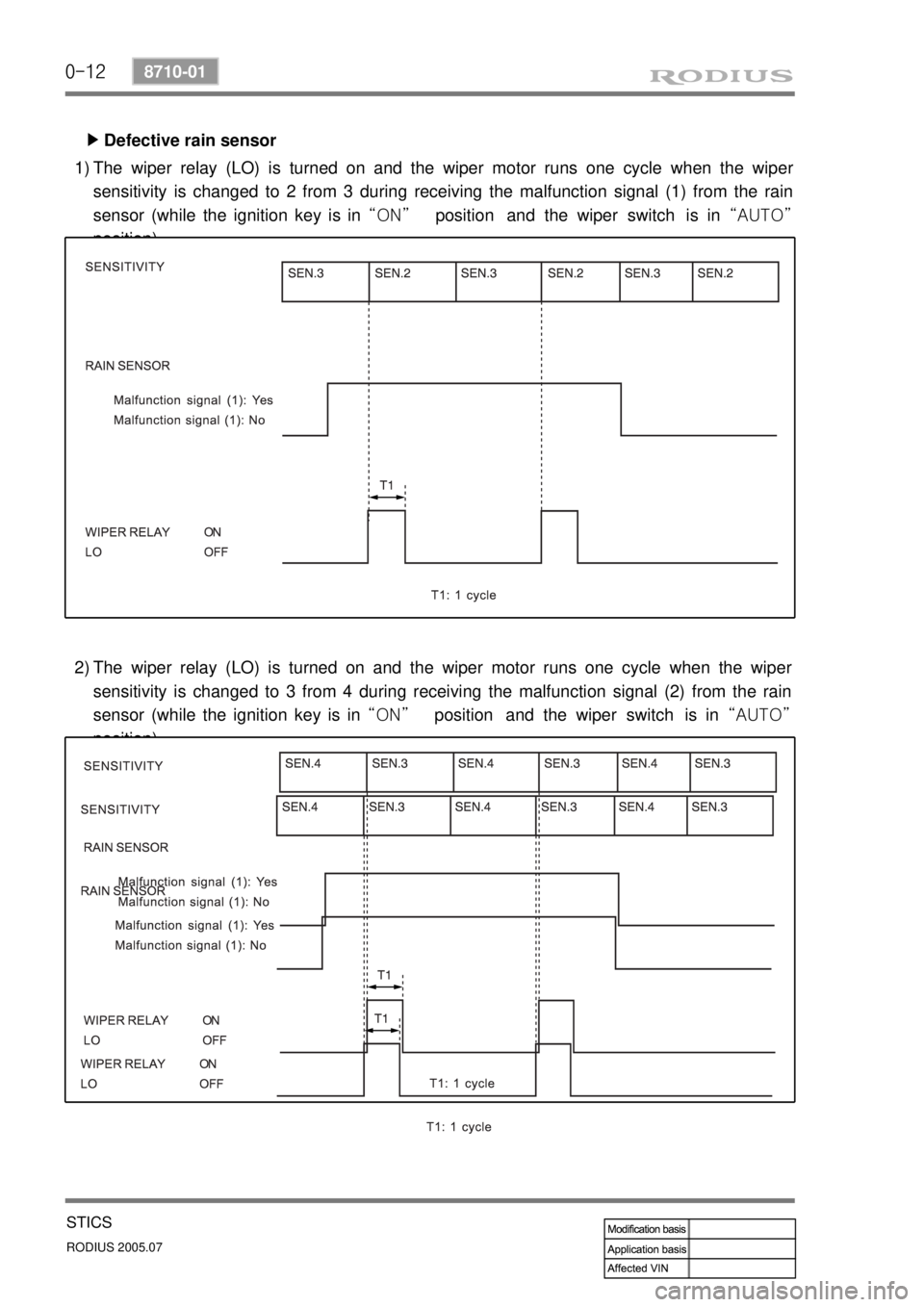

Defective rain sensor ▶
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wipe
r
sensitivity is changed to 2 from 3 during receiving the malfunction signal (1) from the rain
sensor (while the ignition key is in “ON” position and the wiper switch is in “AUTO”
position). 1)
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper
sensitivity is changed to 3 from 4 during receiving the malfunction signal (2) from the rain
sensor (while the ignition key is in “ON” position and the wiper switch is in “AUTO”
position). 2)

0-13
STICS
RODIUS 2005.07
8710-01
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper
sensitivity is changed to 2 from 1 during receiving the malfunction signal (3) from the rain
sensor (while the ignition key is in “ON” position and the wiper switch is in “AUTO”
position). Also, the wiper relay (LO) is turned on and the wiper motor runs one cycle when
the wiper sensitivity is changed to 2 from 1 during receiving the ground fixed or IGN fixed
signal from the rain sensor. 3)

0-16
RODIUS 2005.07
8710-01
STICS
2) Ignition Key Reminder
(1) Key Reminder Warning
The chime buzzer output in the ICM box continues when opening the driver’s door
while the ignition key is inserted into ignition switch.
When removing the ignition key or closing the driver’s door during chime buzzer output,
the output turns off.
This function is not available when the ignition switch is “ON”. 1.
2.
3.
(2) Key Reminder
This function does not work if the vehicle speed is over 3 km/h.
The system outputs “UNLOCK” for 5 seconds (T2) from 0.5 seconds after the driver’s
door is opened and the door lock switch is changed to “LOCK” (while the ignition key
is in ignition switch).
The system outputs “UNLOCK” for 5 seconds (T2) when the door lock switch is
changed to “LOCK” from “UNLOCK” and the driver’s door is closed within 0.5
seconds (T1) (while the ignition key is in ignition switch). 1.
2.
3.
Operating conditions for (*1) and (*2)
<004f00510058005000610047006b00990090009d008c009902c5009a0047008b00960096009900470090009a004700960097008c0095008c008b004700880095008b0047008b00990090009d008c009902c5009a0047008b00960096009900470093009600
8a00920047009a009e0090009b008a008f00470090009a0047>turned to LOCK
<004f0051005900500061004700770088009a009a008c0095008e008c009902c5009a0047008b00960096009900470090009a004700960097008c0095008c008b004700880095008b004700970088009a009a008c0095008e008c009902c5009a0047008b00
9600960099004700930096008a00920047009a009e0090009b>ch is turned to LOCK -

0-17
STICS
RODIUS 2005.07
8710-01

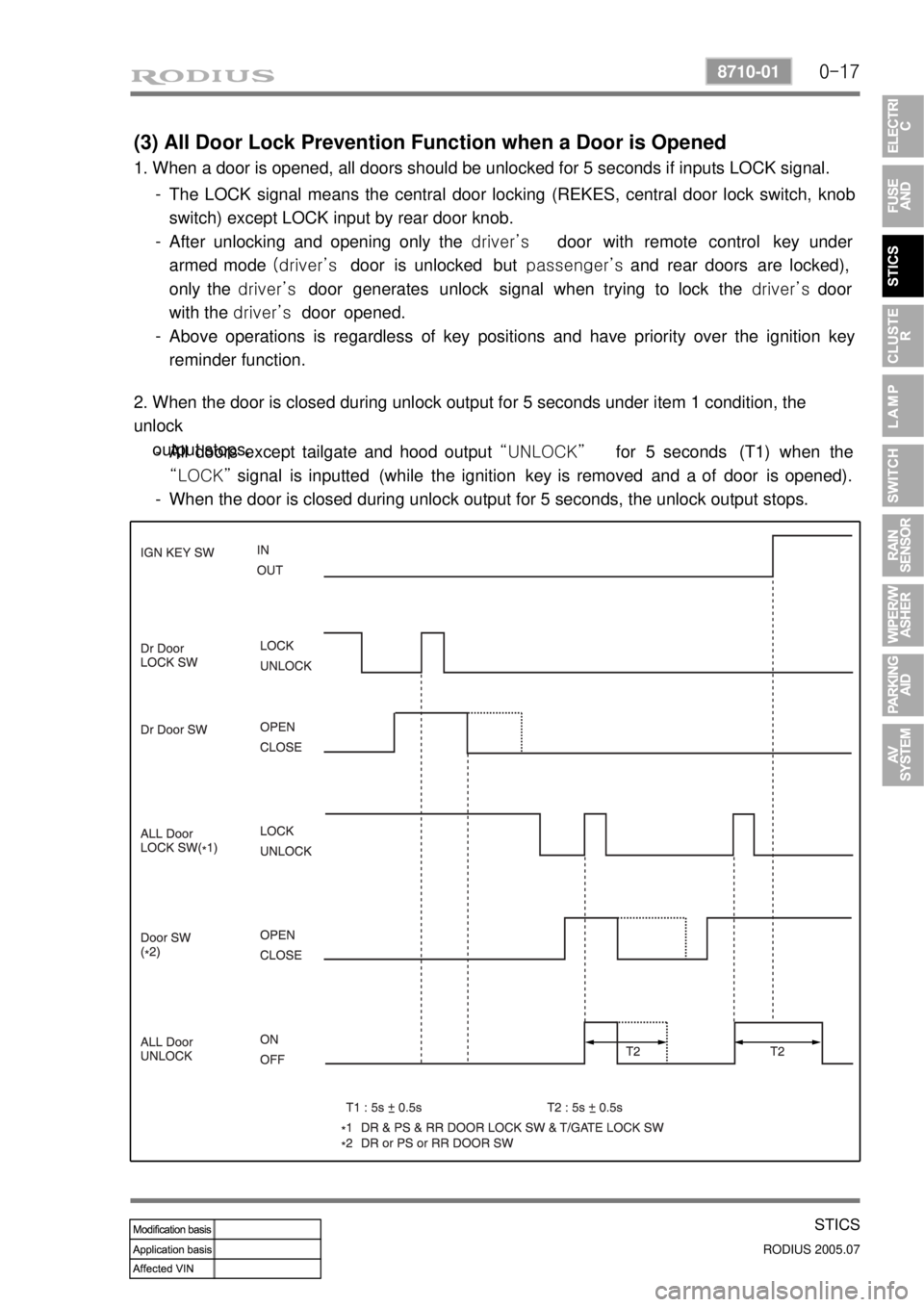

(3) All Door Lock Prevention Function when a Door is Opened
1. When a door is opened, all doors should be unlocked for 5 seconds if inputs LOCK signal.
The LOCK signal means the central door locking (REKES, central door lock switch, knob
switch) except LOCK input by rear door knob.
After unlocking and opening only the driver’s door with remote control key under
armed mode (driver’s door is unlocked but passenger’s and rear doors are locked),
only the driver’s door generates unlock signal when trying to lock the driver’s door
with the driver’s door opened.
Above operations is regardless of key positions and have priority over the ignition key
reminder function. -
-
-
2. When the door is closed during unlock output for 5 seconds under item 1 condition, the
unlock
output stops.
All doors except tailgate and hood output “UNLOCK” for 5 seconds (T1) when the
“LOCK” signal is inputted (while the ignition key is removed and a of door is opened).
When the door is closed during unlock output for 5 seconds, the unlock output stops. -
-

0-18
RODIUS 2005.07
8710-01
STICS
3) Mark Lamp Left on Warning
The chime buzzer in the ICM box sounds with the interval of 0.8 second when opening the
<008b00990090009d008c009902c5009a0047008b0096009600990047009e008f00900093008c0047009b008f008c0047009b0088009000930047009300880094009700470090009a0047009b009c00990095008c008b004700960095004700880095008b00
47009b008f008c00470090008e00950090009b009000960095> key is removed.
<007b008f008c00470089009c00a100a1008c009900470096009c009b0097009c009b0047009a009b00960097009a0047009e008f008c00950047009b009c0099009500900095008e00470096008d008d0047009b008f008c0047009b008800900093004700
93008800940097004700880095008b0047008a00930096009a>ing the driver’s door.
<007b008f008c0047009a00a0009a009b008c009400470096009c009b0097009c009b009a004702c8007c007500730076006a007202c90047008d009600990047005c0047009a008c008a00960095008b009a0047009e008f008c00950047009b008f008c00
47008b00990090009d008c009902c5009a004700880095008b> passenger’s door
<00930096008a00920047009a009e0090009b008a008f00470090009a004700930096008a0092008c008b0047004f009e008f00900093008c0047009b008f008c0047009b0088009000930047009300880094009700470090009a0047009b009c0099009500
8c008b004700960095004700880095008b0047009b008f008c> driver’s door is opened).
<007b008f0090009a0047008d009c0095008a009b00900096009500470090009a004700950096009b00470088009d008800900093008800890093008c0047009e008f008c00950047009b008f008c00470090008e00950090009b0090009600950047009200
8c00a000470090009a004700900095004702c80076007502c9> position. 1.
2.
3.
4.
