6) Parking Brake Warning
The parking brake warning light comes on for approx. 4 seconds (T4) when turning the
ignition key from “OFF” to “ON” position regardless of the vehicle speed and parking
brake switch position.
The warning light comes on when the parking brake switch is turned on while the vehicle
speed is below 10 km/h (V1).
The warning light goes off when turning off the parking brake switch under step 2.
The warning light blinks and the chime buzzer in the ICM box sounds for 2.85 seconds and
stops for 1.5 seconds when the vehicle speed is over 10 km/h (V1) for more than 2 seconds
while the parking brake switch is turned on.
The warning light goes off and the chime buzzer stops when turning off the parking brake
switch under step 4.
The warning light comes on and the chime buzzer stops when the vehicle speed goes down
below 7 km/h (V2) under step 4.
This function is not available when the ignition key is turned to “OFF” position. 1.
2.
3.
4.
5.
6.
7.

0-22
RODIUS 2005.07
8710-01
STICS
7) Room Lamp Control
(1) Front Room Lamp
The front room lamp comes on when opening the
driver’s door or passenger’s door while the
front room lamp switch is at door coupled position
and the key reminder switch is turned off.
The room lamp stays on for 2 seconds (T1) and
then decays through 3 seconds (T2) when
closing the driver’s door or passenger’s door.
The room lamp output should stop immediately
after turning on the ignition key during decaying
operation.
The front room lamp comes on for 30 seconds
(T3) when receiving the unlock signal from the
remote control key while the door is closed. 1.
2.
3.
4.
The front room lamp output period is extended by 30 seconds (T3) when receiving the
unlock signal from the remote control key again during output.
When a door is opened during its extended period, the lamp stays on. If closed, operates as
in step 2.
<007b008f008c004700990096009600940047009300880094009700470096009c009b0097009c009b0047009a009b00960097009a0047009000940094008c008b00900088009b008c009300a000470088008d009b008c009900470099008c008a008c009000
9d00900095008e0047009b008f008c004700930096008a0092> signal from driver’s
<008b009600960099004700880095008b004700970088009a009a008c0095008e008c009902c5009a0047008b009600960099004700930096008a00920047009a009e0090009b008a008f0047009e008f00900093008c0047009b008f008c0047008b009900
90009d008c009902c5009a0047008b00960096009900470088>nd passenger’s door
are closed. 5.
6.
7.
Door coupled front
room lamp switch

0-23
STICS
RODIUS 2005.07
8710-01
(2) Rear Room Lamp
The rear room lamp comes on when opening the
rear door while the door coupled rear room lamp
switch is pressed (except for luggage room
lamp).
The rear room lamp extends its lighting period by
5 seconds when closing the rear door.
The room lamp output stops immediately afte
r
turning the ignition key to “ON” position
during the extended period.
The room lamp output stops immediately afte
r
receiving the lock signal from the rear door lock
switch or the remote control key while the rea
r
door is closed. 1.
2.
3.
4.
Door coupled front
room lamp switch

0-24
RODIUS 2005.07
8710-01
STICS
8) Ignition Key Hole Illumination (Except For Immobilizer)
<007b008f008c00470090008e00950090009b00900096009500470092008c00a00047008f00960093008c0047009000930093009c0094009000950088009b0090009600950047008a00960094008c009a0047009600950047009e008f008c00950047009600
97008c009500900095008e0047009b008f008c0047008b0099>iver’s door or
<00970088009a009a008c0095008e008c009902c5009a0047008b0096009600990047009e008f00900093008c0047009b008f008c00470090008e00950090009b00900096009500470092008c00a000470090009a00470099008c00940096009d008c008b00
55>
The ignition key hole illumination stays on for 10 seconds when closing the door after step 1.
<007b008f008c00470096009c009b0097009c009b0047009a009b00960097009a0047009e008f008c00950047009b008f008c00470090008e00950090009b00900096009500470092008c00a000470090009a0047009b009c00990095008c008b0047009b00
96004702c80076007502c9004700970096009a0090009b0090>on.
The output stops when receiving the lock signal from the remote control key (under armed
mode). 1.
2.
3.
4.

0-25
STICS
RODIUS 2005.07
8710-01
9) Battery Saver (Tail Lamp Auto Cut)
The tail lamp is turn on or off according to the operations of the multifunction tail lamp switch.
<007b008f008c0047009b0088009000930047009300880094009700470099008c0093008800a000470090009a0047009b009c00990095008c008b00470096008d008d0047004f0088009c009b00960047008a009c009b00500047009e008f008c0095004700
960097008c009500900095008e004700880095008b0047008a>losing the driver’s door
after removing the ignition key without turning off the tail lamp.
Tail lamp relay is turned on when inserting the ignition key into ignition switch again after
step 2 operation.
<007b008f008c0047009b0088009000930047009300880094009700470099008c0093008800a000470090009a0047009b009c00990095008c008b00470096008d008d0047004f0088009c009b00960047008a009c009b00500047009e008f008c0095004700
960097008c009500900095008e004700880095008b0047008a>losing the driver’s door
while the ignition key is removed and the tail lamp is turned on. 1.
2.
3.
4.

0-28
RODIUS 2005.07
8710-01
STICS
11) Door LOCK/UNLOCK Control
(1) Door Lock/Unlock by Door Lock Switch
The door lock system outputs “LOCK” for 0.5 seconds (T1) when positioning the
driver’s or passenger’s door lock switch to lock position (while the driver’s and
passenger’s door lock switch is in “UNLOCK” position).
The door lock system outputs “UNLOCK” for 0.5 seconds (T2) when positioning the
driver’s or passenger’s door lock switch to unlock position.
“LOCK” or “UNLOCK” by the door lock switch is ignored when outputting the “LOCK”
or “UNLOCK” by other functions.
The door lock/unlock system is not working regardless of the door lock switch positions
when connecting the battery.
All door lock signals are “UNLOCK” for 0.5 seconds (T4) just for once when receiving
the “LOCK” signal within 0.5 seconds (T3) after closing the driver’s or
passenger’s
door. However, this operation is regardless of the ignition key positions. 1.
2.
3.
4.
5.
This function prevents the door from locking by shock when slamming a door while the
ignition key is inserted into the key switch hole. -

0-30
RODIUS 2005.07
8710-01
STICS

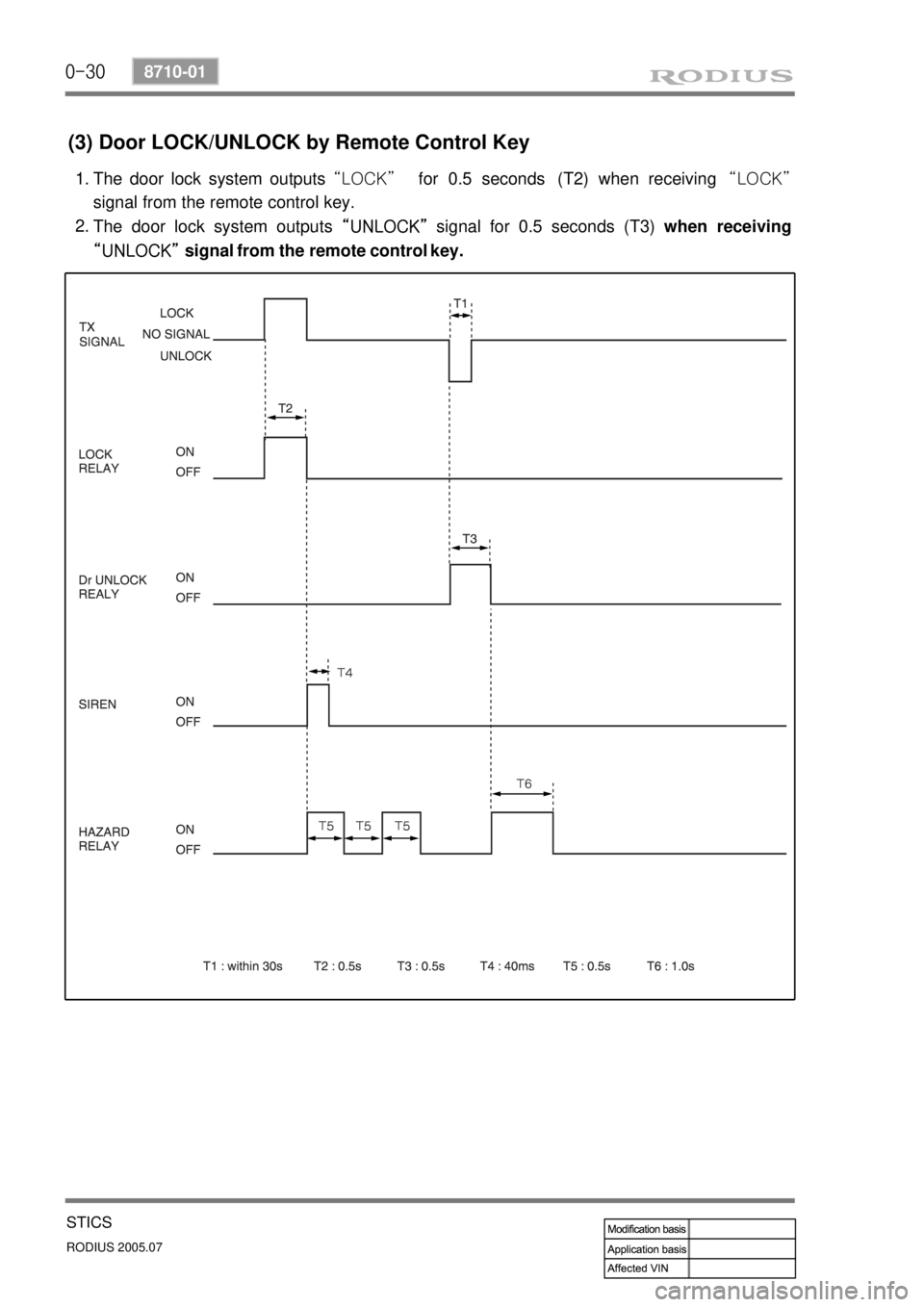

(3) Door LOCK/UNLOCK by Remote Control Key
The door lock system outputs “LOCK” for 0.5 seconds (T2) when receiving “LOCK”
signal from the remote control key.
The door lock system outputs “UNLOCK” signal for 0.5 seconds (T3) when receiving
“UNLOCK” signal from the remote control key. 1.
2.

0-31
STICS
RODIUS 2005.07
8710-01
(4) Auto Door Lock
The door lock system outputs “LOCK” when the vehicle speed stays over 50 km/h.
However, it doesn’t output “LOCK” when all doors are locked or failed.
If any of doors is unlocked after outputting “LOCK” in step 1, outputs “LOCK” up to 5
times (except step 1) with interval of one second.
If any of doors is unlocked after 5 times of “LOCK” outputs, the door is regarded as
“FAIL”.
If the door that was regarded as fail changes (UNLOCKaLOCK) to unlock, only one “LOCK”
output will be done.
If the door that was “LOCK” is changed to “UNLOCK”, only one “LOCK” output will be
done.
However, if it maintains unlock after lock output, the corresponding door will not be regarded
as fail.
The door lock system outputs “UNLOCK” automatically if the “LOCK” output conditions
are established by this function or the key is cycled (IGN1=ONaOFF) (even when there is
no “Lock” output while the vehicle speed stays over 50 km/h under lock condition).
However, when the ignition key is turned to “OFF” position, the lock output conditions
will be cancelled.
The “FAIL” condition of the door will be erased when the ignition key is turned to
“OFF” position. 1.
2.
3.
4.
5.
6.
7.

0-32
RODIUS 2005.07
8710-01
STICS

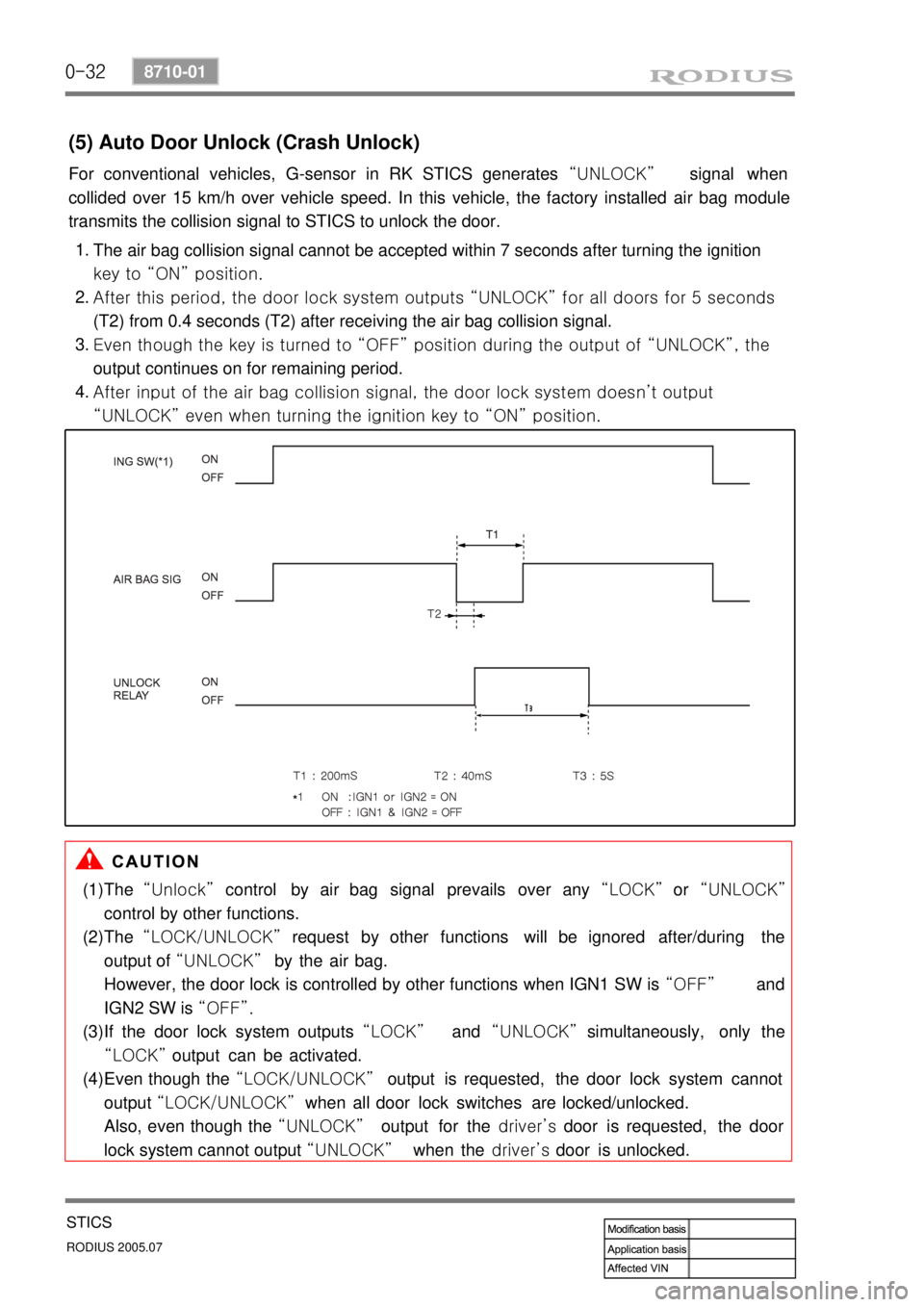

(5) Auto Door Unlock (Crash Unlock)
For conventional vehicles, G-sensor in RK STICS generates “UNLOCK” signal when
collided over 15 km/h over vehicle speed. In this vehicle, the factory installed air bag module
transmits the collision signal to STICS to unlock the door.
The air bag collision signal cannot be accepted within 7 seconds after turning the ignition
key to “ON” position.
<0068008d009b008c00990047009b008f0090009a00470097008c009900900096008b00530047009b008f008c0047008b009600960099004700930096008a00920047009a00a0009a009b008c009400470096009c009b0097009c009b009a004702c8007c00
7500730076006a007202c90047008d00960099004700880093>l doors for 5 seconds
(T2) from 0.4 seconds (T2) after receiving the air bag collision signal.
<006c009d008c00950047009b008f0096009c008e008f0047009b008f008c00470092008c00a000470090009a0047009b009c00990095008c008b0047009b0096004702c80076006d006d02c9004700970096009a0090009b0090009600950047008b009c00
9900900095008e0047009b008f008c00470096009c009b0097>ut of “UNLOCK”, the
output continues on for remaining period.
<0068008d009b008c00990047009000950097009c009b00470096008d0047009b008f008c0047008800900099004700890088008e0047008a0096009300930090009a0090009600950047009a0090008e00950088009300530047009b008f008c0047008b00
9600960099004700930096008a00920047009a00a0009a009b>em doesn’t output
<02c8007c007500730076006a007202c90047008c009d008c00950047009e008f008c00950047009b009c0099009500900095008e0047009b008f008c00470090008e00950090009b00900096009500470092008c00a00047009b0096004702c80076007502
c9004700970096009a0090009b0090009600950055> 1.
2.
3.
4.
The “Unlock” control by air bag signal prevails over any “LOCK” or “UNLOCK”
control by other functions.
The “LOCK/UNLOCK” request by other functions will be ignored after/during the
output of “UNLOCK” by the air bag.
However, the door lock is controlled by other functions when IGN1 SW is “OFF” and
IGN2 SW is “OFF”.
If the door lock system outputs “LOCK” and “UNLOCK” simultaneously, only the
“LOCK” output can be activated.
Even though the “LOCK/UNLOCK” output is requested, the door lock system cannot
output “LOCK/UNLOCK” when all door lock switches are locked/unlocked.
Also, even though the “UNLOCK” output for the driver’s door is requested, the door
lock system cannot output “UNLOCK” when the driver’s door is unlocked. (1)
(2)
(3)
(4)

0-33
STICS
RODIUS 2005.07
8710-01
12) Time Lag Power Window Control
The power window is turned off when turning the ignition key to “ON” position.
The power window relay is turned “ON” for 90 seconds (T1) when turning the ignition
key to “OFF” position.
However, the power window relay stays on for 90 seconds (T2) when the ignition key is
turned to “OFF” position while the door is opened.
The power window relay is turned “ON” again for 90 seconds (T2) just for once when
opening the door during its extended operation period of 90 seconds (T1).
The power window relay is turned “OFF” when closing the door during its extended
operation period of 90 seconds (T2). 1.
2.
3.
