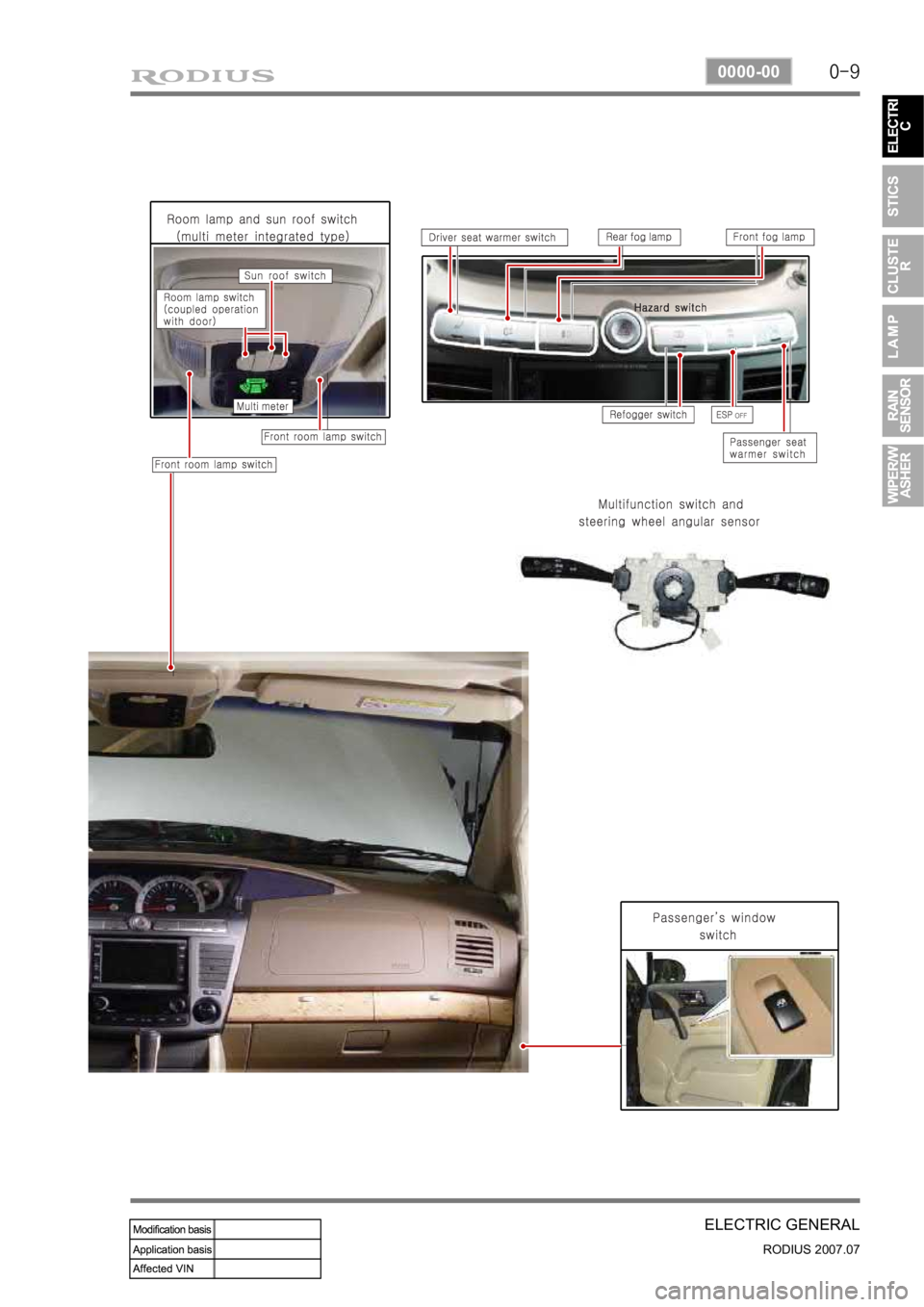

ELECTRIC GENERAL
RODIUS 2007.07
0000-00

0-10
RODIUS 2007.07
0000-00
ELECTRIC GENERAL

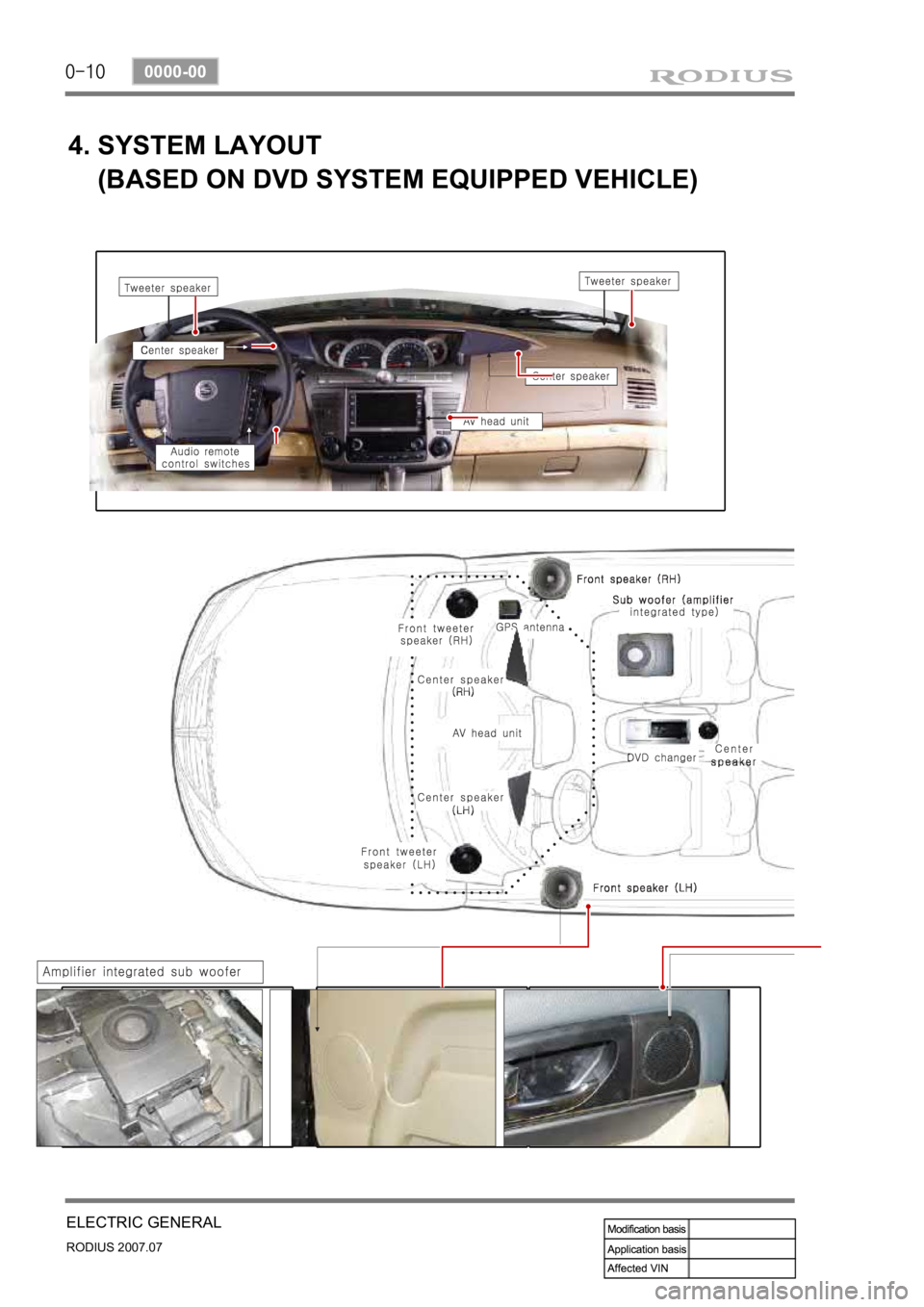

4. SYSTEM LAYOUT
(BASED ON DVD SYSTEM EQUIPPED VEHICLE)

0-11
ELECTRIC GENERAL
RODIUS 2007.07
0000-00
DVD changer
Tuner
DSP integrated
amplifier
Navigation unit
Radio
antenna
amplifier
Rearview camera

0-12
RODIUS 2007.07
0000-00
ELECTRIC GENERAL
5. WIRING HARNESS ARRANGEMENT

0-13
ELECTRIC GENERAL
RODIUS 2007.07
0000-00

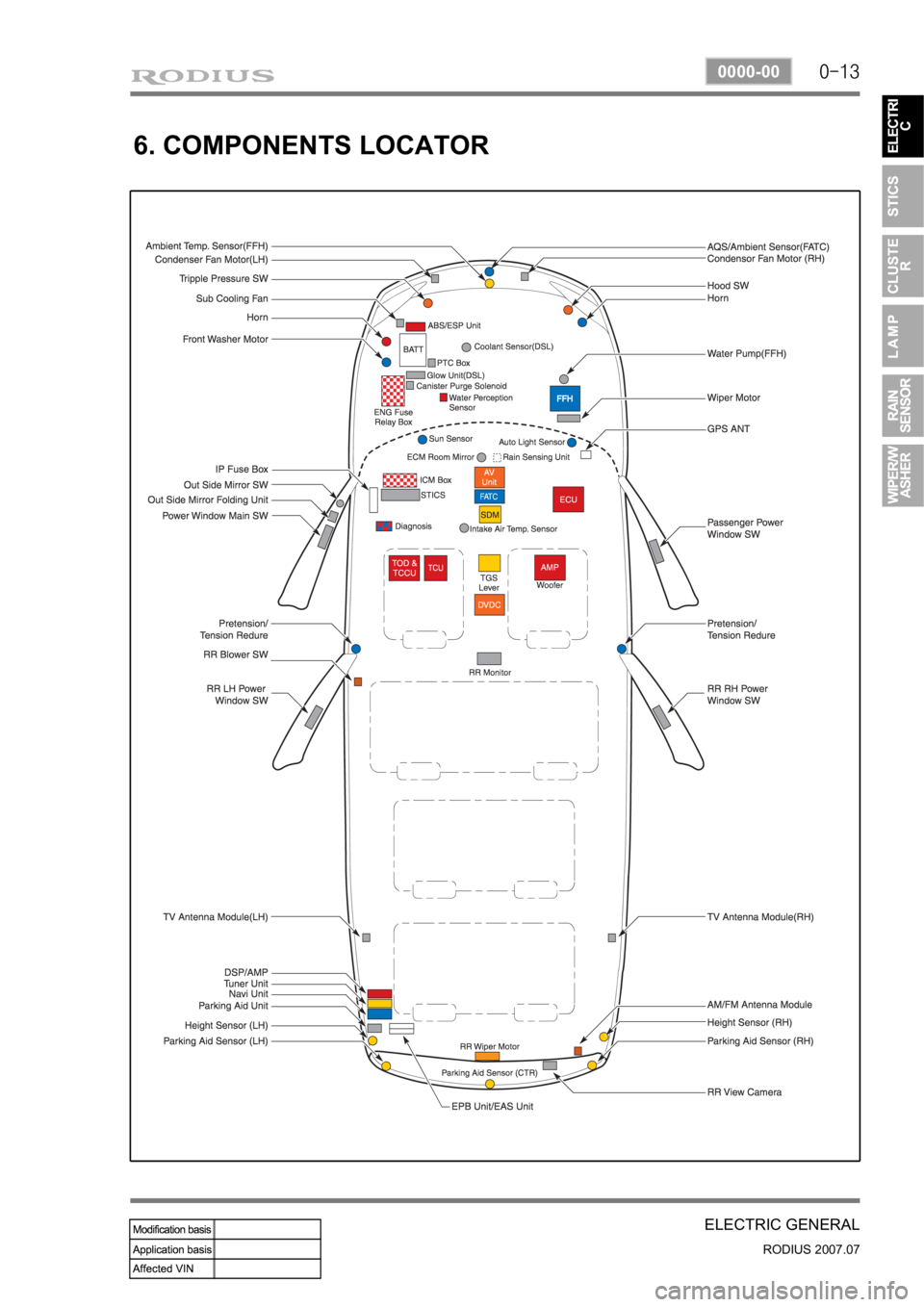

6. COMPONENTS LOCATOR

0-3
STICS
RODIUS 2007.07
8710-01
8710-01STICS
1. SPECIFICATIONS OF RK - STICS
1) Electrical Performance
2) Chattering of Input Signals
Vehicle speed input: 1.
3) Time Tolerance
If not indicated, time tolerance will be ± 10%.
However, if less than 500 ms, time tolerance will be ± 50 ms.
The time indicated in each function does not include chattering processing time from switch
input changing point. 1.
2.
All switches except wiper motor A/S (parking) terminal The vehicle speed calculating time is 1.0 seconds. The elapsed time of 1.5 seconds after IGN
1 switch :ON” is not included.
20 ms target input: 2.
Wiper motor A/S (parking) terminal
100 ms target input switch 3.

0-4
RODIUS 2007.07
8710-01
STICS

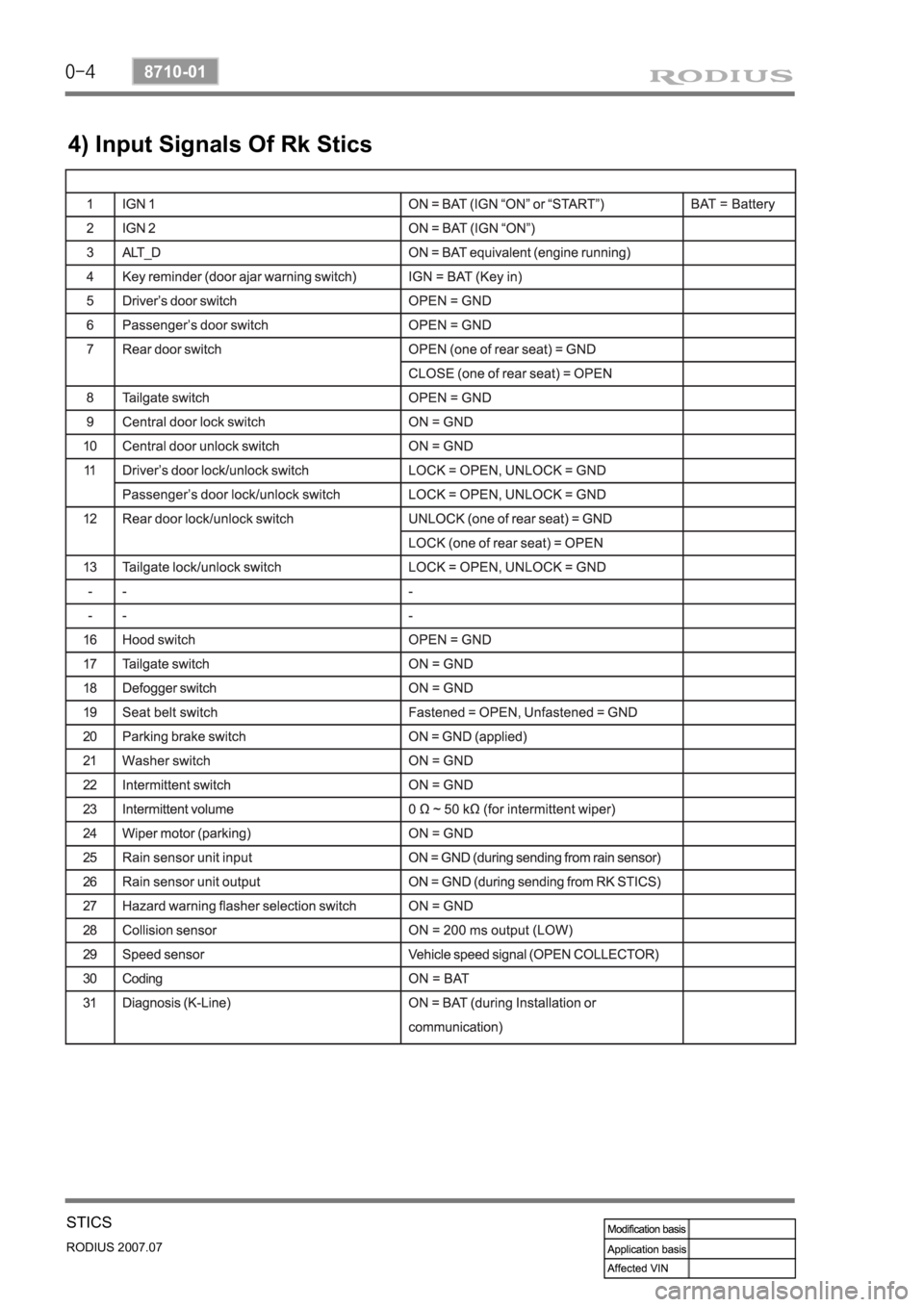

4) Input Signals Of Rk Stics

0-5
STICS
RODIUS 2007.07
8710-01
The STICS in this vehicle has similar functions with the one used in the new Rexton. Additional
function of diagnosing through SCAN-Tool has been added into new STICS.
The major difference in hardware-wise is that STICS receives vehicle collision signal from G-
sensor in the airbag module to activate automatic door unlock function when the vehicle
collided over 15 km/h of vehicle speed.
1. COMPONENTS LOCATOR
STICS / ICM module
Air bag ECU
Sends the vehicle collision
signals to STICS.
Theft deterrent horn
Installed under the battery. This
horn works only for the theft
deterrent function, panic
function, and remote starting.
SCAN-tool
SCAN-100 is used fo
r
REKES key coding and
trouble diagnosis.
REKES
Added the escort and
panic function
RK STICS
ICM module
This module contains
various relays, chime and
buzzer controlled by
STICS

0-6
RODIUS 2007.07
8710-01
STICS
2. DESCRIPTIONS
Below table shows the major differences compared to the previous vehicle model before year
2004. For whole functions and details, refer to corresponding section.

0-7
STICS
RODIUS 2007.07
8710-01
3. FUNCTIONS OF RK STICS
1) Wiper Control
(1) Wiper MIST and Washer Coupled Wiper
The wiper relay is turned on 0.3 seconds (T1) after turning “ON” the washer switch for
0.2 ~ 0.59 seconds (T2) with the ignition key “ON”, and it is turned off when the
parking terminal is turned off. 1.
The wiper relay is turned on 0.3 seconds (T1) after turning “ON” the washer switch
over 0.6 seconds (T2) with the ignition key “ON”, and it is turned on three times
immediately after turning off the washer switch. 2.
