door lock SSANGYONG RODIUS 2006 User Guide

0-31
STICS
RODIUS 2007.07
8710-01
(4) Auto Door Lock
The door lock system outputs “LOCK” when the vehicle speed stays over 50 km/h.
However, it doesn’t output “LOCK” when all doors are locked or failed.
If any of doors is unlocked after outputting “LOCK” in step 1, outputs “LOCK” up to 5
times (except step 1) with interval of one second.
If any of doors is unlocked after 5 times of “LOCK” outputs, the door is regarded as
“FAIL”.
If the door that was regarded as fail changes (UNLOCKaLOCK) to unlock, only one “LOCK”
output will be done.
If the door that was “LOCK” is changed to “UNLOCK”, only one “LOCK” output will be
done.
However, if it maintains unlock after lock output, the corresponding door will not be regarded
as fail.
The door lock system outputs “UNLOCK” automatically if the “LOCK” output
conditions are established by this function or the key is cycled (IGN1=ONaOFF) (even when
there is no “Lock” output while the vehicle speed stays over 50 km/h under lock
condition).
However, when the ignition key is turned to “OFF” position, the lock output conditions
will be cancelled.
The “FAIL” condition of the door will be erased when the ignition key is turned to
“OFF” position. 1.
2.
3.
4.
5.
6.
7.

0-32
RODIUS 2007.07
8710-01
STICS
(5) Auto Door Unlock (Crash Unlock)
For conventional vehicles, G-sensor in RK STICS generates “UNLOCK” signal when
collided over 15 km/h over vehicle speed. In this vehicle, the factory installed air bag module
transmits the collision signal to STICS to unlock the door.
The air bag collision signal cannot be accepted within 7 seconds after turning the ignition
key to “ON” position.
<0068008d009b008c00990047009b008f0090009a00470097008c009900900096008b00530047009b008f008c0047008b009600960099004700930096008a00920047009a00a0009a009b008c009400470096009c009b0097009c009b009a004702c8007c00
7500730076006a007202c90047008d00960099004700880093>l doors for 5 seconds
(T2) from 0.4 seconds (T2) after receiving the air bag collision signal.
<006c009d008c00950047009b008f0096009c008e008f0047009b008f008c00470092008c00a000470090009a0047009b009c00990095008c008b0047009b0096004702c80076006d006d02c9004700970096009a0090009b0090009600950047008b009c00
9900900095008e0047009b008f008c00470096009c009b0097>ut of “UNLOCK”, the
output continues on for remaining period.
<0068008d009b008c00990047009000950097009c009b00470096008d0047009b008f008c0047008800900099004700890088008e0047008a0096009300930090009a0090009600950047009a0090008e00950088009300530047009b008f008c0047008b00
9600960099004700930096008a00920047009a00a0009a009b>em doesn’t output
<02c8007c007500730076006a007202c90047008c009d008c00950047009e008f008c00950047009b009c0099009500900095008e0047009b008f008c00470090008e00950090009b00900096009500470092008c00a00047009b0096004702c80076007502
c9004700970096009a0090009b0090009600950055> 1.
2.
3.
4.
The “Unlock” control by air bag signal prevails over any “LOCK” or “UNLOCK”
control by other functions.
The “LOCK/UNLOCK” request by other functions will be ignored after/during the
output of “UNLOCK” by the air bag.
However, the door lock is controlled by other functions when IGN1 SW is “OFF” and
IGN2 SW is “OFF”.
If the door lock system outputs “LOCK” and “UNLOCK” simultaneously, only the
“LOCK” output can be activated.
Even though the “LOCK/UNLOCK” output is requested, the door lock system cannot
output “LOCK/UNLOCK” when all door lock switches are locked/unlocked.
Also, even though the “UNLOCK” output for the driver’s door is requested, the door
lock system cannot output “UNLOCK” when the driver’s door is unlocked. (1)
(2)
(3)
(4)

0-34
RODIUS 2007.07
8710-01
STICS
13) REKES (Remote Keyless Entry System)
(1) Transmitter
The REKES (Remote Keyless Entry System) used in vehicle allows door opening and
closing with the remote control that has the following additional functions.
Dual REKES (two remote controller) and REKES only can be coded by scan-Tool.
1.
2.
Door locking and theft deterrent
armed mode
Press door lock button to release.
1.
2.
Door lock button
Panic button: Operates under the theft
deterrent armed mode.
Theft deterrent horn: Sounds approx.
27 seconds.
Door unlock
Unlocking all doors and tailgate

0-38
RODIUS 2007.07
8710-01
STICS
14) Theft Deterrent
(1) Description of Burglar Alarm Function
Description of Burglar Alarm Function ▶
The “LOCK” output is “ON” when receiving the “LOCK” signal from transmitter while
the ignition key is removed and all doors are closed. The armed mode is activated when the
door lock switch is locked (theft deterrent horn output: once, hazard relay output: twice).
The theft deterrent horn and hazard relay outputs are “ON” when receiving the “LOCK”
signal from the remote control key again in armed mode (theft deterrent horn output: once,
hazard relay output: twice).
When receiving “LOCK” signal from the remote control key while any of doors is not
closed, only the “LOCK” output can be done and then activates the armed ready mode
(without theft deterrent horn and hazard warning flasher). At this moment, if the ignition key
is in the ignition switch, the door unlock switch is turned “ON” or the door lock switch
is unlocked (after 0.6 seconds), cancels the armed mode and activates the normal mode.
However, in these cases, if closing the door and locking the door lock switch, the theft
deterrent horn outputs once and the hazard warning flasher outputs twice and then activates
armed mode.
When the door is not opened or the ignition key is not inserted into ignition switch for 30
seconds after receiving “UNLOCK” signal, outputs “LOCK” and then activates armed
mode (RELOCK operation). Also, at this moment, the system outputs the theft deterrent
horn and hazard warning flasher.
The armed mode will not be activated except above conditions.
Ex) The armed mode will not be activated when the door is locked by the ignition key. 1.
2.
3.
4.
5.

0-39
STICS
RODIUS 2007.07
8710-01
Armed mode cancellation requirements ▶
Unlocking by remote control key or engine starting. 1.
Warning operation requirements ▶
When opening the door in armed mode
When unlocking the door lock switch in armed mode
When closing and then opening the door after completion of warning (27 seconds) 1.
2.
3.
Warning operation ▶
The theft deterrent horn and hazard warning flasher output is “ON” for T3 (27
seconds) with the interval of T2 (1second). 1.
Warning cancellation requirements ▶
Cancels warning by using any signal from the remote control key (LOCK, UNLOCK,
START, STOP, PANIC, CHECK) during warning operation.
Cancels warning after 27 seconds (remaining period) while the ignition key is turned to
“ON” position. 1.
2.
Operation when warning is cancelled ▶
<007b008f008c0047009b008f008c008d009b0047008b008c009b008c00990099008c0095009b0047008f009600990095004700880095008b0047008f008800a100880099008b0047009e00880099009500900095008e0047008d00930088009a008f008c00
9900470096009c009b0097009c009b009a004700880099008c> “OFF”. 1.

06-9
BODY EXTERIOR
RODIUS 2007.07
7115-01

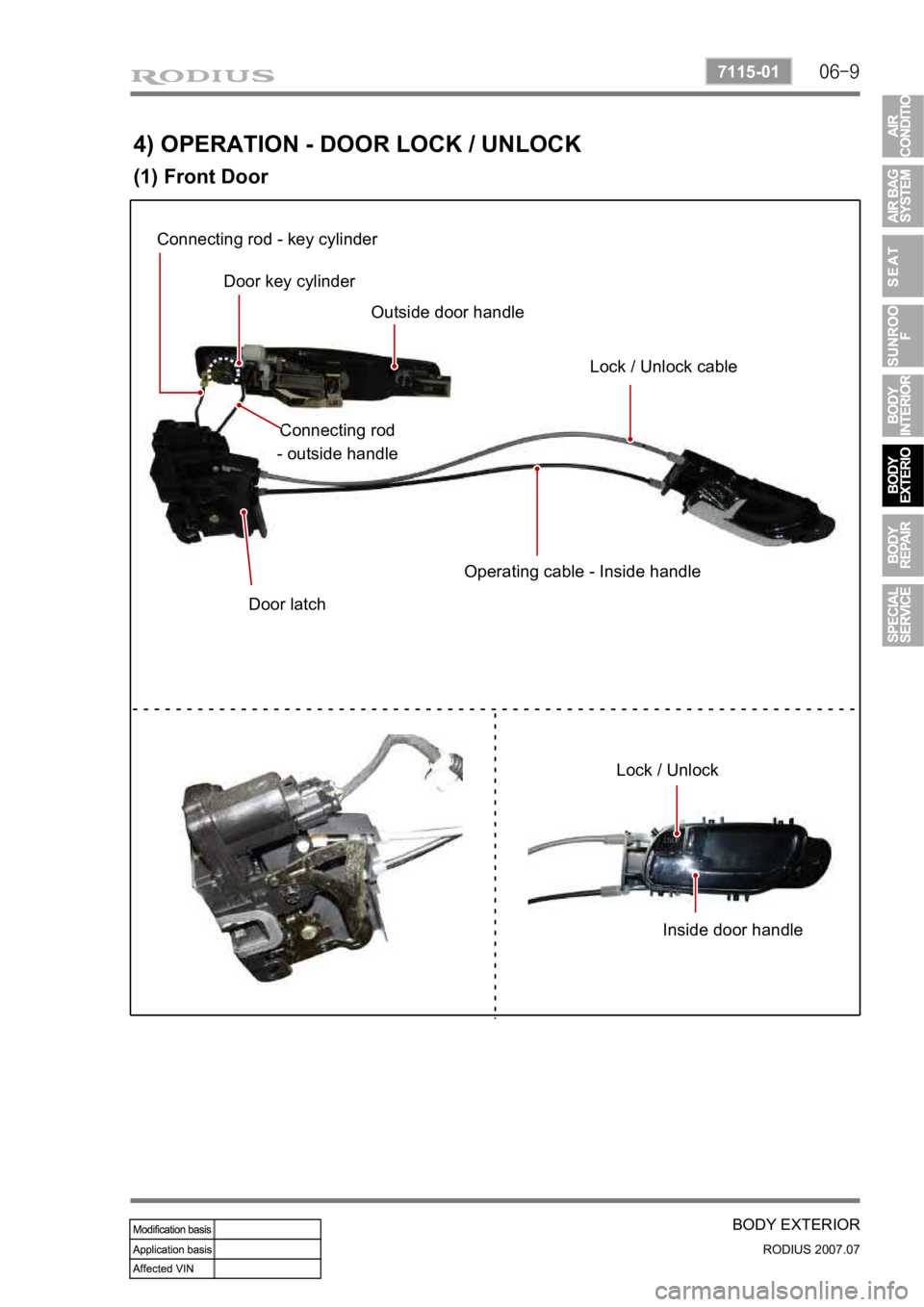

4) OPERATION - DOOR LOCK / UNLOCK
(1) Front Door
Connecting rod - key cylinder Door key cylinder Outside door handle
Lock / Unlock cable
Connecting rod
- outside handle
Door latch Operating cable - Inside handle
Lock / Unlock Inside door handle

06-10
RODIUS 2007.07
7115-01
BODY EXTERIOR
▶Operating Process
Operation of lock button Operating cable Latch lock / Unlock
Operation of Inside handle Operating cable Latch open mode
Operation of outside handle Connecting rod - outside handle Latch open mode Insert key & operation Connecting rod - key cylinder Latch lock / Unlock Lock / Unlock (Inside door handle)
Inside handle
Outside handle Key cylinder

06-11
BODY EXTERIOR
RODIUS 2007.07
7115-01
(2) Rear Door
Outside door handle Connecting rod - Outside handle Rock / Unlock cable
Operating cable - Inside handle
CHILD / SAFETY mode Lock / Unlock
Inside door handle

06-12
RODIUS 2007.07
7115-01
BODY EXTERIOR
▶Operating Process
Lock / Unlock (Inside door handle) Inside handle
CHILD / SAFETY mode
Lock button Operating cable Latch lock / Unlock
Operation of handle Operating cable Open mode - Latch
Safety (FREE) mode Latch & Crank in operation
