SSANGYONG RODIUS 2006 Owner's Manual

0-9
POWER DISTRIBUTION
undefined
8410-02

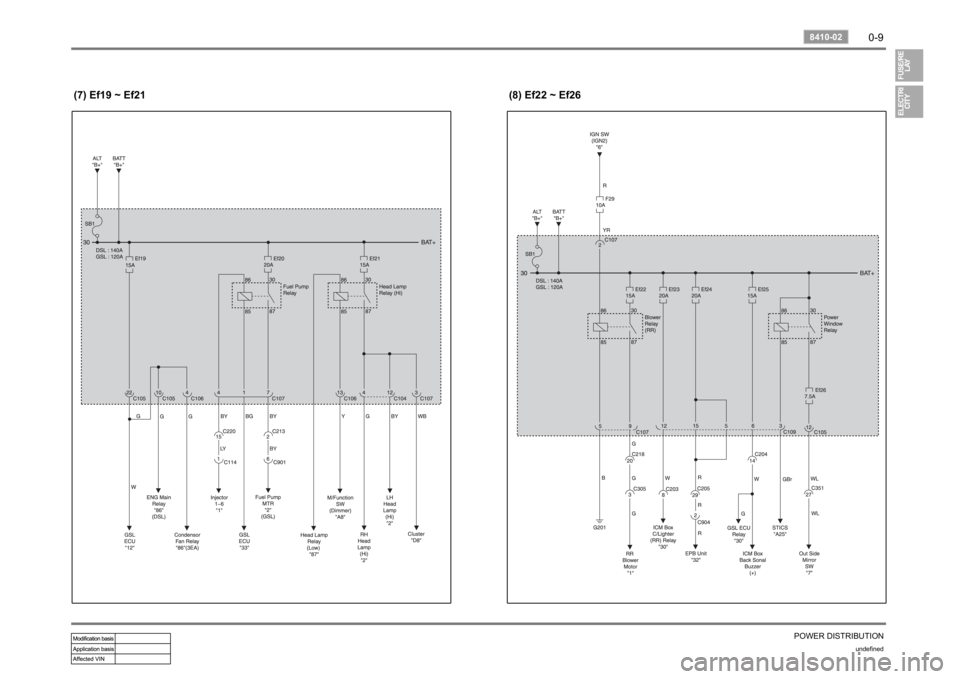

(8) Ef22 ~ Ef26
(7) Ef19 ~ Ef21

0-10undefined
8410-04
POWER DISTRIBUTION8410-04
I.P FUSE BOX
(1) F1 ~ F5
(2) F6 ~ F12

0-11
POWER DISTRIBUTION
undefined
8410-04

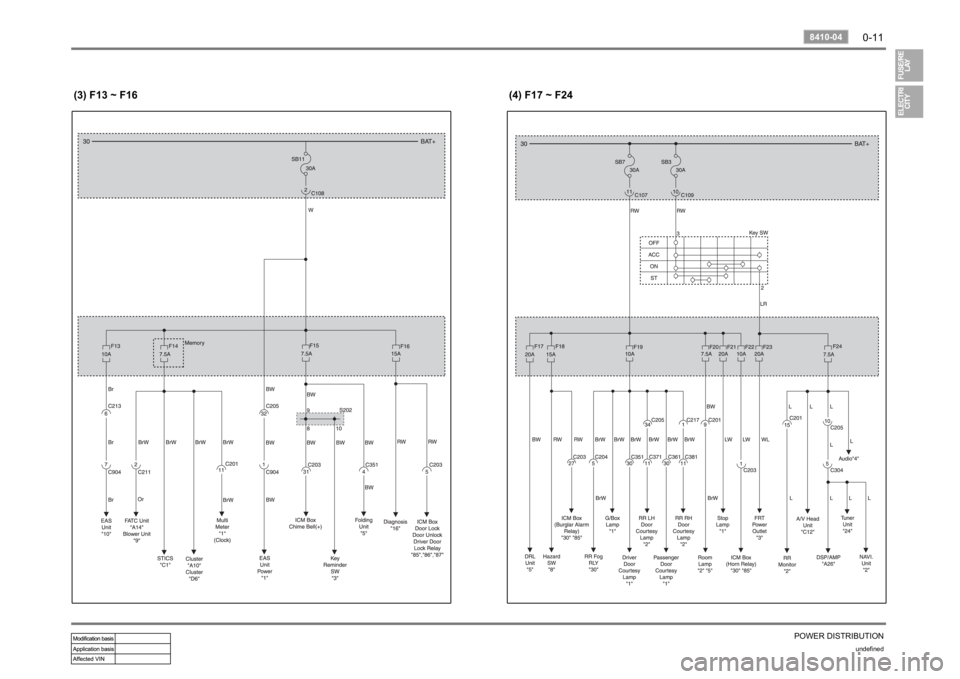

(3) F13 ~ F16 (4) F17 ~ F24

0-12undefined
8410-04
POWER DISTRIBUTION

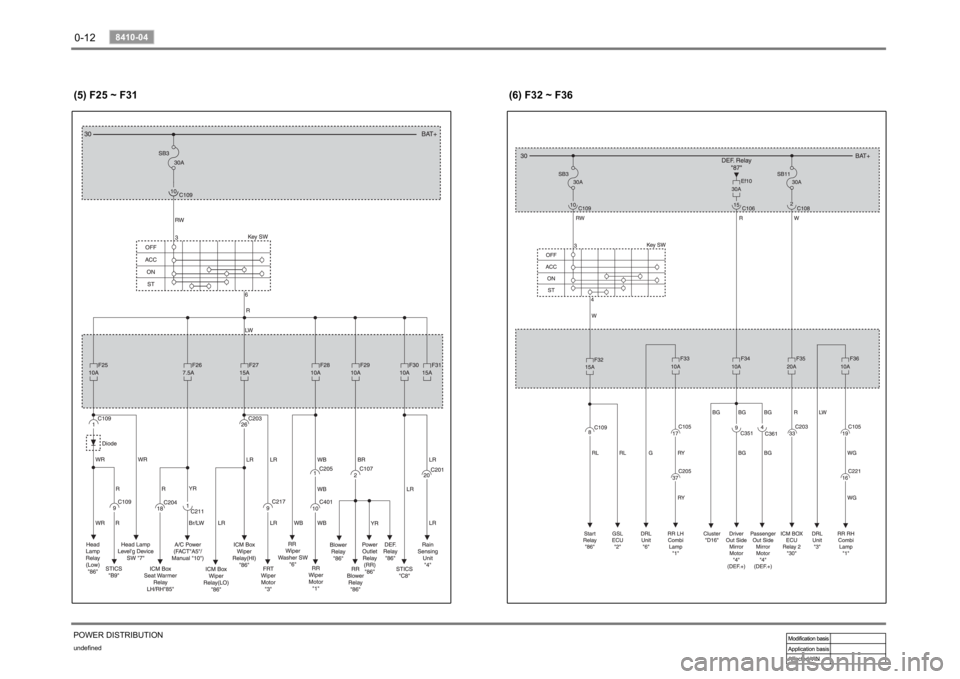

(6) F32 ~ F36
(5) F25 ~ F31

CIRCUIT
1491-01/8210-01/3670-01/4891-01/4920-01/4480-01/8810-01/8010-01/7630-02/8710-03/8510-03/4810-10/8510-00/8510-26/8910-01/6810-21/6910-01/6810-30
CIRCUIT
ENGINE
CHASSIS3670-01 TCU (5-SPEED)............................
4891-01 ABS/ESP......................................
4920-01 EPB..............................................
4480-01 EAS..............................................ELECTRIC
8910-01 AUDIO (MULTI VISION)................
8910-01 AUDIO..........................................
6810-21 PTC HEATER (POSITIVE
TEMPERATURE
COEFFICIENT).............................
6910-01 FFH (FUEL FIRED HEATER).........
6810-30 FATC (FULL AUTO TEMP.
CONTROL) CIRCUIT....................
6810-30 AIR-CON (MANUAL).....................
8810-01 AIR-BAG.......................................
8010-01 CLUSTER.....................................
7630-02 CIGAR LIGHTER, POWER
OUTLET......................................
8710-03 STICS..........................................
8510-03 POWER WINDOW CIRCUIT..........
4810-10 STOP ＆ BACK-UP LAMP
CIRCUIT.......................................
8510-00 HEAD LAMP LEVELING DEVICE
CIRCUIT.......................................
8510-26 TURN SIGNAL ＆ HAZARD LAMP
CIRCUIT.......................................7
9
11
12
13
14
17
18
22
23
24
2526
29
30
31
32
35 1491-01 ECU (ENGINE CONTROL UNIT -
D27DT EU IV)...............................
8210-01 DIAGNOSIS CIRCUIT...................3
6

0-3
CIRCUITundefined
1491-01
1491-01
ECU (ENGINE CONTROL UNIT - D27DT EU IV)
1) ENG MAIN RELAY, PEDAL MODULE, HFM SENSOR, VALVE
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-4undefined
1491-01
CIRCUIT2) FUEL FILTER WARNING LAMP, IMMO, SENSOR (FUEL
PRESSURE, CAM SHAFT, BOOSTER PRESSURE, CRANK
SHAFT, COOLANT/FUEL TEMP.)
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

0-5
CIRCUITundefined
1491-01

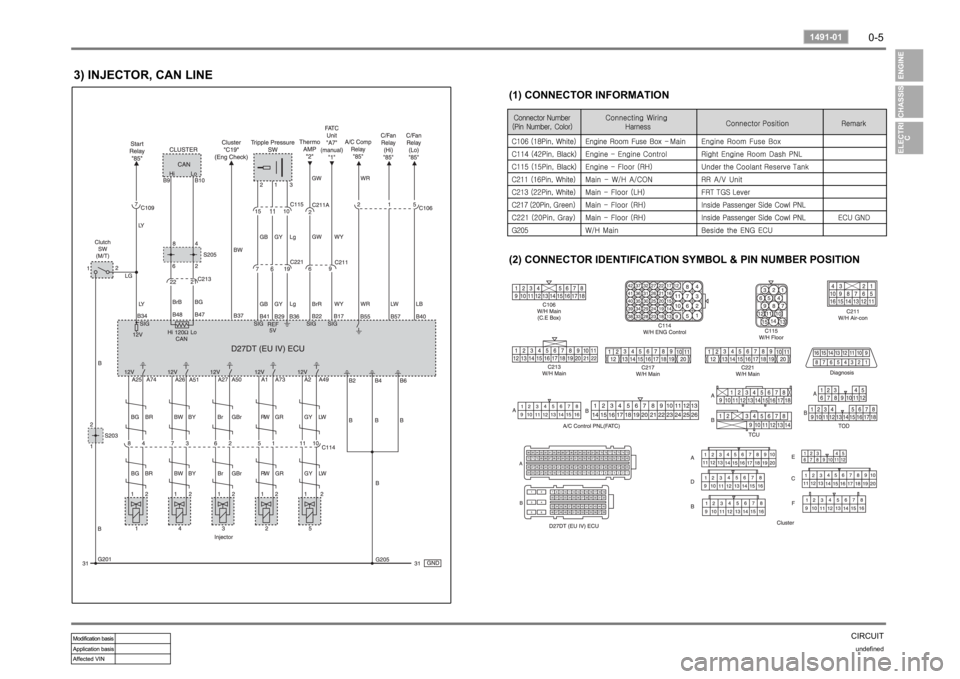

3) INJECTOR, CAN LINE
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-6undefined
8210-01
CIRCUIT8210-01

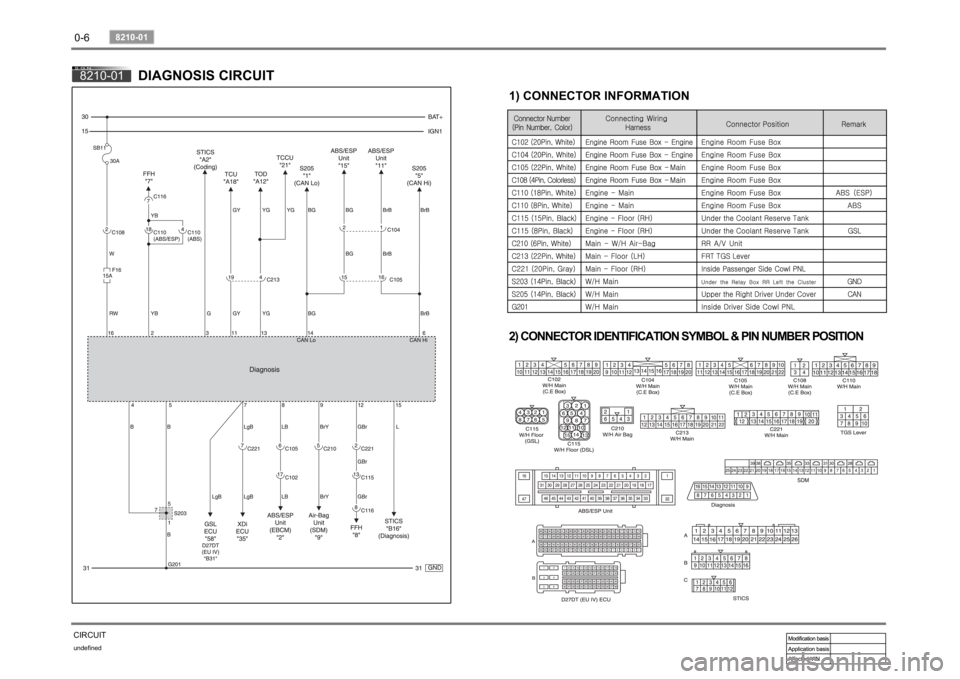

DIAGNOSIS CIRCUIT
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION 1) CONNECTOR INFORMATION
