SSANGYONG RODIUS 2006 Workshop Manual

0-17
CIRCUITundefined
7630-02
7630-02
CIGAR LIGHTER, POWER OUTLET
1) CONNECTOR INFORMATION
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSIT

0-18undefined
8710-03
CIRCUIT8710-03
STICS
1) POWER WINDOW, WARNING LAMP (P/BRAKE, S/BELT),ILL, KEY REMINDER SW
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
(1) CONNECTOR INFORMATION

0-19
CIRCUITundefined
8710-03
2)
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
(1) CONNECTOR INFORMATION
WIPER, DOOR SW, LAMP(DOOR COURTESY, G/HANDLE),
DOOR OPEN WARNING LAMP

0-20undefined
8710-03
CIRCUIT3) DOOR LOCK, DEFOGGER
(1) CONNECTOR INFORMATION

0-21
CIRCUITundefined
8710-03

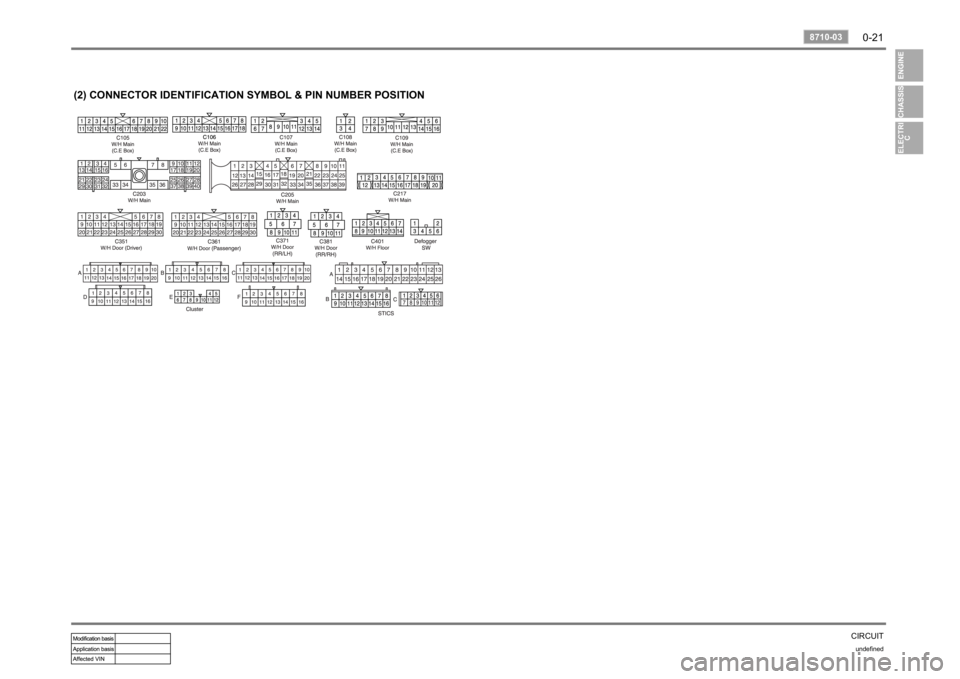

(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-22undefined
8510-03
CIRCUIT
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
1) CONNECTOR INFORMATION
8510-03
POWER WINDOW CIRCUIT

0-23
CIRCUITundefined
4810-10
4810-10

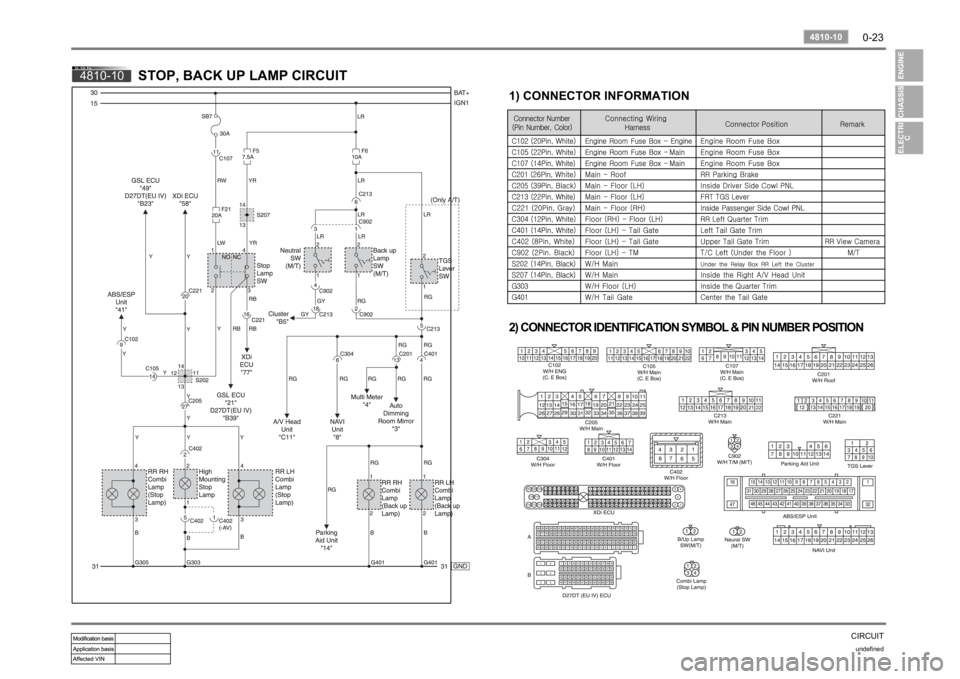

STOP, BACK UP LAMP CIRCUIT
1) CONNECTOR INFORMATION
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-24undefined
8510-00
CIRCUIT8510-00

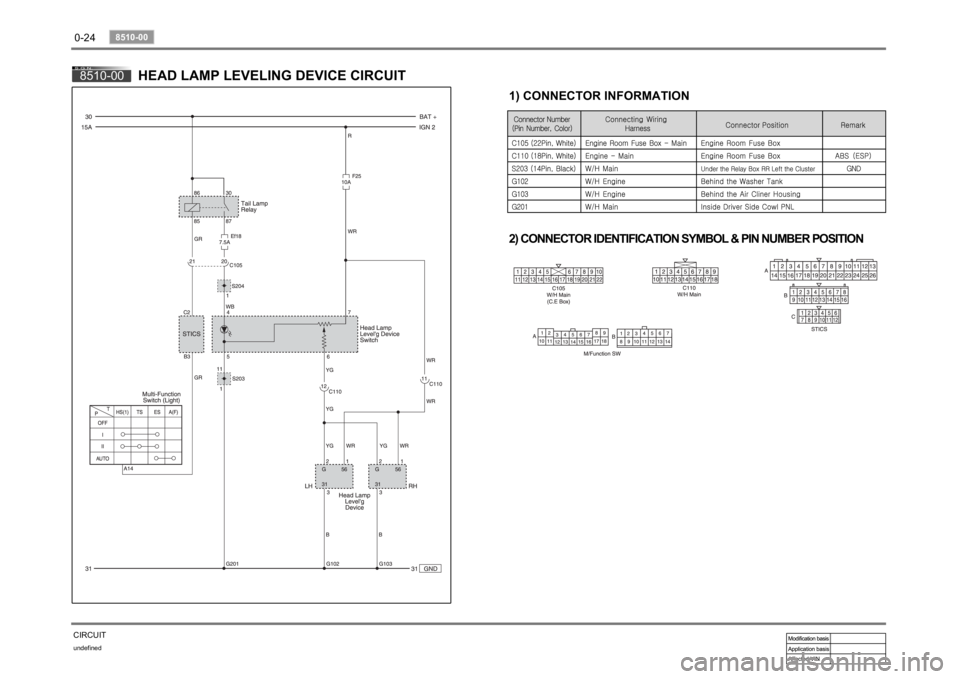

HEAD LAMP LEVELING DEVICE CIRCUIT
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
1) CONNECTOR INFORMATION

0-25
CIRCUITundefined
8510-26
8510-26
TURN SIGNAL ＆ HAZARD LAMP CIRCUIT
2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
1) CONNECTOR INFORMATION

0-26undefined
8910-01
CIRCUIT
1) CONNECTOR INFORMATION
8910-01
AUDIO (MULTI VISION)
A/V HEAD UNIT, NAVI UNIT, GPS, RR VIEW CAMERA,
A
UX
JACK
1)
