SSANGYONG RODIUS 2007 Service Manual

0-12
RODIUS 2006.09
3410-01
TRANSFER CASE
Power Flow ▶
2) 4H Mode (4Wd Drive - High Speed)

0-13
TRANSFER CASE
RODIUS 2006.09
3410-01
Power Flow ▶
3) 4L Mode (4Wd Drive - Low Speed)

0-14
RODIUS 2006.09
3410-01
TRANSFER CASE
7. TRANSFER CASE BLOCK DIAGRAM

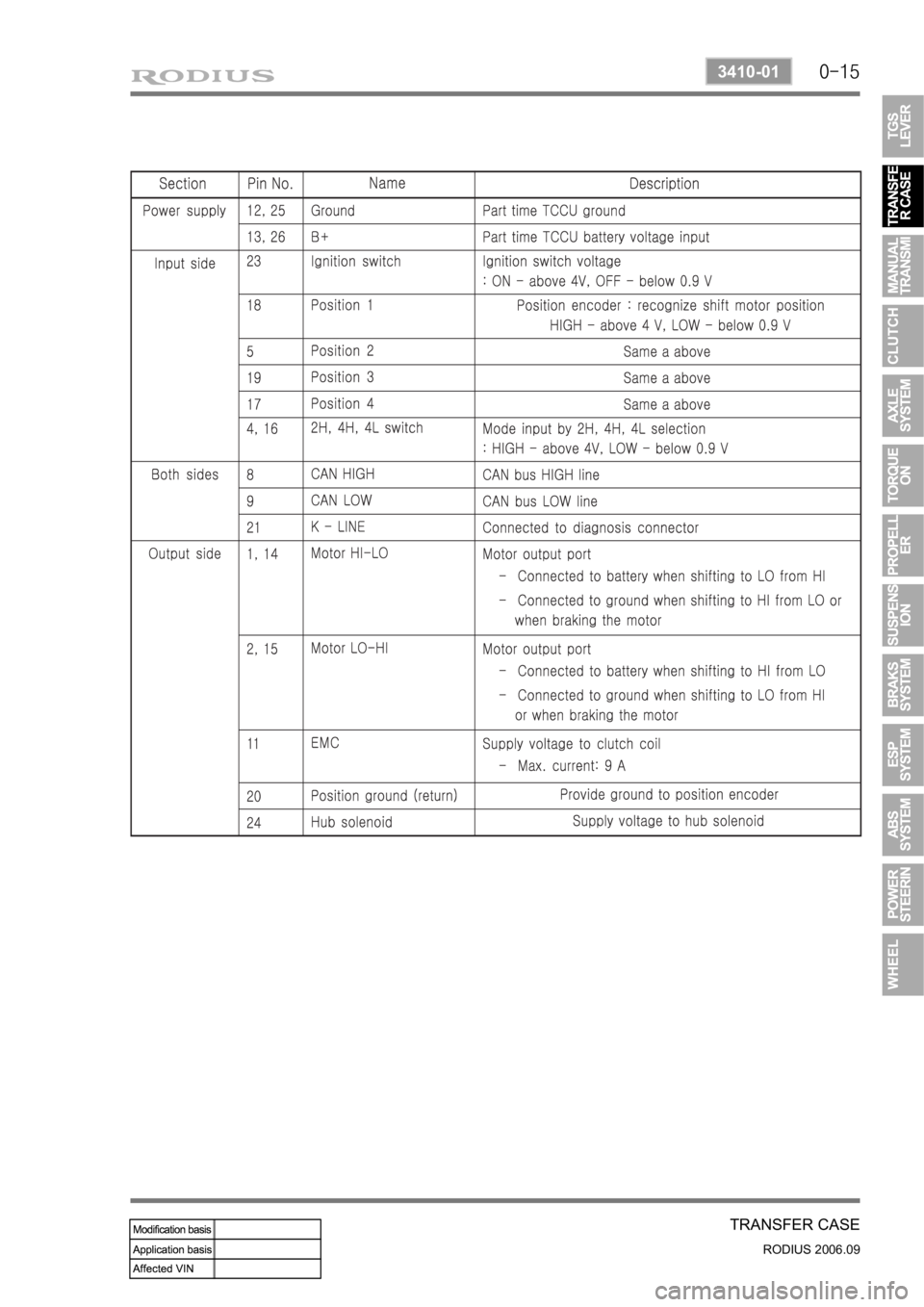

0-15
TRANSFER CASE
RODIUS 2006.09
3410-01

0-16
RODIUS 2006.09
3410-01
TRANSFER CASE
This function is only available when the speed signal from speed sensor is about to stop
(below 2 km/h).
This function is only available when clutch pedal is depressed (manual transmission) o
r
selector lever is selected to “N” position (automatic transmission).
(TCCU must recognize the clutch pedal signal or “N” signal.)
Change the 4WD switch in instrument panel from 4H to 4L.
“4WD LOW” warning lamp in meter cluster blinks during this process, then remains
when the shift is completed.
“4WD CHECK” warning lamp comes on when the system is defective. -
-
-
-
- 4H → 4L ▶

0-17
TRANSFER CASE
RODIUS 2006.09
3410-01
8. SYSTEM OPERATION
1) Transfer Case Control Unit (Tccu)
(1) 4WD Operation
TCCU is located under the front left seat and
permits the vehicle to shift from two-wheel
drive to four-wheel drive (and back shift)
according to drivers switch operation during
driving (For the shifting between 4WD HIGH
and 4WD LOW, stop the vehicle).
2H → 4H ▶
Change the 4WD switch in instrument panel from 2H to 4H.
This shift is available during driving.
“4WD HIGH” indicator in meter cluster comes on. -
-
-
When the system is defective
“4WD CHECK” warning lamp comes
on -
Change the 4WD switch in instrument panel from 4H to 2H.
This shift is available during driving.
“4WD HIGH” indicator in meter cluster goes out.
“4WD CHECK” warning lamp comes on when the system is defective. -
-
-
- 4H → 2H ▶

0-3
MANUAL TRANSMISSION
RODIUS 2006.09
3170-01
3710-01MANUAL TRANSMISSION
1. SPECIFICATIONS
1) General Specifications
2) Tightening Torque

0-4
RODIUS 2006.09
3170-01
MANUAL TRANSMISSION
1. MANUAL TRANSMISSION OVERVIEW
4WD
2WD
TSM54/52 transmission is designed to link the gear ratio, installation dimensions and shapes
with current T5 transmission and BTRA automatic transmission. It provides maximum
drivability by the optimized engine torque and gear ratio.
TSM54/52 transmission uses linkage type shift elements directly connected to the
transmission. It prevent the transmission from shifting to the reverse gear from 5th gea
r
when shifting to reverse gear. It also prevents the break and wear. 1.
2.

0-5
MANUAL TRANSMISSION
RODIUS 2006.09
3170-01
1) Features
All gears use the helical type and high
strength materials. 3.
The helical type gear provides less noise.
The synchronizing devices are installed in
1/2, 3/4, 5/R gears. To prevent the double
engagement, the independent interlock
devices are installed. 4.
TSM54/52 transmission uses the inertia
lock type key to make smooth gea
r
engagement and to provide silent gea
r
engagement.
The clutch release system is available to
use CSC (Concentric Slave Cylinder) o
r
Fork type according to the vehicle model.
New Rexton uses the fork type
clutch release system.
The semi-remote control type gear shift
mechanism is used to prevent incorrect
shifting. 5.
6.

0-6
RODIUS 2006.09
3170-01
MANUAL TRANSMISSION
2. CIRCUIT DIAGRAM (BACKUP LAMP)
