0-5
CIRCUIT
RODIUS 2006.09
1491-01
1491-01
ECU (ENGINE CONTROL UNIT - D27DT EU IV)
1) ENG MAIN RELAY, PEDAL MODULE, HAN SENSORS, VALVE
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-6RODIUS 2006.09
1491-01
CIRCUIT2) FUEL FILTER WARNING LAMP, IMMOBILIZER, SENSOR
(FUEL PRESSURE, CAM SHAFT, BOOSTER PRESSURE,
CRANK SHAFT, COOLANT/FUEL TEMP.) A/CRUISE SW
CIRCUIT
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

0-7
CIRCUIT
RODIUS 2006.09
1491-01
3)
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
INJECTOR, CAN LINE, STOP LAMP SW, SENSOR (A/CON, E-
GAS), CLUTCH SW

0-8RODIUS 2006.09
1491-01
CIRCUIT1491-01
ECU (GSL G32)
1)
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
IGN COIL, CPS, AIR FLOW SENSOR, THROTTLE SENSOR,
TPS

0-9
CIRCUIT
RODIUS 2006.09
1491-01
2)O₂SENSOR, PEDAL MODULE, CRUISE CONTROL SW, STO
P
LAMP SW
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION

0-10RODIUS 2006.09
1491-01
CIRCUIT3)
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION (1) CONNECTOR INFORMATION
INJECTOR, KNOCK SENSOR, IMMOBILIZER, CANISTER
PURGE VALVE

0-13
CIRCUIT
RODIUS 2006.09
3670-01
2) SOLENOID, OIL TEMP SENSOR, SPEED SENSOR (N2, N3)
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-22RODIUS 2006.09
6810-30
CIRCUIT6810-30

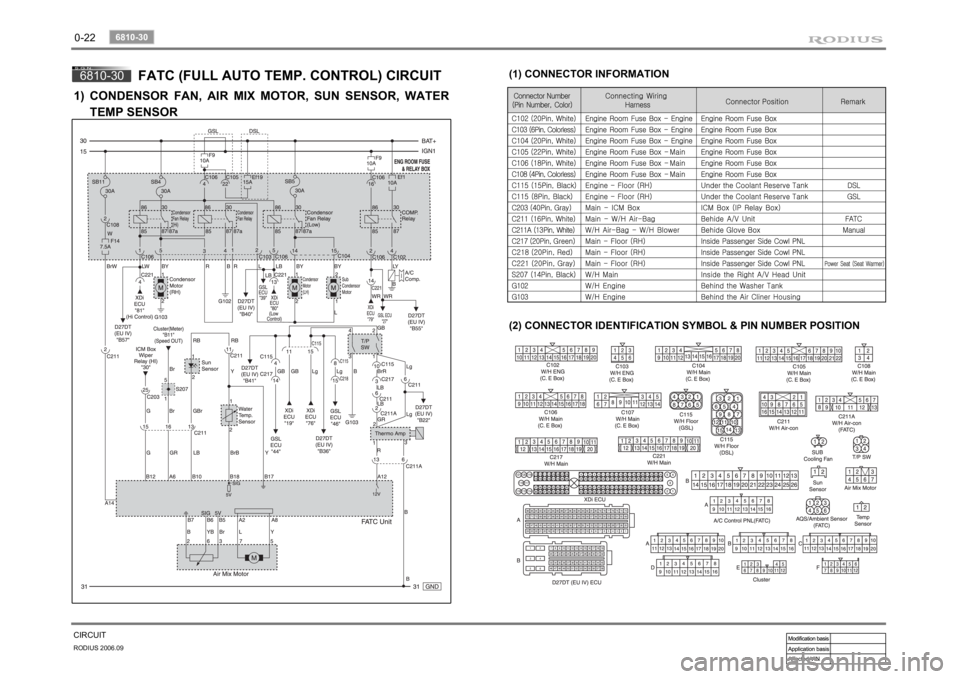

FATC (FULL AUTO TEMP. CONTROL) CIRCUIT
1) CONDENSOR FAN, AIR MIX MOTOR, SUN SENSOR, WATER TEMP SENSOR
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
(1) CONNECTOR INFORMATION

0-23
CIRCUIT
RODIUS 2006.09
6810-30

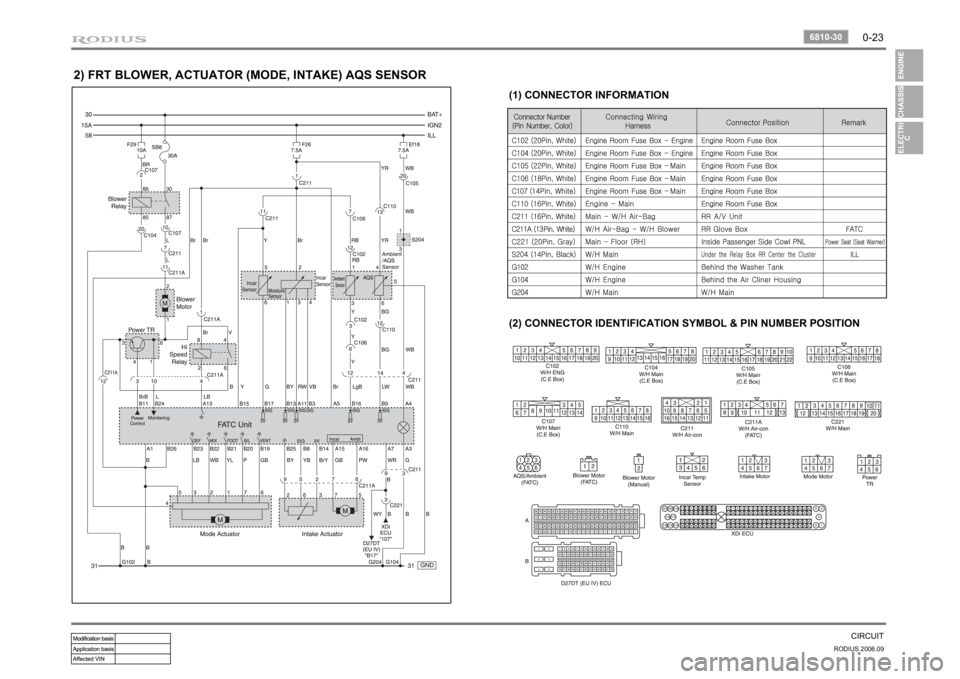

2) FRT BLOWER, ACTUATOR (MODE, INTAKE) AQS SENSOR
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
(1) CONNECTOR INFORMATION

01-5
ENGINE INFORMATION
RODIUS 2006.09
0000-00
NO. FUNCTION NO. FUNCTION
1 HFM sensor 12 Intake manifold
2 Intake air duct 13 Connecting rod
3 Resonance flap 14 Exhaust manifold
4 Cylinder head cover 15 Crankshaft
5 Exhaust camshaft 16 Engine mounting
6 Intake camshaft 17 Starter
7 Cylinder head 18 Crankcase
8 Spark plug connector 19 Oil pump sprocket
9 Valve tappet 20 Oil strainer
10 Injector 21 Oil pan
11 Exhaust valve 22 Drain plug
Front View ▶
