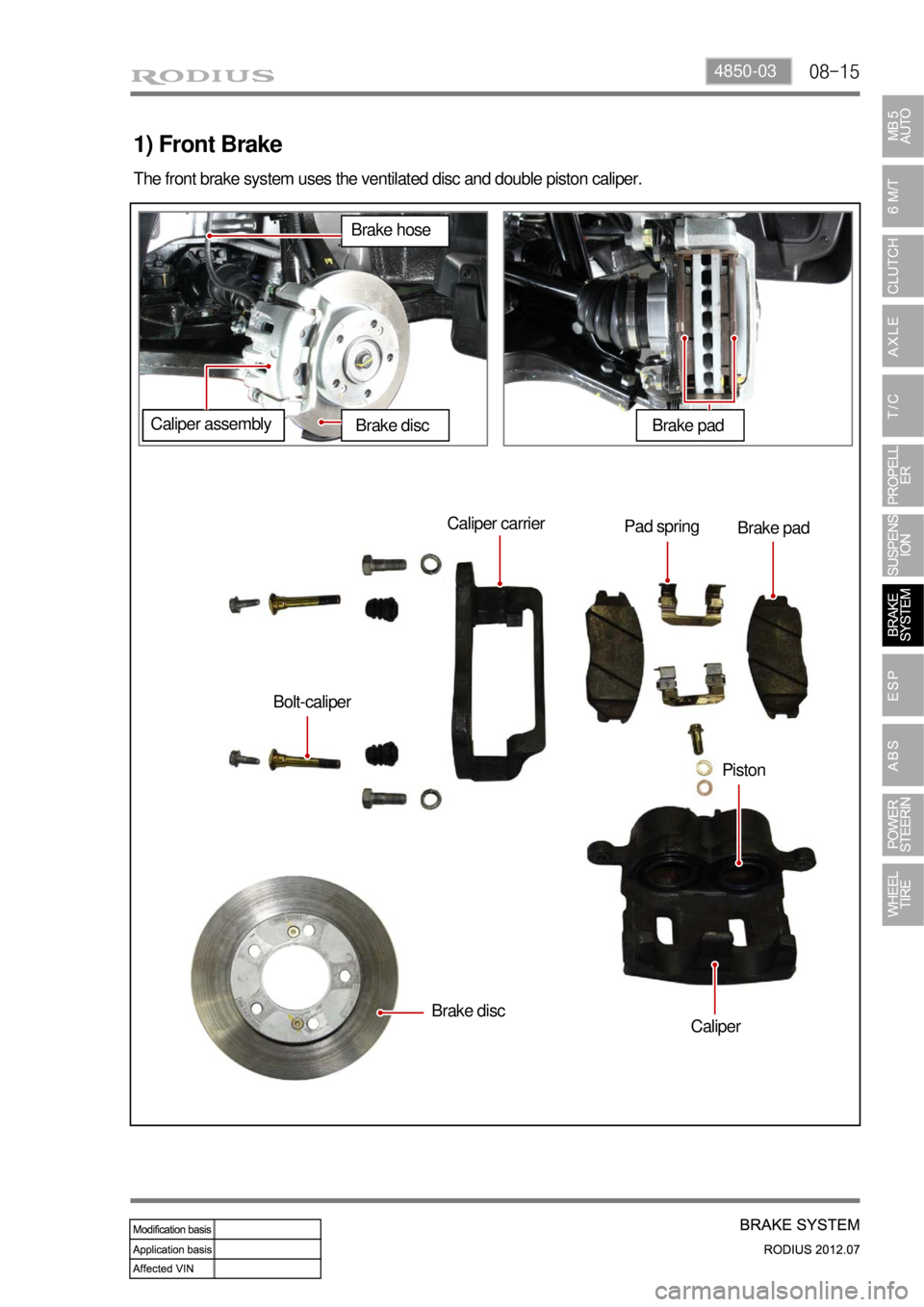

1) Front Brake
The front brake system uses the ventilated disc and double piston caliper.
Caliper carrier
Pad spring
Brake pad
Bolt-caliper
Brake disc
CaliperPiston
Brake hose
Caliper assemblyBrake discBrake pad

08-16
2) Rear Brake
▶ Brake Disc
Brake disc
Lock nutCaliper
Brake hose
Backing plate
Adjusting bolt
Brake shoe Lock nut
Parking brake
operating lever

08-174850-03

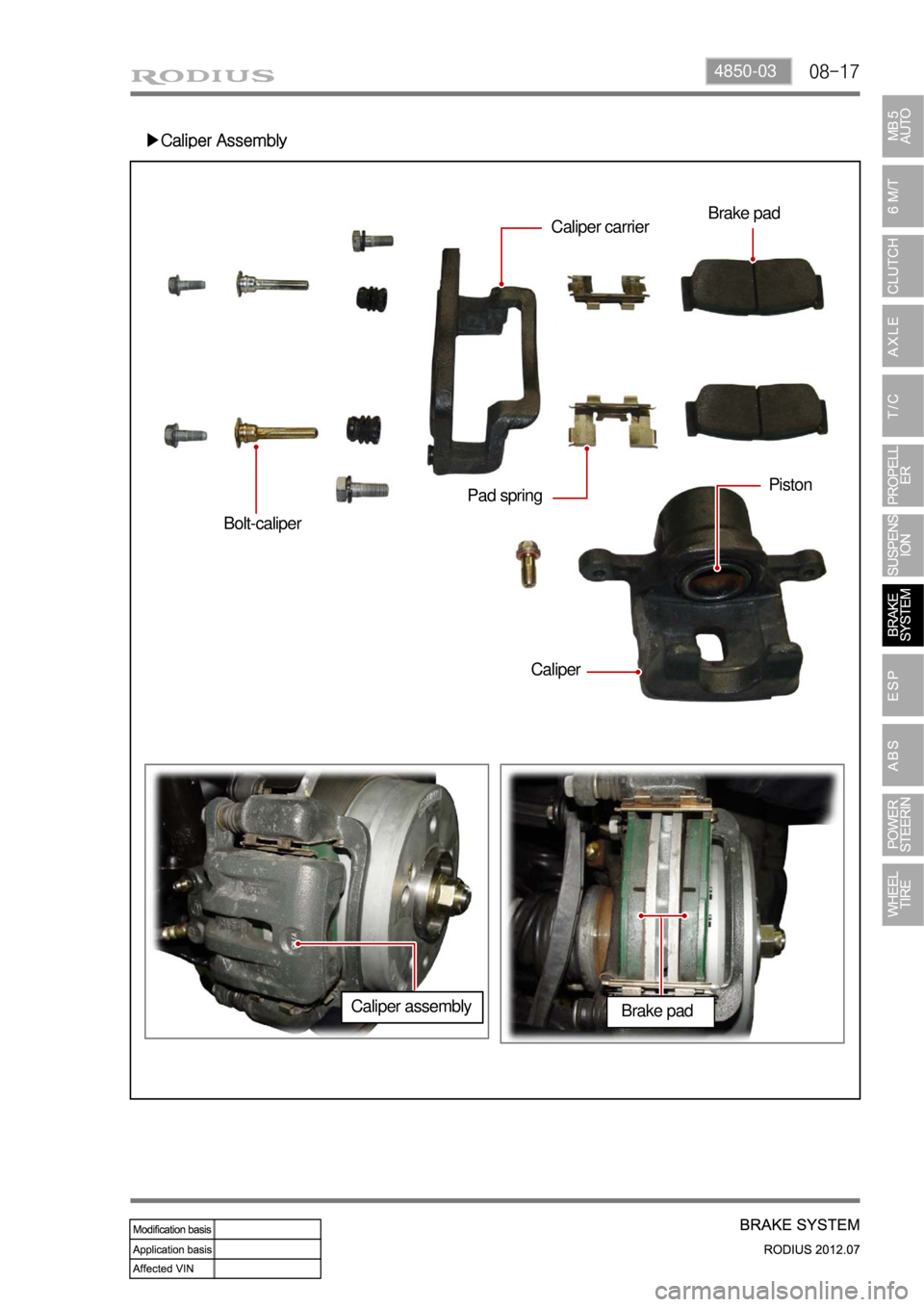

▶Caliper Assembly
Bolt-caliper
CaliperPiston
Pad springCaliper carrierBrake pad
Caliper assembly
Brake pad

08-18

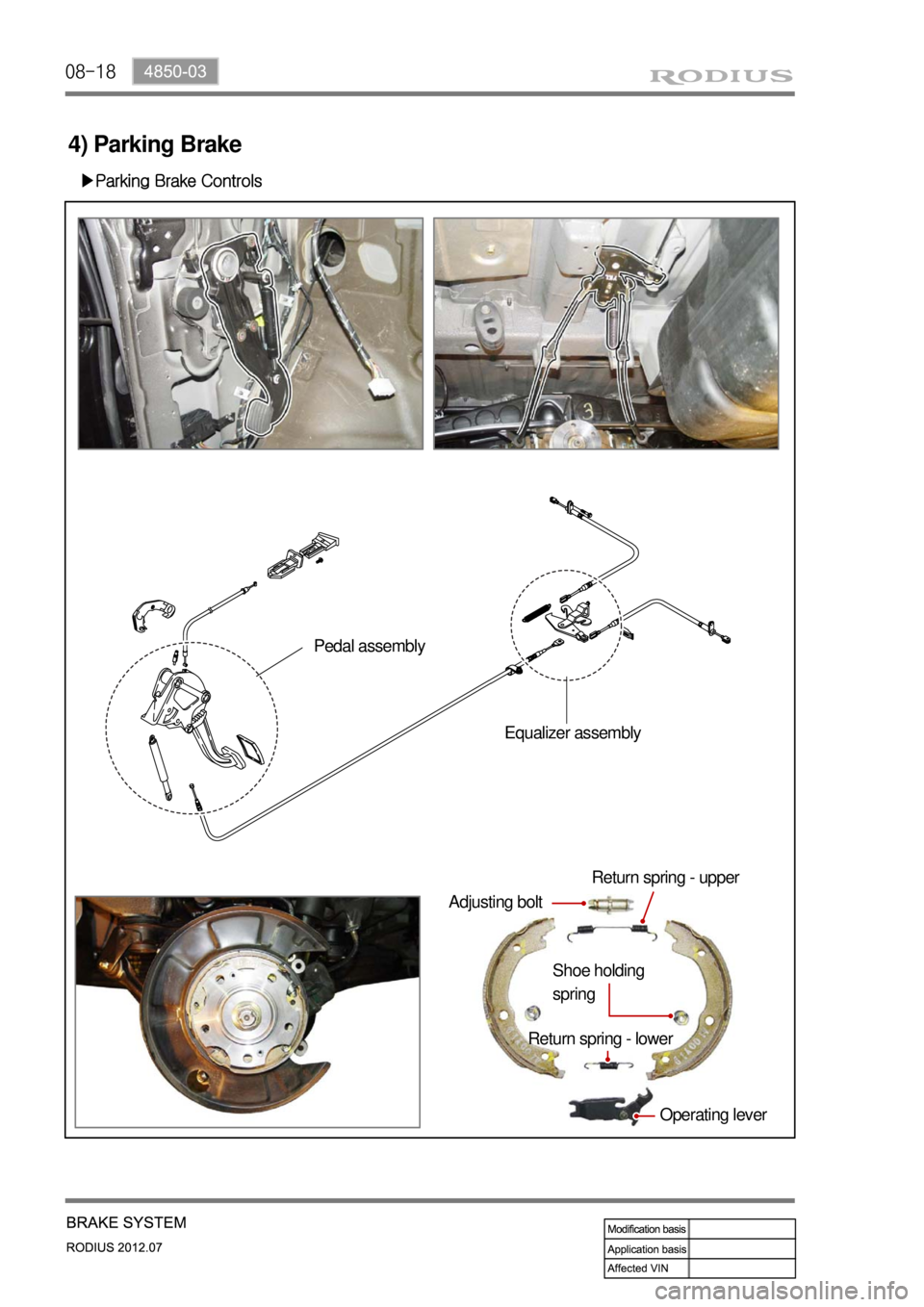

4) Parking Brake
▶Parking Brake Controls
Operating lever
Return spring - lowerShoe holding
springReturn spring - upper
Adjusting bolt
Pedal assembly
Equalizer assembly

08-194850-03

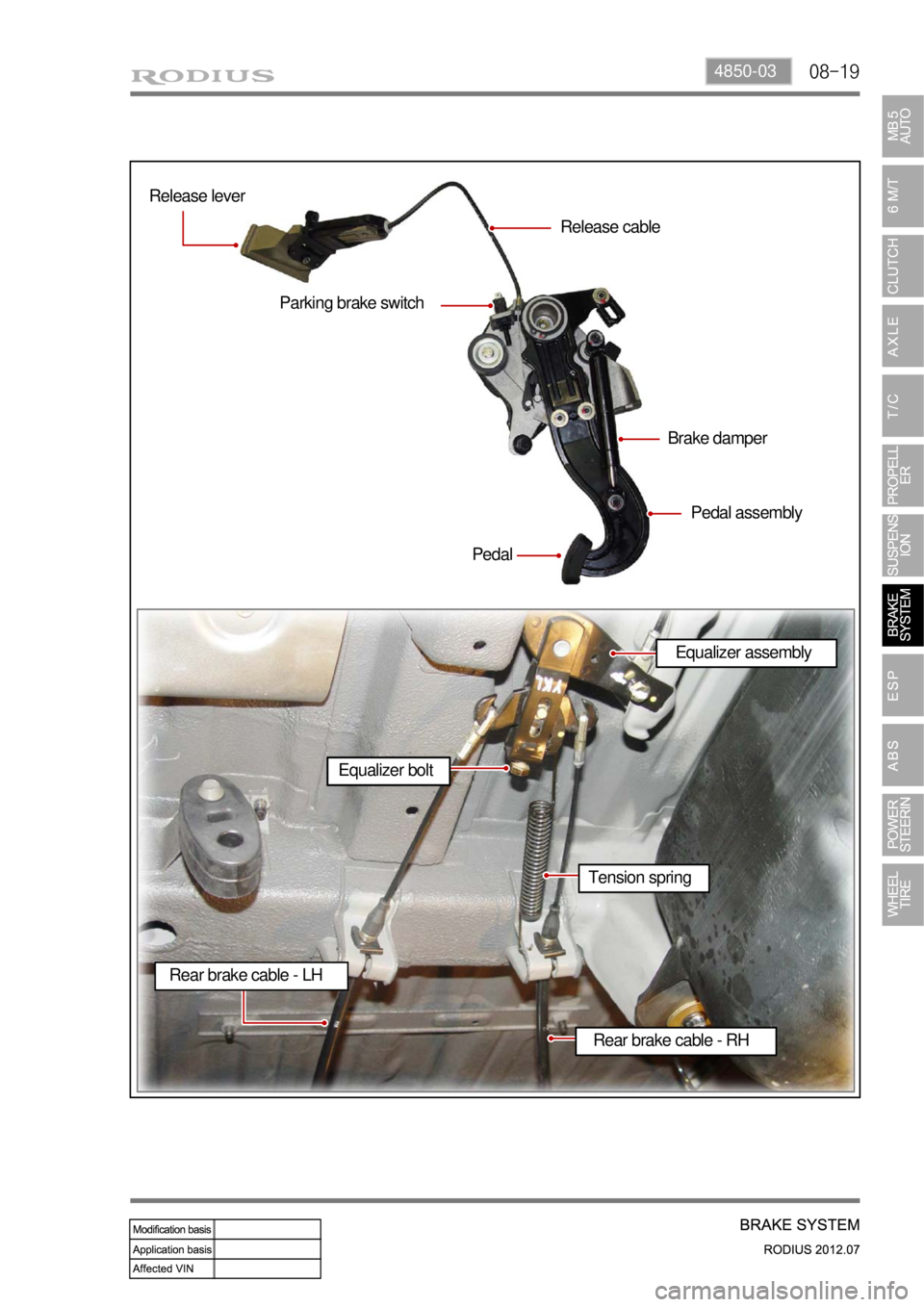

Parking brake switch Release lever
Brake damper
Pedal assembly
Pedal
Rear brake cable - LH
Rear brake cable - RH Tension spring
Equalizer boltEqualizer assembly Release cable

11-4
2. TIGHTENING TORQUE
DescriptionKgf·m N·m
Steering column shaftSteering column mounting bolt 2.0 ~ 2.5 19.6 ~ 24.5
Steering wheel and steering column shaft
lock nut4.0 ~ 6.0 39.2 ~ 58.8
Steering wheel and air bag module
mounting bolt0.7 ~ 1.1 6.8 ~ 10.8
Steering column and lower shaft
connection bolt.1.8 ~ 2.5 17.6 ~ 24.5
Power steering gear
boxSteering gear box and gear box cross
member mounting bolt7.0 ~ 9.0 68.6 ~ 88.2
Steering gear box and lower shaft
connection bolt2.5 ~ 3.0 24.5 ~ 29.4
Tie rod end and knuckle connection nut 3.5 ~ 4.5 34.3 ~ 44.1
Tie rod end lock nut 6.5 ~ 8.0 63.7 ~ 78.4
Steering gear box and pressure hose
connection nut3.2 ~ 3.8 31.4 ~ 37.2
Steering gear box and return line
connection nut3.2 ~ 3.8 31.4 ~ 37.2
Power steering pumpEye bolt for oil supply pipe to power
steering pump5.5 ~ 6.5 53.9 ~ 63.7
Power steering pump mounting bolt 2.0 ~ 2.5 19.6 ~ 24.5
Power steering line Return line and clip connection bolt 1.2 ~ 1.8 11.7 ~ 17.6

12-34170-01
1. SPECIFICATION
Description Specification
Tire 16 inch 225/65R16
Tire inflation pressure 35psi
Wheel 16 inch 6.5J * 16
Balance weightInner: Clip-on type
Outer: Clip-on type
Tightening torquse of wheel bolt 127.4~156.8 Nm
2. WHEEL DESIGNS
16 inch: 225/65R/16 16 inch: 225/65R/16
2WD (6.5J * 16) P/TIME (6.5J * 16)

03-157410-01
6) Sliding of Rear 1st and 2nd Seat
- 4 rail (1.610mm) for rear 1st and 2nd seat sliding
- Rail mounting : Floor bolt type
