02-22
4. INTAKE/EXHAUST MANIFOLD
1) Intake Manifold
Intake manifold is installed on the cylinder head with 8 bolts. The variable swirl valve is introduced to
improve the EGR gas mixture and turbulence in combustion chamber and to decrease the exhaust gas.
2) Exhaust Manifold
Exhaust manifold is installed on the cylinder head with 10 stud bolts and nuts. EGR port is integrated in
cylinder head.Components ▶
Components ▶For detailes, refer to Chapter "Intake System". *
For detailes, refer to Chapter "Exhaust System".
*
Exhaust manifold
Intake manifold

02-230000-00
Rear view

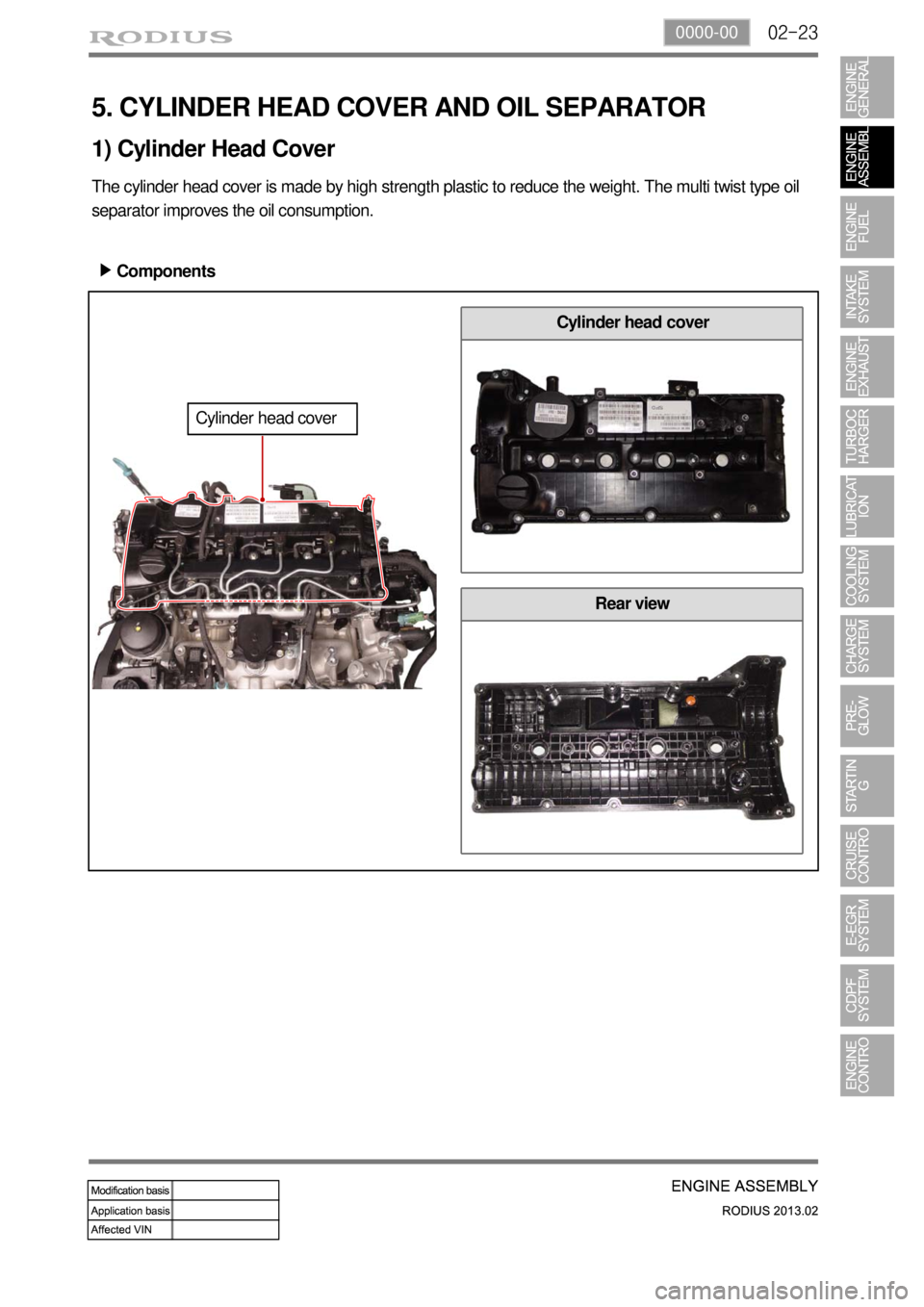

5. CYLINDER HEAD COVER AND OIL SEPARATOR
The cylinder head cover is made by high strength plastic to reduce the weight. The multi twist type oil
separator improves the oil consumption.
Components ▶
1) Cylinder Head Cover
Cylinder head cover
Cylinder head cover

02-24

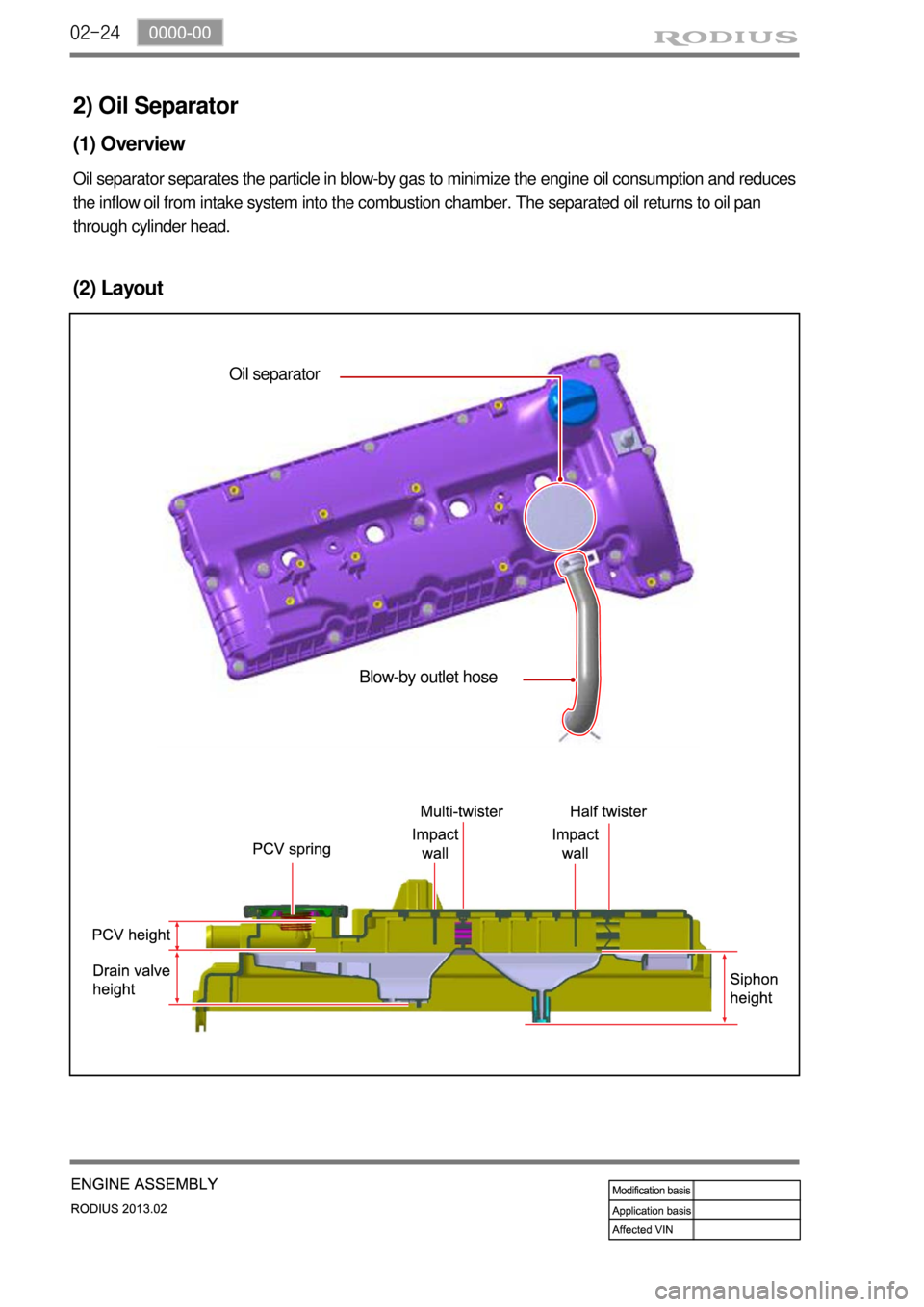

2) Oil Separator
Oil separator separates the particle in blow-by gas to minimize the engine oil consumption and reduces
the inflow oil from intake system into the combustion chamber. The separated oil returns to oil pan
through cylinder head.
Oil separator
Blow-by outlet hose
(1) Overview
(2) Layout

02-250000-00
Vacuum pump driveHP pump drive gear
Cylinder head gasket
Camshaft position sensor
Components ▶
Cylinder head
Cylinder head contains cam position sensor, vacuum pump, intake manifold, exhaust manifold and valve
assembly. Vacuum pump and the high pressure (HP) pump are driven by Camshaft and valves are install
in vertical direction. This enables the compact layout in cylinder head assembly.
6. CYLINDER HEAD
Finger follower & HLACamshaft sprocketIntake/exhaust Camshafts

02-26
Location of Expansion Plugs
1) Cylinder Head
(1) Overview
The cylinder is made by gravity casting and the water jacket is integrated type.
The cylinder oil passage is drilled and sealed by cap.
The Camshaft bearing cap is also made by casting and installed on the cylinder head.
(2) Features
Front
Oil gallery expansion plug (M10)
Coolant expansion plug (M21)
Intake side
Rear

02-270000-00
Intake/Exhaust Camshafts
2) Camshaft
(1) Overview
Hollow type camshaft contains cam, octagon cam, HP pump gear and intake/exhaust gears.
Camshaft operates the intake/exhaust valves, vacuum pump and HP pump, and transfers the engine
oil to vacuum pump through the internal oil passage.
(2) Location
Exhaust CamshaftExhaust Camshaft
Thrust journalIntake Camshaft
Closed flow type water jacket (improving cooling performance) ▶
Octagon cam
(for tooling)
Connected to
vacuum pump

02-28
3) Valve Assembly (Installed in Cylinder Head)
(1) Features
Automatic valve clearance adjuster by hydraulic pressure (Maintenance Free) - Hydraulic lash
Optimized adjustment of valve clearance reduces the valve noise.
Roller type finger follower reduces the friction loss.
Vertical installation.
Simple and compact design reduces the moving operation (improving valve following and fuel
consumption at high speed) 1.
2.
3.
4.
5.
(2) Arrangement
Hydraulic lash adjuster
Upper valve spring retainer
Lower valve spring retainer
Valve spring
Exhaust valveIntake valve
Finger follower

02-290000-00
4) Cylinder Head Gasket
(1) Features
Sealing the cylinder gas pressure - Peak pressure: 190 bar
Minimizing the distortion of engine structure (cylinder head, block): profile stopper, backland stopper
Material: MLS (Multi Layer Steel), Gasket (3 layers)
Thickness of gasket: 3 types (1.2 /1.3 /1.4 mm) 1.
2.
3.
4.
(2) Thickness of cylinder head gasket
There are three types of gasket to managing the compression ratio.
Piston protrusion ▶
Piston protrusion Thickness
0.475 to 0.540 mm 1.2t
0.541 to 0.649 mm 1.3t
0.650 to 0.745 mm 1.4t
Thickness marking
Ex: 1.3t

02-30
1) Chain Drive
(1) Overview
The drive chain is single chain drive system with simple design and variable performance, and it utilizes
the hydraulic tensioner to reduce the wave impact generated by the chain. This chain is light weight and
has high durability through single bush chain. Shoulder bolts are used for better NHV.

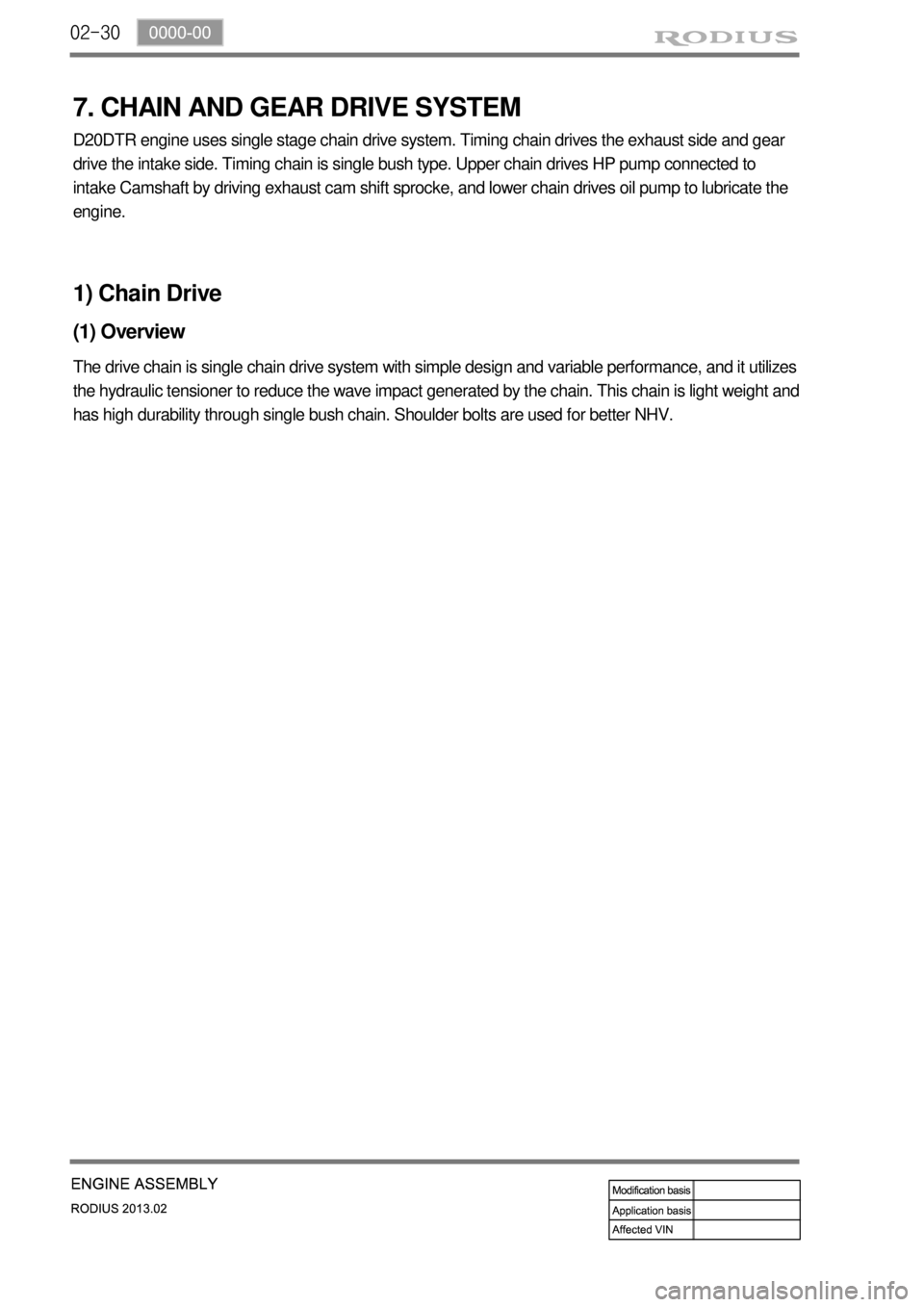

7. CHAIN AND GEAR DRIVE SYSTEM
D20DTR engine uses single stage chain drive system. Timing chain drives the exhaust side and gear
drive the intake side. Timing chain is single bush type. Upper chain drives HP pump connected to
intake Camshaft by driving exhaust cam shift sprocke, and lower chain drives oil pump to lubricate the
engine.

02-310000-00

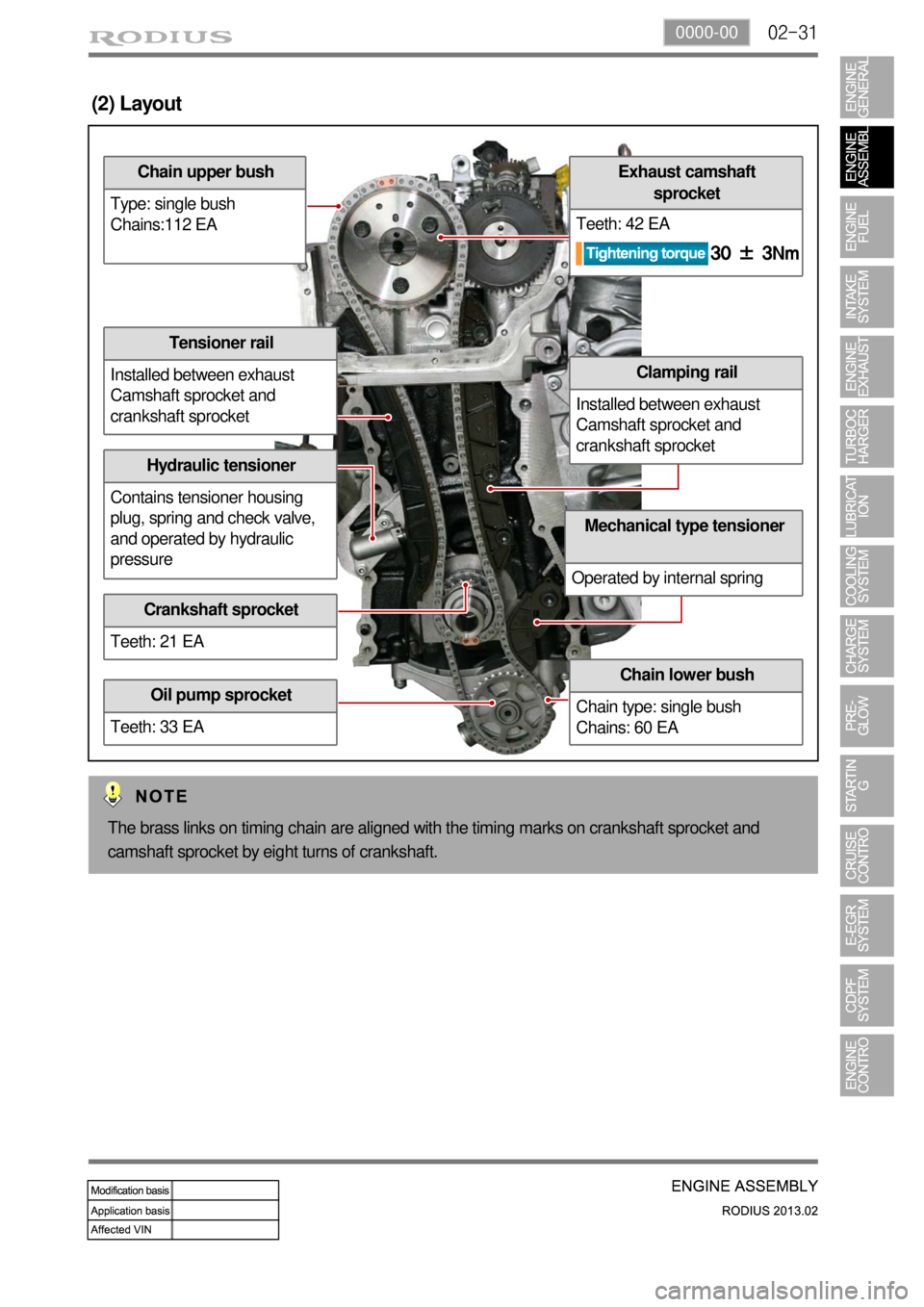

(2) Layout
Chain upper bush
Type: single bush
Chains:112 EA
Tensioner rail
Installed between exhaust
Camshaft sprocket and
crankshaft sprocket
Hydraulic tensioner
Contains tensioner housing
plug, spring and check valve,
and operated by hydraulic
pressure
Crankshaft sprocket
Teeth: 21 EA
Oil pump sprocket
Teeth: 33 EA
Chain lower bush
Chain type: single bush
Chains: 60 EA
Mechanical type tensioner
Operated by internal spring
Clamping rail
Installed between exhaust
Camshaft sprocket and
crankshaft sprocket
Exhaust camshaft
sprocket
Teeth: 42 EA
The brass links on timing chain are aligned with the timing marks on crankshaft sprocket and
camshaft sprocket by eight turns of crankshaft.
