SSANGYONG TURISMO 2013 Service Manual

04-57340-00
1. OVERVIEW
The sunroof is fitted to the roof panel. It consists of the sunroof switch, sunroof control unit, sunroof
motor, sunroof glass and drain hose.
The sunroof motor is operated by the sunroof control unit according to the operating signal from the
sunroof switch, which results in opening and closing of the sunroof glass.
2. LAYOUT
Sunroof motor
Sunroof control unit
Sunroof switchSunroof assembly

04-6

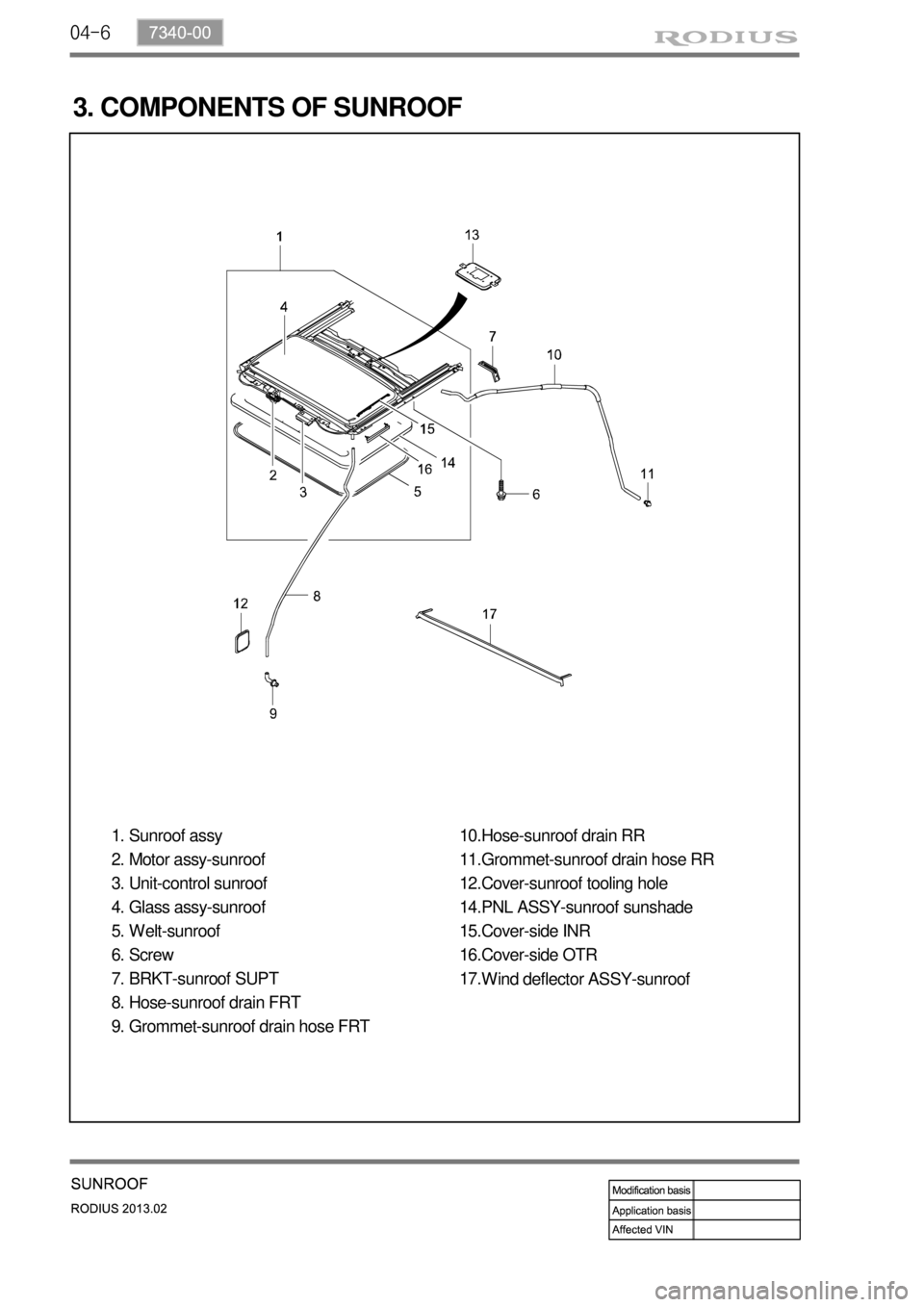

3. COMPONENTS OF SUNROOF
Sunroof assy
Motor assy-sunroof
Unit-control sunroof
Glass assy-sunroof
Welt-sunroof
Screw
BRKT-sunroof SUPT
Hose-sunroof drain FRT
Grommet-sunroof drain hose FRT 1.
2.
3.
4.
5.
6.
7.
8.
9.Hose-sunroof drain RR
Grommet-sunroof drain hose RR
Cover-sunroof tooling hole
PNL ASSY-sunroof sunshade
Cover-side INR
Cover-side OTR
Wind deflector ASSY-sunroof 10.
11.
12.
14.
15.
16.
17.

04-77340-00
Drain hose Control switch Sun shade & glass
Control unit Sun roof motor

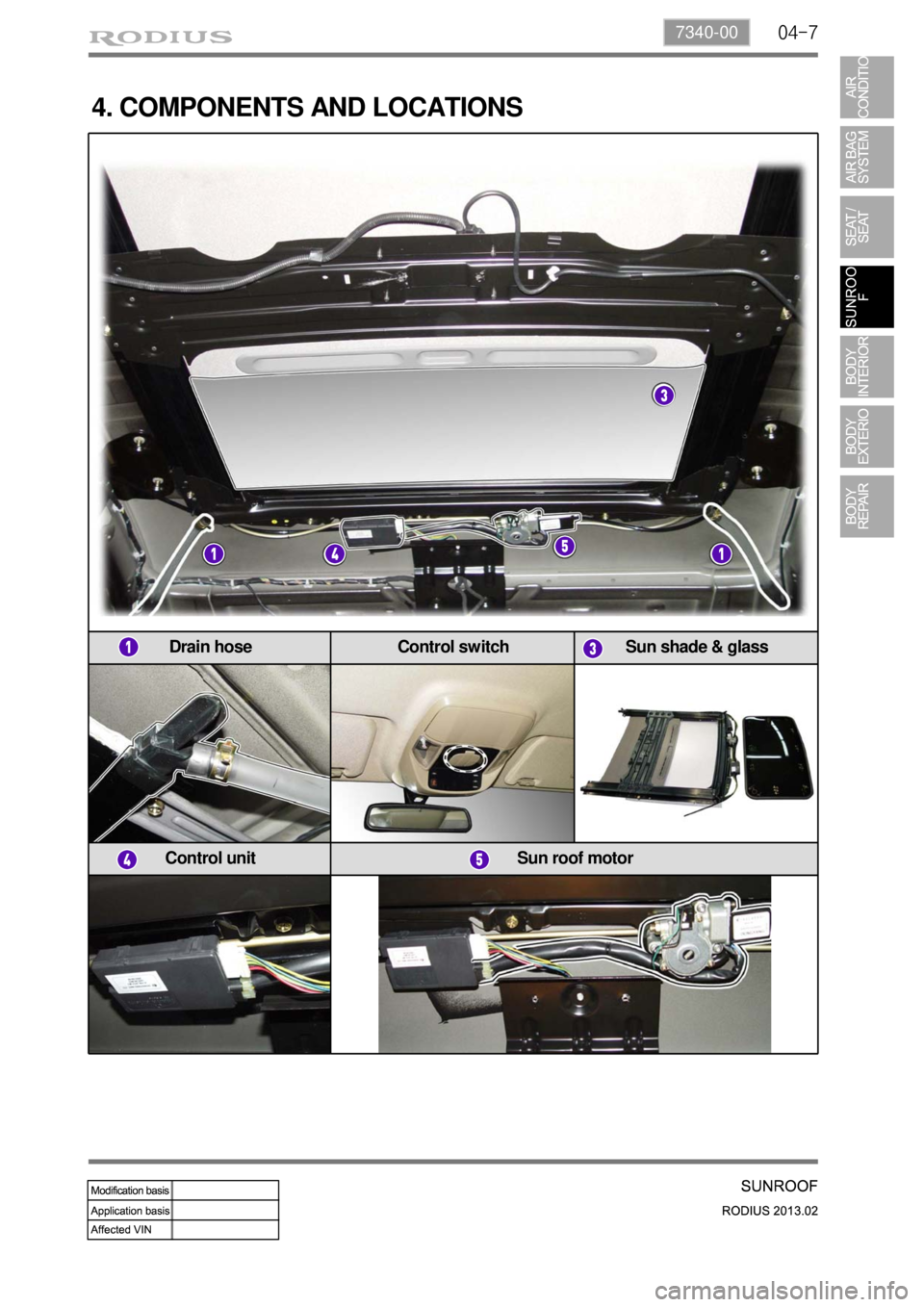

4. COMPONENTS AND LOCATIONS

04-8

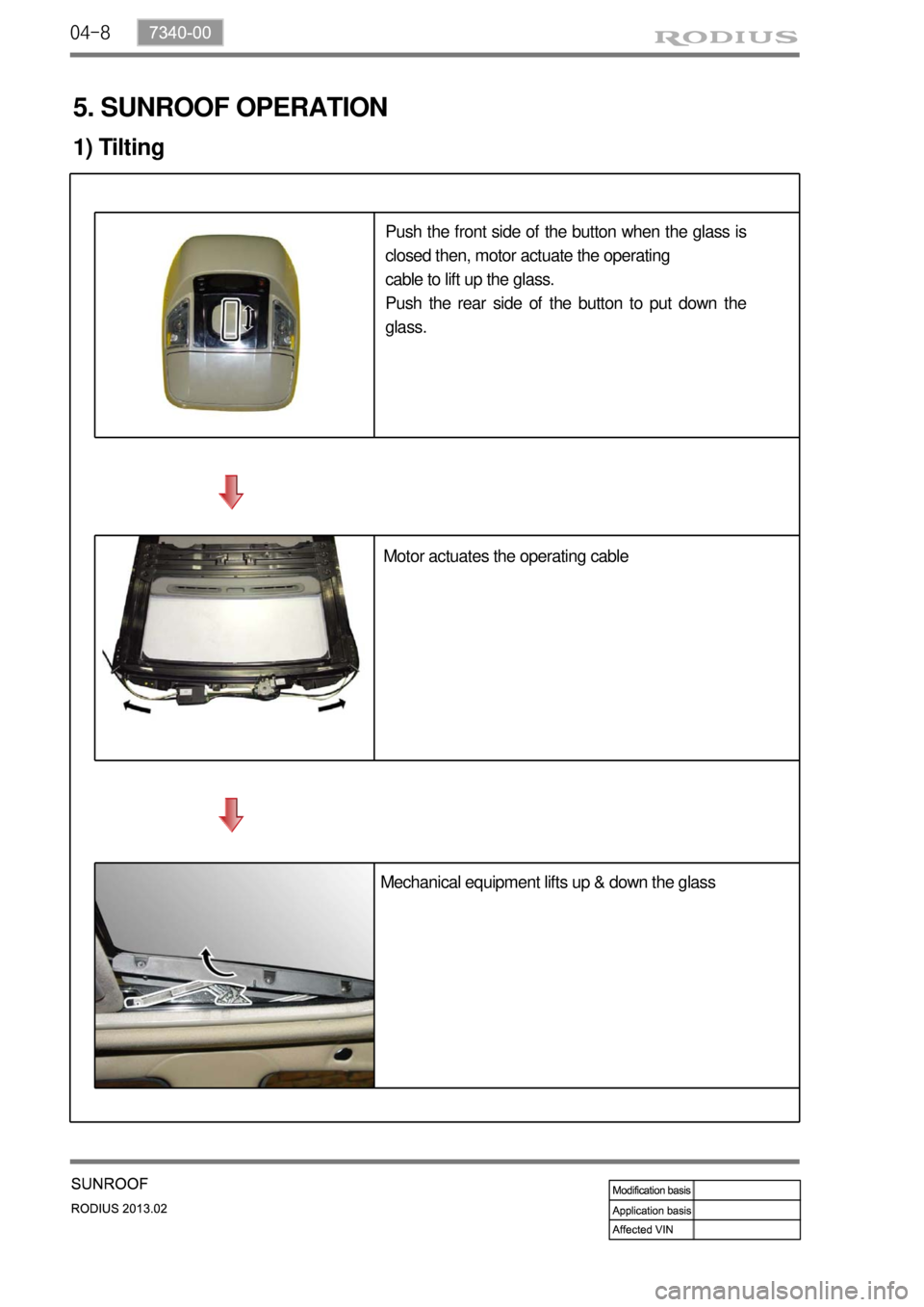

5. SUNROOF OPERATION
1) Tilting
Push the front side of the button when the glass is
closed then, motor actuate the operating
cable to lift up the glass.
Push the rear side of the button to put down the
glass.
Motor actuates the operating cable
Mechanical equipment lifts up & down the glass

04-97340-00

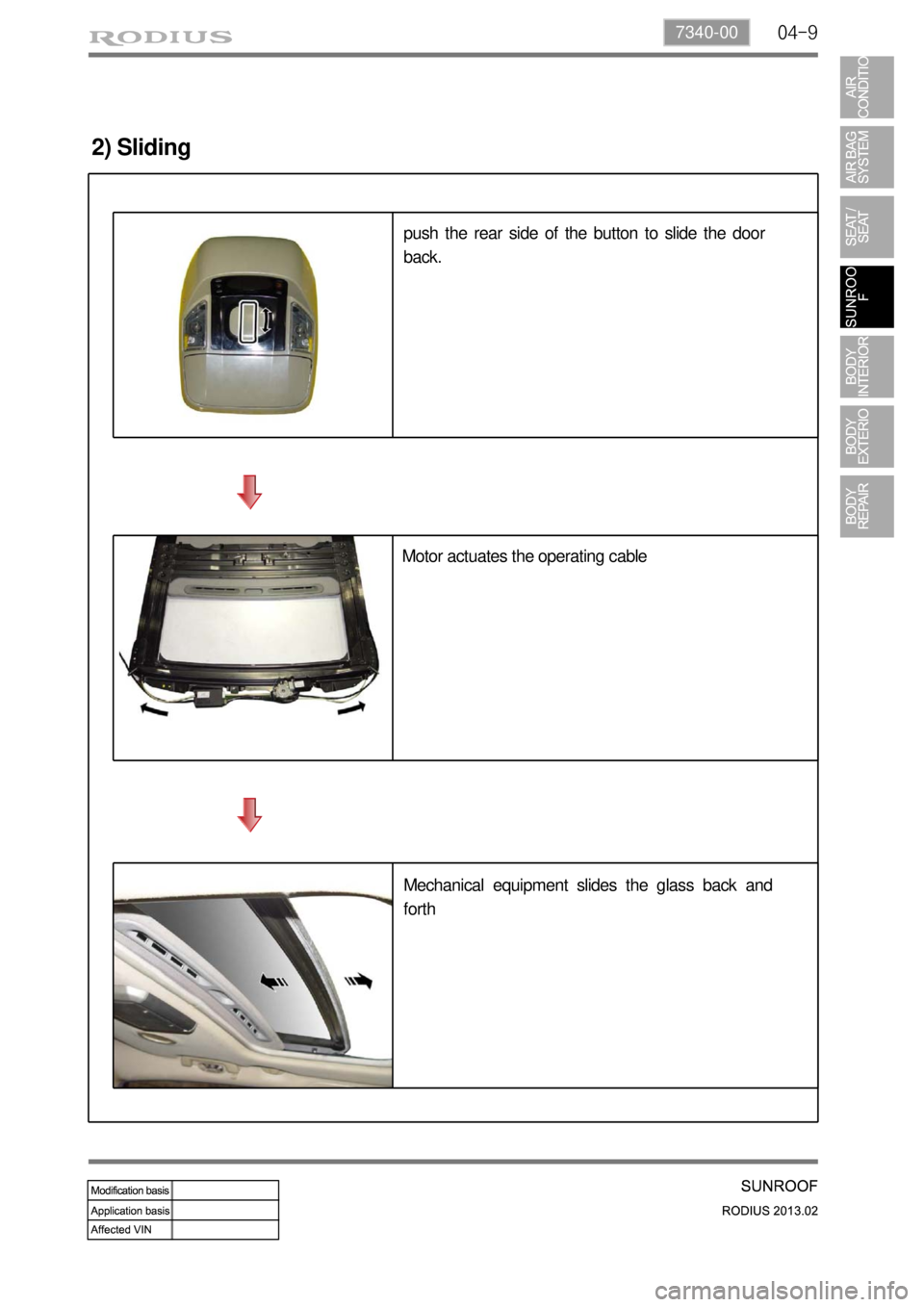

2) Sliding
push the rear side of the button to slide the door
back.
Motor actuates the operating cable
Mechanical equipment slides the glass back and
forth

04-10
6. CIRCUIT DIAGRAM

05-37630-01
Multi-tray
Delete multi-tray
1. MAJOR CHANGES
Cluster fascia panel
Cluster fascia panel design changed

05-4
Tailgate upper and lower trims
Tailgate upper and lower trims design changed
Quarter upper and lower trims
Quarter upper and lower trims design changed
Quarter
upper trim
Quarter
lower trim
Quarter
upper trim
Quarter
lower trim
Tailgate
lower trim
Tailgate
upper trim
Tailgate
lower trim
Tailgate
upper trim

06-30000-00

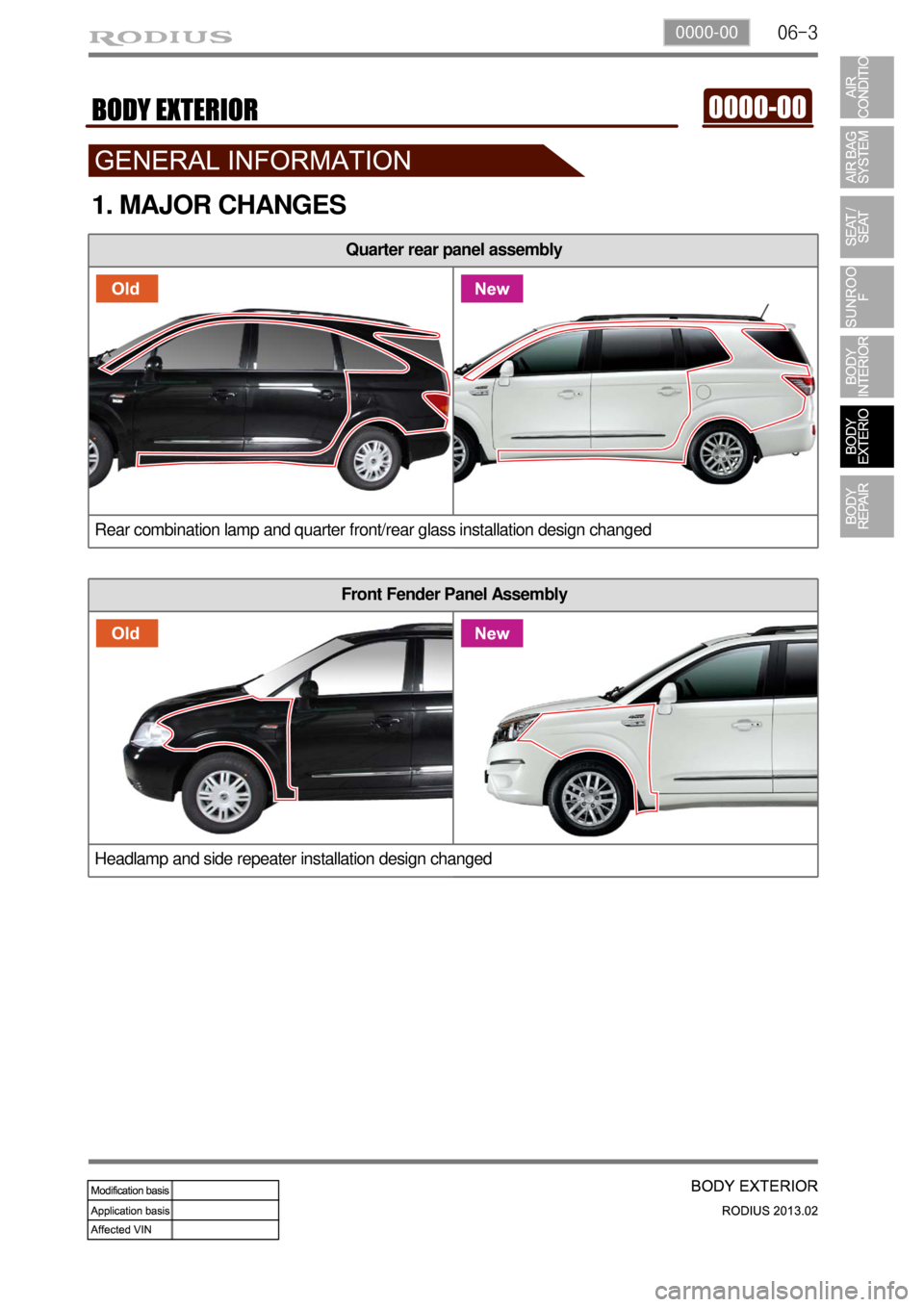

Quarter rear panel assembly
Rear combination lamp and quarter front/rear glass installation design changed
1. MAJOR CHANGES
Front Fender Panel Assembly
Headlamp and side repeater installation design changed

06-4

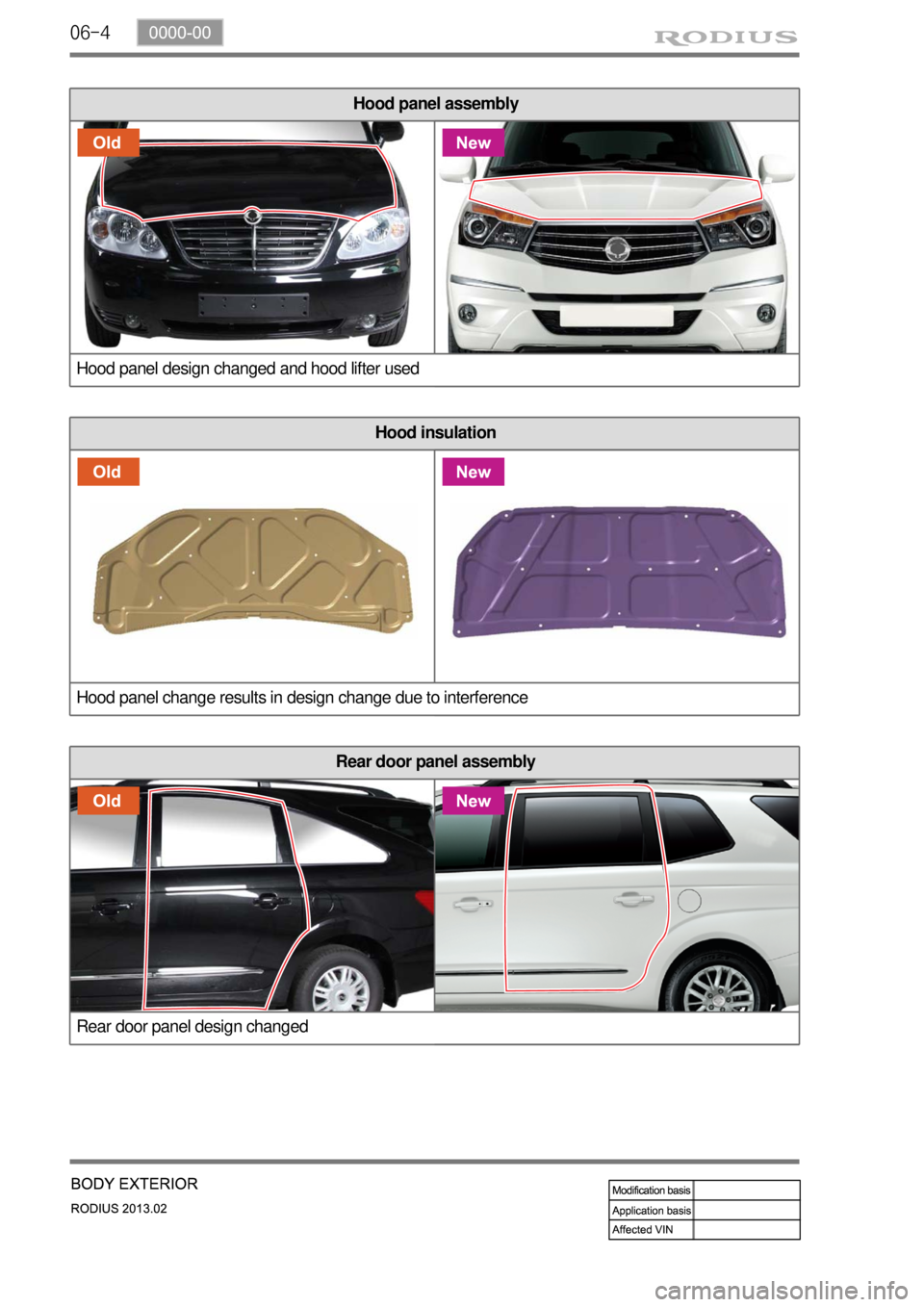

Hood panel assembly
Hood panel design changed and hood lifter used
Hood insulation
Hood panel change results in design change due to interference
Rear door panel assembly
Rear door panel design changed
