1-36
Seat, seatbelt and SRS airbags
3. Connect the tether belt
hook onto the tether an-
chorage on the backside of the seatback. Take up any
slack in the tether belt after connecting it to the tether
anchorage. 4. Put the other end of the tether belt through under
the headrest.
5. Return the seatback to the locked position. Confirm
that the red mark on the locking knob is no longer vis-
ible and check that the s
eatback is securely locked by
moving it back and forth.
6. Run the lap and shoulder belt through the child re-
straint system follow ing the instructions provided by its
manufacturer.
UB1144BAUB1146BA
Page 62 of 487
1-37
Seat, seatbelt and SRS airbags
– CONTINUED –

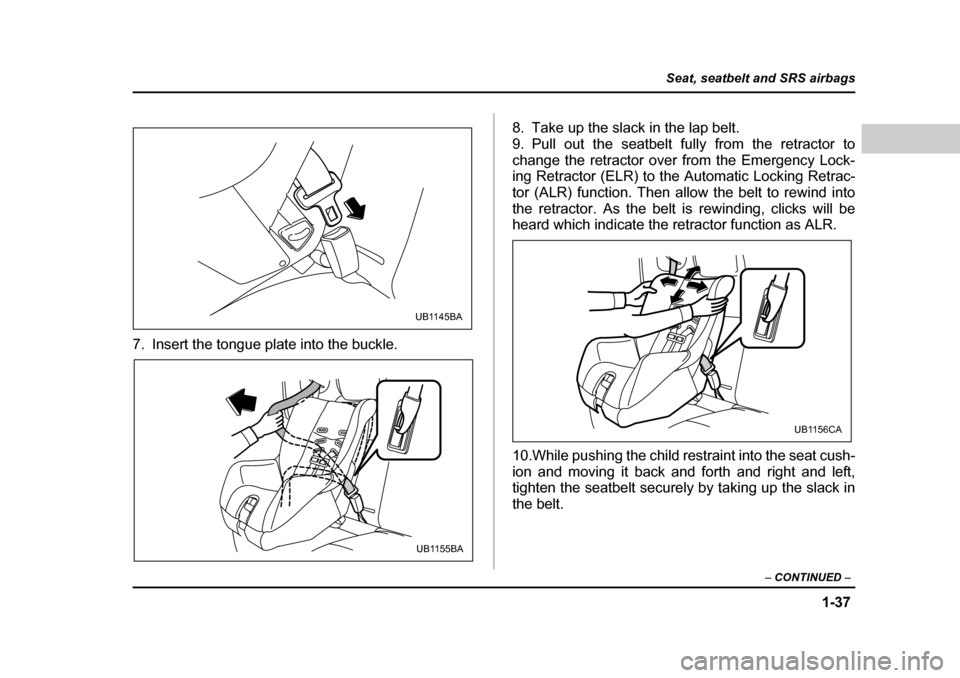

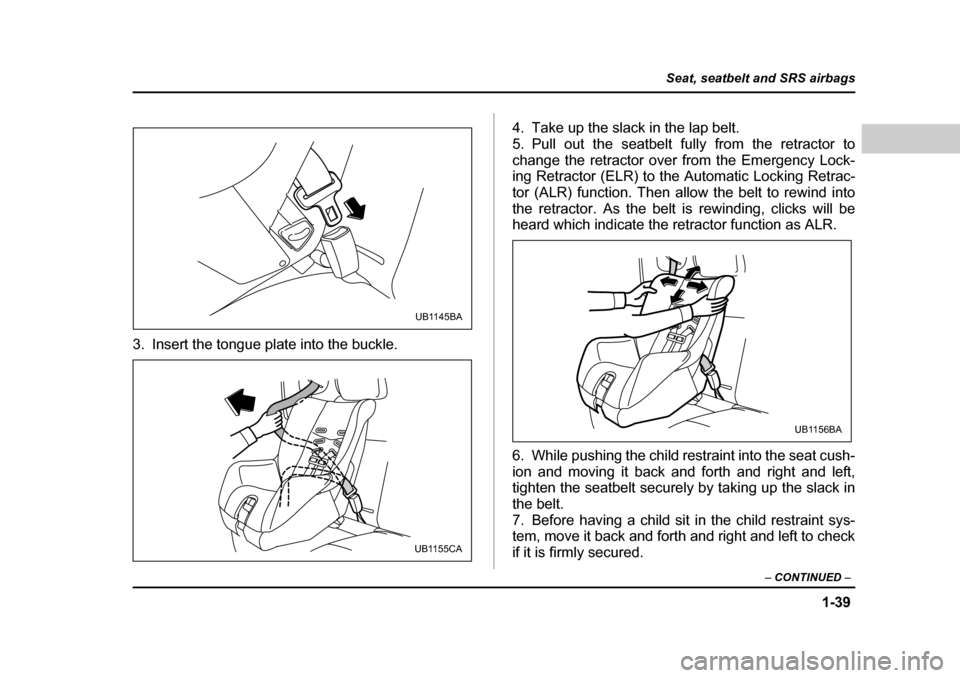

7. Insert the tongue plate into the buckle. 8. Take up the slack in the lap belt.
9. Pull out the seatbelt fully from the retractor to
change the retractor over from the Emergency Lock-
ing Retractor (ELR) to the Automatic Locking Retrac-
tor (ALR) function. Then allow the belt to rewind into
the retractor. As the belt
is rewinding, clicks will be
heard which indicate the retractor function as ALR.
10.While pushing the child rest raint into the seat cush-
ion and moving it back and forth and right and left,
tighten the seatbelt securely by taking up the slack in
the belt.
UB1145BA
UB1155BA
UB1156CA
Page 63 of 487
1-38
Seat, seatbelt and SRS airbags

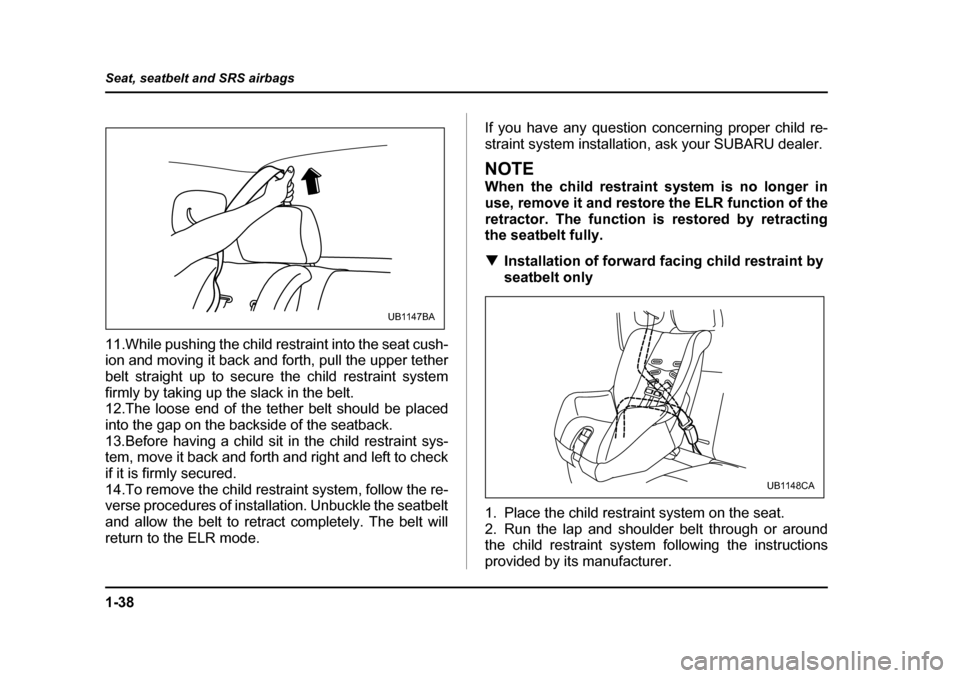

11.While pushing the child restraint into the seat cush-
ion and moving it back and forth, pull the upper tether
belt straight up to secu
re the child restraint system
firmly by taking up the slack in the belt.
12.The loose end of the tether belt should be placed
into the gap on the ba ckside of the seatback.
13.Before having a child sit in the child restraint sys-
tem, move it back and forth and right and left to check
if it is firmly secured.
14.To remove the child restraint system, follow the re-
verse procedures of instal lation. Unbuckle the seatbelt
and allow the belt to retract completely. The belt will
return to the ELR mode. If you have any question concerning proper child re-
straint system installation
, ask your SUBARU dealer.
NOTE
When the child restraint system is no longer in
use, remove it and restore the ELR function of the
retractor. The function is restored by retracting
the seatbelt fully. TInstallation of forward facing child restraint by
seatbelt only
1. Place the child restra int system on the seat.
2. Run the lap and shoulder belt through or around the child restraint system following the instructions
provided by its manufacturer.
UB1147BA
UB1148CA
Page 64 of 487
1-39
Seat, seatbelt and SRS airbags
– CONTINUED –
3. Insert the tongue plate into the buckle. 4. Take up the slack in the lap belt.
5. Pull out the seatbelt fully from the retractor to
change the retractor over from the Emergency Lock-
ing Retractor (ELR) to the Automatic Locking Retrac-
tor (ALR) function. Then allow the belt to rewind into
the retractor. As the belt
is rewinding, clicks will be
heard which indicate the retractor function as ALR.
6. While pushing the child restraint into the seat cush-
ion and moving it back and forth and right and left,
tighten the seatbelt securely by taking up the slack in
the belt.
7. Before having a child sit in the child restraint sys-
tem, move it back and forth and right and left to check
if it is firmly secured.
UB1145BA
UB1155CA
UB1156BA
Page 65 of 487
1-40
Seat, seatbelt and SRS airbags
8. To remove the child rest
raint system, press the re-
lease button on the seatbelt buckle and allow the belt
to retract completely. The bel t will return to ELR mode.
If you have any question concerning proper child re-
straint system installation, ask your SUBARU dealer.
NOTE
When the child restraint system is no longer in
use, remove it and restore the ELR function of the
retractor. The function is restored by retracting
the seatbelt fully. „Installation of child restraint systems
by use of lower and tether anchorages (LATCH)
yChild restraint systems and seatbelts can be-
come hot in a vehicle that has been closed up
in sunny weather; they could burn a small child.
Check the child restraint system before you
place a child in it. y Do not leave an unsecured child restraint
system in your vehicle. Unsecured child re-
straint systems can be thrown around inside of the vehicle in a sudden stop, turn or accident;
they can strike and injure vehicle occupants as
well as result in serious injuries or death to the
child.
When you install a child restraint system, fol-
low the manufacturer’s instructions supplied
with it. After installing the child restraint sys-
tem, check to ensure that it is held securely in
position. If it is not held tight and secure, the
danger of your child suffering personal injury in
the event of an accident may be increased.
Page 66 of 487
1-41
Seat, seatbelt and SRS airbags
– CONTINUED –

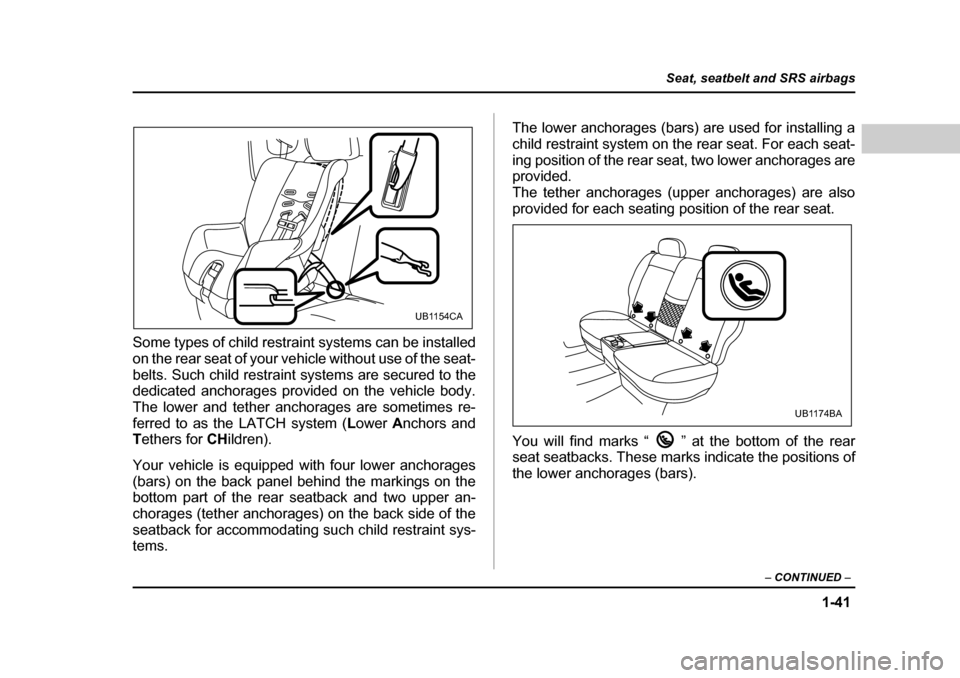

Some types of child restra int systems can be installed
on the rear seat of your ve hicle without use of the seat-
belts. Such child restraint systems are secured to the
dedicated anchorages provided on the vehicle body.
The lower and tether anchorages are sometimes re-
ferred to as the LATCH system ( Lower Anchors and
T ethers for CHildren).
Your vehicle is equipped with four lower anchorages
(bars) on the back panel behind the markings on the
bottom part of the rear seatback and two upper an-
chorages (tether anchorages) on the back side of the
seatback for accommodating such child restraint sys-
tems. The lower anchorages (bars) are used for installing a child restraint system
on the rear seat. For each seat-
ing position of the rear seat, two lower anchorages are
provided.
The tether anchorages (upper anchorages) are also
provided for each seating position of the rear seat.
You will find marks “ ” at the bottom of the rear
seat seatbacks. These mar ks indicate the positions of
the lower anchorages (bars).
UB1154CA
UB1174BA
Page 67 of 487
1-42
Seat, seatbelt and SRS airbags
Each lower anchorage is located where the seat cush-
ion meets the seatback.
1. Place the child restrain
t system on the rear seat
cushion.

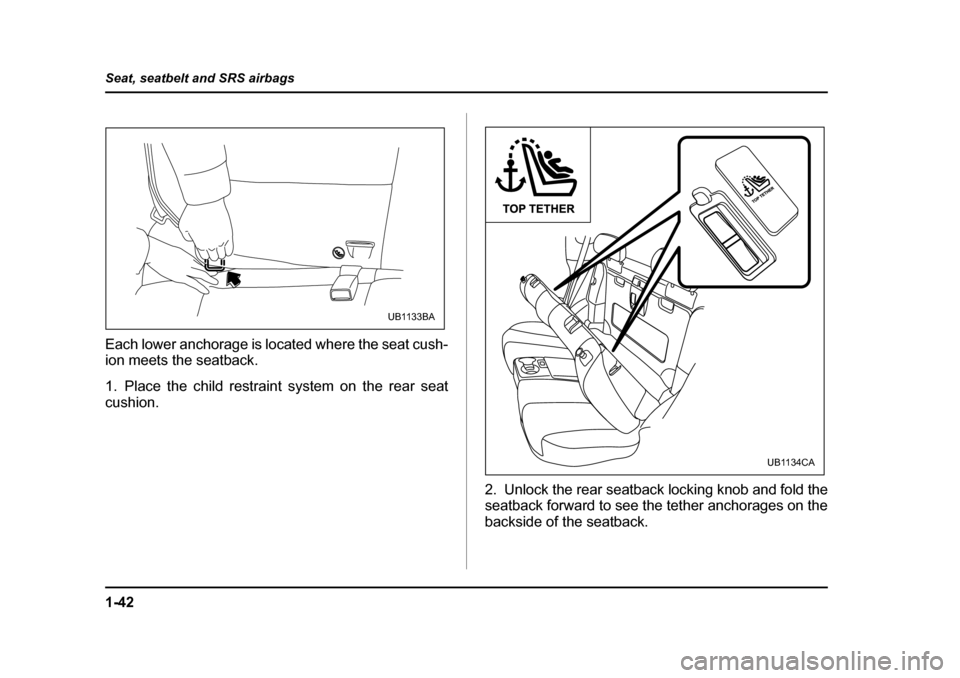

2. Unlock the rear seatback locking knob and fold the
seatback forward to see the tether anchorages on the
backside of the seatback.
UB1133BA
UB1134CA
Page 68 of 487
1-43
Seat, seatbelt and SRS airbags
– CONTINUED –

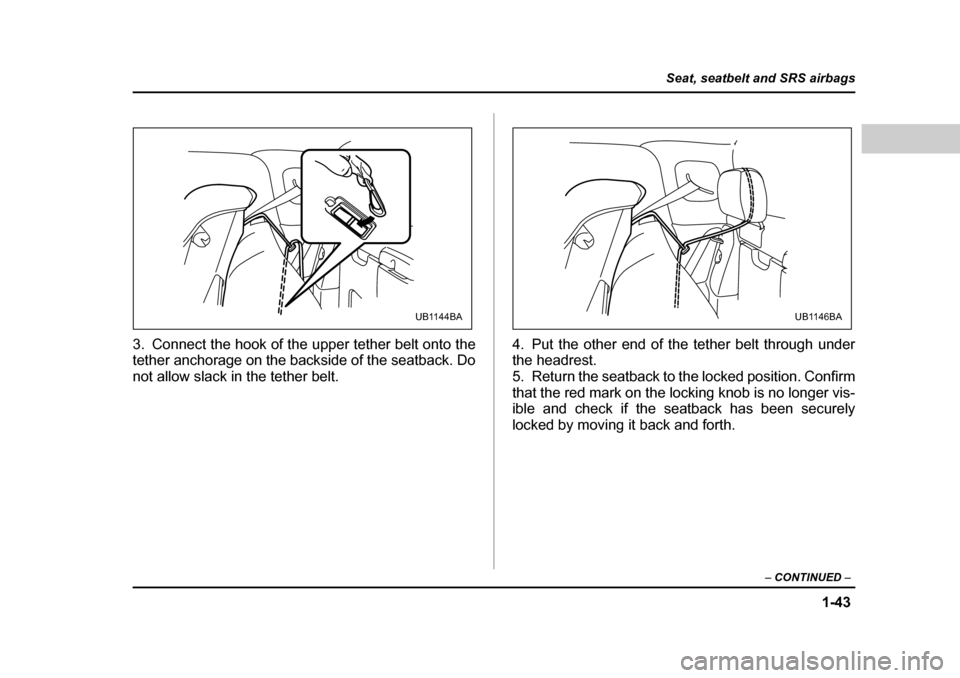

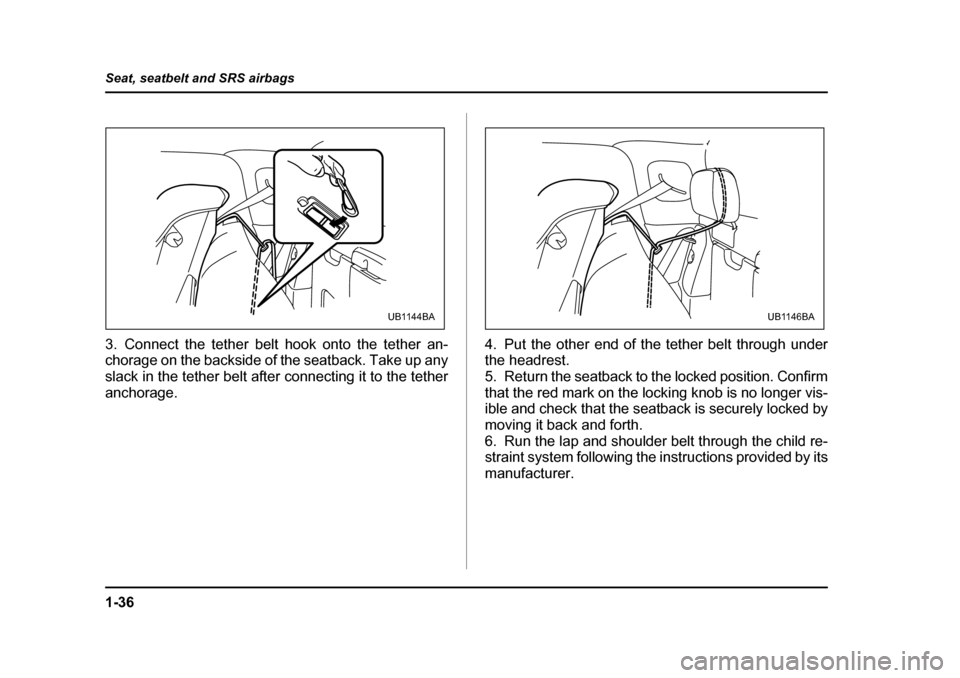

3. Connect the hook of the u pper tether belt onto the
tether anchorage on the backside of the seatback. Do
not allow slack in the tether belt. 4. Put the other end of the tether belt through under
the headrest.
5. Return the seatback to the locked position. Confirm
that the red mark on the locking knob is no longer vis-
ible and check if the
seatback has been securely
locked by moving it back and forth.
UB1144BAUB1146BA
Page 69 of 487
1-44
Seat, seatbelt and SRS airbags

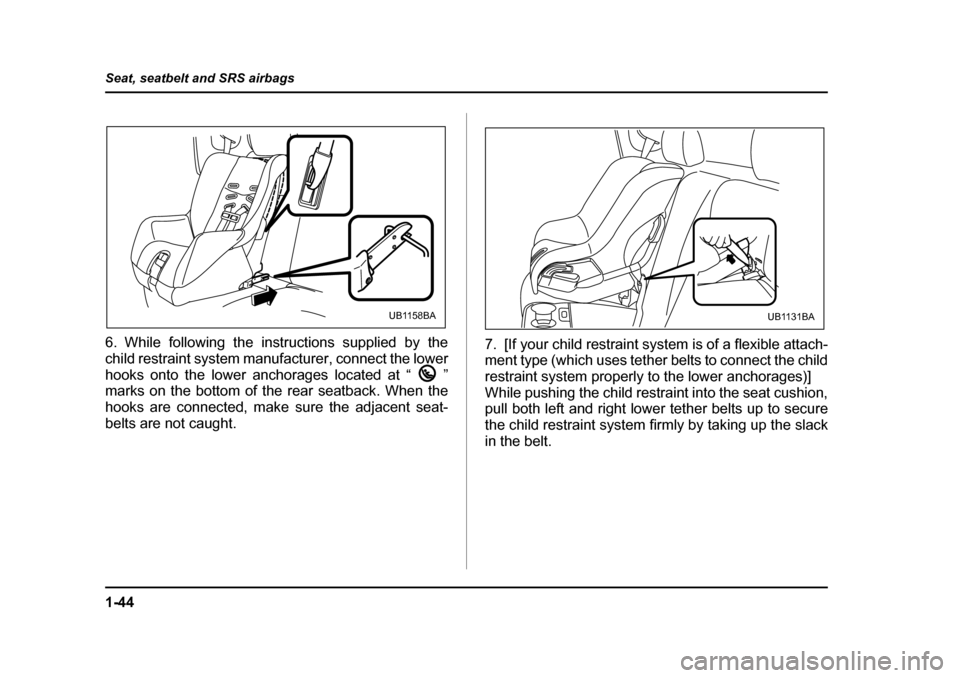

6. While following the instructions supplied by the
child restraint system manufacturer, connect the lower
hooks onto the lower anchorages located at “ ”
marks on the bottom of the rear seatback. When the
hooks are connected, make
sure the adjacent seat-
belts are not caught. 7. [If your child rest
raint system is of a flexible attach-
ment type (which uses tether belts to connect the child
restraint system properly to the lower anchorages)]
While pushing the child restraint into the seat cushion,
pull both left and right lower tether belts up to secure the child restraint system firml y by taking up the slack
in the belt.
UB1158BAUB1131BA
Page 70 of 487
1-45
Seat, seatbelt and SRS airbags
– CONTINUED –

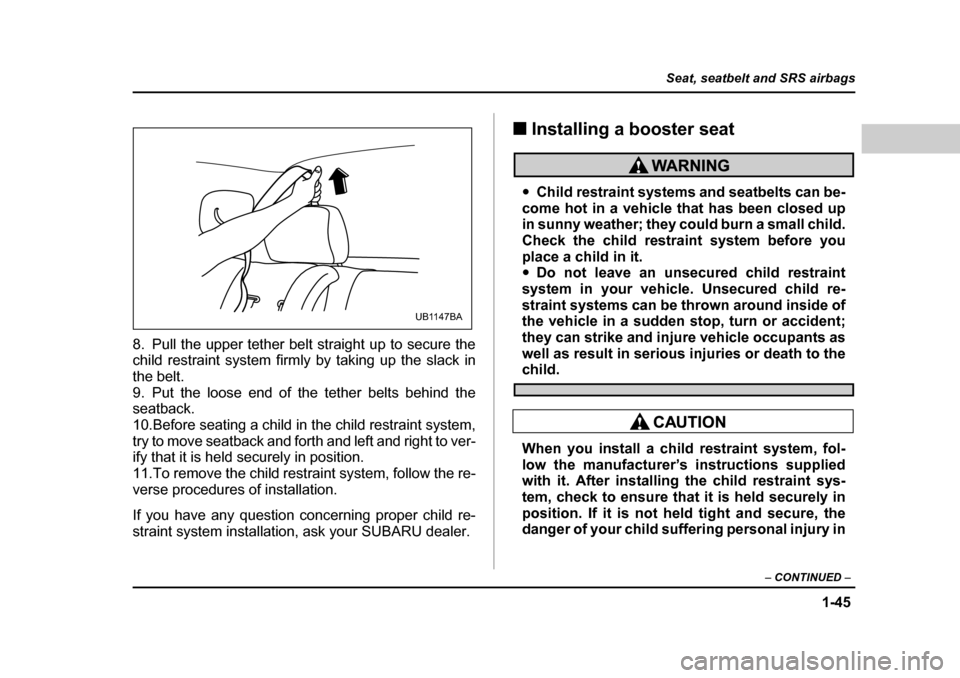

8. Pull the upper tether belt straight up to secure the
child restraint system firmly by taking up the slack in
the belt.
9. Put the loose end of the tether belts behind the seatback.
10.Before seating a child in the child restraint system,
try to move seatback and forth and left and right to ver-
ify that it is held securely in position.
11.To remove the child rest raint system, follow the re-
verse procedures of installation.
If you have any question concerning proper child re-
straint system installation, ask your SUBARU dealer. „
Installing a booster seat
yChild restraint systems and seatbelts can be-
come hot in a vehicle that has been closed up
in sunny weather; they could burn a small child.
Check the child restraint system before you
place a child in it. y Do not leave an unsecured child restraint
system in your vehicle. Unsecured child re-
straint systems can be thrown around inside of
the vehicle in a sudden stop, turn or accident;
they can strike and injure vehicle occupants as
well as result in serious injuries or death to the
child.
When you install a child restraint system, fol-
low the manufacturer’s instructions supplied
with it. After installing the child restraint sys-
tem, check to ensure that it is held securely in
position. If it is not held tight and secure, the
danger of your child suffering personal injury in
UB1147BA
