SUBARU BAJA 2006 1.G Owners Manual

14-6
Index
LSD (Limited slip differential) ............................ 7-30 M
Main fuse ......................................................... 11-61
Maintenance
Precautions .................................................. 11-3
Schedule .............. ........................................ 11-3
Seatbelt ........................................................ 1-21
Malfunction indicator lamp (Check Engine
light) ............................................................... 3-12
Manual transmission ......................................... 7-12
Manual transmission oil ................................... 11-27
Map light .............................................................. 6-3
Maximum load limits .......................................... 8-25
Meters and gauges ............................................. 3-6
Mirrors ............................................................... 3-30
Moonroof ........................................................... 2-36 N
New vehicle break-in driving – the first 1,000
miles (1,600 km) .............................................. 8-2
O
Odometer/Trip meter ........................................... 3-6
Off road driving .................................................... 8-9 Oil level
Engine ........................................................ 11-10
Front differential (AT vehi cles) ................... 11-32
Manual transmission .................................. 11-27
Rear differential .............. ............................ 11-33
Oil pressure warning light .................................. 3-13
Outside mirrors .................... .............................. 3-32
Overheating engine ........................................... 9-21 P
Parking Brake ............................................................ 7-35
Brake stroke ............................................... 11-46
Light switch ................................................... 3-23
Periodic inspections ............................................ 8-6Power
Door locking switches ..................................... 2-5
Steering ........................................................ 7-31
Steering fluid .............................................. 11-36
Windows ....................................................... 2-25
R
Rear Center console ............................................... 6-6
Combination lights ...................................... 11-72
Differential gear oil ..................................... 11-33
Seats .............................................................. 1-9

14-7
Index
Rear seat
Folding down ................................................ 1-10
Rear window Defogger button ............................................ 3-28
Recommended Automatic transmission flui d ....................... 11-31
Brake fluid ................................................... 11-39
Clutch fluid ...................... ............................ 11-41
Oil grade and viscosity ....... 11-15, 11-16, 11-29, 11-33, 11-35
Power steering fluid ........... ......................... 11-38
Spark plugs ................................................. 11-26
Remote keyless entry system .......................... .... 2-7
Replacement
Brake pad and lining ................................... 11-44
Windshield wiper blades . ............................ 11-55
Replacing Air cleaner element ............ ......................... 11-23
Battery (remote keyless en try system) ......... 2-10
Lost transmitters (keyless entry system) ...... 2-12
Replacing bulbs ................... ............................ 11-63
Cargo light assembly .................................. 11-79
Dome light .................................................. 11-78
Front fog light .............................................. 11-70
Front turn signal light .................................. 11-71
Headlight .................................................... 11-66
High mount stop light assemb ly .................. 11-79License plate light ....................................... 11-76
Map light ..................................................... 11-78
Parking light ................................................ 11-71
Rear combination lights .............................. 11-72
Tail light ...................................................... 11-74
Rocking the vehicle ........... ................................ 8-16
Roof rail and crossbar ....................................... 6-36 S Seat
Fabric ............................................................ 10-6
Heater ............................................................. 1-7
Seatbelt .................................................................. 4
Maintenance ................................................. 1-21
Pretensioners ............................................... 1-24
Safety tips ..................................................... 1-14
Warning light and chime ............................... 1-17
Seatbelts ........................................................... 1-14
Selector leve
Position indicator .......... ................................ 3-17
Selector lever ........................................... 7-15, 7-22
Shift lock release ...................................... 7-19, 7-29
Side ventilators .................................................... 4-2
Snow tires .......................................................... 8-15
Soft bed cover ................................................... 6-21
Sounding a panic alarm ....................................... 2-9
Spark plugs ..................................................... 11-25

14-8
Index
Specifications .................................................... 12-2
Speedometer ....................................................... 3-6
Sport activity lights ................................. 6-42, 11-81
SRS airbag (Supplemental Restraint System
airbag) ................ ....................................... 4, 1-47
SRS airbag system monitors ............................. 1-60
SRS airbag system servicing ............................ 1-61
SRS airbag system warning light ...................... 3-11
SRS frontal airbag ............................................. 1-52
Starting the engine .............................................. 7-9
State emission testing (U.S. only) ....................... 7-6
Stopping the engine ............. ............................. 7-11
Storage compartment .......................................... 6-4
Sun shades ....................................................... 2-37
Sun visors ........................................................... 6-3
Supplemental Restraint System airbag
(SRS) ......................................................... 4, 1-47
Switchback door ................................................ 2-32
Switchback door indicator li ght ................. 2-35, 3-15
Synthetic leather upholstery .............................. 10-7
T
Tachometer ......................................................... 3-8
Tail light ........................................................... 11-74
Tailgate ............................................................. 2-28
Temperature gauge ................. ............................ 3-9
Temporary spare tire ......................................... 9-10 Tie-down hooks ................................................. 9-23
Tilt steering wheel ............................................. 3-34Tire
Chains .......................................................... 8-16
Information ..................... .............................. 13-2
Inspection ....................... ............................ 11-47
Pressures and wear ................................... 11-47
Replacement .............................................. 11-51
Rotation ...................................................... 11-51
Tires .................................................................. 12-4
Types .......................................................... 11-46
Tires and wheels ...... ....................................... 11-46
Top tether anchorages ...................................... 1-40
Towing ............................................................... 9-22
All wheels on the ground ... ........................... 9-27
Flat-bed truck ............................................... 9-27
Hooks ........................................................... 9-23
Trailer Hitch ............................................................. 8-20
Hitches ......................................................... 8-30
Towing .......................................................... 8-25
Towing tips ................................................... 8-33
Turn signal Indicator lights .............................................. 3-17
Lever ............................................................ 3-22

14-9
Index
V
Valet mode ........................................................ 2-21
Vanity mirror ........................................................ 6-4Vehicle
Capacity weight ............................................ 8-19
Identification ................................................. 12-9
Ventilator ............................................................. 4-2 W
Warning and indicator lights .............................. 3-11
Warning lights ABS ............ .................................................. 3-14
All-Wheel Drive ............................................. 3-16
Anti-lock Brake System ................................. 3-14
AT OIL TEMPerature .................................... 3-13
Brake system ....... ......................................... 3-15
Charge .......................................................... 3-13
CHECK ENGINE .......................................... 3-12
Door ajar ....................................................... 3-15
Oil pressure .................................................. 3-13
Seatbelt ............................................... 1-17, 3-11
SRS airbag system ... .................................... 3-11
Warranties and maintenance ............................ 8-25
Washing ............................................................ 10-2
Waxing and polishing ............. ........................... 10-3
Wear indicators ................ ............................... 11-50
Wheel Alignment ...................................................... 12-4
Balance ....................................................... 11-50
Replacement .............................................. 11-52
Windows ................. ........................................... 2-25
Windshield
Washer fluid ................................................ 11-53
Wiper and washer switches .......................... 3-26
Wiper deicer ................................................. 3-29
Winter driving .................................................... 8-11
Wiper and washer ................ ............................. 3-25

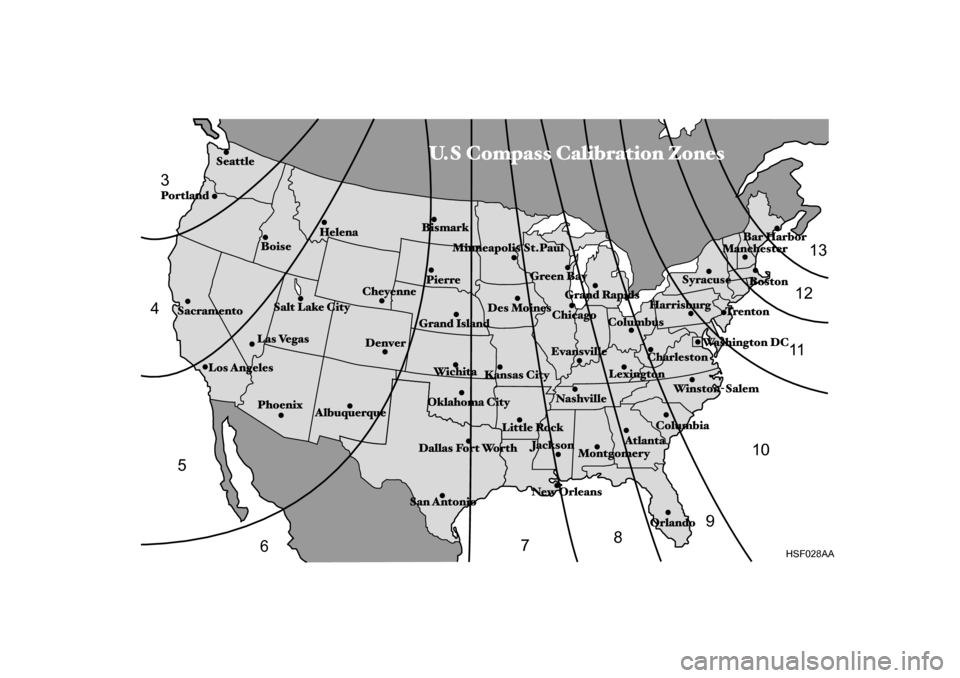

10
9
8
7
6
5
4
3
1112
13
HSF028AA

GAS STATION REFERENCE
Fuel: TNon-turbo models
Use only unleaded gasoline with an octane rat-
ing of 87 AKI or higher. T Turbo models
Use premium unleaded gasoline with an oc-
tane rating of 91 AKI or higher. If premium un-
leaded gasoline is not available, regular un-
leaded gasoline with octane rating of 87 AKI or
higher may be temporarily used. For optimum
engine performance and driveability, it is re-
quired that you use premium grade unleaded
gasoline. „ Fuel octane rating
This octane rating is the average of the Re-
search Octane and Motor Octane numbers and
is commonly referred to as the Anti Knock In- dex (AKI). Refer to “Fuel” section in this manu-
al.
Fuel capacity:
16.9 US gal (64 liters, 14.1 Imp gal) Engine oil:
Use only API classifica
tion SM with the words
“ENERGY CONSERVING” and the ILSAC cer-
tification mark (starburst mark) displayed on
the container (ILSAC GF-4). Engine oil capacity:
4.2 US qt (4.0 liters, 3.5 Imp qt)
Cold tire pressure:
Front 33 psi (230 kPa, 2.3 kgf/cm 2
)
Rear 33 psi (230 kPa, 2.3 kgf/cm 2
)
