Page 331 of 488

SUBARU BRZ 2014 1.G Owners Manual 331
4-3. Do-it-yourself maintenance
4
Maintenance and care
WARNING
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choki

Page 332 of 488

SUBARU BRZ 2014 1.G Owners Manual 332
4-3. Do-it-yourself maintenance

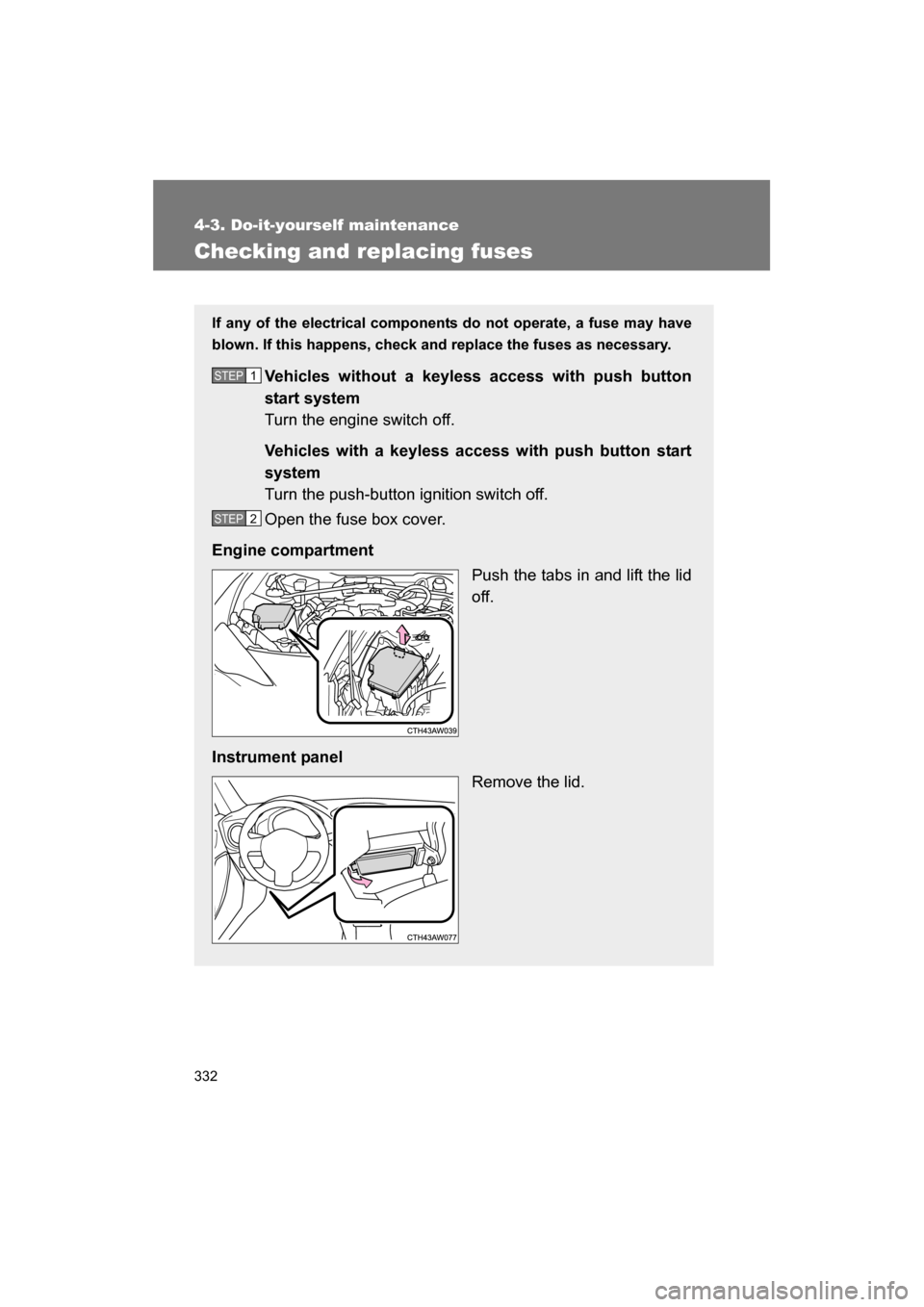

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.V

Page 333 of 488

SUBARU BRZ 2014 1.G Owners Manual 333
4-3. Do-it-yourself maintenance
4
Maintenance and care

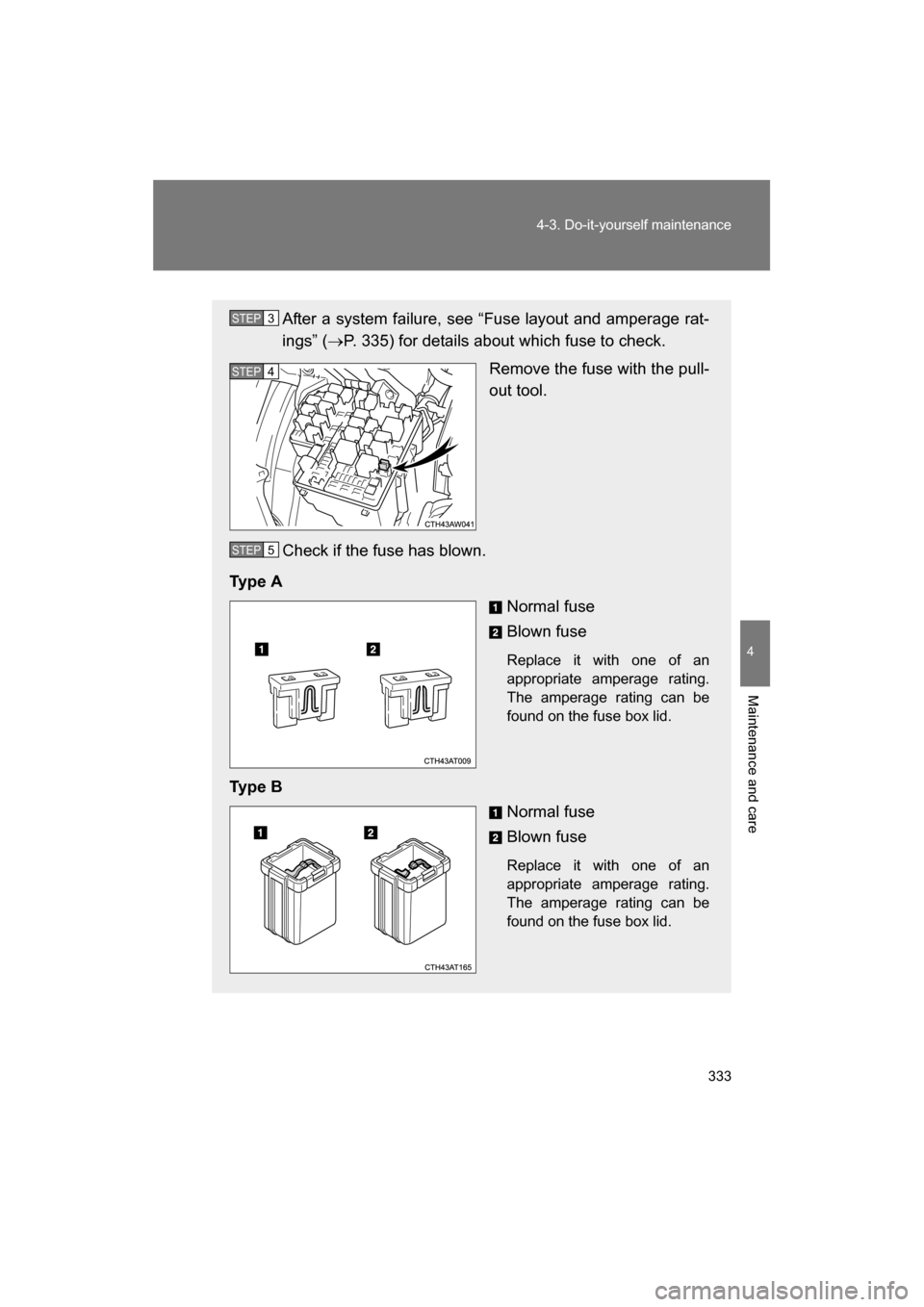

After a system failure, see “Fuse layout and amperage rat-
ings” (→P. 335) for details about which fuse to check.
Remove the fuse with

Page 334 of 488

SUBARU BRZ 2014 1.G Owners Manual 334
4-3. Do-it-yourself maintenance

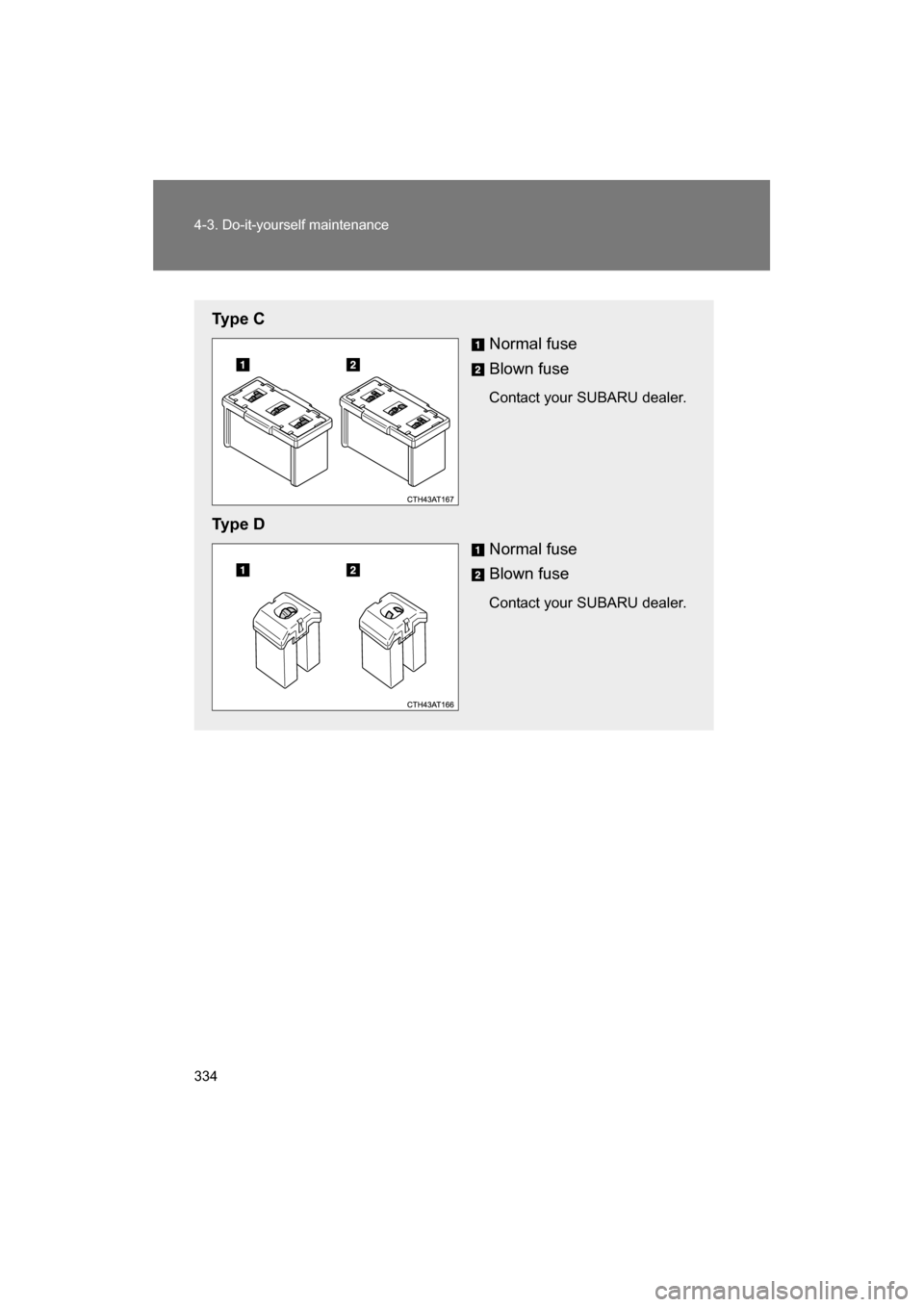

Ty p e  CNormal fuse
Blown fuse
Contact your SUBARU dealer.
Ty p e  D Normal fuse
Blown fuse
Contact your SUBARU dealer.

Page 335 of 488

SUBARU BRZ 2014 1.G Owners Manual 335
4-3. Do-it-yourself maintenance
4
Maintenance and care

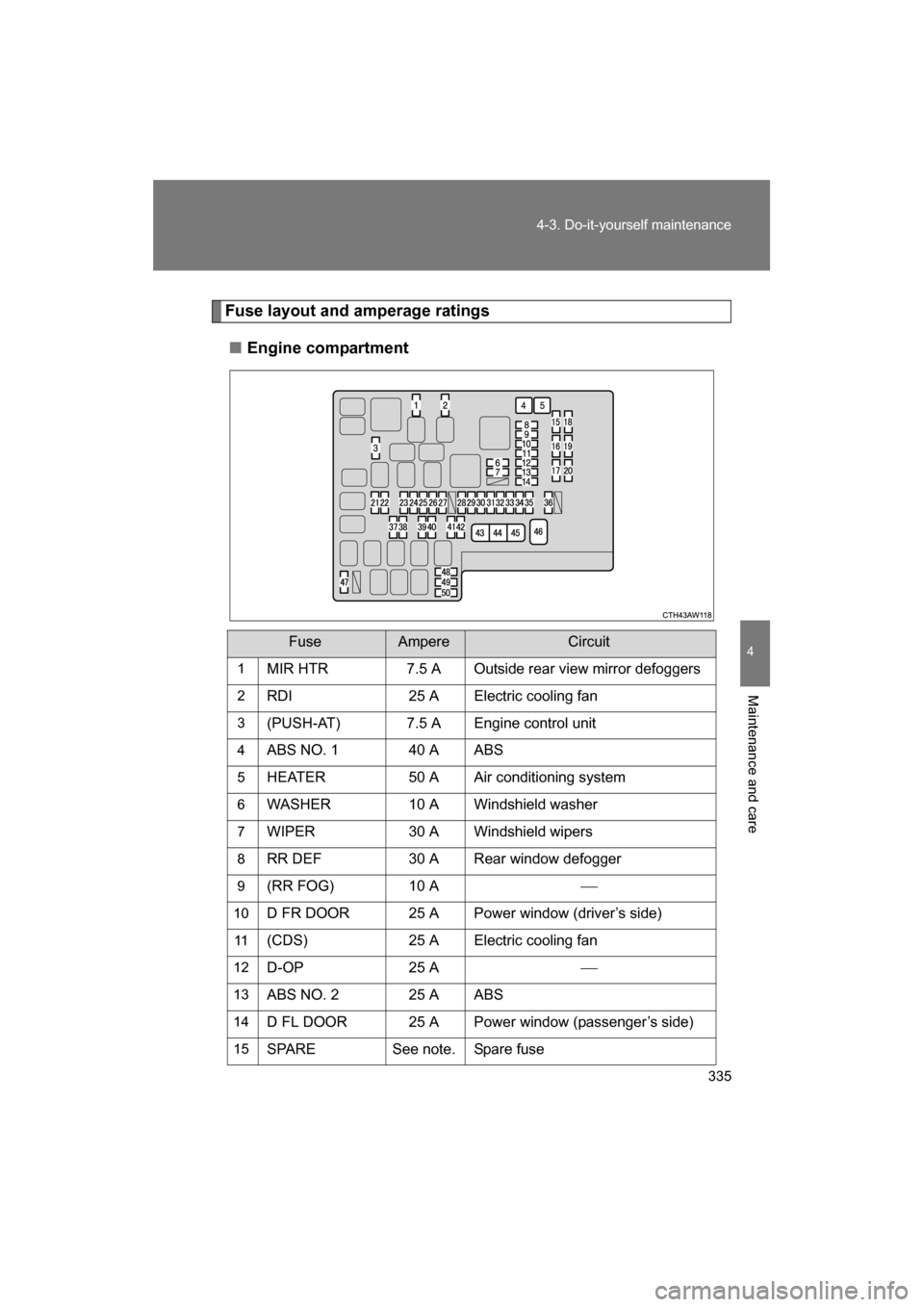

Fuse layout and amperage ratings
■Engine compartment
FuseAmpereCircuit
1 MIR HTR 7.5 A Outside rear view mirror defoggers
2 RDI 25 A Electr

Page 336 of 488

SUBARU BRZ 2014 1.G Owners Manual 336
4-3. Do-it-yourself maintenance
16SPARE See note. Spare fuse
17 SPARE See note. Spare fuse
18 SPARE See note. Spare fuse
19 SPARE See note. Spare fuse
20 SPARE See note. Spare fuse
21 ST 7.5 A Sta

Page 337 of 488

SUBARU BRZ 2014 1.G Owners Manual 337
4-3. Do-it-yourself maintenance
4
Maintenance and care
Note
One of each of the following spare fuses are provided: 7.5 A, 10 A, 15
A, 20 A, 25 A, 30 A.37
HORN NO. 2 7.5 A Horn
38 HORN NO. 1 7.5

Page 338 of 488

SUBARU BRZ 2014 1.G Owners Manual 338
4-3. Do-it-yourself maintenance

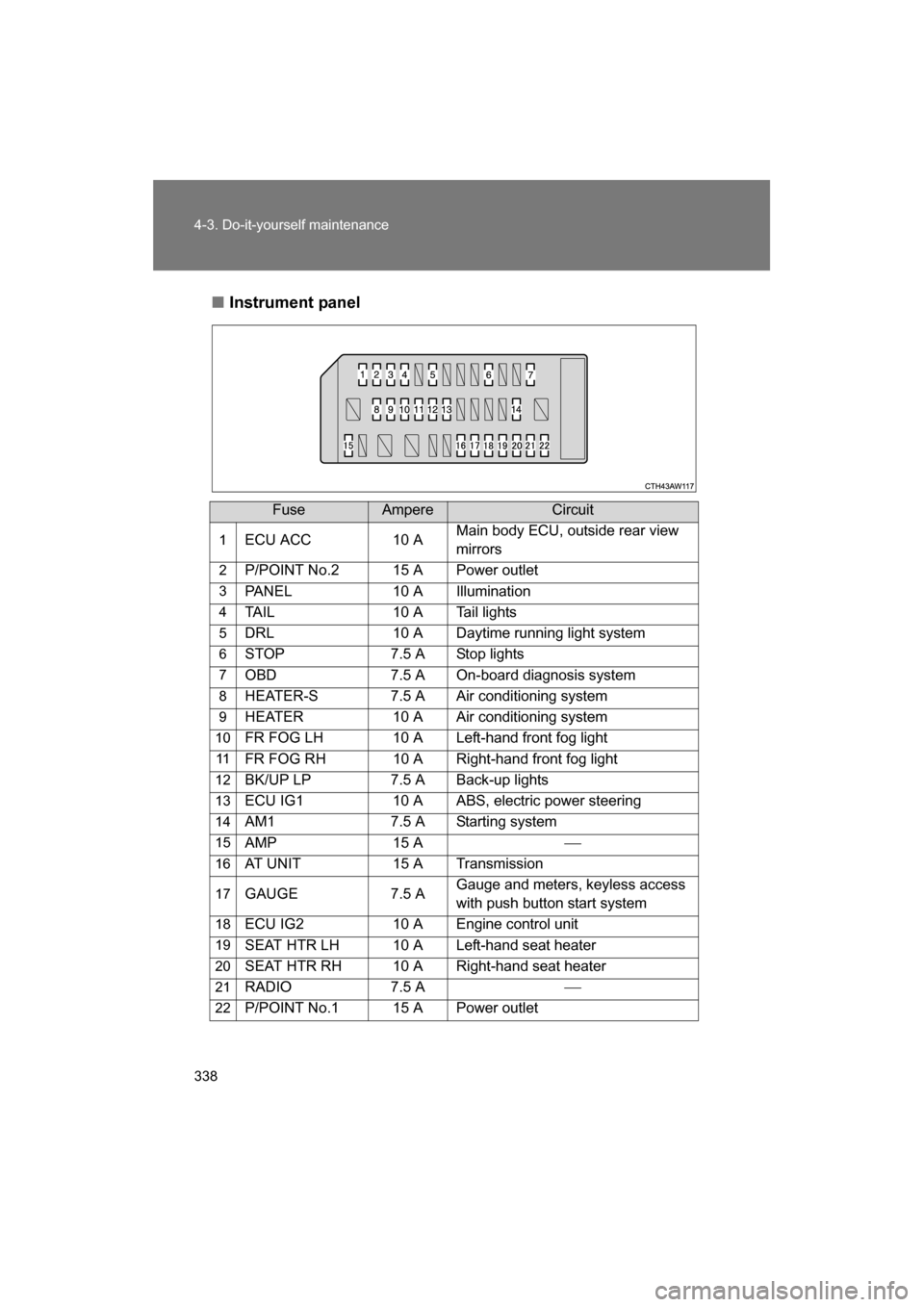

■Instrument panel
FuseAmpereCircuit
1 ECU ACC 10 A Main body ECU, outside rear view
mirrors
2 P/POINT No.2 15 A Power outlet
3 PANEL 10 A Illumination
4 TAIL 10

Page 339 of 488

SUBARU BRZ 2014 1.G Owners Manual 339
4-3. Do-it-yourself maintenance
4
Maintenance and care

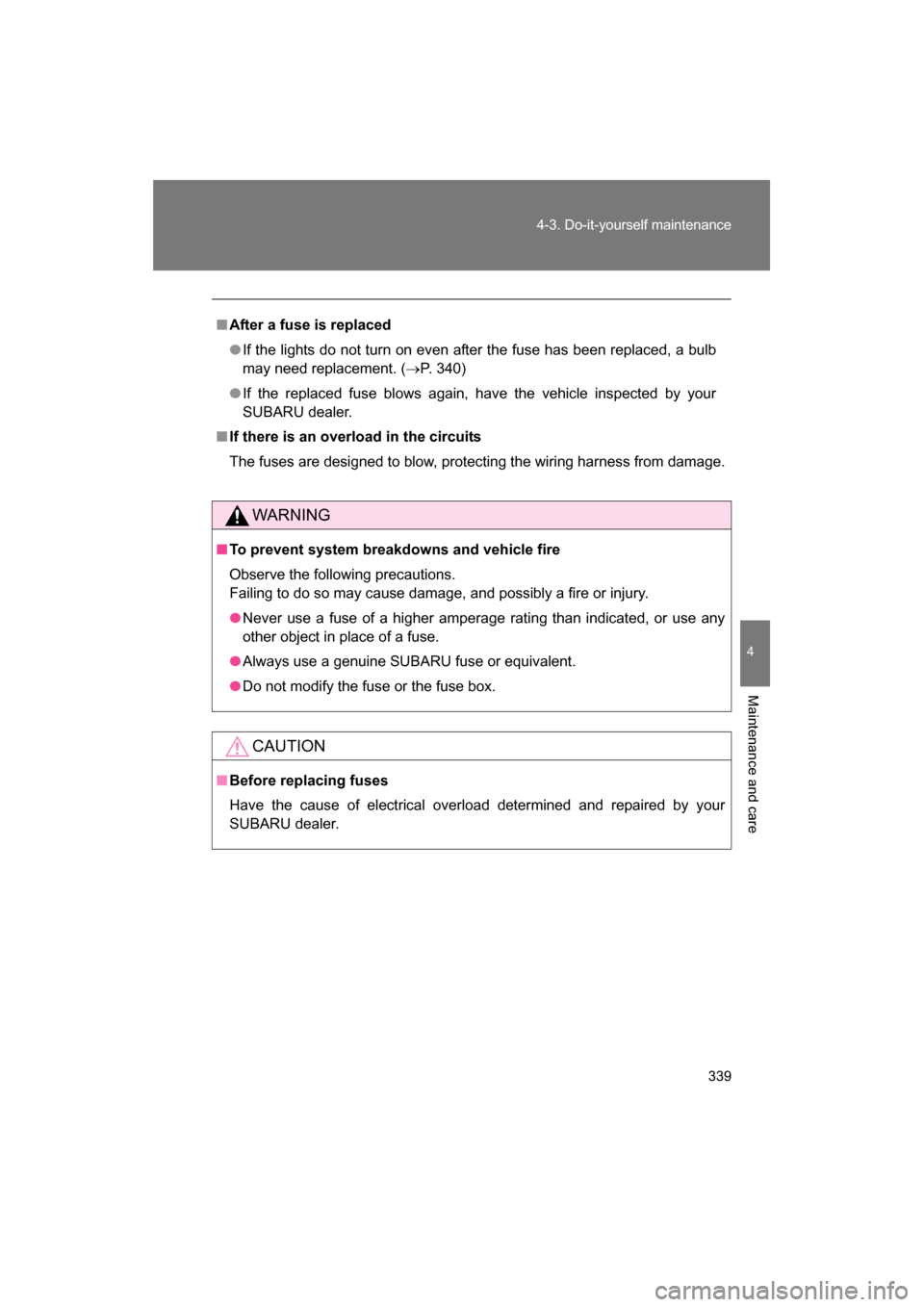

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (→P. 340)

Page 340 of 488

SUBARU BRZ 2014 1.G Owners Manual 340
4-3. Do-it-yourself maintenance

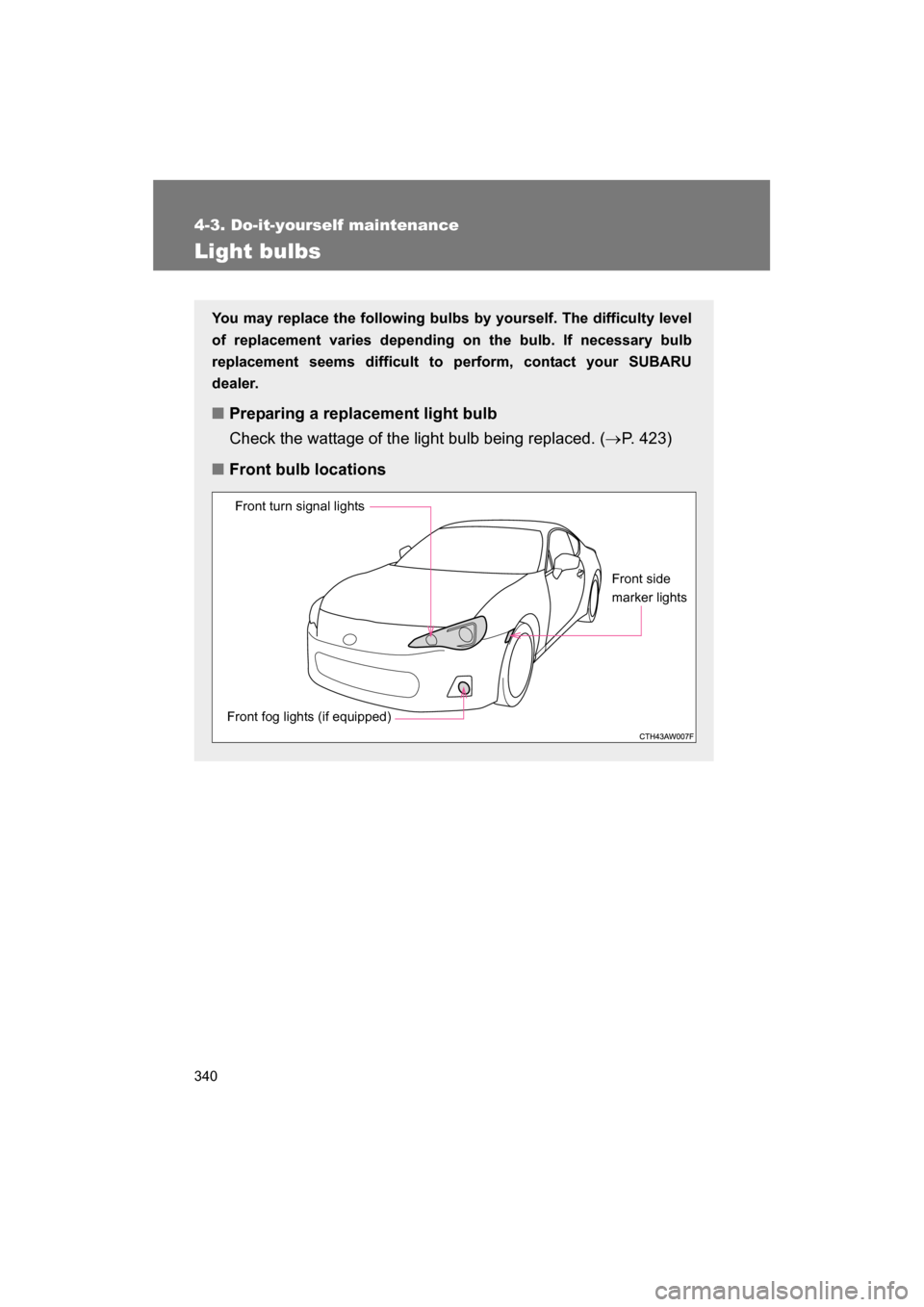

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems
